Oil filter relocation and cooler

From 1996 Ford Bronco “B3”, documented by Kingfish999.

14 photos
← Back to this vehicle

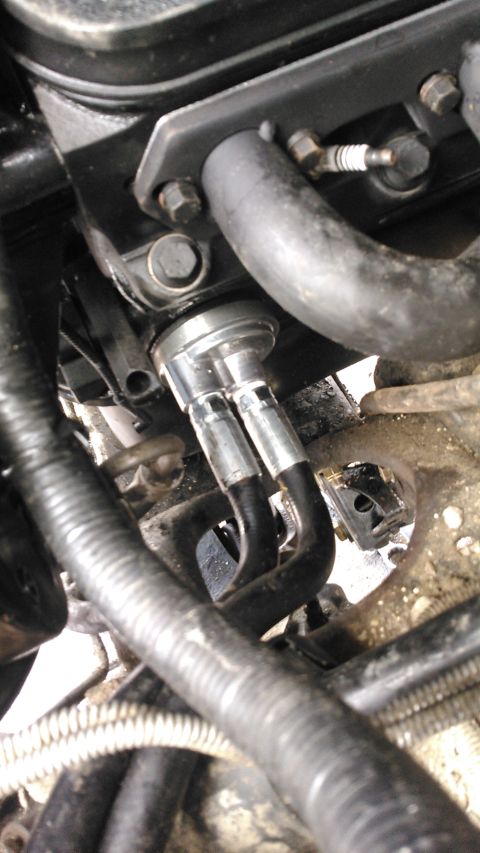

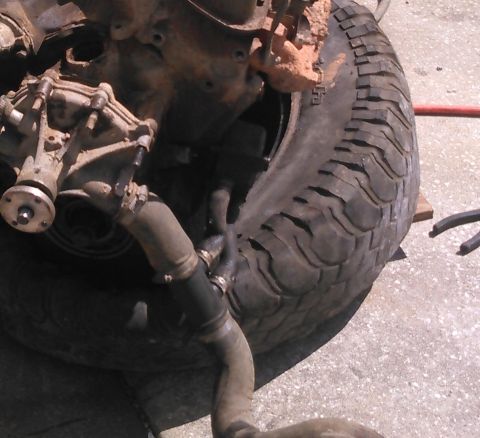

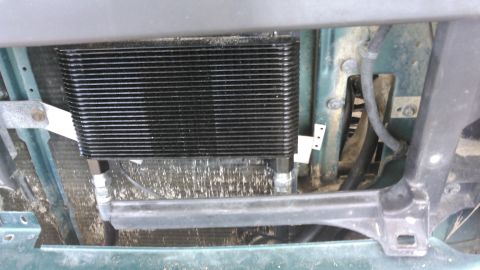

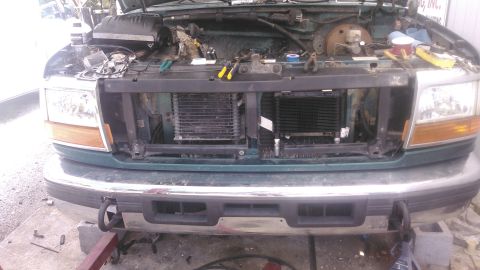

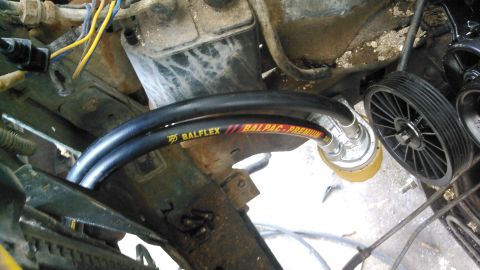

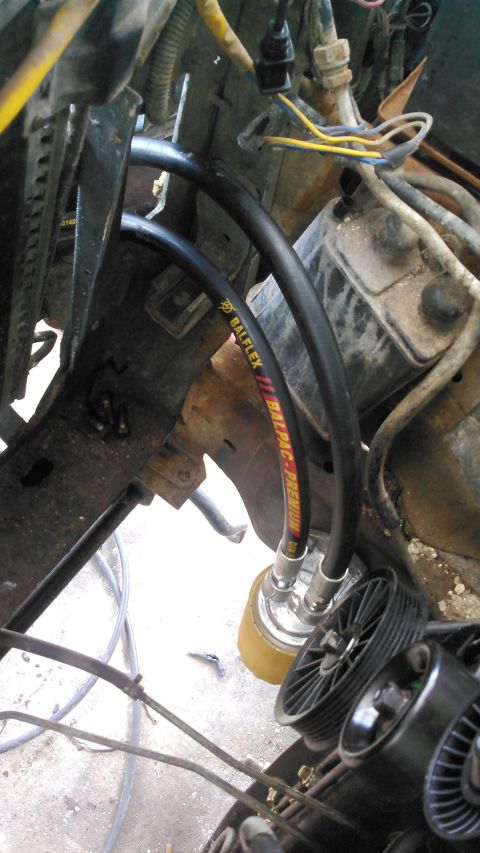

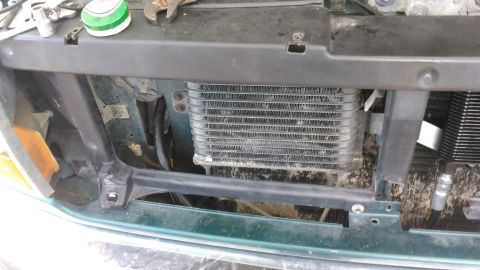

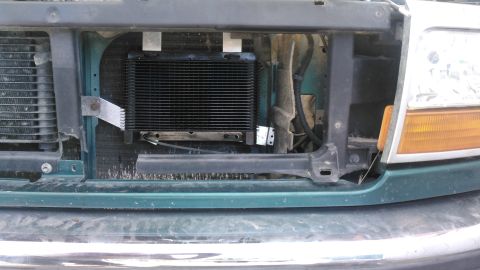

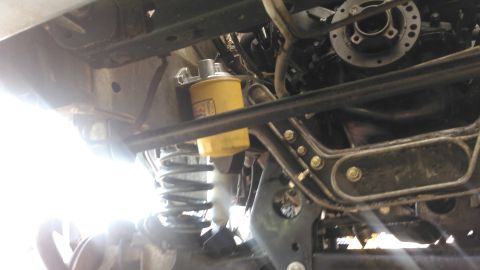

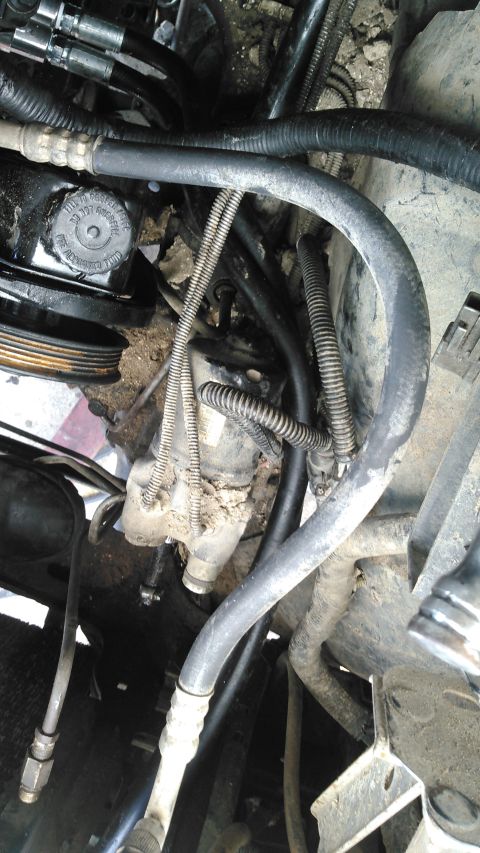

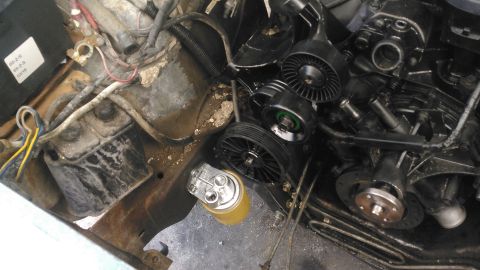

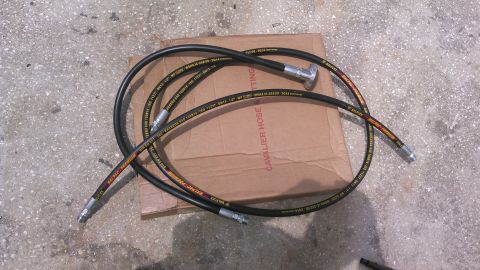

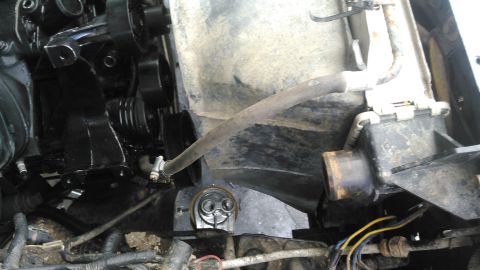

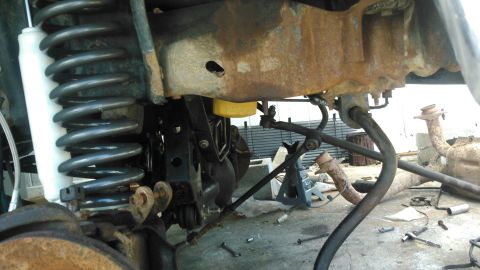

1996 Ford Bronco - the very late years 351w have a factory oil cooler setup. it has an adapter that goes between the engine and the oil filter that cools the… 1996 Ford Bronco - i have a air cooled oil cooler. it has 1/2 inch NPT threaded connections which i have pointed to the bottom. the cooler did not inclued any… 1996 Ford Bronco - i had alot of conflicting ideas where to relocate the oil filter to. i wanted the filter to be easy to access to change the filter, open to… 1996 Ford Bronco - bottom frontal view of the mount 1996 Ford Bronco - top view of mount with the radiator and fan shroud mocked into place. there should be plenty of room to clear everything 1996 Ford Bronco - side view. the filter is only slightly exposed from the bottom of the frame. it should be well protected 1996 Ford Bronco - the filter relocation kit comes with 2 short 36" hoses which i cant use and i dont trust very much as i had issues on my previous truck wit… 1996 Ford Bronco - i have the 2 hoses installed on the engine side adapter. both ends of the hoses are the fixed non-swiveling ends to try and save as much sp… 1996 Ford Bronco - i have the hoses ran over the top of the 4WABS pump between it and the wheel-well. i have the hose for the filter going through the opening… 1996 Ford Bronco - i have an finned oil cooler installed in front of the condenser behind the grill in a nice open spot. i fabricated some mounts to keep it w… 1996 Ford Bronco - this is passenger side cutout of the core support where the hoses from the cooler and the engine are going through to meet at the filter 1996 Ford Bronco - the hoses are running through the passenger side core support cutout and meeting at the filter. tho it doesnt appear to be, i have plenty o… 1996 Ford Bronco - Engine bay showing Balflex oil cooler lines and filter adapter, part of an oil filter relocation setup. 1996 Ford Bronco - how it looks form the front. im gonig to paint the brackets for the cooler so it wont be seen easilly
