Retrofit Projector Headlights

From 1996 Ford Bronco “B3”, documented by Kingfish999.

24 photos
← Back to this vehicle

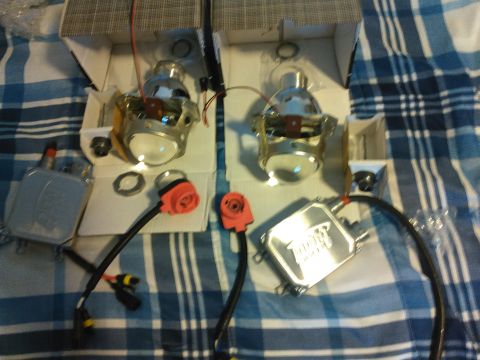

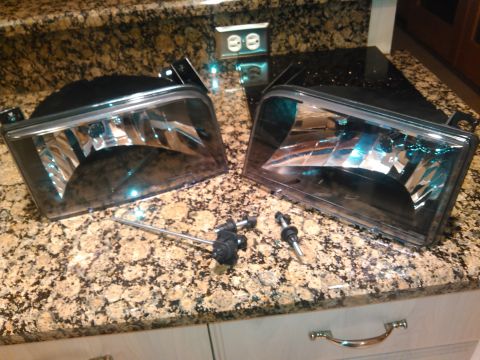

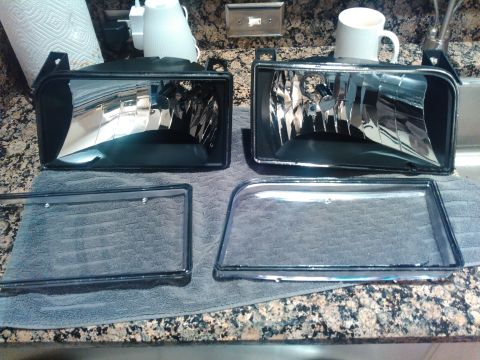

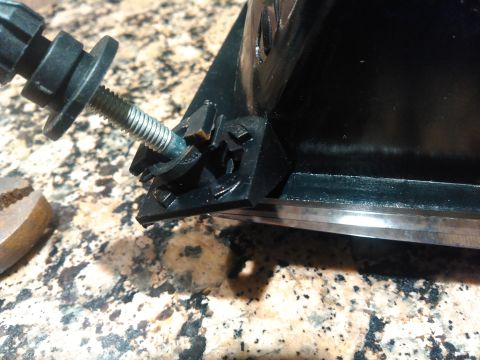

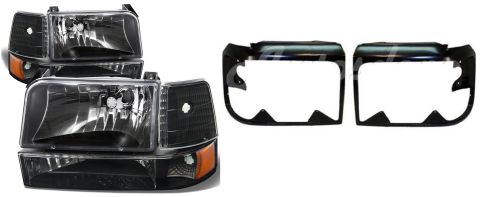

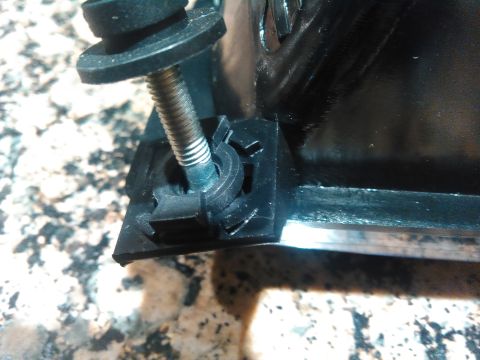

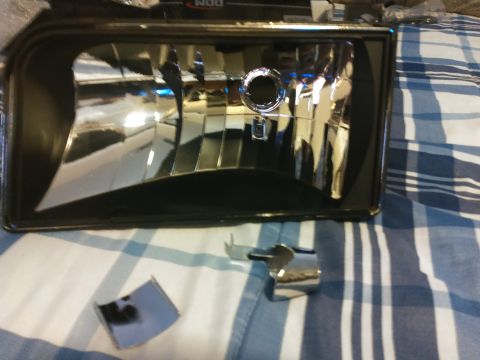

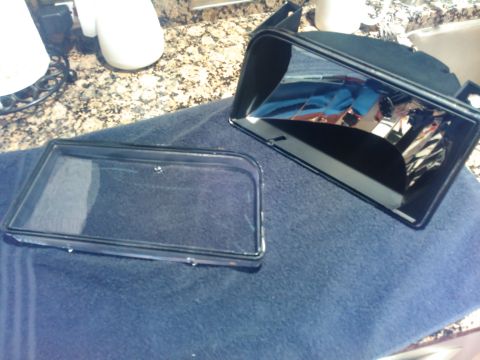

1996 Ford Bronco - my current headlights are basically these same headlight housings are all chrome. they are the clear lenses with a little shroud to prevent… 1996 Ford Bronco - you just rotate the center section 90 degrees counterclockwise. it will take abit of force to force it ove rthe locking bump 1996 Ford Bronco - it jsut pulls out after that 1996 Ford Bronco - i heated my lenses to 300* degrees F for 15 minutes. i wasn't sure what kind of glue was used and feared it was a glue that would not separ… 1996 Ford Bronco - using a pair of screwdrivers and a putty knife i worked at it slowly enough not to damage it but quickly enough so the glue doesn't re-hard… 1996 Ford Bronco - got the lenses off with little difficulty 1996 Ford Bronco - this is the projector kit i ordered from DDM Tuning. These are D2S V2 3inch projectors. the HID kit is the Ultra 55w 5500K. The shrouds i g… 1996 Ford Bronco - A pair of black projector headlights and a pair of black headlight bezels are displayed against a white background. The headlights feature… 1996 Ford Bronco - i took the little center shroud off. was only held in by 1 screw. there was a little chrome piece on the top which i originally took off bu… 1996 Ford Bronco - the threads were much too big to fit in the original hole. the alignment ring didnt fit in the hole either. besides the threads are not lon… 1996 Ford Bronco - i used a grinder to grind the locking area off. i later used a sander to get it nice and flush. i used a dremel to englare the center hole… 1996 Ford Bronco - the threads now fit through and there is plenty of threads for the lock ring and bulb retainer 1996 Ford Bronco - the projector has a 2 wire plug for high beam. jsut need to drill a hole big enough for the plug to fit through. if desired youy can disass… 1996 Ford Bronco - the projector inside the housing without the shroud. before you do final install, make sure the projector is right side up. the lens flips… 1996 Ford Bronco - projector inside the housing with the shroud and lens on 1996 Ford Bronco - both projectors installed temporary with the shrouds on but lenses off 1996 Ford Bronco - both projectors dry-fitted without glue on the lenses. i am going to clean them up better, test them out and then glue them up. i highly re… 1996 Ford Bronco - i didn't end up taking any pics of the rest of the assembly but it was very easy and assembled like it should. the projector i glued with J… 1996 Ford Bronco - pic of the lights on. 1996 Ford Bronco - the new projectors. they wern't adjsuted but you can see how the light has much better distribution while still being very bright. they hav… 1996 Ford Bronco - old clear lens reflector housing. they were very bright but also very blinding. not very good light distribution either 1996 Ford Bronco - A front 3/4 view of a dark green Ford Bronco parked on asphalt. The vehicle has a chrome grille with a Ford emblem and a white decal on the… 1996 Ford Bronco - Front view of a teal Ford Bronco with a chrome grille and a white banner on the windshield that reads "BUCKIN' BRONCO". The vehicle is park… 1996 Ford Bronco - A dark green 1996 Ford Bronco is parked in a lot with a sticker on the windshield that reads "BUCKIN' BRONCO". The truck features a chrome…
