Homelink install

From 1996 Ford Bronco “The Blue Beast” — documented by aschessla.

13 photos
← Back to this vehicle

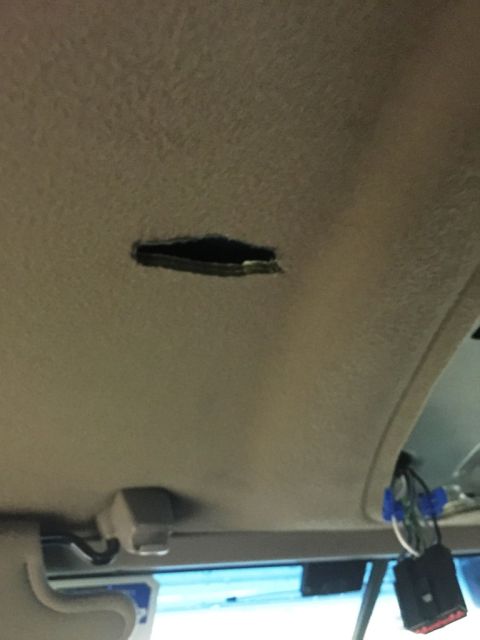

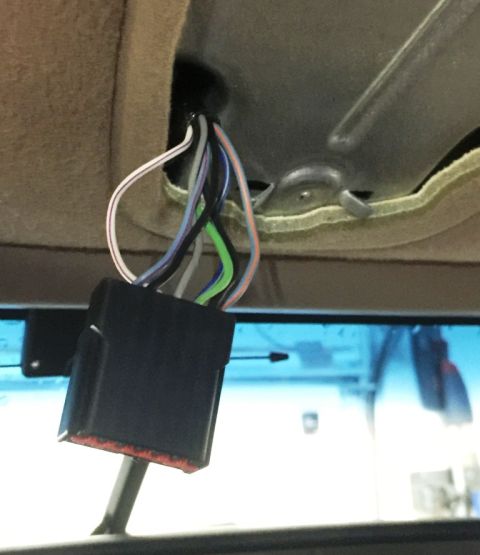

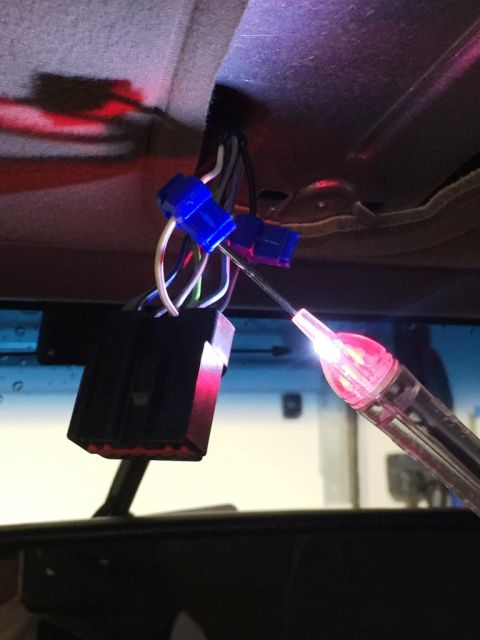

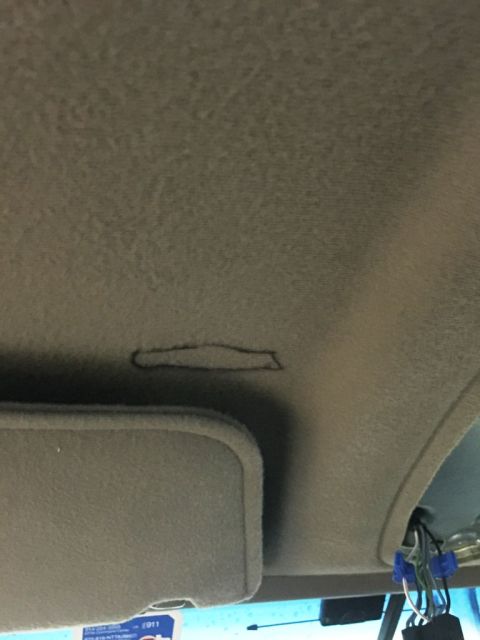

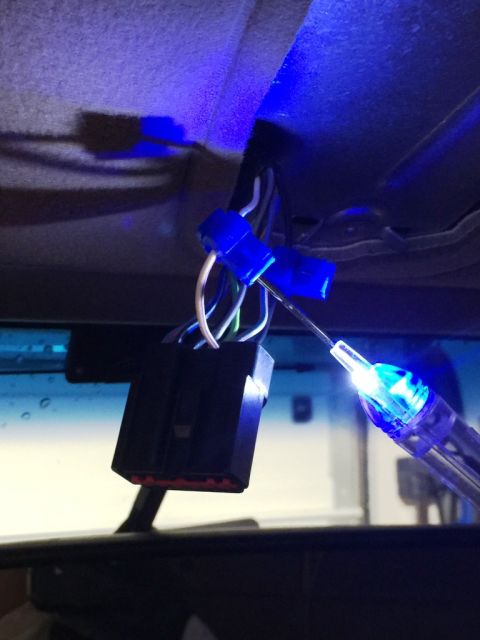

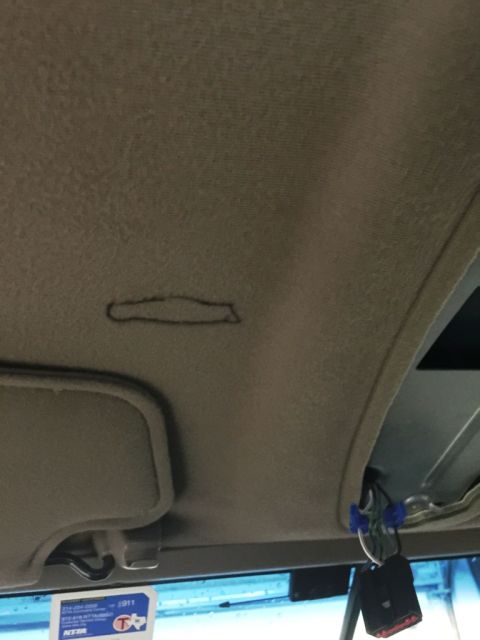

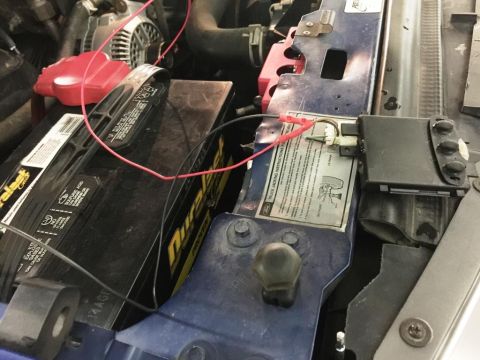

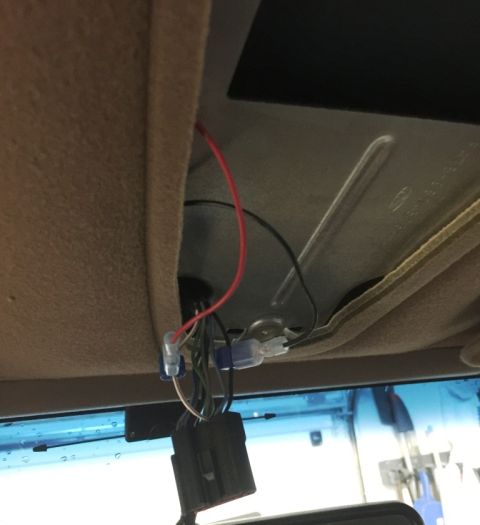

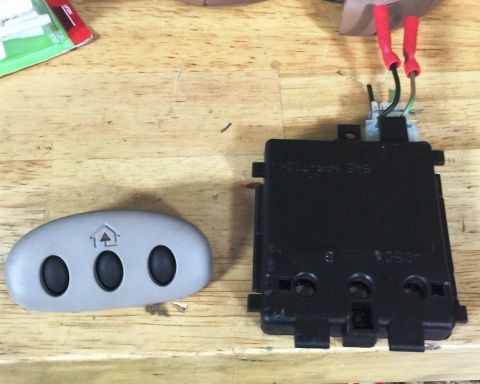

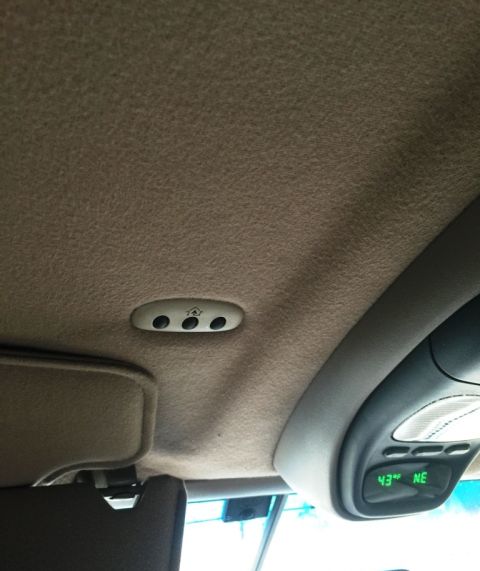

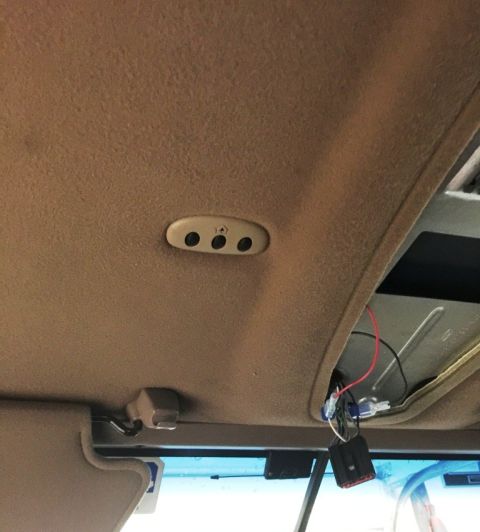

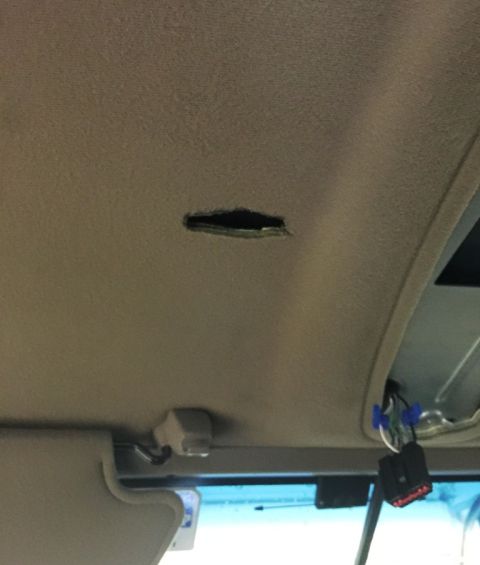

1996 Ford Bronco - Homelink module from a Ford Explorer 1996 Ford Bronco - Testing just to make sure it works! I meant ahead and programmed it at this time. 1996 Ford Bronco - This is the wire harness for the overhead console. I ended up using the white/red wire which is power in the Key On position. The black/blu… 1996 Ford Bronco - Testing wires. I decided to power the module with the key only to prevent someone from breaking the window and opening the garage when the… 1996 Ford Bronco - Power with the key in run. 1996 Ford Bronco - Tracing the opening. I wanted the buttons just in front of the sun visor. 1996 Ford Bronco - Here's an idea of how it will look with the visor in place. 1996 Ford Bronco - Used an exacto knife to trim the headliner. I ended up having to trim some of the headliner backing so the module cover would snap in. Ther… 1996 Ford Bronco - Just another view. Click on the image and you can see the headliner thickness a little better. 1996 Ford Bronco - Module in and cover in place. I added a drop of super glue as the cover would not stay secure on one side. They appear to be one-time use o… 1996 Ford Bronco - Power and ground tapped in. 1996 Ford Bronco - All finished up. Looks very clean and OEM! 1996 Ford Bronco - 1st real use to close the garage as I head out!!! The module gets much better reception vs the garage hand held in the overhead console cub…
