fuel pump replacement

From 1996 Ford Bronco “Rio”, documented by thebroncofanatic.

10 photos
← Back to this vehicle

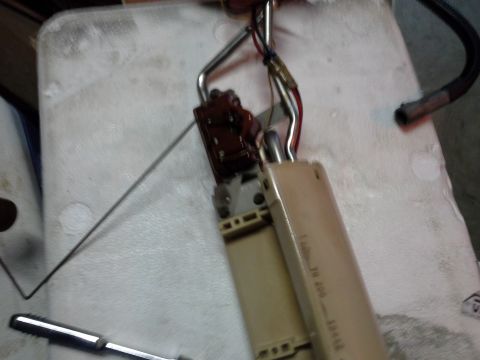

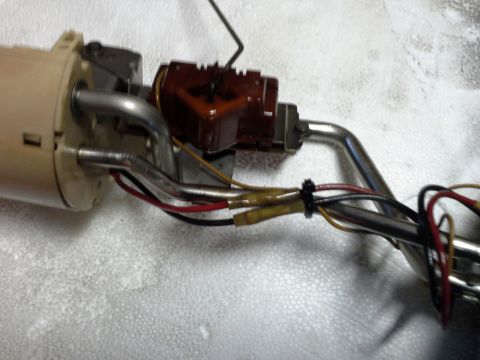

1996 Ford Bronco - Guide to fuel pump replacement I made an access panel in the floor its about 8x11" I measured and cut it out based on steve83 's specs and… 1996 Ford Bronco - A cut-out in the vehicle's undercarriage reveals the top of the fuel tank and its associated fuel lines and sending unit. 1996 Ford Bronco - The cut panel Im going to make it hinged and reseal it to the floor 1996 Ford Bronco - Gas tank ring removed. It is important to keep the area around the pump clean and free of dirt 1996 Ford Bronco - Quick disconnect tool I used about $5 at an autoparts store 1996 Ford Bronco - Got the pump and sender out and as you can tell the pump has been replaced before because of the butt connectors on the red and black wires… 1996 Ford Bronco - A close-up view of a fuel pump assembly with various hoses and electrical connectors, resting on a white textured surface. 1996 Ford Bronco - There are 3 1/4 screws that holt the pump to the sender and float assembly that need to be removed 1996 Ford Bronco - A close-up view of a fuel pump assembly with a fuel level sending unit, resting on a white surface. The assembly includes a metal arm, elec… 1996 Ford Bronco - Close up on the wires I was in a hurry to get everything done and I had gas everywhere so I diddnt take anymore pics but the aftermarket pu…
