Dana 60

From 1986 Ford Bronco “Booma” — documented by Jake Scaglione.

39 photos
← Back to this vehicle

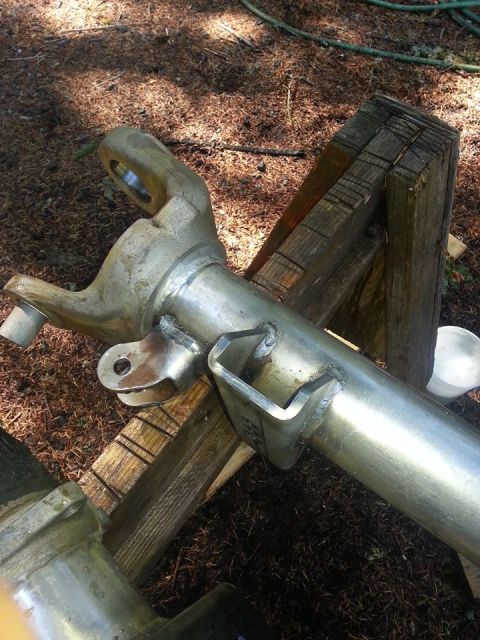

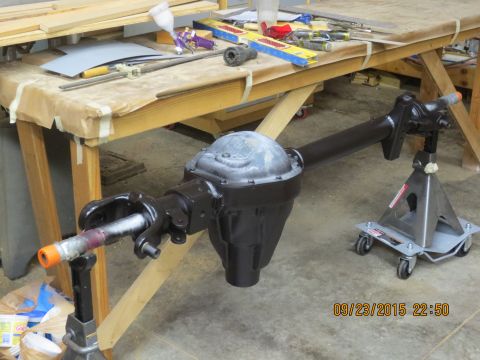

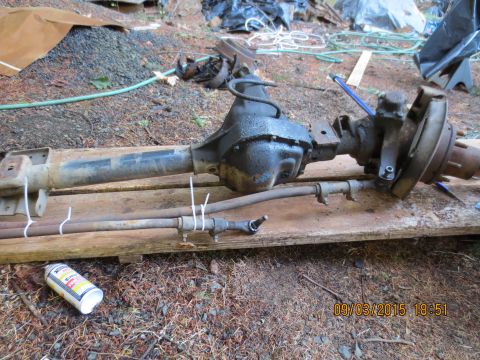

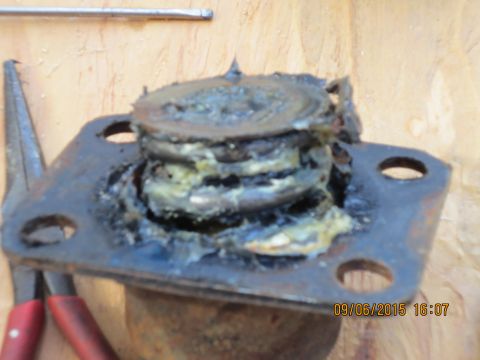

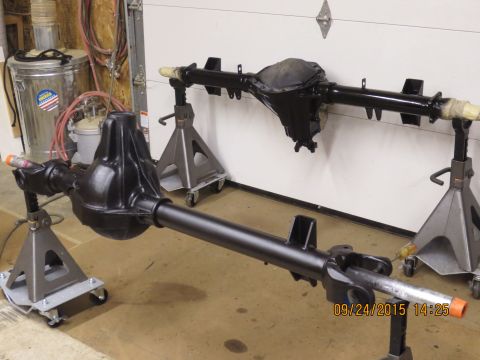

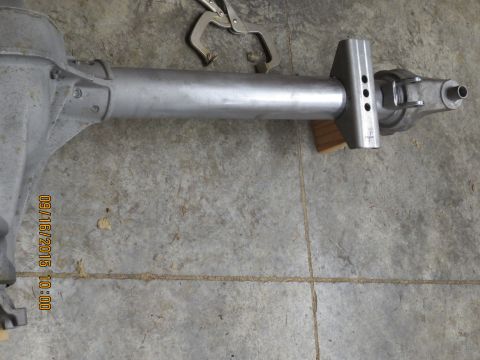

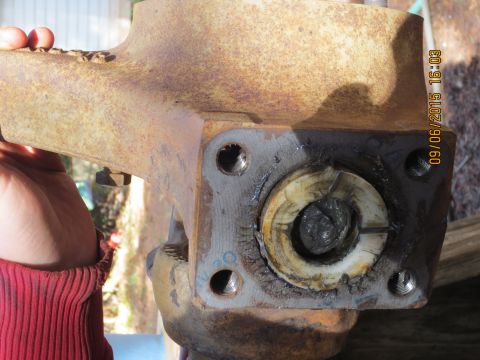

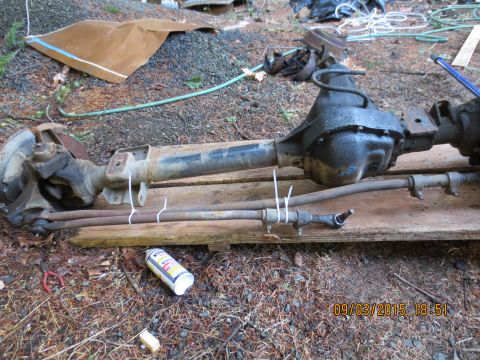

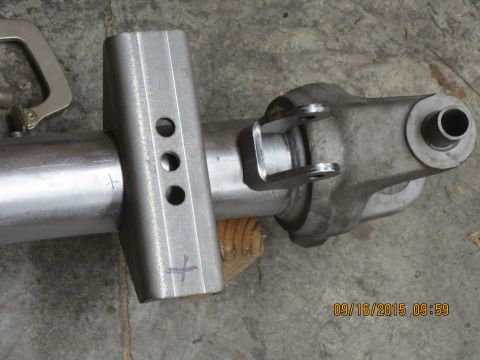

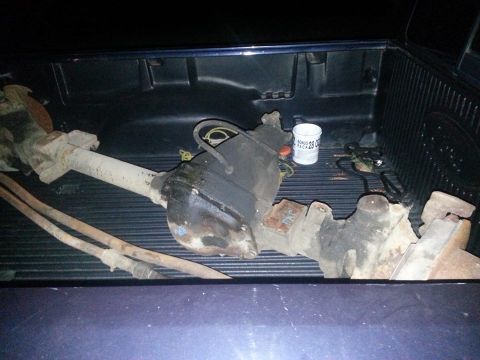

1986 Ford Bronco - the night I brought it home. only missing calipers. rotors are cracked too. I already have a kit ordered to swap it to the chevy single pis… 1986 Ford Bronco - Dana 60 fronts are heavy fawkers... 1986 Ford Bronco 1986 Ford Bronco - This axle has clearly seen better days... everything was rusted together. 1986 Ford Bronco - Took my Dad and I over 4 hours to get this thing off the bed of the ranger and onto jack stands. In the future I think I'll pull some stuff… 1986 Ford Bronco - doesn't look too good in there. 1986 Ford Bronco - time for a springless cap conversion! 1986 Ford Bronco - Took the axle down to a local machine shop to torch off the bracket below the spring pad. I come to pick it up and both the panhard bar bra… 1986 Ford Bronco - I don't have pictures of the king pins coming out, but I don't want to have to take those out ever again. 1986 Ford Bronco - new spring pad and shock tabs welded on. I'm impressed with the welding down there at custom machine. 1986 Ford Bronco - Dana 60 shot with epoxy base coat. Also notice my poor man rollers. the pipe makes it nice to move it around while painting. 1986 Ford Bronco - both axles getting the top coat. I believe the 60 hasn't been painted yet and the 14 bolt is drying in the back. 1986 Ford Bronco - Chevy JB7 front calipers (3/4T HD) 1986 Ford Bronco - Sky Manufacturing OBS shackle reversal kit for 85-91 trucks. (fits 80-91 frame horns) 1986 Ford Bronco - Sky Manufacturing High steer arms with king pin spring eliminator. These are a very nice piece. well worth the money 1986 Ford Bronco - Sky Manufacturing front leaf rear hangers. These are a good option if you don't have the time to pull your own from a junkyard truck. 1986 Ford Bronco - Sky Manufacturing Dual shock mounts. Finally a good dual shock option! very thick and well made. 1986 Ford Bronco - Sky Manufacturing shackles with the weld in box pieces for the front crossmember 1986 Ford Bronco - Toast spindle from original axle. 1986 Ford Bronco - orientation of seals for axle stub shafts. the difference between 30 spine and 35 spline is nuts. If you're rebuilding an axle and have the… 1986 Ford Bronco - side shot of the leaf crossmember. Leafs are going to hang down a little lower than I wanted, but should be fine in reality. 1986 Ford Bronco - painting rack of all the goodies! 1986 Ford Bronco - Reid Kingpin knuckles. 330 bucks a side for the Ford variety. These things are extremely well made and I do not expect a failure from these… 1986 Ford Bronco - 60 housing shot. you can see where I notched on the one side for the narrower leaf. I didn't notch the other end of it. I think I'd rather… 1986 Ford Bronco - new ruffstuff perch and shock mount for the passenger side. 1986 Ford Bronco - painted leaf crossmember 1986 Ford Bronco - fresh spindles and an HD saginaw pump with dual return lines for a future hydroboost install. 1986 Ford Bronco - here are the high steer arms mocked up on the Reid knuckles. 1986 Ford Bronco - Eaton Elocker for the front.... 1986 Ford Bronco - no orange for me thanks. 1986 Ford Bronco - Two red-painted Dana 60 axle knuckles are shown in a workshop setting. 1986 Ford Bronco - Axle shafts are prepared for painting in a workshop setting. 1986 Ford Bronco - 35 spline outers. 1986 Ford Bronco - ahhh that's better 1986 Ford Bronco 1986 Ford Bronco - the welded part of SKY's shackle reversal. it pretty much slides into place, I had a harder time on the passenger side frame horn because i… 1986 Ford Bronco 1986 Ford Bronco - Mark Williams Bearing caps and gears/ Elocker installed. Can't wait to try this girl out! 1986 Ford Bronco
