rear view mirror w/ compass and temperature

From 1990 Ford F-250 “Creampuff” — documented by Kingfish999.

16 photos
← Back to this vehicle

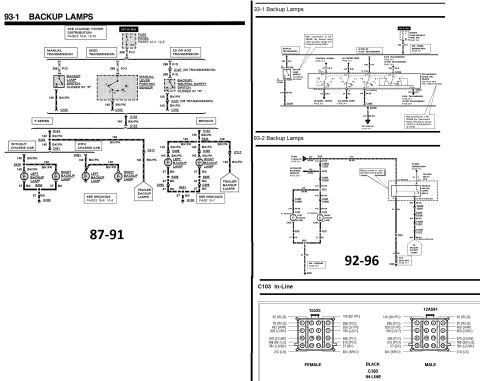

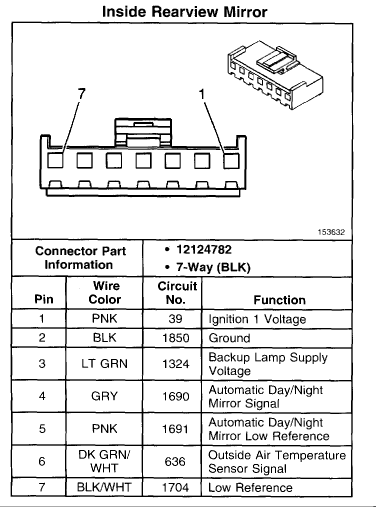

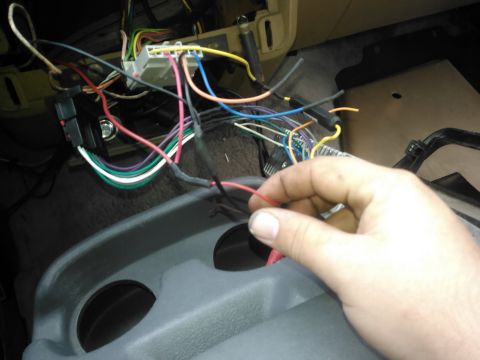

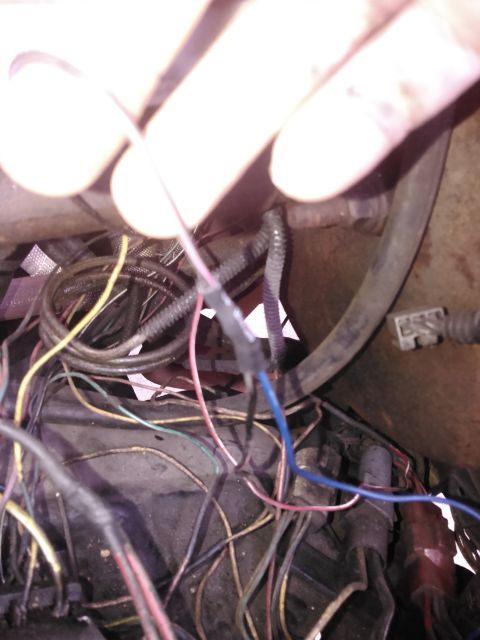

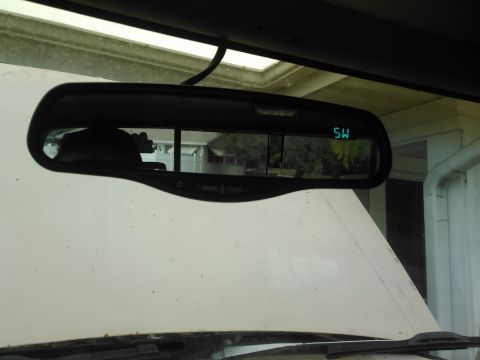

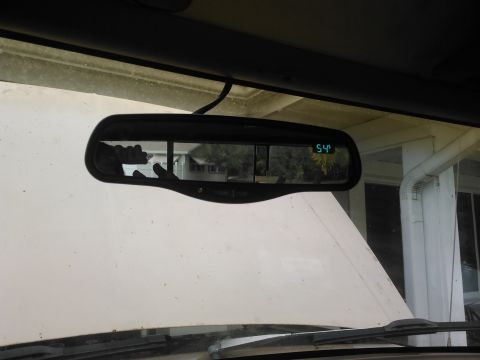

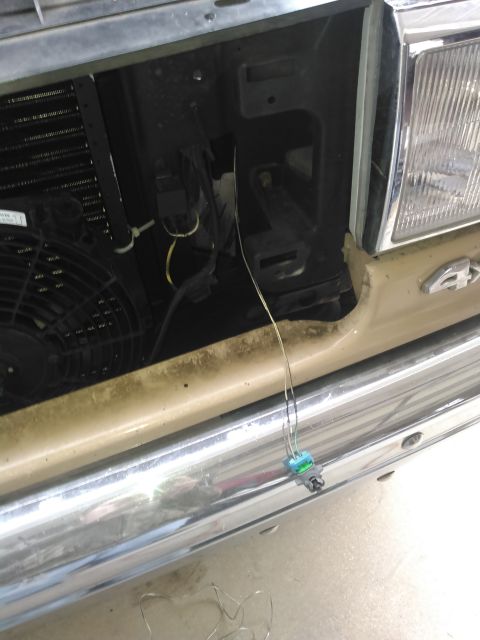

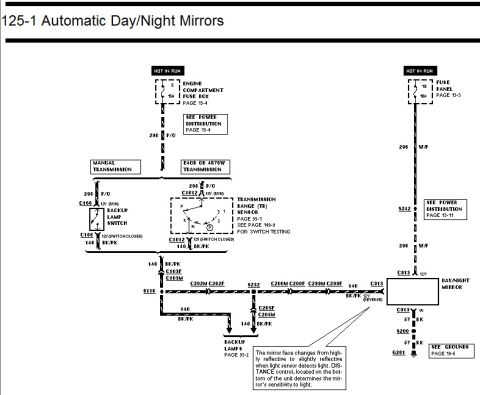

1990 Ford F-250 - This is a rear view mirror that came on some GM vehicles. it has a compass and temperature display and is auto dimming. they are avalible a… 1990 Ford F-250 - the actual pinout diagram for the mirror 1990 Ford F-250 - the wiring is pretty simple. it needs a power and ground. for the tempature display it needs 2 wires ran for the sensor. optionally you can… 1990 Ford F-250 - this is jsut soem of the wiring i had laying around. i had a spool of red wire i used for the power. i had a black wire which is smaller th… 1990 Ford F-250 - i soldered the wire up tot he connector that came with the mirror. the polarity of the temp sensor is not important 1990 Ford F-250 - my old mirror fell off and the new one came with the mounting tab so i just glued the new tab on. the original tab should be the same so th… 1990 Ford F-250 - take off or jsut loosen the trim so the wiring can be ran behind it. if you take it off you can make a groove where the wire goes so the me… 1990 Ford F-250 - you will need to take this trim off also. 1990 Ford F-250 - got the mirror wiring in and trim back on. leave enough slack in the wiring so the mirror can be adjusted freely 1990 Ford F-250 - i ran the sensor wire to the front of the truck and soldered it up to the sensor it came with. i mounted the sensor near the bumper so radi… 1990 Ford F-250 - my wiring is kinda messy due to my Explorer EFI swap. i found the wire for the reverse light and spliced it in. the wire color is Black w/… 1990 Ford F-250 - the ground can go to pretty much any ground of the truck. the power will need to be on a Key On power so its only on when the key is turned… 1990 Ford F-250 - the rear view mirror showing temperature outside. for being in Florida its pretty chilly outside 1990 Ford F-250 - mirror showing direction 1990 Ford F-250 - if you had an existing auto-dimming mirror, you will already have power, ground and the reverse signal even further simplifying the install 1990 Ford F-250 - to help find the reverse wire of your truck
