Electrical System Diagrams

From 1978 Ford Bronco, documented by wheelin78.

3 photos
← Back to this vehicle

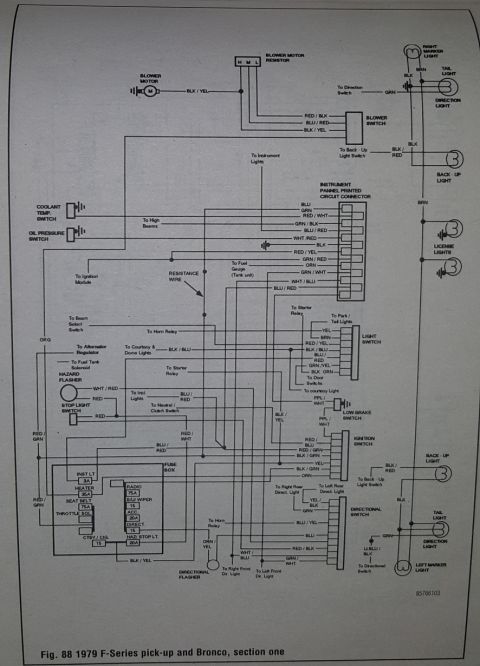

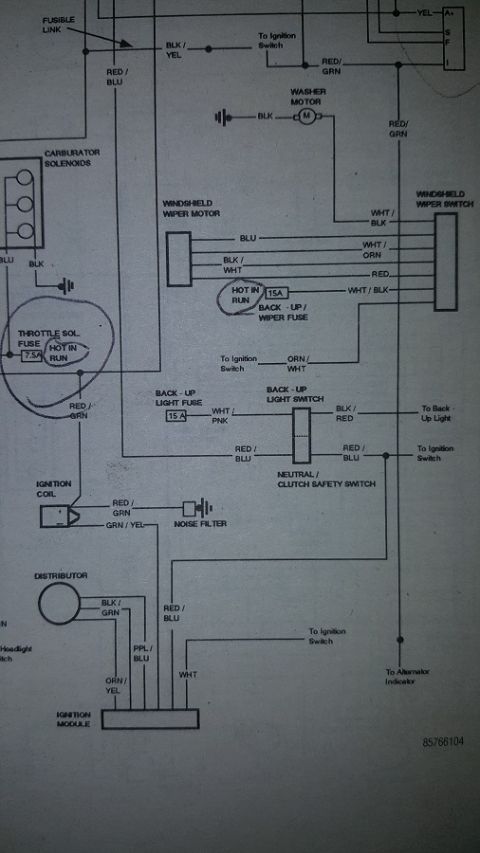

1978 Ford Bronco - 1978/79 Ford Bronco Section 2 Electrical System 1978 Ford Bronco - 1978/79 Ford Bronco Section 1 Electrical System 1978 Ford Bronco - Automotive wiring diagram showing windshield wiper, washer, back-up light and ignition circuits with color-coded wire labels.
