Fabrication

From 1995 Ford Bronco “Wookie”, documented by flomaster.

33 photos
← Back to this vehicle

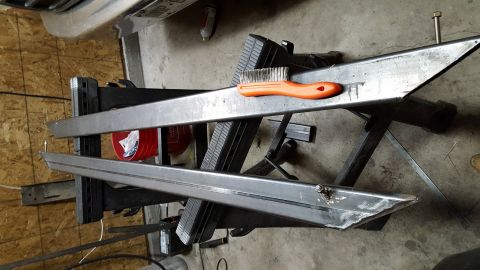

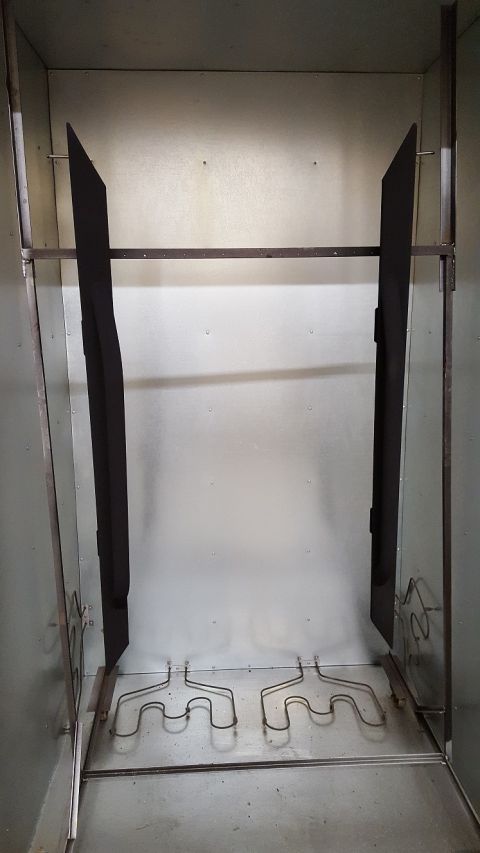

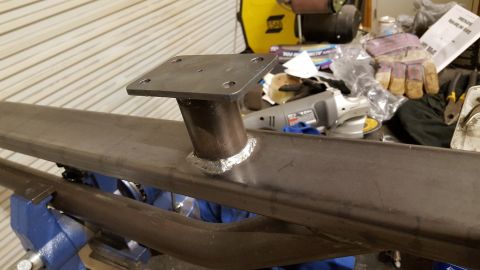

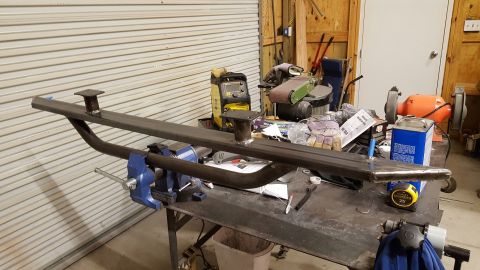

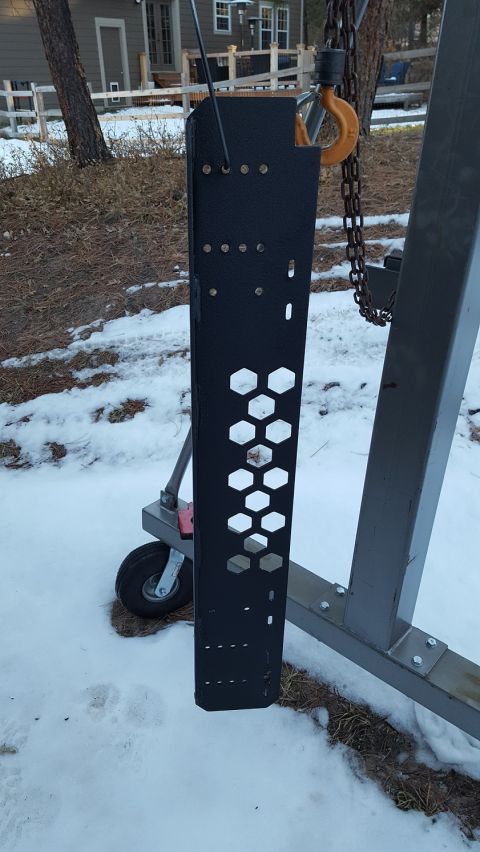

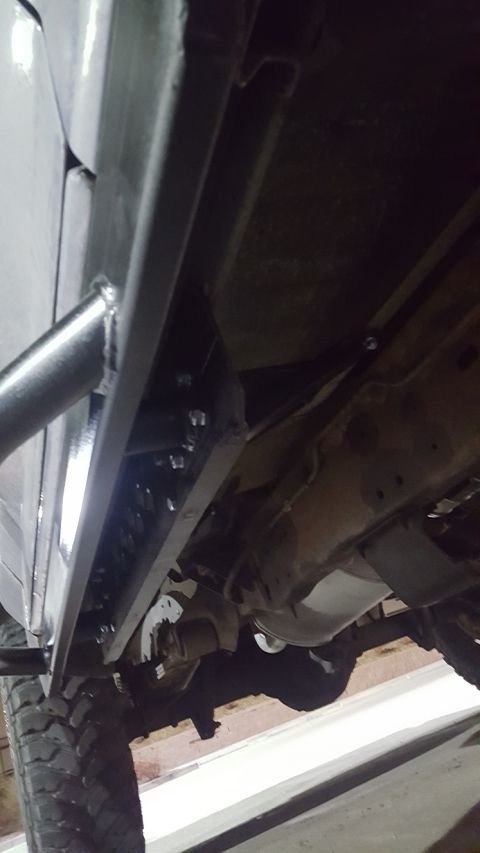

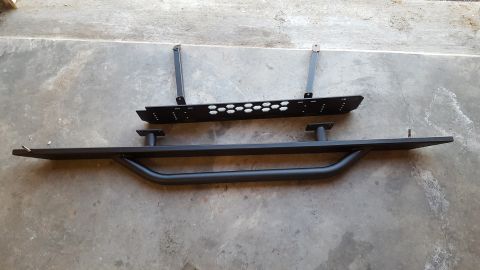

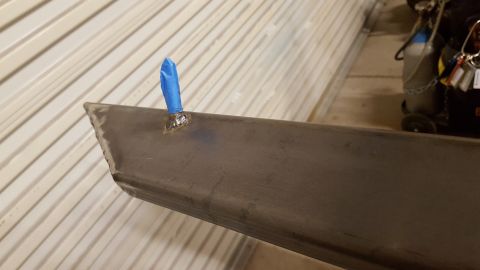

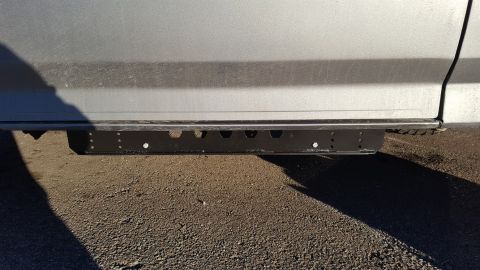

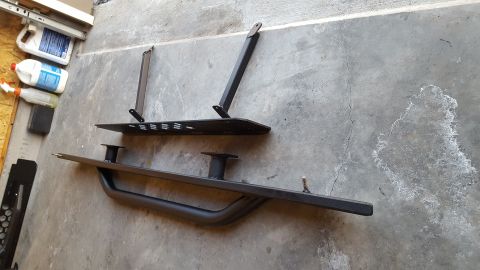

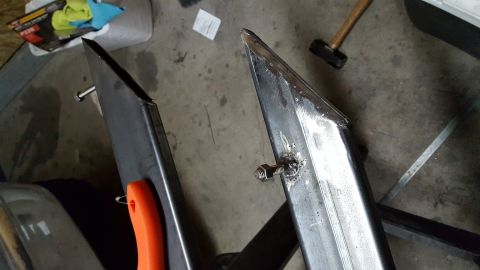

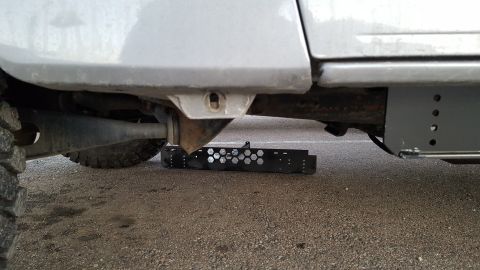

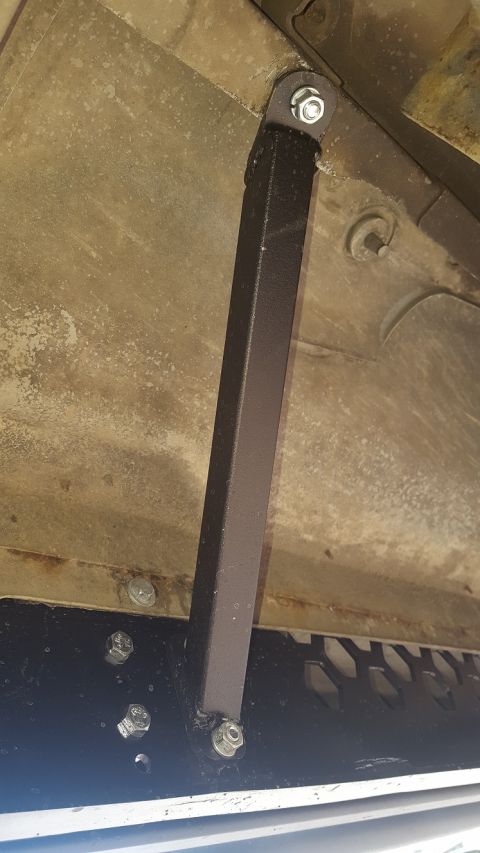

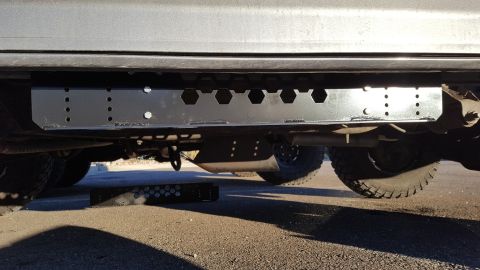

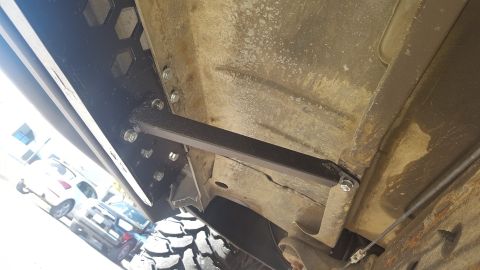

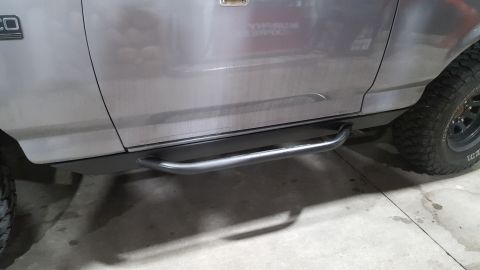

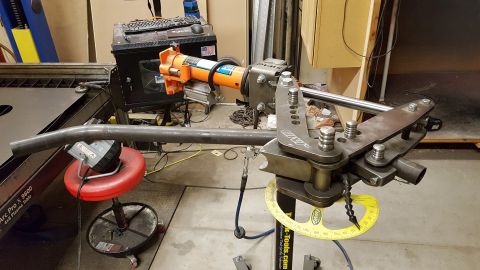

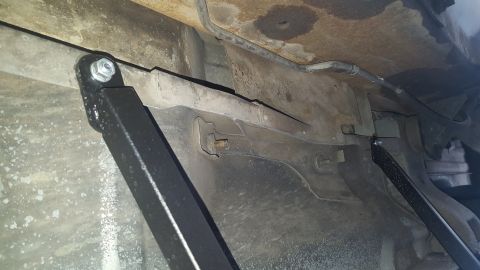

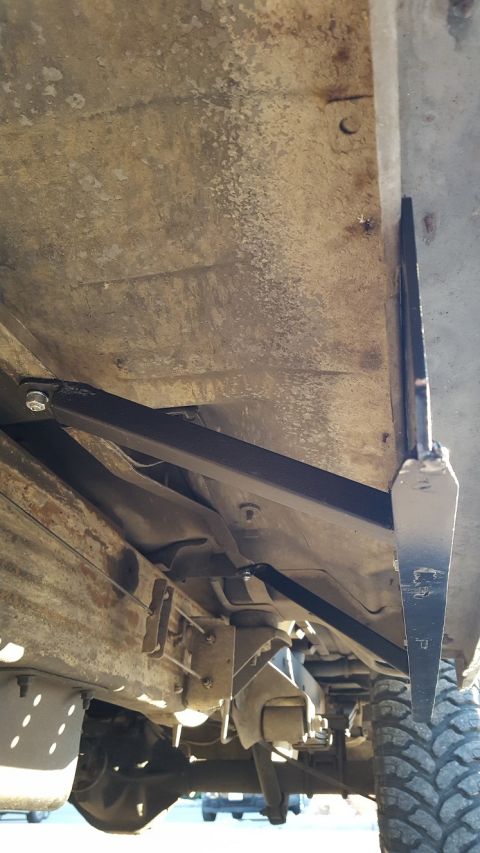

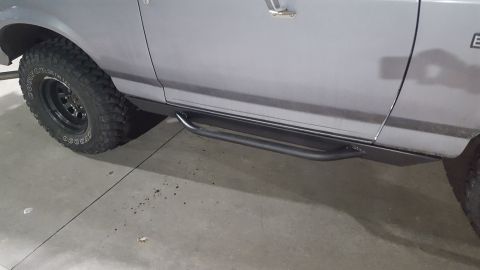

1995 Ford Bronco - These are the trusses that I've designed so that I can mount interchangeable mounts to the Bronco. They're CNC cut and made from 3/16"… 1995 Ford Bronco - These are the rock sliders I plan to mount. Notice the mounting screws welded into them at the front and the back. The front is angled so t… 1995 Ford Bronco - This is a closer shot of the front mounting location. While this is not the only mounting location (there are 4), this will aid in the stab… 1995 Ford Bronco - Another shot at the front mounting location. 1995 Ford Bronco - Bending the tubing for the step. 1995 Ford Bronco - Completed rock slider and step mount. The next step will be powder coating. 1995 Ford Bronco - This is one of the pads that will bolt to the truss (there are two of these), and is this the main mounting point for the sliders and step. 1995 Ford Bronco - A shot of the sliders/steps in the powder coating oven. In a few minutes these will be complete. 1995 Ford Bronco - This is a shot of one of the trusses cooling after coming out of the powder coat oven. 1995 Ford Bronco - Here's a shot of the assembly that will bolt up underneath the truck. From the outside in, there is the slider with step, the truss, and th… 1995 Ford Bronco - Another shot at the parts. 1995 Ford Bronco - A view from down low, after the truss has been mounted. 1995 Ford Bronco - This picture shows how the braces mount to both the truss and the truck. 1995 Ford Bronco - Another shot of the truss as it is mounted. Any type of step can be mounted to this truss. It can be a simple "hoop" style step,… 1995 Ford Bronco - I decided to make the rock sliders to go along with the step. In order to mount it to the front of the truck, I've decided to use the fende… 1995 Ford Bronco - Here is a picture of the entire assembly as it is mounted to the truck. 1995 Ford Bronco - The truck is filthy, but I now have a functional step. These steps and sliders are ROCK SOLID! There is no flex. 1995 Ford Bronco - A shot of the passenger side after completion. 1995 Ford Bronco - Because it was dark after I was finished, I had to go to the local gas station to take pictures. 1995 Ford Bronco - And another gas station picture. 1995 Ford Bronco - A silver 1995 Ford Bronco is parked in a lot, showing its side profile. The vehicle has aftermarket tires and black rims, with running boar… 1995 Ford Bronco - Aftermarket rock sliders installed on the underbody of a vehicle, with other vehicles in the background. 1995 Ford Bronco - Close-up view of aftermarket underbody bracing installed on a vehicle. 1995 Ford Bronco - Close-up view of the undercarriage, highlighting newly installed brackets and frame components. 1995 Ford Bronco - Close-up view of custom underbody fabrication and suspension components on a vehicle. 1995 Ford Bronco - Custom fabrication is visible on the underbody of this 1995 Ford Bronco, with large off-road tires prominent. 1995 Ford Bronco - Bolted running boards attached to the undercarriage of a vehicle. 1995 Ford Bronco - This photo shows a close-up view of the underside of a vehicle, focusing on a bolt and bracket attachment point. 1995 Ford Bronco - Close-up view of a custom fabricated bracket attached to the underside of a vehicle. 1995 Ford Bronco - Close-up view of a fabricated metal bracket mounted to the undercarriage of a vehicle. 1995 Ford Bronco - Detail of a vehicle's undercarriage with a bolt and bracket, and a Grand Cherokee in the background. 1995 Ford Bronco - The underside of a vehicle shows several rivets and bolts, with red circles highlighting some of the rivets. 1995 Ford Bronco - The underside of a vehicle is shown, with a metal brace circled in red, and other vehicles in the background.
