DSCF0163 - Suburban roof rack, full rails.jpg
36 hits | 16.98 KB | Posted: 9/2/18
'00-06 Suburban roof rack, test fit with full length rails.

DSCF0165 - Suburban roof rack, full rail foot placement.jpg
43 hits | 60.52 KB | Posted: 9/2/18

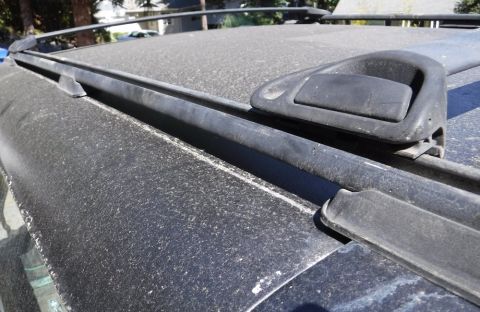

Foot placement relative to hardtop with full length rails.

DSCF0167 - Suburban roof rack, alignment with lengthwise seams.jpg
43 hits | 57.18 KB | Posted: 9/2/18

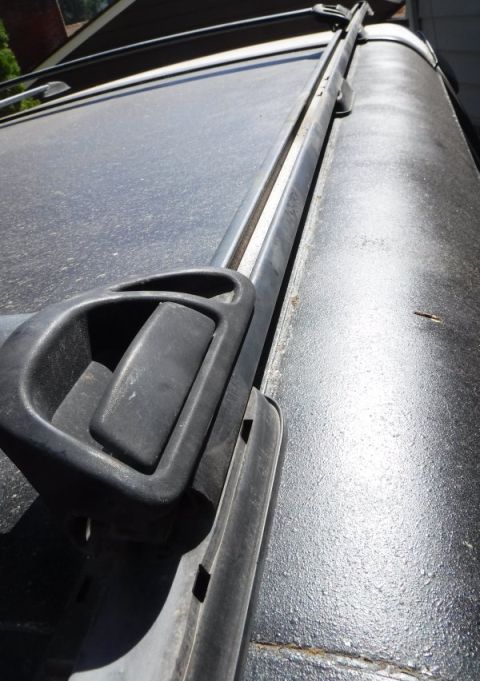

The 48" width aligns the outside of the rails perfectly with the lengthwise seams, so the bolt ...

DSCF0178 - Suburban roof rack, test fit with 3 feet.jpg
43 hits | 21.62 KB | Posted: 9/2/18

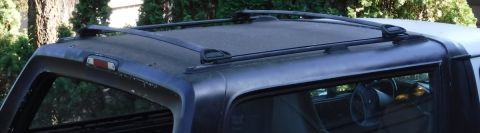

Rails cut to length (shortened by 34.25"), test fit with the middle and rear feet in the regula...

DSCF0179 - Suburban roof rack, 3 vs 4 feet spacing.jpg
39 hits | 11.62 KB | Posted: 9/2/18
Toying with the idea of adding a 4th foot (from the front portion that was removed) and evening out ...

DSCF0180 - Suburban roof rack, rails modified for 4 feet.jpg
40 hits | 15.23 KB | Posted: 9/2/18
Went ahead and mounted the 4 feet per rail, reusing one of the clip holes to adjust the spacing for ...

DSCF0183 - Suburban roof rack, top-cab lip overlap.jpg
37 hits | 46.88 KB | Posted: 9/2/18

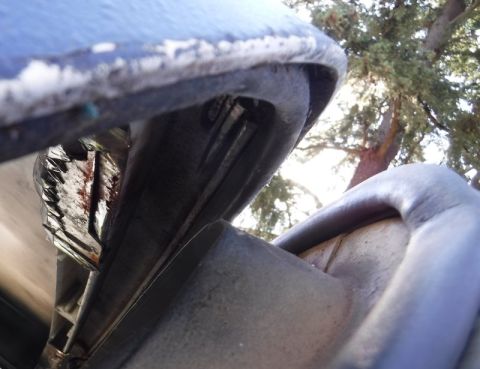

Looking up at the overlap between the topper's lip and the cab's rain rail; will mount the front foo...

DSCF0184 - Suburban roof rack, cab rain rail depth.jpg
38 hits | 61.19 KB | Posted: 9/2/18

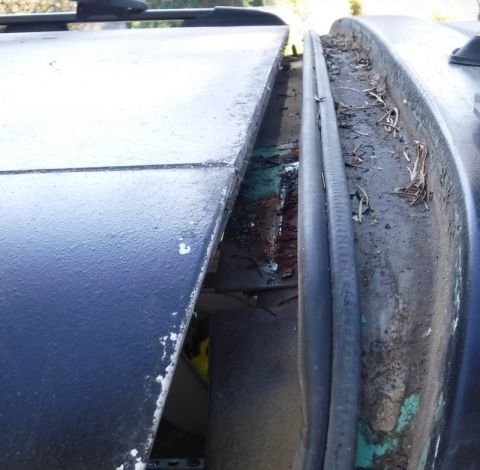

The depth beyond the main weatherstrip on the very dirty rain rail, for determining clearance of the...

DSCF0188 - Suburban roof rack, front lip bolt placement in weatherstrip ridge.jpg
45 hits | 22.65 KB | Posted: 9/2/18

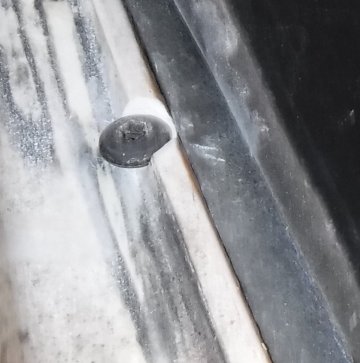

One of the two bolts I added for the front feet, looking up at the ridge behind the topper's weather...

DSCF0191 - Suburban roof rack completed.jpg
95 hits | 38.19 KB | Posted: 9/2/18

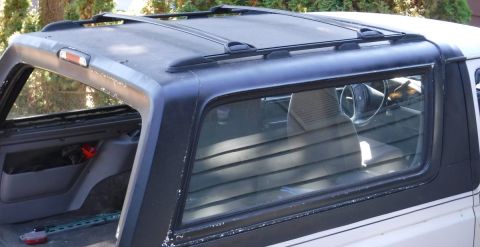

Completed! One of the tabs on the rear foot's cover wasn't clipped in...

DSCF0192 - Suburban roof rack, underside bolt placement.jpg
44 hits | 7.09 KB | Posted: 9/2/18
Where my bolt placement lined up on the underside of the topper.

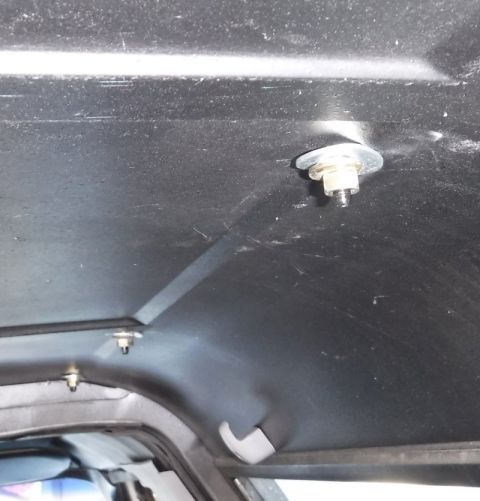

DSCF0193 - Suburban roof rack, nut-washer arrangement.jpg
41 hits | 52.03 KB | Posted: 9/2/18
Being right on the curve of the inner roof was an unwanted surprise. I bent some 1/4" fender w...

DSCF0194 - Suburban roof rack, front foot modification.jpg
41 hits | 26.93 KB | Posted: 9/2/18

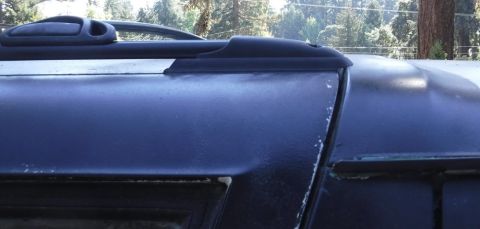

By pushing the front feet far enough forward to be able to mount the frontmost bolt right up next to...
