DSCF2593 - hand throttle shifter.jpg
67 hits | 70.99 KB | Posted: 10/20/20

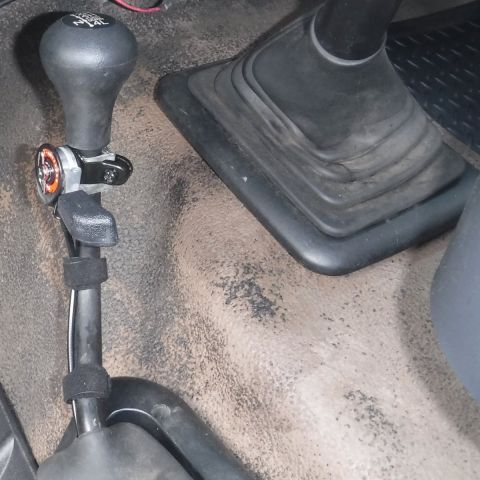

Hand throttle lever mounted to the transfer case shifter. Rather than an adapter, I used a couple w...

DSCF2615 - hand throttle ignition lock idea.jpg
40 hits | 30.4 KB | Posted: 10/20/20

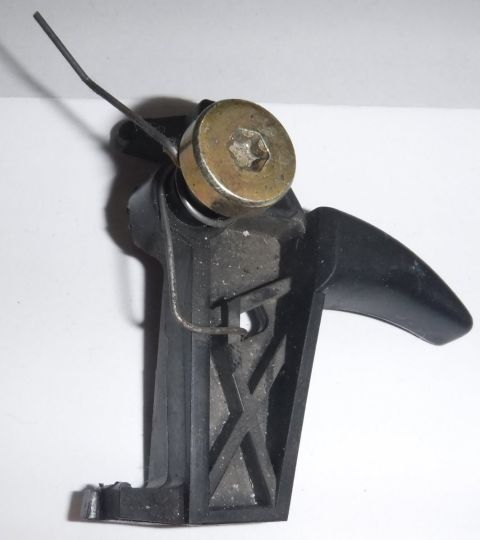

Initial idea for a throttle lever: shave the actuator tabs off the M/T ignition key lock (stupidest...

DSCF2616 - hand throttle CC cable stop disassembly.jpg
56 hits | 28.6 KB | Posted: 10/20/20

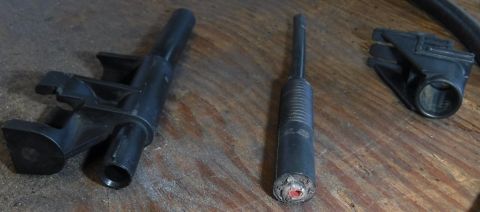

Chopped up a stock cruise control assembly. In the middle, I cut it down to just the main barrel in...

DSCF2618 - hand throttle CC cable stop disassembly.jpg
38 hits | 69.47 KB | Posted: 10/20/20

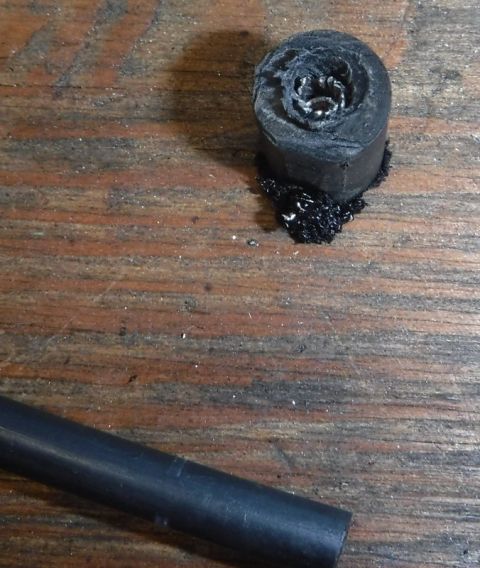

I was doing well with slowly opening up the metal center, until it blew up on me and got too tangled...

DSCF2619 - hand throttle CC cable stop disassembly.jpg
47 hits | 25.36 KB | Posted: 10/20/20

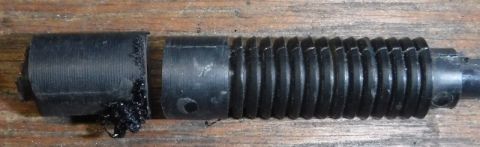

Here's how much to cut off to avoid dealing with the metal core. The ridged portion of the barrel o...

DSCF2620 - hand throttle CC cable stop disassembly.jpg
40 hits | 55.1 KB | Posted: 10/20/20

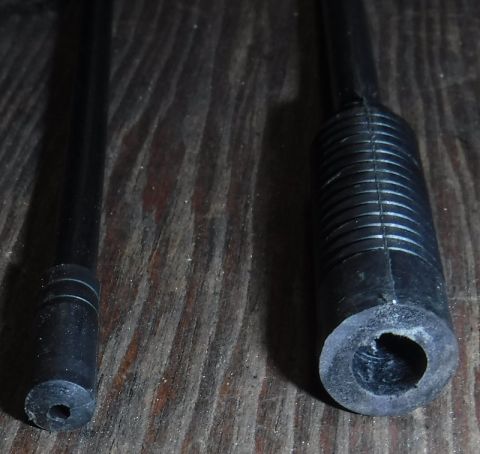

Plastic hollowed out enough to form a cable stop.

DSCF2622 - hand throttle stop screw travel.jpg
44 hits | 47.96 KB | Posted: 10/20/20

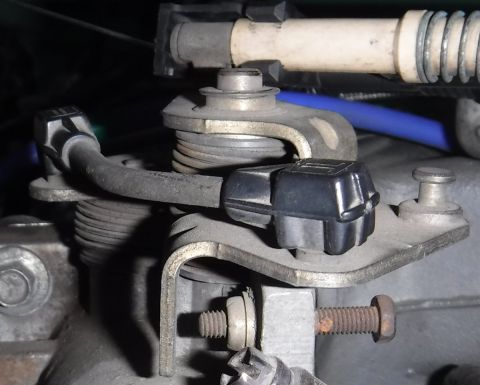

Needs a bit of adjustment still to find slack in the system, but the gap between throttle stop screw...

DSCF2623 - hand throttle CC assembly mounted.jpg
38 hits | 37.41 KB | Posted: 10/20/20

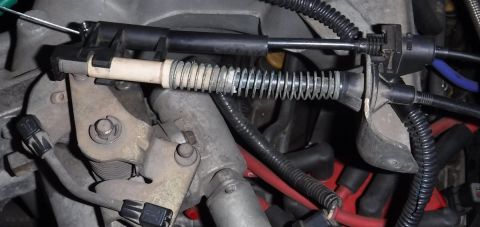

Mounted up. Visible at top left is the Odyssey Knarps cable clamp (I used the barrel stop end of th...

DSCF2625 - hand throttle CC assembly mounted.jpg
45 hits | 35.15 KB | Posted: 10/20/20

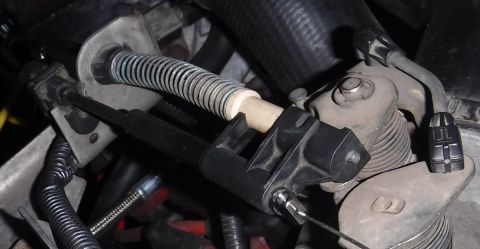

Top view of the "finished" assembly.

DSCF2614 - hand throttle cable routing.jpg
48 hits | 29.81 KB | Posted: 10/20/20

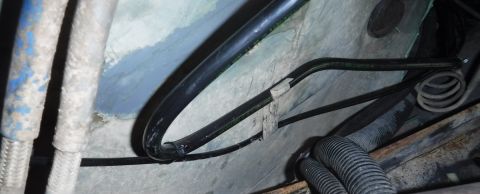

Cable routing up to the engine bay, using the other side of the transmission hydraulic line's clip.
