 20190606_105324.jpg | Hits: 121 | Size: 55.64 KB | Posted on: 6/18/19 | Link to this image

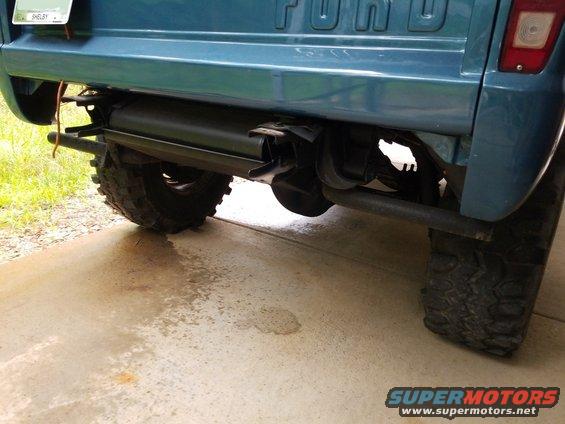

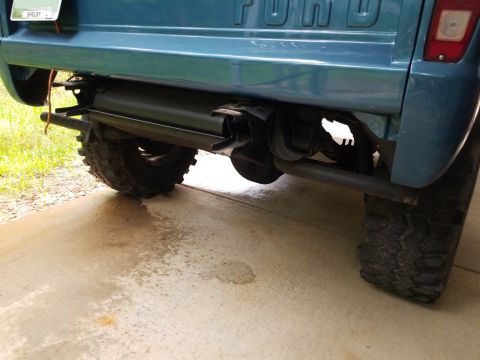

Each bumper was only attached by 2 new bolts & nuts on top, so they were easy to remove. And with access to the SINGLE bolt inside each frame rail, the rear receiver came off relatively easily, too.
|
|
|
 20190606_165333.jpg | Hits: 107 | Size: 76.82 KB | Posted on: 6/18/19 | Link to this image

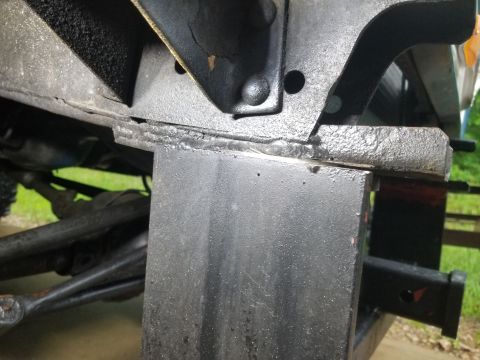

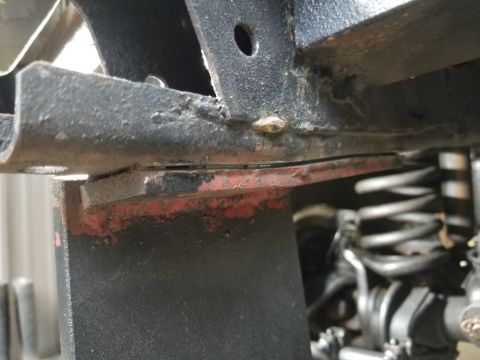

The front receiver was a nightmare... These side plates are at least 3/8" thick, which is ridiculously overkill for a truck frame close to 1/4 that thickness. And I don't know why they couldn't have bolted this one on, too. I had to trace the frame contour with a cutting wheel for quite a while.
|
|
|
 20190606_165247.jpg | Hits: 173 | Size: 65.49 KB | Posted on: 6/18/19 | Link to this image
The front receiver was a nightmare... These side plates are at least 3/8" thick, which is ridiculously overkill for a truck frame close to 1/4 that thickness. And I don't know why they couldn't have bolted this one on, too. I had to trace the frame contour with a cutting wheel for quite a while.
|
|
|

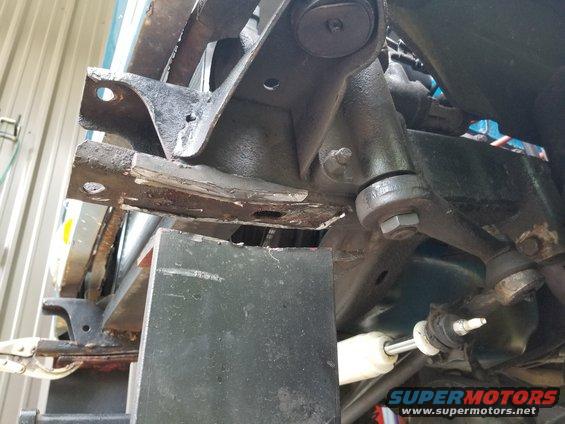

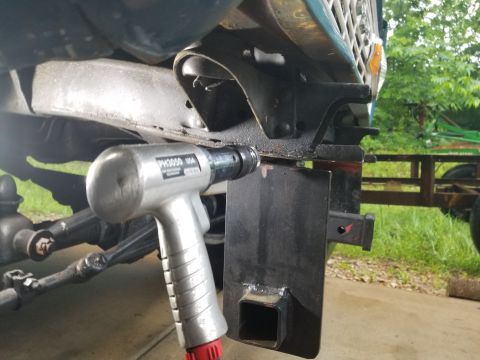

Eventually, I felt like I had weakened the welds enough, and they broke with a little encouragement. I put some vise grips on this side, and went to work on the HARD side - where the steering box & track bar bracket are in the way.
|
|
|
It took about twice as long as I expected (even with my knowledge of the other side) and twice as much chisel work to break this side free.
|
|
|
 20190607_115855.jpg | Hits: 140 | Size: 102.1 KB | Posted on: 6/18/19 | Link to this image

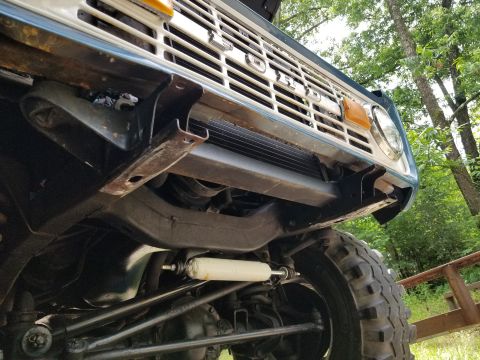

I'll never comprehend how so many good welders can understand so little about fabricating & attaching something as common & affordable as a hitch receiver.
But it's out of my way for the suspension work to come...
|
|
|
 20190607_115904.jpg | Hits: 104 | Size: 80.41 KB | Posted on: 6/18/19 | Link to this image

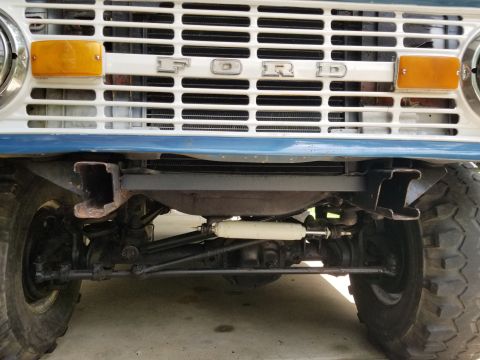

I spent some more time massaging the frame horns back into shape so the bumpers would bolt back on. Later, I undercoated all the shiny spots.
|
|
|
 20190610_161748.jpg | Hits: 104 | Size: 88.03 KB | Posted on: 6/18/19 | Link to this image

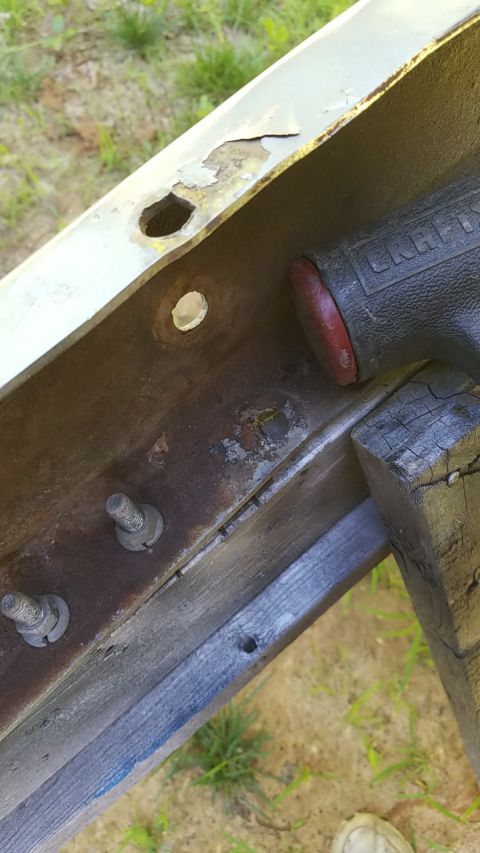

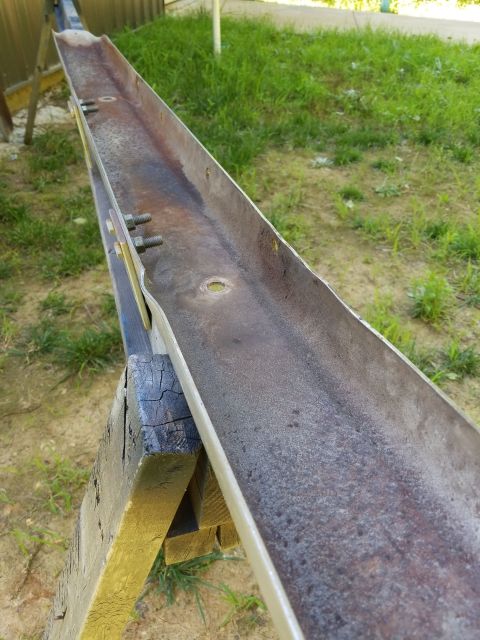

The front bumper had been bumped several times. But it had also been painted withOUT prepping the chrome, so I couldn't do much without taking the paint off. I removed the front license plate bracket (which was NOT original or well-made), but not the light tabs (or were they for a tow bar?).
|
|
|
Even my gentlest beating took the paint right off, so I quit.
|
|
|
 20190611_163130.jpg | Hits: 101 | Size: 81.19 KB | Posted on: 6/18/19 | Link to this image

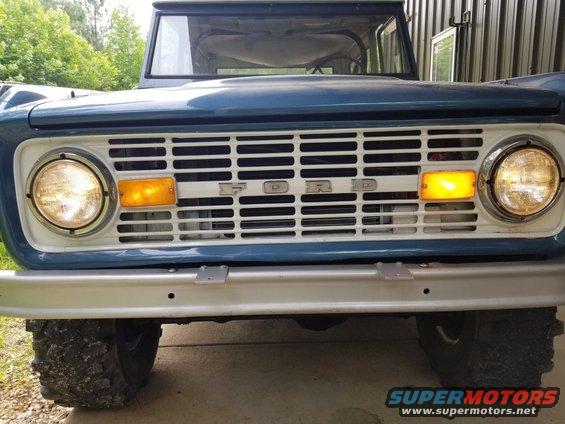

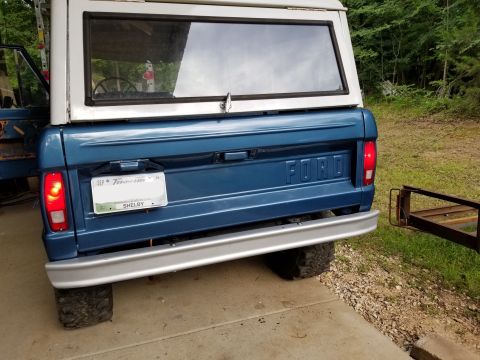

After reinstalling the bumpers, I repaired the lights so the truck is closer to street-legal.
|
|
|
 20190614_181114.jpg | Hits: 101 | Size: 74.47 KB | Posted on: 6/19/19 | Link to this image
After reinstalling the bumpers, I repaired the lights so the truck is closer to street-legal.
|
Bumpers & Receivers
