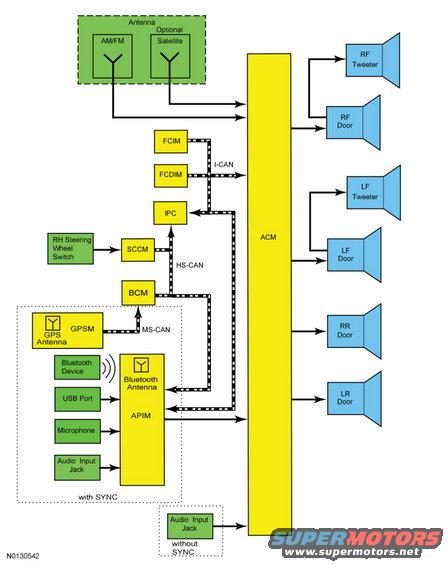

n0130542_650.jpg | Hits: 231 | Size: 46.74 KB | Posted on: 2/17/22 | Link to this image system diagram overview

Share This Url Tag Img Thumb

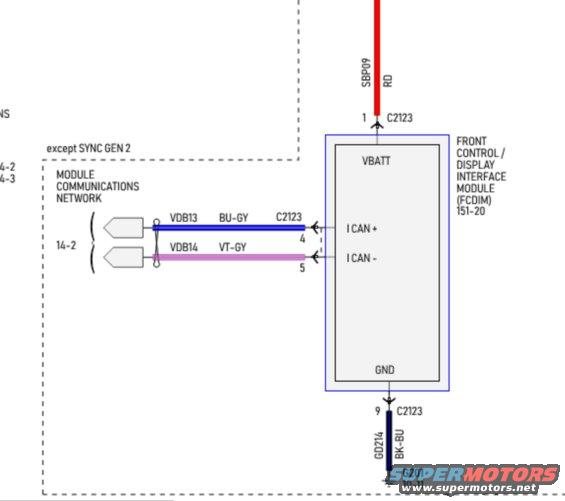

fdcim.jpg | Hits: 199 | Size: 21.21 KB | Posted on: 2/17/22 | Link to this image source wiring to tap main apim wiring. this is the factory fdcim wiring. 4 wires total. on the factory harness these wires split off from a single source behind the dash.

Share This Url Tag Img Thumb

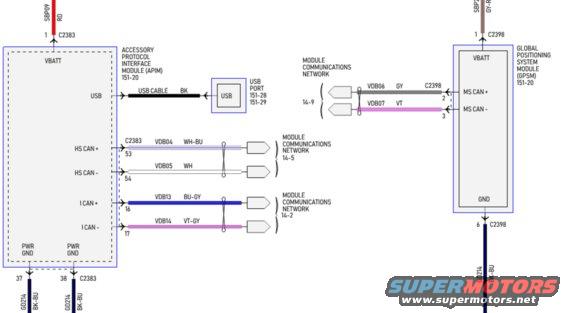

apim.jpg | Hits: 213 | Size: 20.4 KB | Posted on: 2/17/22 | Link to this image main apim wiring overview.

Share This Url Tag Img Thumb

apim_to_acm.jpg | Hits: 199 | Size: 19.11 KB | Posted on: 2/17/22 | Link to this image sync apim wired directly to the back of acm.

Share This Url Tag Img Thumb

sync_mic.jpg | Hits: 173 | Size: 8.64 KB | Posted on: 2/17/22 | Link to this image lh overhead mic wiring to apim. best route mic headliner cutout, down a pillar and behind the ipc (must remove ipc).

Share This Url Tag Img Thumb

radio_sync_connview.jpg | Hits: 210 | Size: 88.16 KB | Posted on: 2/17/22 | Link to this image rear of acm wiring to add. plugs into the right side of factory acm harness.

Share This Url Tag Img Thumb

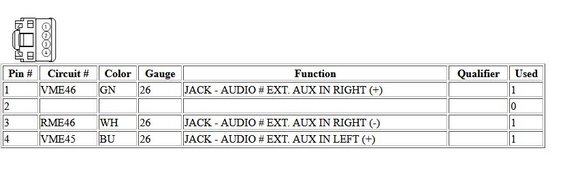

radio_sync_aux.JPG | Hits: 170 | Size: 24.5 KB | Posted on: 2/17/22 | Link to this image aux wiring to apim.

Share This Url Tag Img Thumb

mic_connview.jpg | Hits: 166 | Size: 16 KB | Posted on: 2/17/22 | Link to this image mic wiring to apim.

Share This Url Tag Img Thumb

programming_fcdim.JPG | Hits: 197 | Size: 14.35 KB | Posted on: 2/17/22 | Link to this image pictures shows factory /w sync /wo sat radio factory police /w sync with sat radio: 2021 1000 00FF NOTE: the green code is for Police AUX buttons, ignore.

Share This Url Tag Img Thumb

programming_acm.JPG | Hits: 202 | Size: 14.6 KB | Posted on: 2/17/22 | Link to this image pictures shows factory /w sync /wo sat radio factory police /w sync with sat radio: 5A00 2000 00AA

Share This Url Tag Img Thumb

programming_sccm.JPG | Hits: 207 | Size: 14.74 KB | Posted on: 2/17/22 | Link to this image pictures shows factory /w sync 0211 2806 70 /w hands free phone buttons RH NOTE: the green code is for Police AUX buttons, ignore.
