mRdot > 2015 Ford Explorer > open folder Add Sync > fdcim.jpg

File 2 of 11
Prev | Next

Url
Tag
Thumb

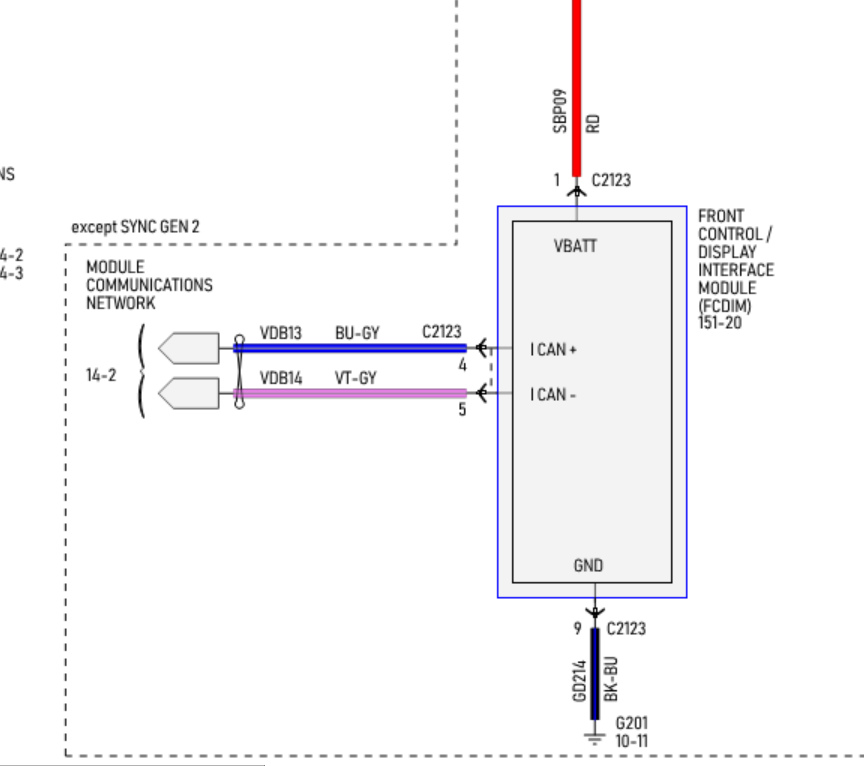

fdcim.jpg source wiring to tap main apim wiring. this is the factory fdcim wiring. 4 wires total. on the factory harness these wires split off from a single source behind the dash.
fdcim.jpg | Hits: 13 | Posted on: 2/17/22 | View original size (62.1 KB)

source wiring to tap main apim wiring. this is the factory fdcim wiring. 4 wires total. on the factory harness these wires split off from a single source behind the dash.
