Dual Battery Kit

From 1996 Ford Bronco “Big Red”, documented by Impact.

12 photos
← Back to this vehicle

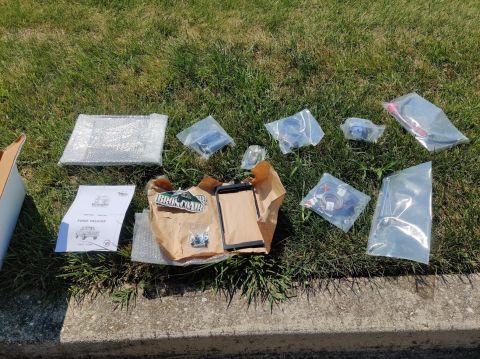

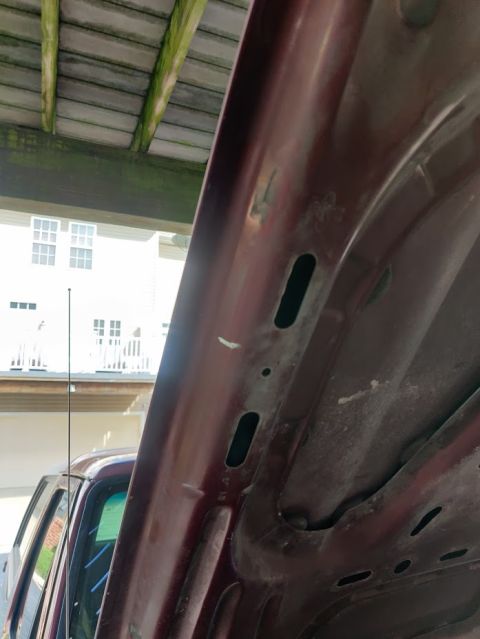

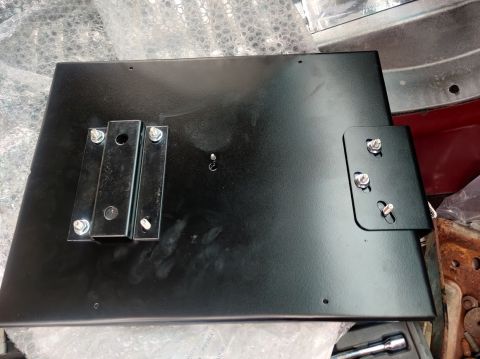

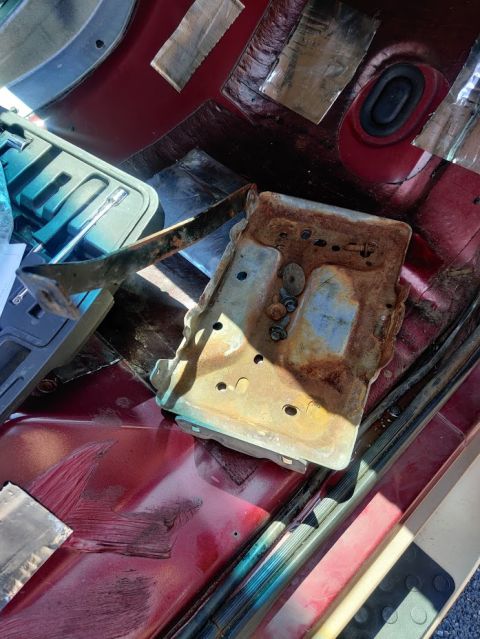

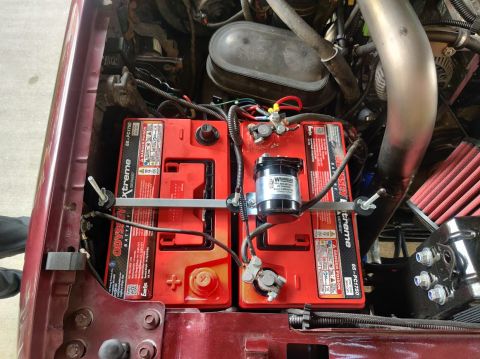

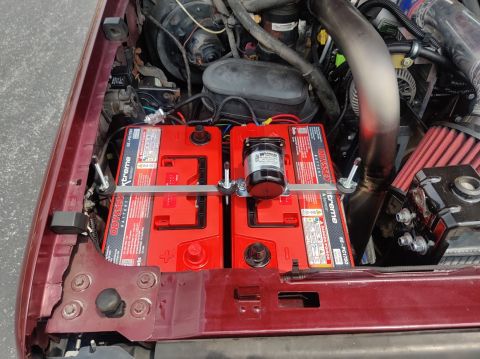

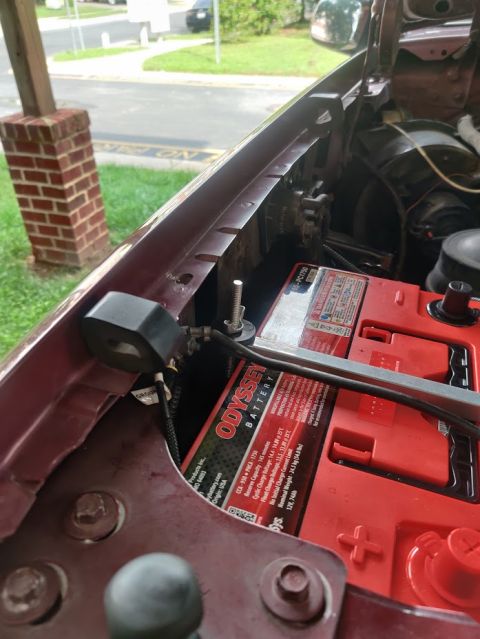

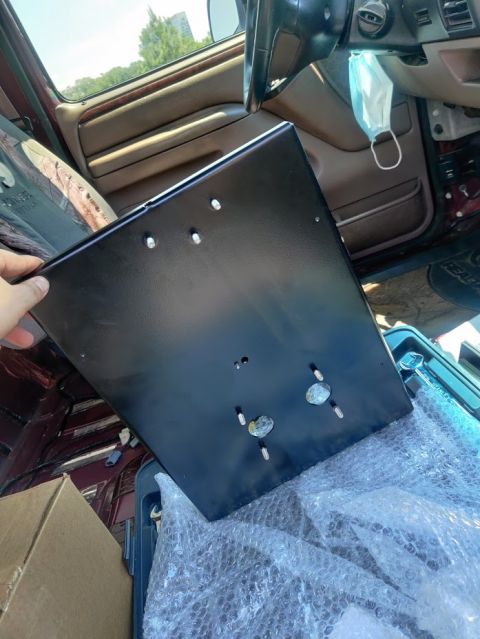

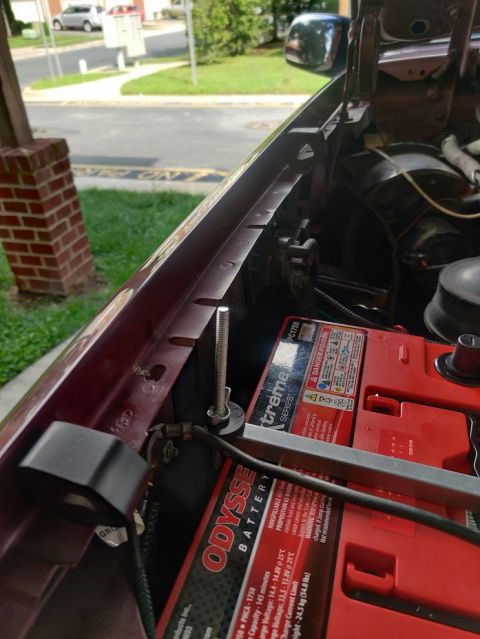

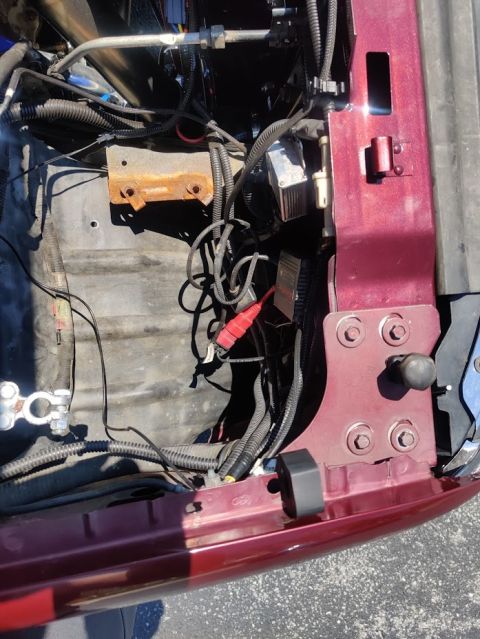

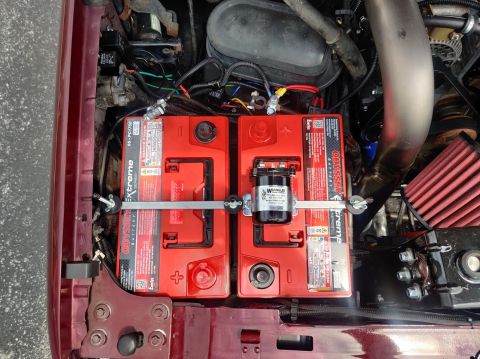

1996 Ford Bronco - 20200805 - All of the parts in the Bronco Air Dual Battery Kit for a 96 1996 Ford Bronco - 20200805 - Factory battery tray removed. Need to reuse the bolts in the bottom of the tray and mounting the side of the tray to the fender. 1996 Ford Bronco - 20200805 - The wiring is a mess, especially because I'm running HID's which gives ballasts to take up a lot of space. The instructions deta… 1996 Ford Bronco - 20200805 - Dual battery tray that will fit two group 65 batteries. There are extra parts to mount to the bottom of the tray to adapt it to… 1996 Ford Bronco - 20200806 - Dual battery tray fully assembled. 1996 Ford Bronco - 20200806 - Tray and batteries installed. I had to move the engine harness to run under the tray, and it was still really tight. 1996 Ford Bronco - 20200806 - Tray and batteries installed. I had to move the engine harness to run under the tray, and it was still really tight. 1996 Ford Bronco - 20200806 - Tray and batteries installed. I had to move the engine harness to run under the tray, and it was still really tight. It took a l… 1996 Ford Bronco - 20200808 - The post to secure the batteries closest to the fender is too tall and damages the hood. It'll need cut to be able to clear the… 1996 Ford Bronco - 20200808 - Scraped paint off the hood because the battery post was too tall. 1996 Ford Bronco - 20200808 - Cut the post short, clears just fine now. 1996 Ford Bronco - 20200808 - The wires are mostly well labeled, but the instructions don't give much extra guidance. It'll require some intuiting to get it t…
