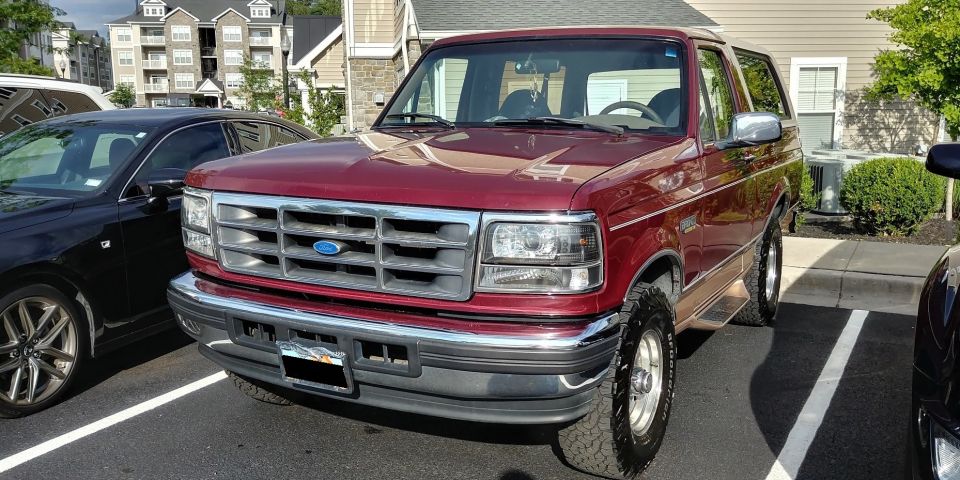

1996 Ford Bronco “Big Red”
Home/ Registry/ Ford/ Bronco/ 1992–1996/ “Big Red” supermotors.net/registry/28914

“Big Red”1996 Ford Bronco

454 photos documented since 2019 1 years documented ♡ Follow this build

Photos

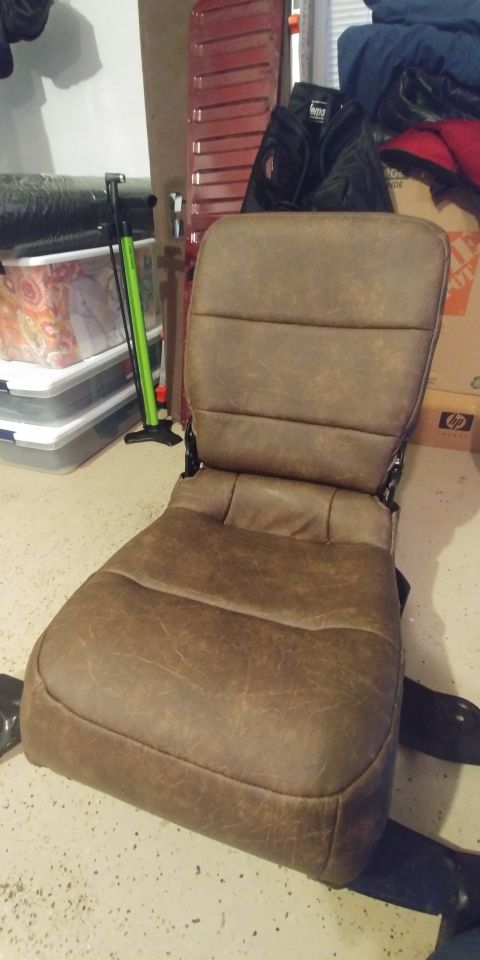

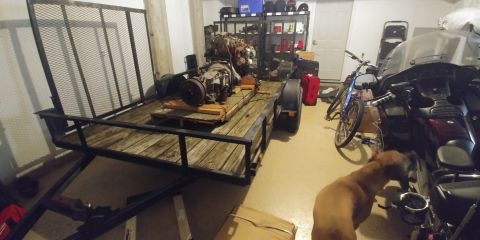

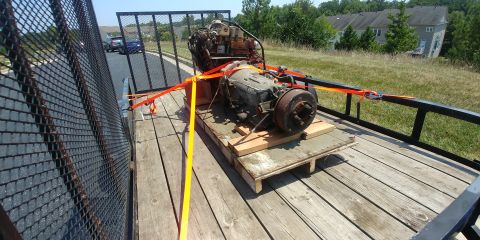

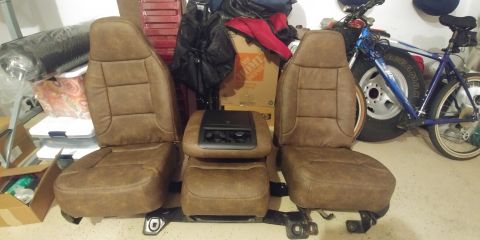

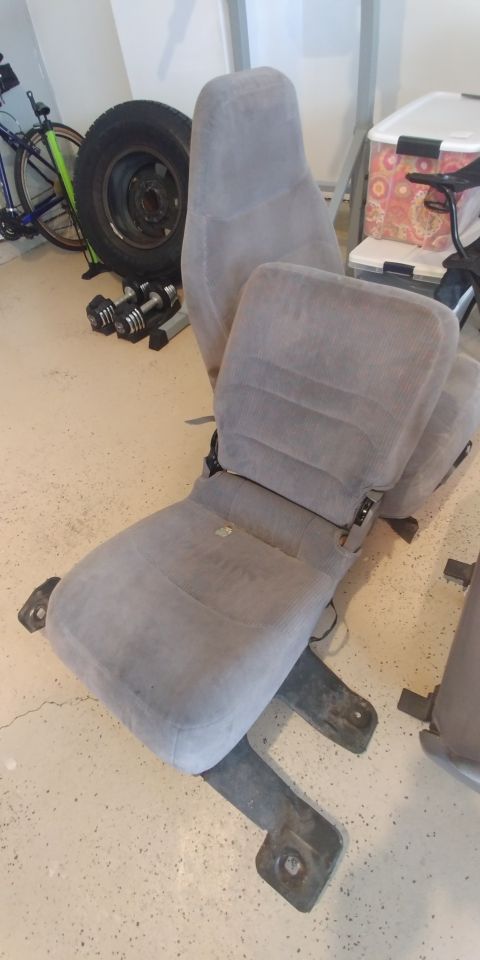

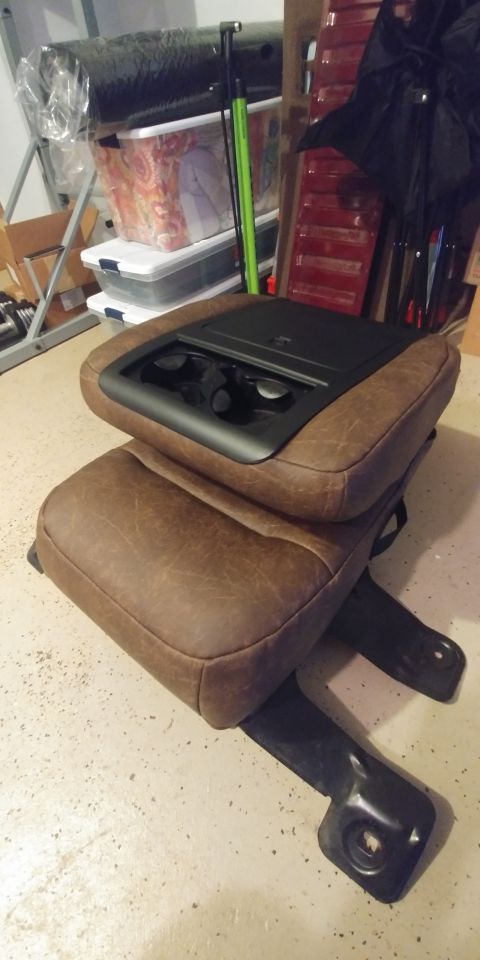

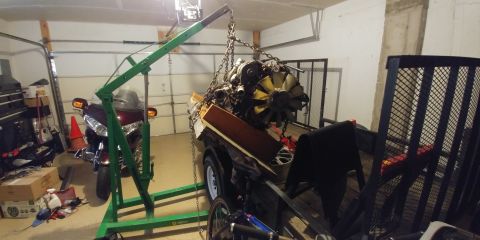

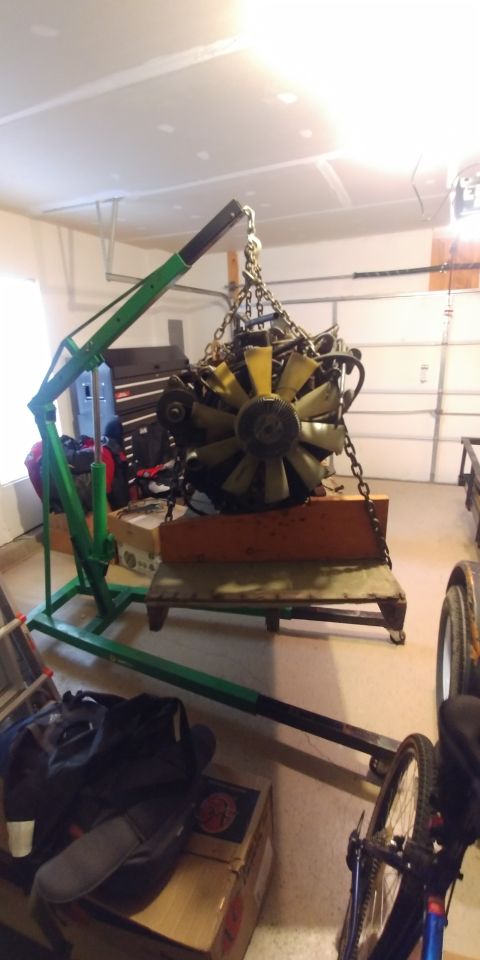

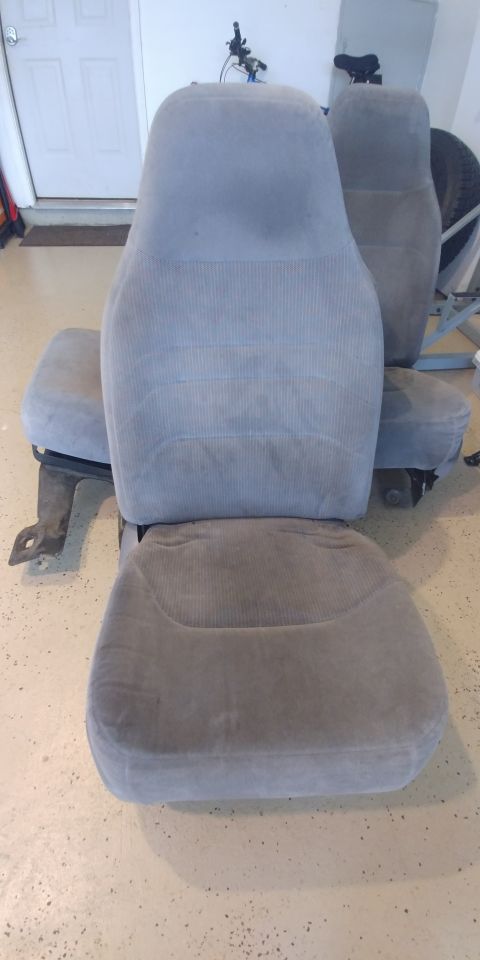

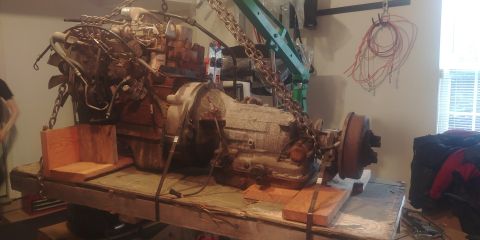

1996 Ford Bronco - 20181015 - 40/20/40 seats from a junkyard F250 bought for $90. 1996 Ford Bronco - 20181015 - Center seat of a set of 40/20/40 seats from a junkyard F250 bought for $90. 1996 Ford Bronco - 20181015 - A seat of a set of 40/20/40 seats from a junkyard F250 bought for $90. 1996 Ford Bronco - 20181214 - Reupholstered center seat of a set of 40/20/40 seats. This is a vinyl called "Terracotta". 1996 Ford Bronco - 20181214 - Reupholstered center seat of a set of 40/20/40 seats. This is a vinyl called "Terracotta". 1996 Ford Bronco - 20181214 - Reupholstered 40/20/40 seats. This is a vinyl called "Terracotta". 1996 Ford Bronco - 20190727 - Got back with the 4bt CPL#1839 HX30W P7100 from a seller on Craigslist 1996 Ford Bronco - 20190727 - Got back with the 4bt CPL#1839 HX30W P7100 from a seller on Craigslist 1996 Ford Bronco - 20190729 - Barely fit the trailer in the garage. Time to shuffle things around and clean up this disaster of a man cave.â%uFFFD%uFFFD 1996 Ford Bronco - 20190731 - Rented an engine lift and had just enough clearance. Turns out trying to get it lifted and maneuvered alone was a chore. Didn't… 1996 Ford Bronco - 20190801 - I get the chain adjusted, shift the weight of the engine more toward the right leg, and voila! Finally get the dang thing off an… 1996 Ford Bronco - 20190801 - I get the chain adjusted, shift the weight of the engine more toward the right leg, and voila! Finally get the dang thing off an… 1996 Ford Bronco - 20190926 - After the shop graciously lets me borrow their known-good lift and I recruit a long-time friend and his truck, the engine (and t… 1996 Ford Bronco - 20191011 - Dropped it off at the shop 1996 Ford Bronco - 20191015 - Aluminum fuel tank skid plate is in from Desolate Motorsports 1996 Ford Bronco - 20191015 - Gauge pod and gauges in from GlowShift 1996 Ford Bronco - 20191016 - Plastic fuel tank from Bronco Graveyard, confirmed with the manufacturer it's good for diesel 1996 Ford Bronco - 20191011 - Lift pump on the 4bt, shouldn't have to buy one. 1996 Ford Bronco - 20191021 - Most of the new parts are on the table, all the old stuff pulled out is on the ground in front of and to the right of the table.… 1996 Ford Bronco - 20191022 - The old and (probably) tired 351w (~250k miles).​ 1996 Ford Bronco - 20191022 - The old and (probably) tired 351w (~250k miles).​ 1996 Ford Bronco - 20191017 - Engine mounts are in from Diesel Conversion Specialists. Very heavy. 1996 Ford Bronco - 20191021 - UPS was nice enough to ignore my note to put it in the driveway and I was surprised to find it blockading my egress. New 96-97 P… 1996 Ford Bronco - 20191023 - Engine, transmission, driveshaft, exhaust, fuel tank and lines, and radiator all stripped out. 1996 Ford Bronco - 20191023 - 4bt is apart and ready for cleaning, paint, and upgrades. 1996 Ford Bronco - 20191023 - Inside of the timing cover is stamped "Made In U.S.A". 1996 Ford Bronco - 20170623 1996 Ford Bronco - 20191028 - Not every day I get to see the Bronco this barren, especially underneath. A lot cleaner than I expected as far as rust goes. The… 1996 Ford Bronco - 20191028 - Not every day I get to see the Bronco this barren, especially underneath. A lot cleaner than I expected as far as rust goes. The… 1996 Ford Bronco - 20191028 - Fuel tank cross members are rusty, but some stabbing around it showed it's surface. A wire wheel and POR15 will fix that up sinc… 1996 Ford Bronco - 20191028 - Fuel tank cross members and hitch assembly are all rusty, but some stabbing around it showed it's surface. A wire wheel and POR1… 1996 Ford Bronco - 20191028 - ARP head studs documentation. Pretty confused because instructions say to mill the pedestals, but they look like they are flat a… 1996 Ford Bronco - 20191028 - Pedestels seem milled and flat already. Or maybe a step needs to be milled into it for the ARP head studs. Definitely not bolt i… 1996 Ford Bronco - 20191031 - Got my Dodge A/C manifold in from Diesel Conversion Specialists, just needs to be crimped to the ford lines. 1996 Ford Bronco - 20191101 - Machined rocker pedestals in from Power Driven Diesel so the ARP head studs can be installed. 1996 Ford Bronco - 20191002 - Installing a decal I got from Etsy on the hard top windows right before I have to drop it off at the shop for the 4bt swap. It's… 1996 Ford Bronco - 20191104 - Got some time to visit the shop and peel off the decal. Leaves a lot of residue I'll try to get off later. She is sitting drivet… 1996 Ford Bronco - 20191104 - 4bt block getting painted. This is after the first coat. One or so more to go. 1996 Ford Bronco - 20191104 - 4bt block getting painted. This is after the first coat. One or so more to go. 1996 Ford Bronco - 20191105 - Used a combination of WD40, regular glass cleaner, and shop towels. Let the WD40 soak the sticky remnants for a few minutes and…
Browse all 454 photos
