Header and exhaust clearance

From 1986 Ford Bronco “Hulk”, documented by Jess Olson.

5 photos
← Back to this vehicle

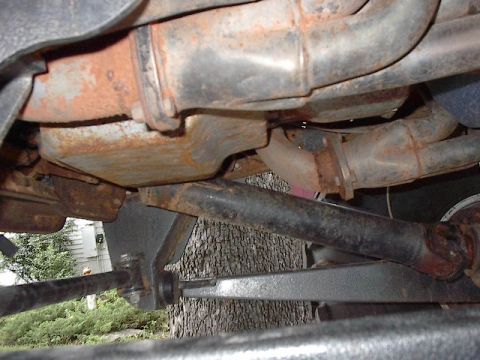

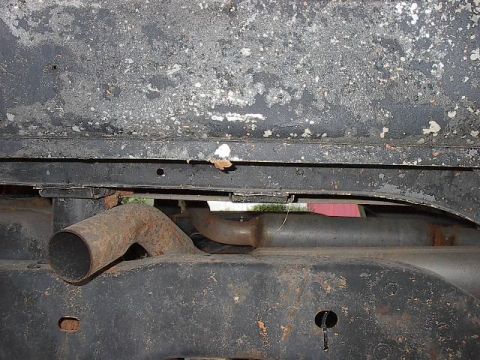

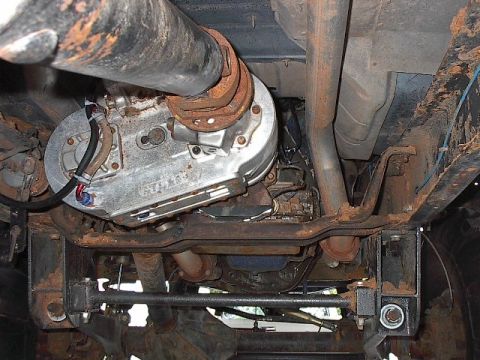

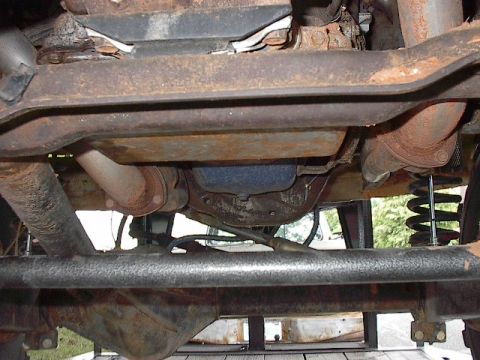

1986 Ford Bronco - This is a pic from front of the truck showing header flanges. My biggest issue was front driveshaft clearance, The 10" lift driveline angle… 1986 Ford Bronco - Passenger side view of collectors and custom pipe work to route exhaust. Plenty of room here between braces and collector flange. 1986 Ford Bronco - This a shot from the rear showing how the exhaust was routed up over all the braces. 1986 Ford Bronco - Here is another shot from farther back showing the over all exhaust route. 1986 Ford Bronco - I have a 3" body lift and routed the pipes and mufflers in the space created by the body lift. Here is the exhaust exiting in the rear fend…
