Sway Bar Pics

From 1990 Ford Bronco “The Beast”, documented by JP Nielsen.

6 photos
← Back to this vehicle

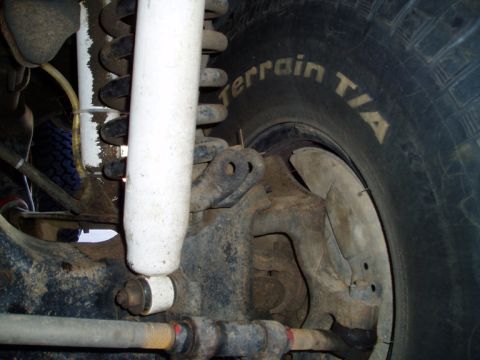

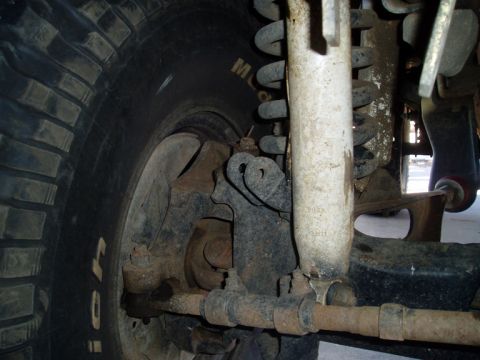

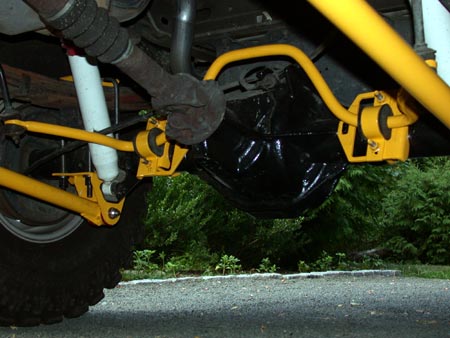

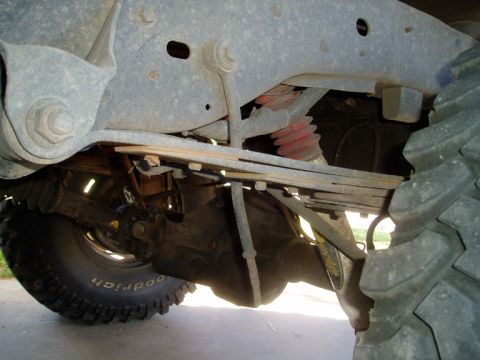

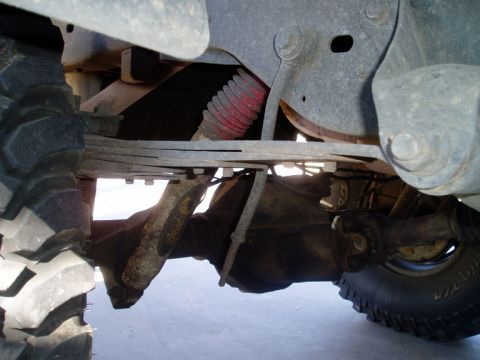

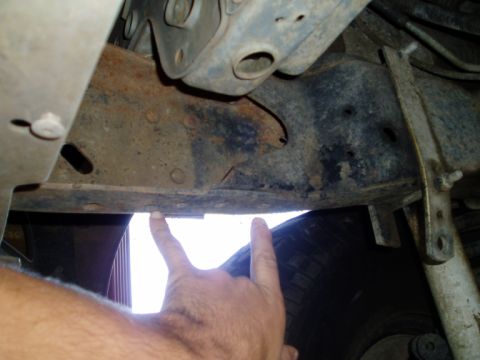

1990 Ford Bronco - Close-up under a lifted 4x4 showing the front solid axle knuckle, coil spring, white-bodied shock absorber and a tie rod with adjusting sle… 1990 Ford Bronco - Close-up under a truck's front end showing a white-bodied shock absorber and blue-painted coil spring above a dusty solid-axle knuckle, wit… 1990 Ford Bronco - An arm reaches under a truck and two fingers point at a pair of holes in the rusty boxed frame rail, indicating mounting points beneath the… 1990 Ford Bronco - Underbody shot of a lifted 4x4's rear suspension showing the leaf-spring pack, sway-bar link and frame bracket, with a red-boot shock and t… 1990 Ford Bronco - Underbody view of a lifted truck's rear leaf-sprung axle, with a red-boot shock, driveshaft and U-joint, and a yellow-painted axle housing… 1990 Ford Bronco - this is how it mounts to the rear axle minus the yellow bar in top right and biggest bar on the left bottom
