Yamaha SHO Engine Patent

From 1993 Ford Taurus “Taurus SHO”, documented by Alex Perry.

8 photos
← Back to this vehicle

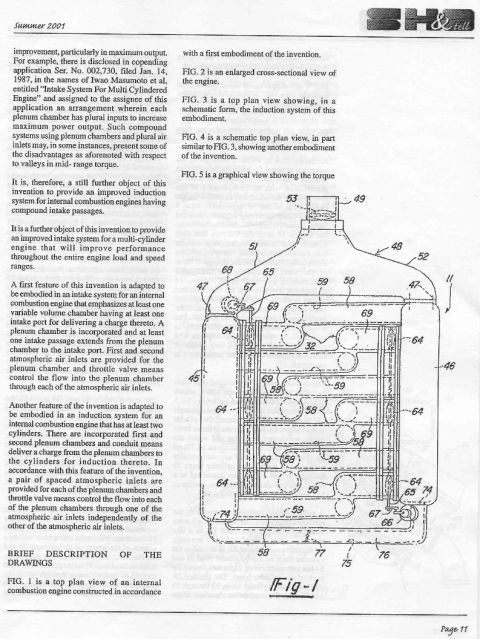

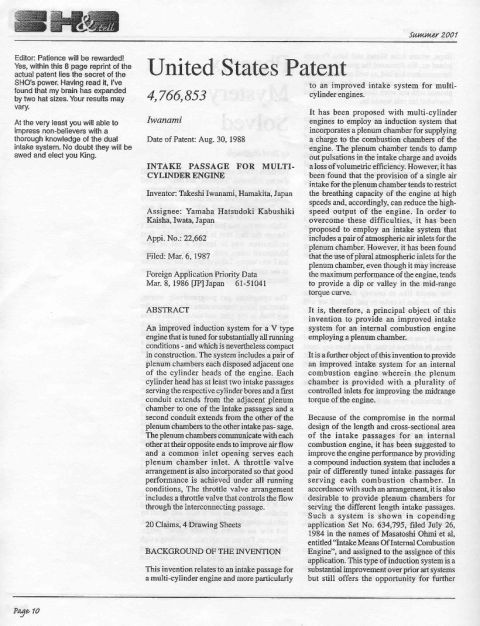

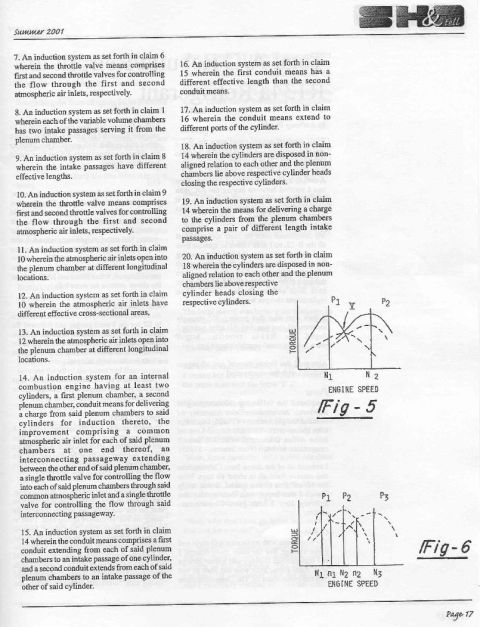

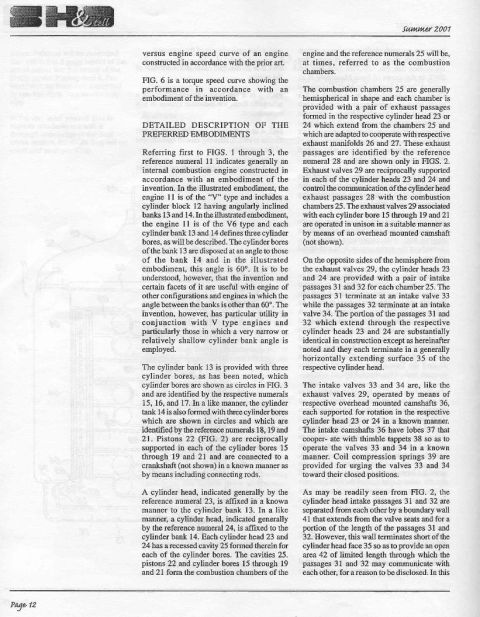

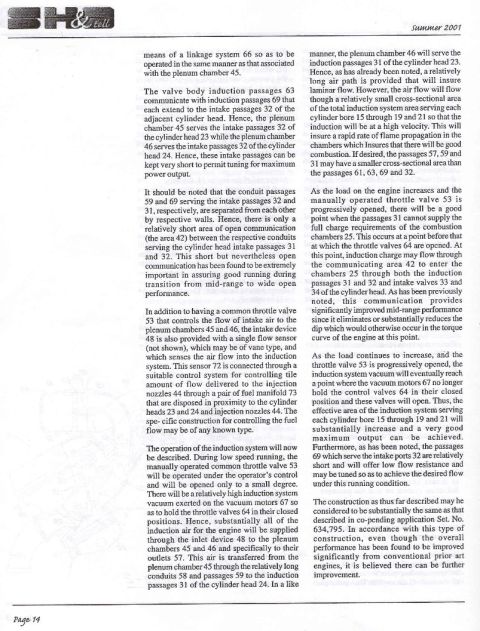

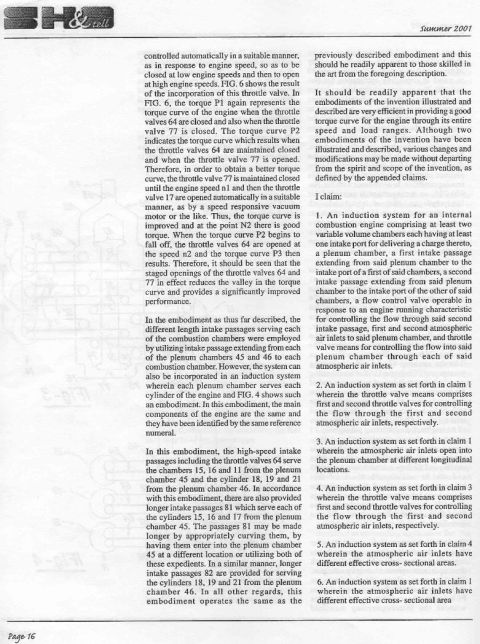

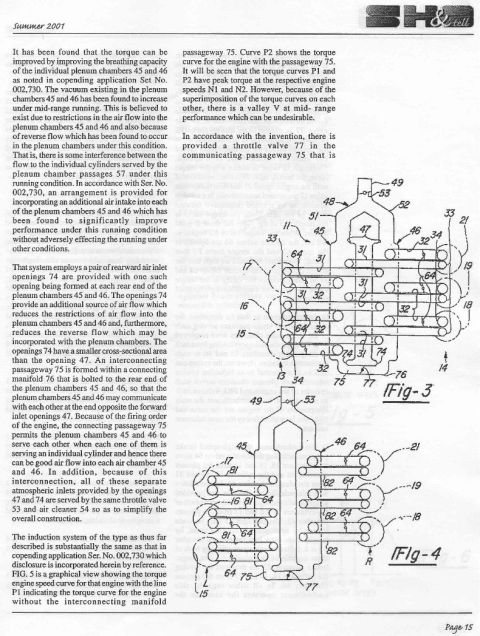

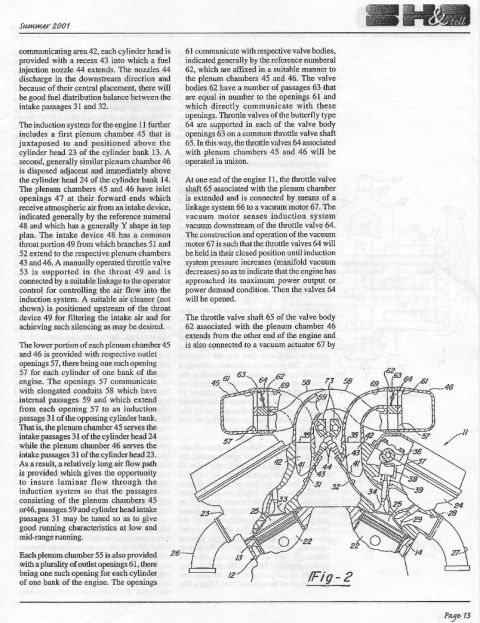

1993 Ford Taurus - Summer 2001 SHO&Tell reprint of United States Patent 4,766,853, Intake Passage for Multi-Cylinder Engine, Iwanami, assigned to Yamaha, date… 1993 Ford Taurus - Patent/manual page describing an induction system for a multi-cylinder engine, with a numbered top-plan-view figure. 1993 Ford Taurus - Summer 2001 SHO&Tell patent reprint, page 12, describing the V-type engine's 60 degree cylinder banks, combustion chambers and intake passa… 1993 Ford Taurus - Magazine reproduction of an intake-system patent describing dual plenum chambers, fuel injection nozzles, and a manually operated throttle… 1993 Ford Taurus - Text-only magazine page continuing the dual-plenum induction-system patent: valve body induction passages, single-flow-sensor airflow contr… 1993 Ford Taurus - Summer 2001 SHO&Tell patent reprint, page 15, with Fig. 3 and Fig. 4 intake plenum drawings and text on the interconnecting passageway 75 a… 1993 Ford Taurus - Text-only magazine page with patent claims describing a multi-stage variable induction system and how staged throttle valve opening fills t… 1993 Ford Taurus - Summer 2001 SHO&Tell patent reprint, page 17, with induction system claims 7-20 and Fig. 5 and Fig. 6 torque versus engine speed curves.
