Front Gear/Locker Install

From 1991 Ford Bronco “Cookie Monster”, documented by Meixter.

25 photos
← Back to this vehicle

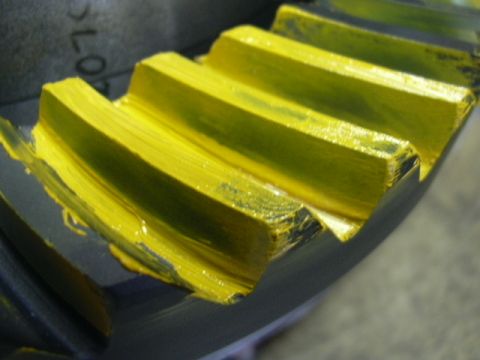

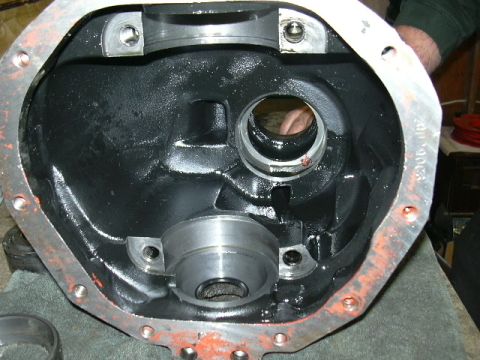

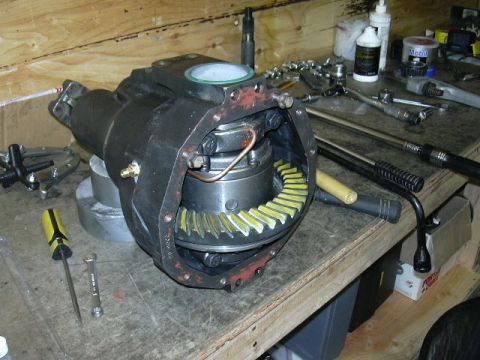

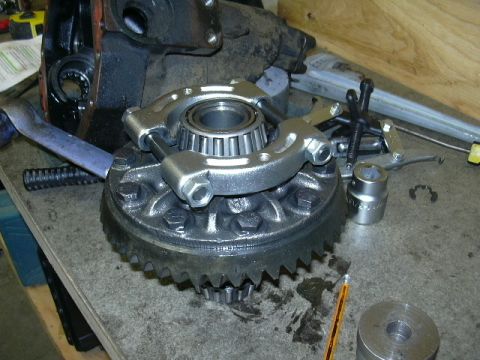

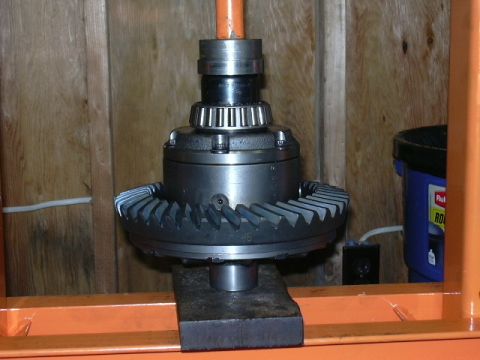

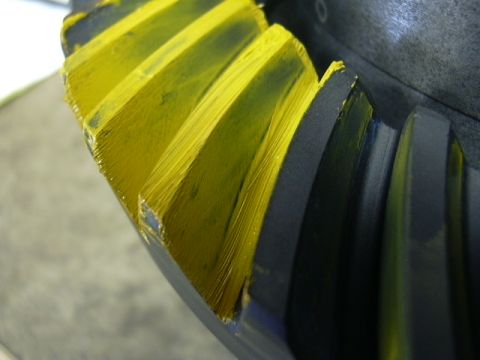

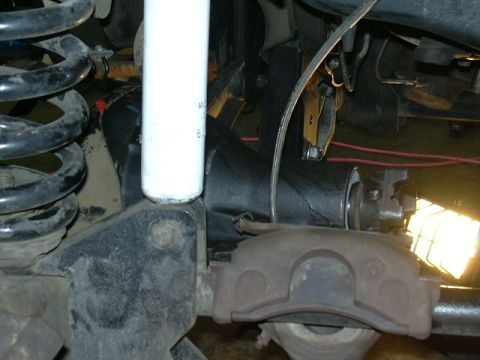

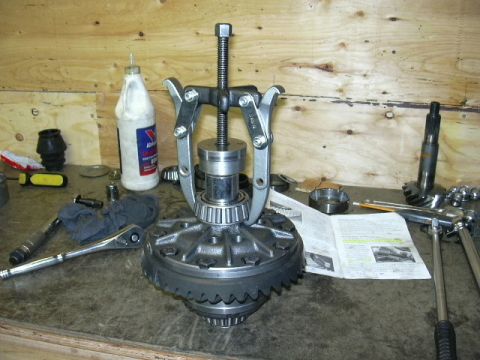

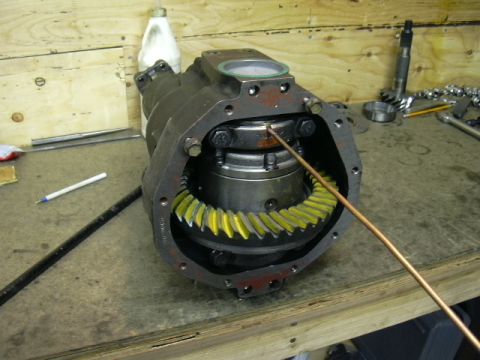

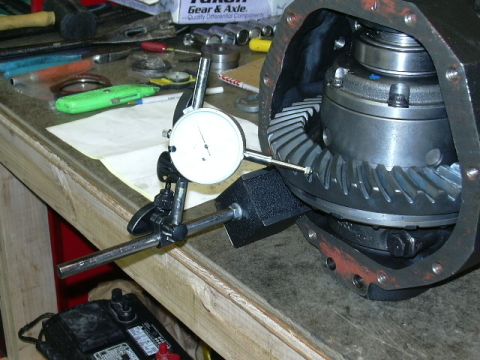

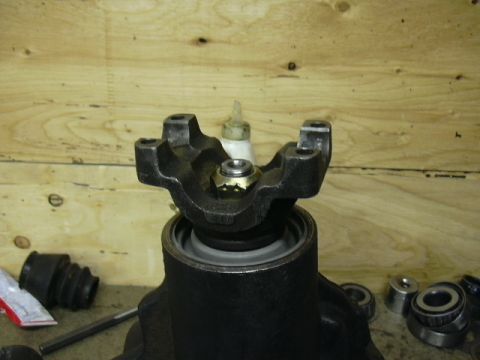

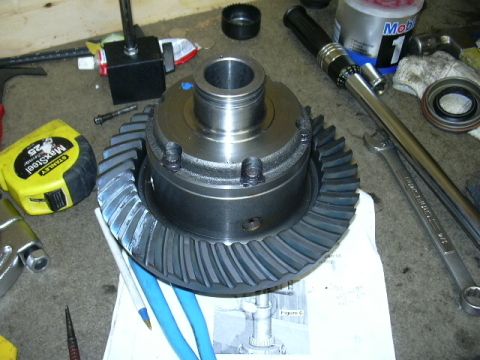

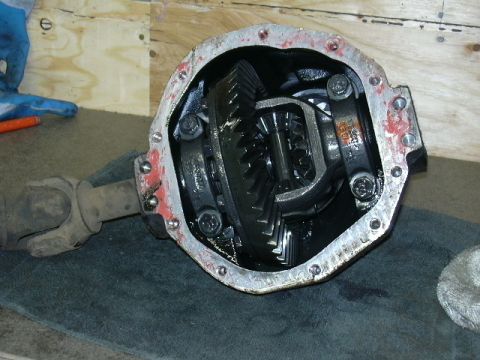

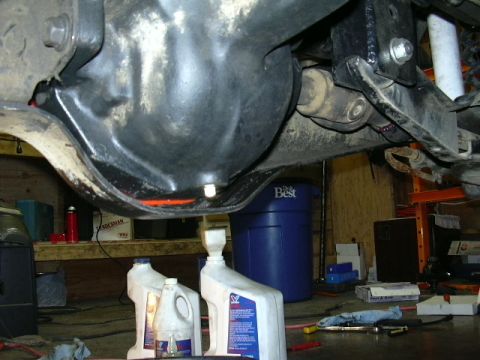

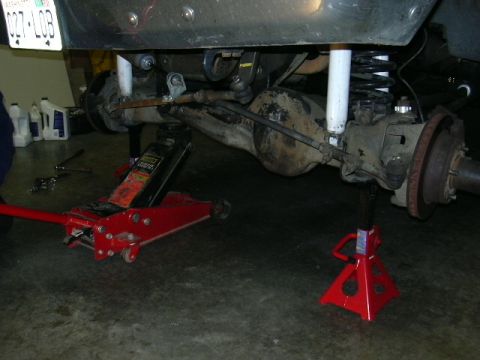

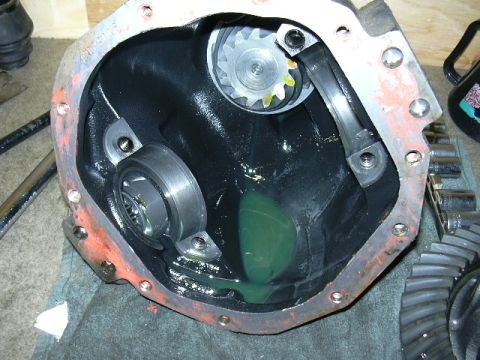

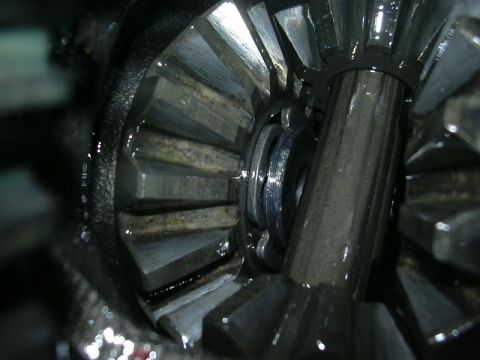

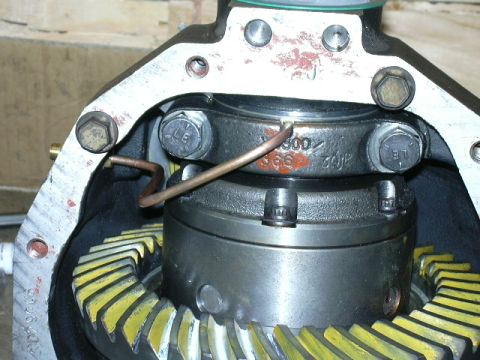

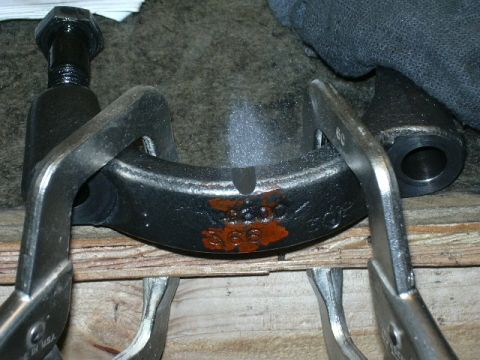

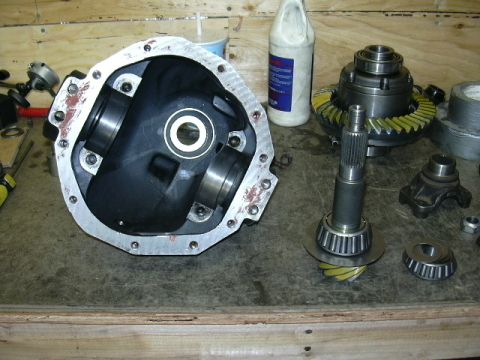

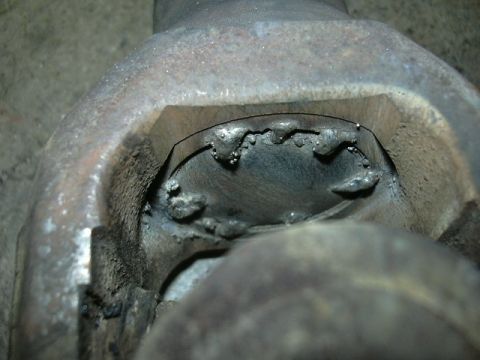

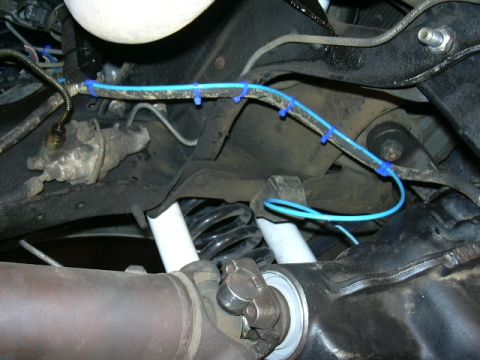

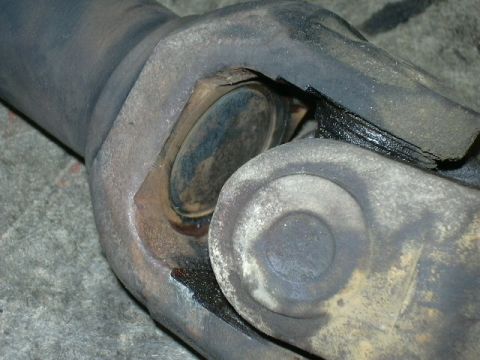

1991 Ford Bronco - Getting the jack stands placed. 1991 Ford Bronco - Stock open 3rd member 1991 Ford Bronco - Here's the 'C' clip that I won't be needing anymore 1991 Ford Bronco - Ring gear and carrier out 1991 Ford Bronco - Pulling the carrier bearing to make a set up bearing out of it 1991 Ford Bronco - Cookie is very excited 1991 Ford Bronco - Pinion gear, races and bearings removed 1991 Ford Bronco - New 4.56 ring gear on new ARB locker :-) 1991 Ford Bronco - Pressing a carrier bearing on 1991 Ford Bronco - Checking backlash for first gear pattern check 1991 Ford Bronco - Had to make an adjustment 1991 Ford Bronco - Here's the final pattern on the drive side. I hope it's right. 1991 Ford Bronco - Here's the coast pattern 1991 Ford Bronco - Case all cleaned up. New bearings installed. Ready for final assembly 1991 Ford Bronco - New pinion nut and seal 1991 Ford Bronco - Filling a notch in the bearing cap for the air line to the locker 1991 Ford Bronco - Took me a minute to figure out how I was going to bend this into the case 1991 Ford Bronco - Here it is with the bulkhead fitting on the top of the case 1991 Ford Bronco - I am pretty happy with how it turned out. 1991 Ford Bronco - 3rd member back in. 1991 Ford Bronco - This cap needs to be tack welded so the spring I have to add in the slip yoke won't pop it out. 1991 Ford Bronco - Break out the wire feed 1991 Ford Bronco - I'm not a master welder yet but I think it'll hold 1991 Ford Bronco - Here's how I routed the air line. 1991 Ford Bronco - While I had it out I installed this drain plug
