Shackle Flip

From 1991 Ford Bronco “Cookie Monster”, documented by Meixter.

25 photos
← Back to this vehicle

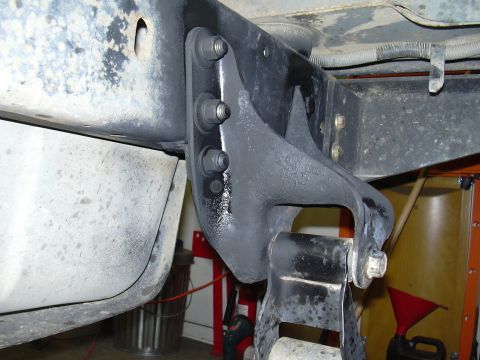

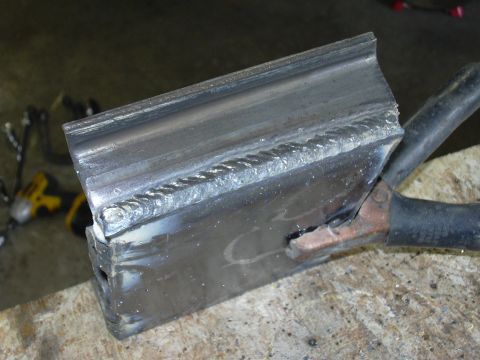

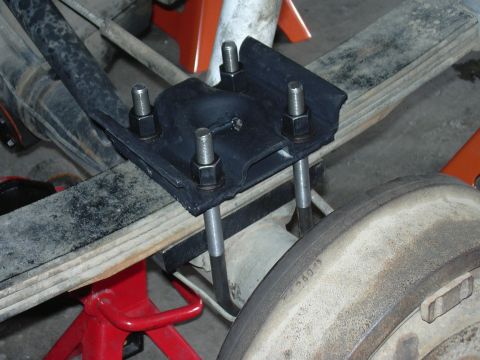

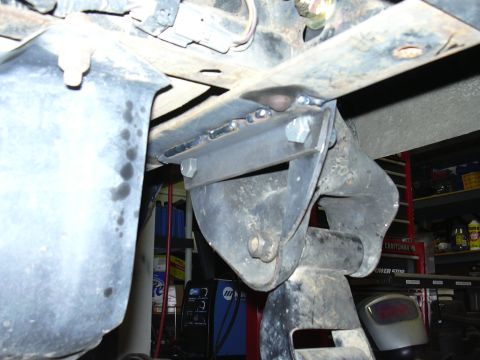

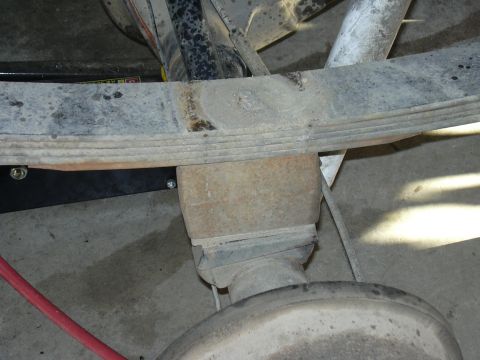

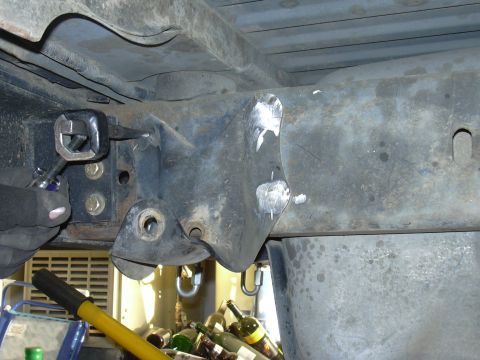

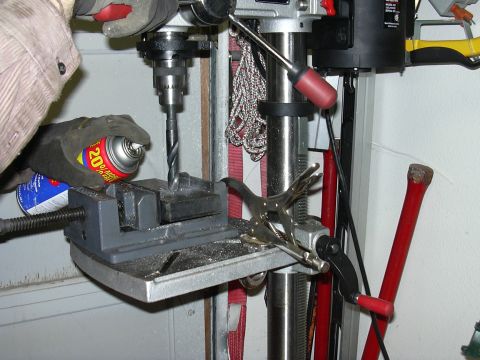

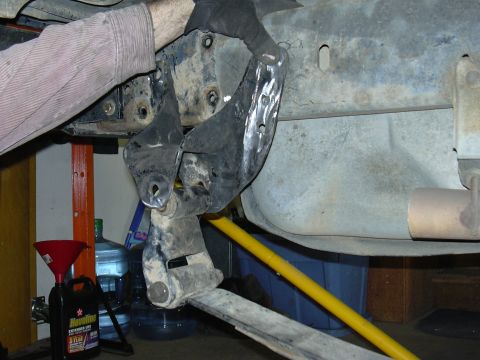

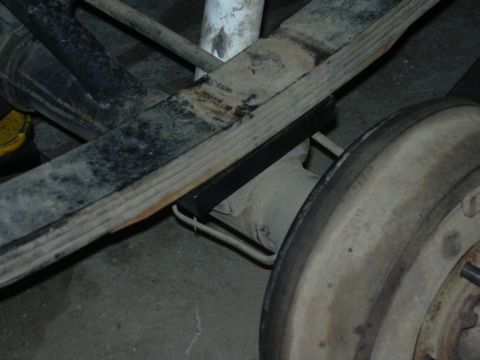

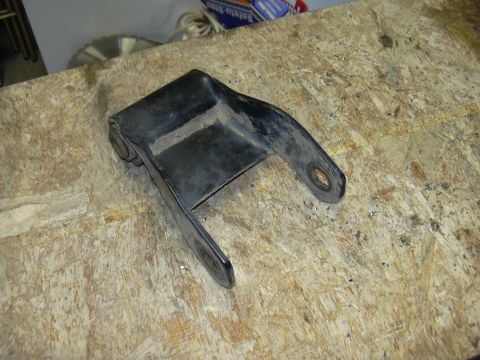

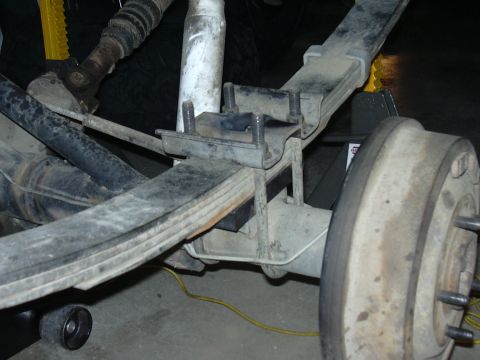

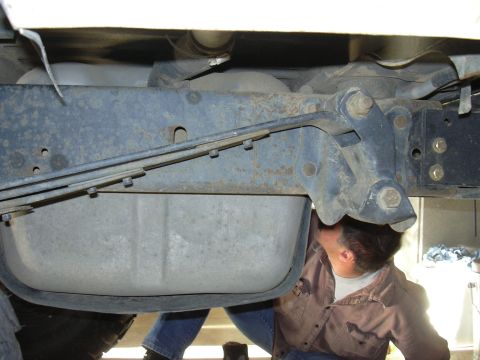

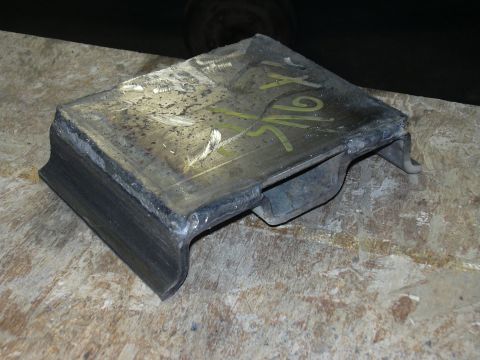

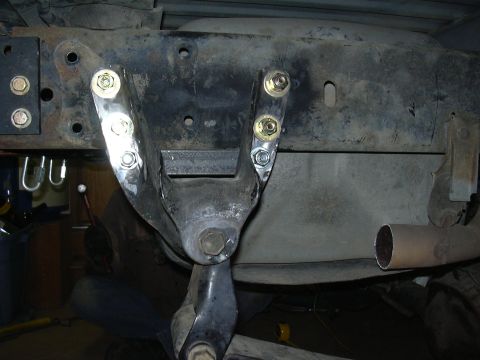

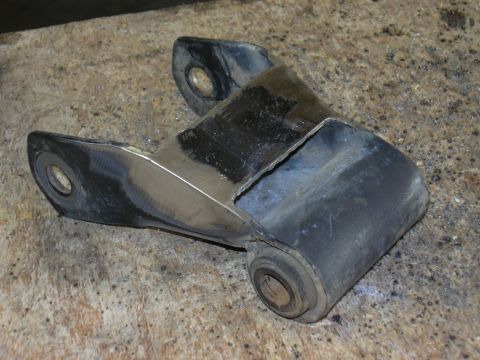

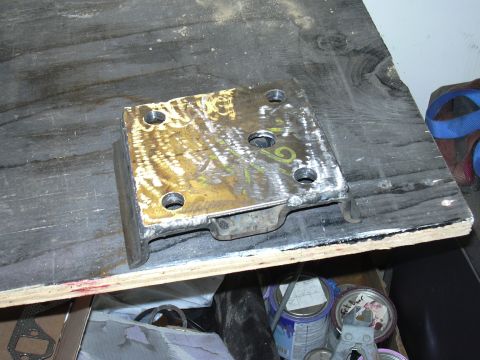

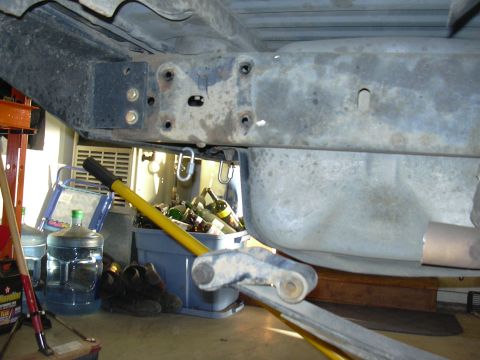

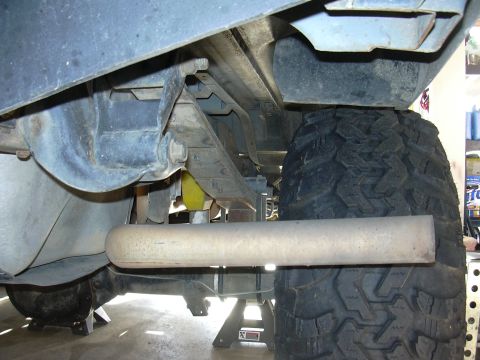

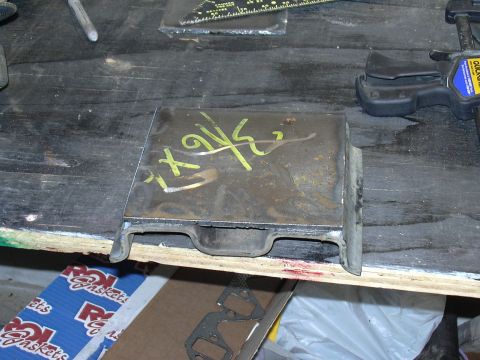

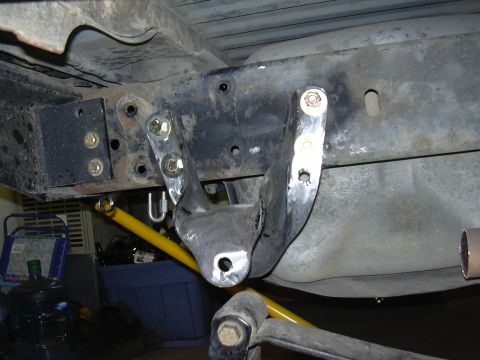

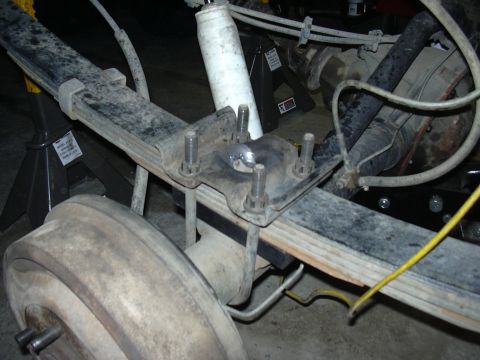

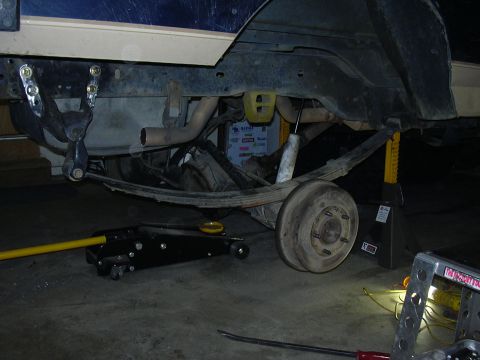

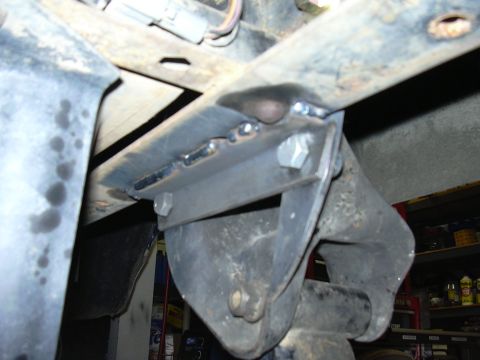

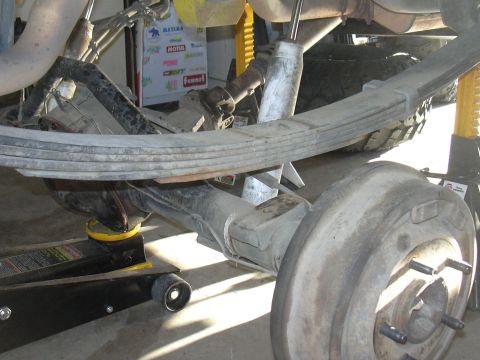

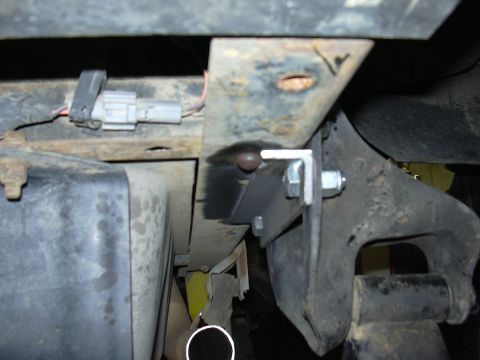

1991 Ford Bronco - Before 1991 Ford Bronco - Underside view of a lifted truck on a jack stand, showing a large cylindrical steel muffler mounted crosswise, the frame rail, driveshaft a… 1991 Ford Bronco - Ubolts off 1991 Ford Bronco - Blocks out 1991 Ford Bronco - Punchin the rivits out of the stock shackle hanger 1991 Ford Bronco - Stock shackle gone 1991 Ford Bronco - Greg is locating the F250 hanger for the correct shackle angle 1991 Ford Bronco - Underside view of a truck/SUV frame showing a freshly welded, bare-metal bracket or crossmember mount bolted to the frame rail, with a yell… 1991 Ford Bronco - I turned the shackle around 1991 Ford Bronco - Here Greg is fabbing the 1" lift block that will relocate the axle 1" to the rear of the Bronco 1991 Ford Bronco - Custom 1" lift block 1991 Ford Bronco - Underside view of a fabricated steel crossmember or bracket bolted to the frame with new zinc-plated bolts, likely part of a suspension or… 1991 Ford Bronco - Close-up of a rear leaf spring suspension and axle assembly viewed from below/behind, showing a new U-bolt spring plate with exposed bolt t… 1991 Ford Bronco - Added this piece of angle iron behind the shackle hanger to give extra support and make it possible to put bolts in the remaining holes of… 1991 Ford Bronco - Underside view of a fabricated steel bracket or mount welded to a vehicle frame crossmember, showing fresh weld beads and a large hex bolt.… 1991 Ford Bronco - Underside view of a vehicle showing a welded steel bracket or mount fastened to a frame rail with hex bolts, appearing freshly fabricated a… 1991 Ford Bronco - Close-up of a leaf spring rear axle suspension viewed from underneath, showing a spring perch/plate with four threaded U-bolt studs and nut… 1991 Ford Bronco - Close-up underside view of a freshly painted gray steel frame bracket bolted to the frame rail with three vertical hex bolts, mounting a bl… 1991 Ford Bronco - A rusty rectangular sheet-metal fabricated part with a channel/lip bent along the lower edge, marked with yellow paint pen, sitting on a sc… 1991 Ford Bronco - A fabricated metal bracket or mount made from welded steel plate and channel/angle stock, with yellow paint-marker markings on top, sitting… 1991 Ford Bronco - A freshly fabricated steel mounting plate with multiple drilled bolt holes, welded to angled bracket sections, showing bright ground/polish… 1991 Ford Bronco - Close-up of a welded steel test coupon showing a horizontal weld bead joining two metal pieces, with a copper ground clamp attached at the… 1991 Ford Bronco - A black steel mounting bracket with two bolt holes and a pivot/bushing joint on one end, resting on an oriented strand board (OSB) workbenc… 1991 Ford Bronco - A fabricated steel bracket or mount with three bushing/pivot holes and fresh weld and grinding marks, resting on a concrete surface. The me… 1991 Ford Bronco - Close-up of a black cast metal spring perch or shackle plate mounted over a leaf spring on a vehicle's rear axle, with four vertical thread…
