Superflex TTB

From 1991 Ford Bronco “Cookie Monster”, documented by Meixter.

25 photos
← Back to this vehicle

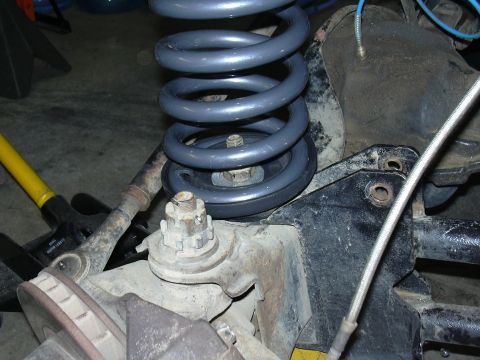

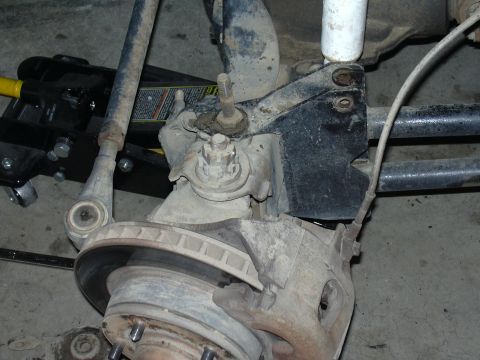

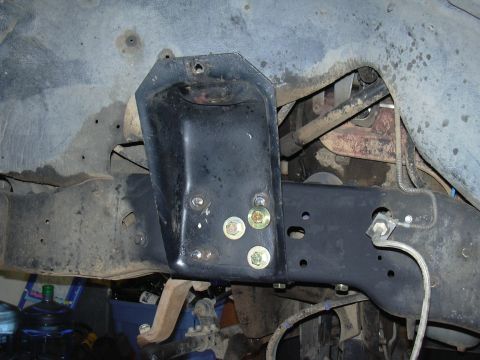

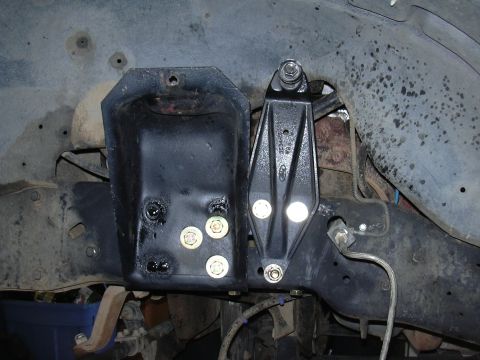

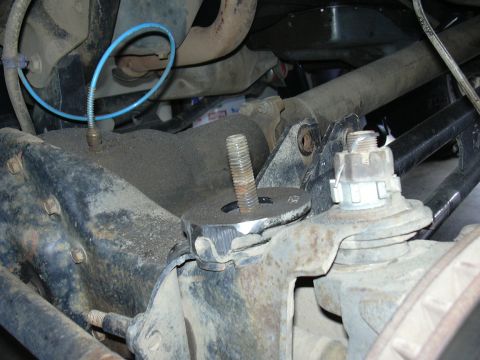

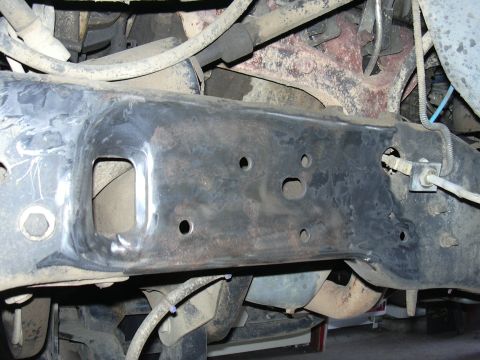

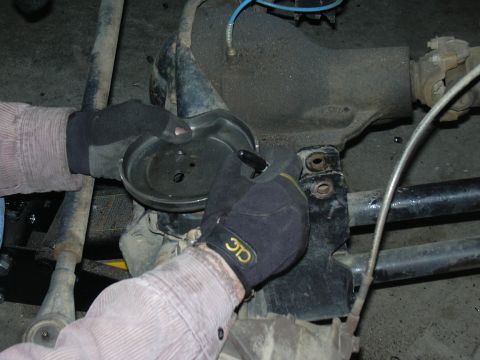

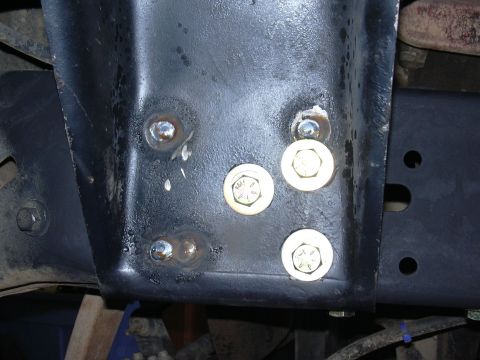

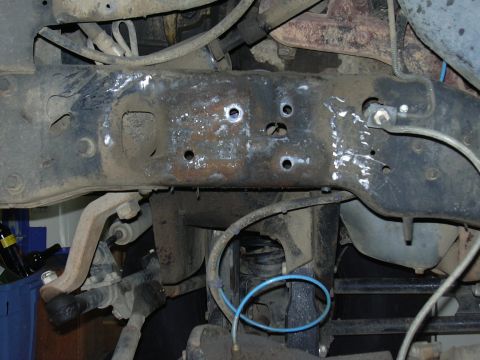

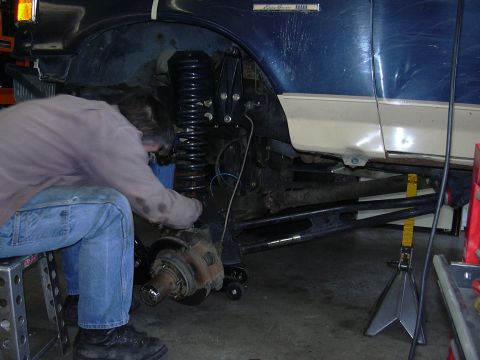

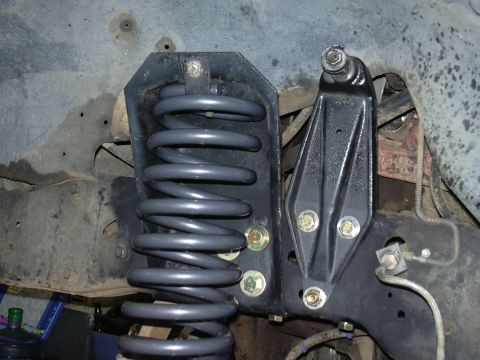

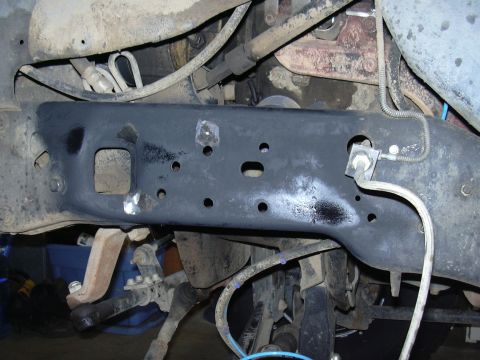

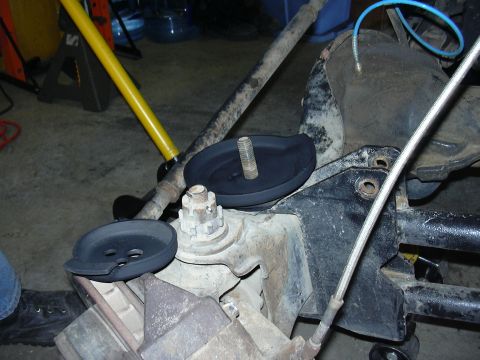

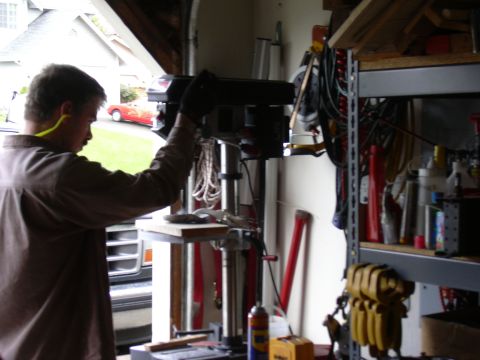

1991 Ford Bronco - Close-up of a front suspension and brake assembly viewed from below, showing a disc brake rotor and caliper, a rusty spindle with threaded… 1991 Ford Bronco - The frame after removing the TTB upper spring bucket and shocks 1991 Ford Bronco - Marking the hole to mount a 78/79 lower spring perch 1991 Ford Bronco - A little drill press action 1991 Ford Bronco - This is the TTB lower spring mount after some cutting and grinding. This was used to support the 78/79 spring perch 1991 Ford Bronco - Frame cleaned up 1991 Ford Bronco - Anti-rust 1991 Ford Bronco - The engine cross member was in the way on the drivers side so I put 3 bolts where I could and button welded the rest of the empty holes to… 1991 Ford Bronco - Underside view of a vehicle frame crossmember area showing a black-painted steel bracket bolted to the frame rail with several fresh gold-z… 1991 Ford Bronco - I used an F250 shock hanger for a new shock mount 1991 Ford Bronco - New spring perch ready for a spring 1991 Ford Bronco - Here comes my new fancy, made by Deaver, Superflex 78/79 6" lift springs. I chose these in preperation for an SAS in the future. 1991 Ford Bronco - Mounted and lookin sweet! 1991 Ford Bronco - Underbody view of a coil spring suspension component, showing a freshly painted black bracket holding a gray coil spring, with zinc-plated… 1991 Ford Bronco - New Bilstein shocks. My extended brake lines are stretched to the limit. I also can bottom the shock out with a little pressure. As the tir… 1991 Ford Bronco - I moved the spring bucket forward approximately 1" in preperation for an SAS 1991 Ford Bronco - With the springs installed as shipped I had 10" of lift!!! 1991 Ford Bronco - It might be hard to get out of the garage like this 1991 Ford Bronco - The cool thing about these springs is you can make adjustments if necessary 1991 Ford Bronco - A person kneeling in worn blue jeans uses a Makita angle grinder with a flap disc to cut or grind a gray coil spring, throwing bright orang… 1991 Ford Bronco - Underbody view of a coil spring suspension showing a dark blue/gray coil spring, a bracket held by several bolts with yellow-zinc washers,… 1991 Ford Bronco - Turned out far better than I had pictured! 1991 Ford Bronco - I mounted the limiting straps in between the shock mounts 1991 Ford Bronco - Close-up of a front suspension showing a gray coil spring, a silver shock absorber, and a red limiting strap mounted to a black frame brack… 1991 Ford Bronco - I have a full 10" of droop with the limiting straps installed! Not too bad for a TTB!
