Mods & Fab Pictures

From 1977 Ford Bronco “OX”, documented by DJ Jacobsen.

31 photos
← Back to this vehicle

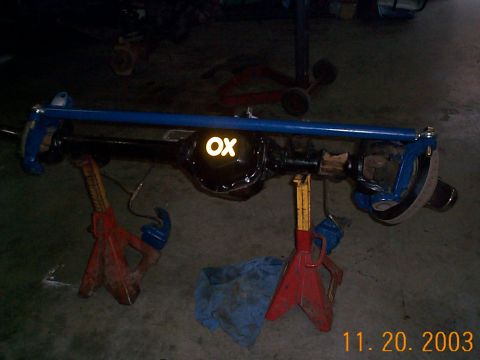

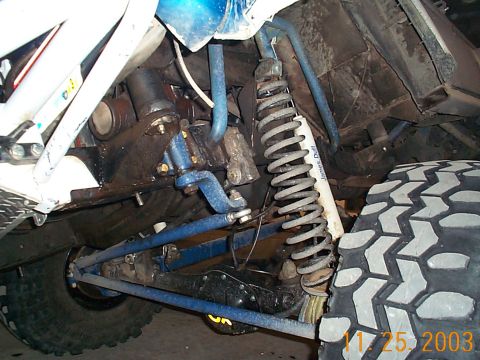

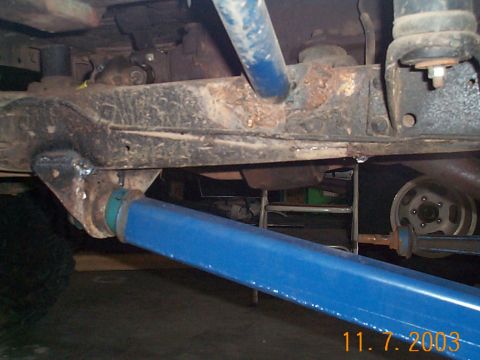

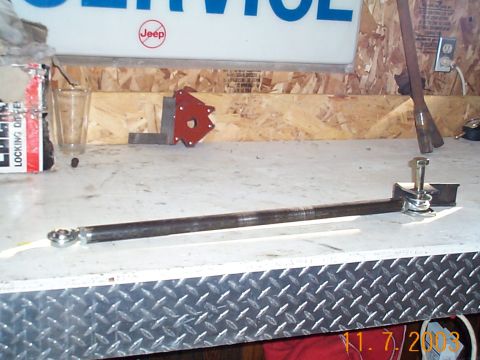

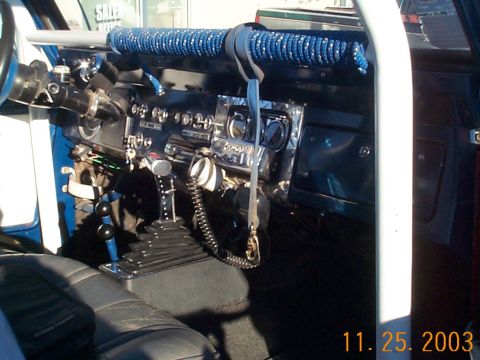

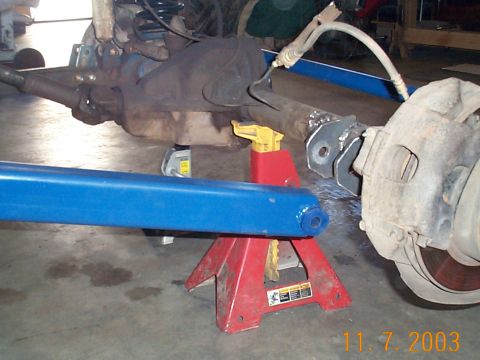

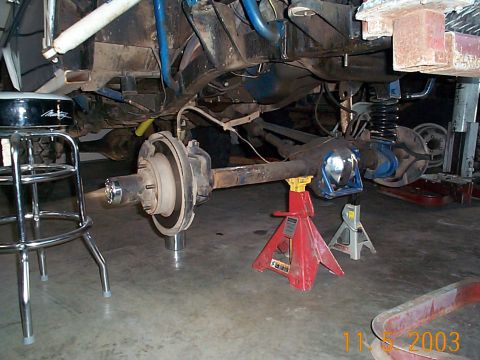

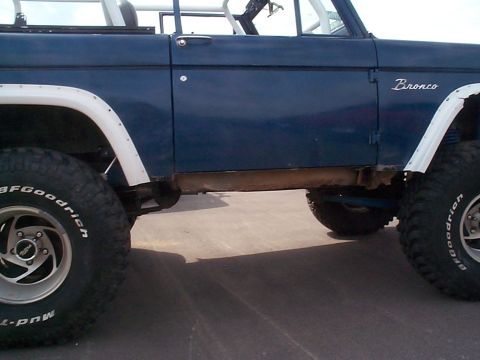

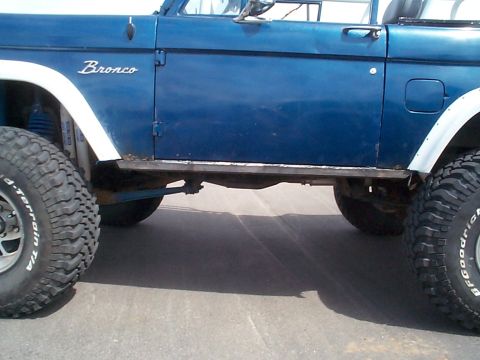

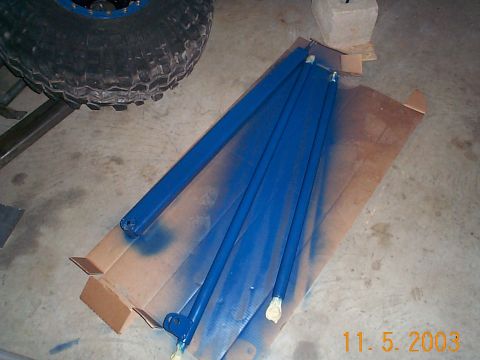

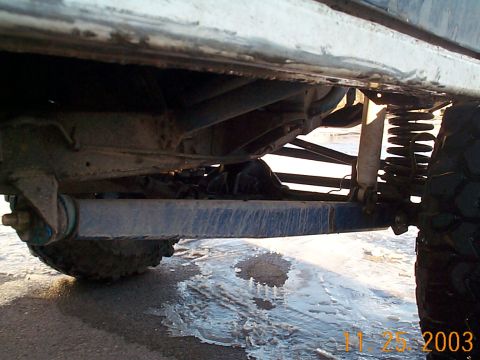

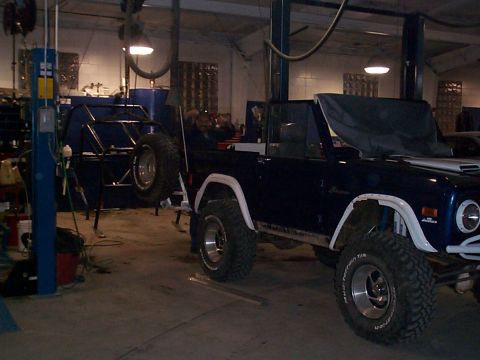

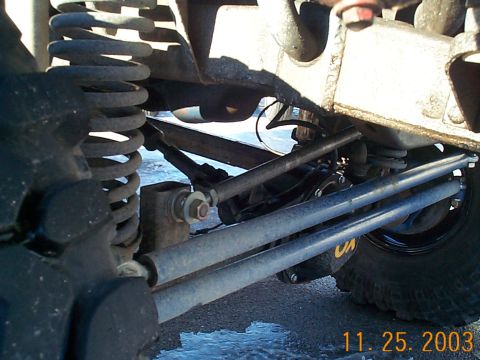

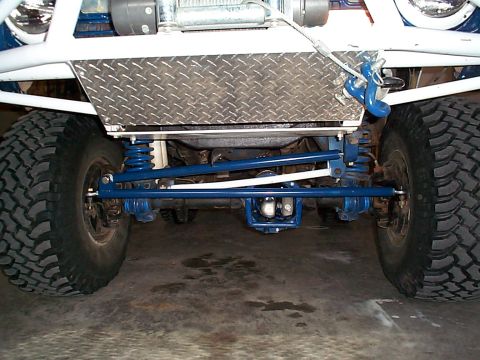

1977 Ford Bronco - lift off door hinges 1977 Ford Bronco - new 1.5" DOM with a half inch wall, 3/4 by 3/4 hiems joints for tie rods ends. new rock knocker. 1977 Ford Bronco - all bars gotta be blue 1977 Ford Bronco - skinned housing for the wristed swap 1977 Ford Bronco - new trac bar 1 1/8 dom $ 3/4 hiems 1977 Ford Bronco - new wristed arm 1977 Ford Bronco - 13.5 inches longer than stock 1977 Ford Bronco - new roll bar 6/2/02 1977 Ford Bronco - new 2x4 rock knockers 1977 Ford Bronco - shaved rocker panels 1977 Ford Bronco - A rebuilt front solid axle assembly rests on red jack stands in a garage, with the housing painted black, knuckles and tie rod painted blue… 1977 Ford Bronco - B&M shifter twin sticks gauge pod What a F%^#@n mess 1977 Ford Bronco - Ground-level view under a lifted 4x4 looking at the front axle steering: heavy tie rod and drag link tubes with rod ends, a coil spring and… 1977 Ford Bronco - Looking beneath the rocker panel of a white lifted 4x4 on wet pavement, showing a long blue-painted track bar or link running to the axle,… 1977 Ford Bronco - Underbody shot of a lifted 4x4's front suspension showing blue-painted radius arms and a blue front axle housing, a coil spring over a whit… 1977 Ford Bronco - The first flex didnt fair too well! a broken bolt holding the coil retaining clip made for a horrible sound 1977 Ford Bronco - A dark blue and white early Ford Bronco SUV sits lifted on large mud-terrain tires with beadlock wheels inside a garage, its front end rais… 1977 Ford Bronco - Heavily customized early Bronco interior with a white padded roll cage, a blue rope-wrapped grab bar across the dash, and a black dash pane… 1977 Ford Bronco - ram installed 1977 Ford Bronco - ram 1977 Ford Bronco - Close-up under a 4x4 of a red hydraulic ram-assist steering cylinder with braided hoses, bolted through a bracket next to a blue-painted co… 1977 Ford Bronco - ram 1977 Ford Bronco - A close-up of front steering and suspension components: stacked tie-rod ends bolted to a steering arm, a red steering stabilizer, and blue-… 1977 Ford Bronco - Under-truck close-up of a front axle area showing a red steering stabilizer mounted alongside a blue-painted steering link, with a blue coi… 1977 Ford Bronco - Underside view of a red hydraulic ram-assist steering cylinder with brass hose fittings mounted to a black bracket on blue-painted chassis… 1977 Ford Bronco - ram 1977 Ford Bronco - new trac arm bracket to mount ram 1977 Ford Bronco - ram tucked out of harms way 1977 Ford Bronco - ram 1977 Ford Bronco - hydro boost from a Super duty 1977 Ford Bronco - Inline 300 6cyl. snug fit
