Winch install

From 1990 Ford Bronco, documented by locopny.

20 photos
← Back to this vehicle

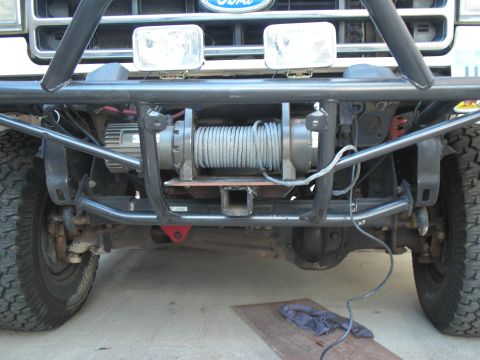

1990 Ford Bronco - Gray Warn HS9500i High Speed electric winch sitting on a concrete floor, spooled with steel cable and still wired to red and black battery… 1990 Ford Bronco - Close-up of a black tubular front push bar on a Ford truck, fitted with two rectangular chrome-bezel driving lights and a bare aluminum lic… 1990 Ford Bronco - move plate to stay legal 1990 Ford Bronco - cut the body! this little bit to make the height fit. 1990 Ford Bronco - mock up positioning. 1990 Ford Bronco - frontal view. placed for measurements to start mount plate. 1990 Ford Bronco - parts is getting cut. 1990 Ford Bronco - new plate bracket....its black and its dark out...best I could do with the flash. 1990 Ford Bronco - mocked up plate 1990 Ford Bronco - better day time shot of plate bracket. used a plate frame to stiffen the plate to keep from rubbing body. 1990 Ford Bronco - showing where I need to drill mounting holes 1990 Ford Bronco - electrical hook up... 1990 Ford Bronco - Head-on view under the front of a Ford truck showing a fabricated black tube bumper with a winch mounted behind it, its drum wrapped in ste… 1990 Ford Bronco - fairlead mount welded to bumper and painted 1990 Ford Bronco - all done 1990 Ford Bronco - up close in first use. 1990 Ford Bronco - first use is to pull the truck bumper straight. 1990 Ford Bronco - hopefully a better shot of how the fairlead is mounted to the bumper. 1990 Ford Bronco - last of brace supports to get installed. Lucky to even finish as the welder ran out of gas. 1990 Ford Bronco - not winch related, but decided to add the grill bug screening while the grill was out for wire routing for the winch.
