ZF S5-47 Swap

From 1995 Ford Bronco “Big Pig”, documented by pepper.

12 photos
← Back to this vehicle

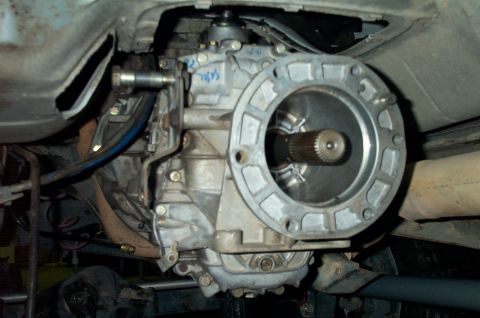

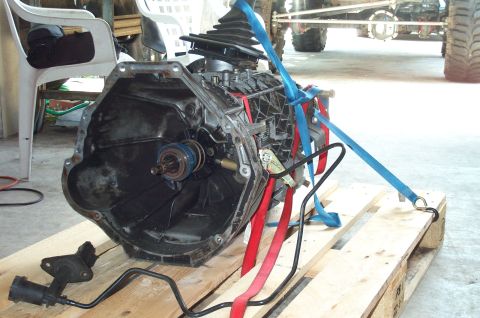

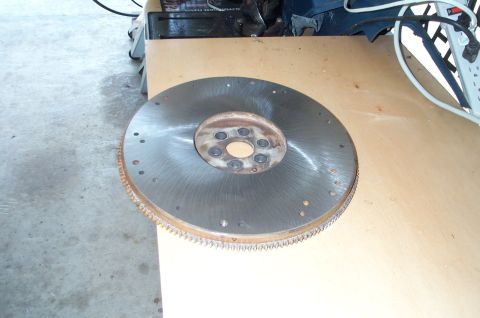

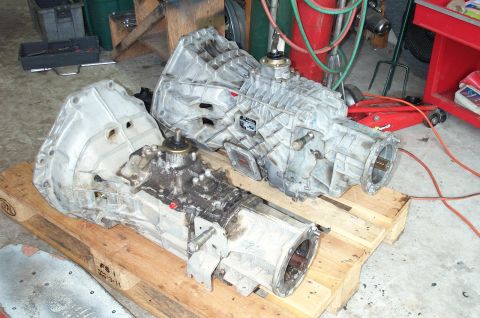

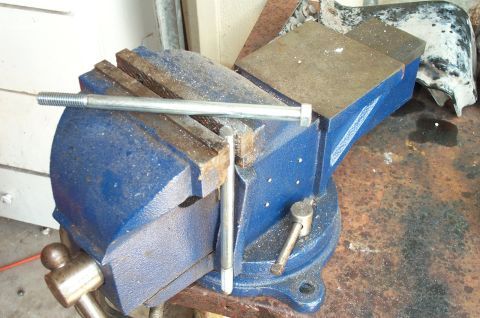

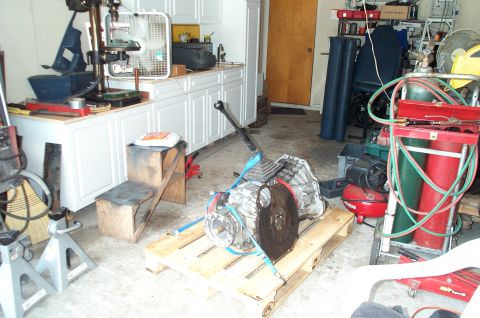

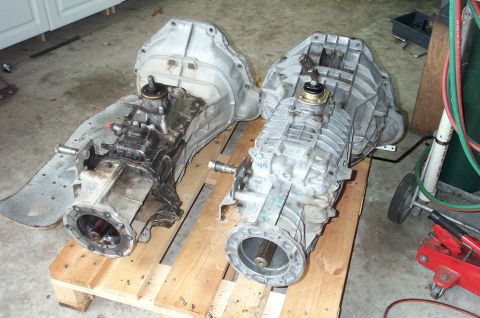

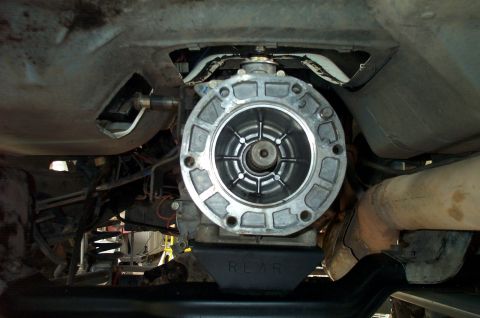

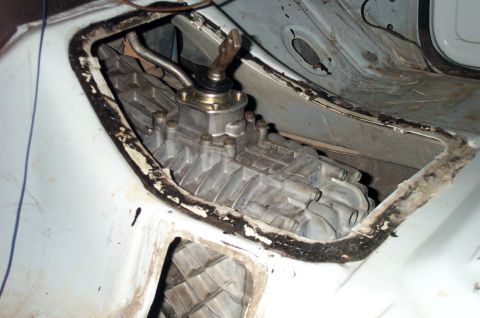

1995 Ford Bronco - ZF S547 from a 1996 F350 4x4 with a 5.8L. 1995 Ford Bronco - A manual transmission with an attached transfer case or bellhousing sits on a wooden pallet, secured with blue and red ratchet straps. The… 1995 Ford Bronco - A vehicle transmission with attached shifter and flywheel/torque converter sits strapped to a wooden pallet on a garage floor. The surround… 1995 Ford Bronco - ZF S5-47 next to M5OD-R2 1995 Ford Bronco - Interestingly, the ZF's output shaft looks to exit much higher than the M5OD's but viewing the two cases from the side, reveals that the ZF… 1995 Ford Bronco - resurfaced the flywheel 1995 Ford Bronco - made these dowels to help installation 1995 Ford Bronco - those dowels installed. I later cut 2" off of them and made another slot because of issues with installation. The starter flange on the hou… 1995 Ford Bronco - crappy picture but I got it installed. I was too busy to take pictures of the OSHA-violating contraption I rigged up IOT get this in (ratch… 1995 Ford Bronco - Cross-member, T-case, drive shafts and bleed the clutch. After that, we'll see how it goes... 1995 Ford Bronco - no clearance issues yet 1995 Ford Bronco - crossmember installed
