Over Head Console Install

From 1995 Ford Bronco “B'co” — documented by TRUCKY18.

14 photos
← Back to this vehicle

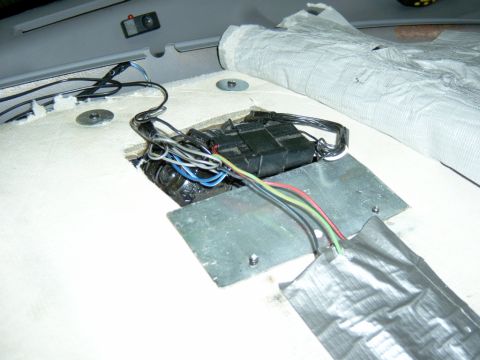

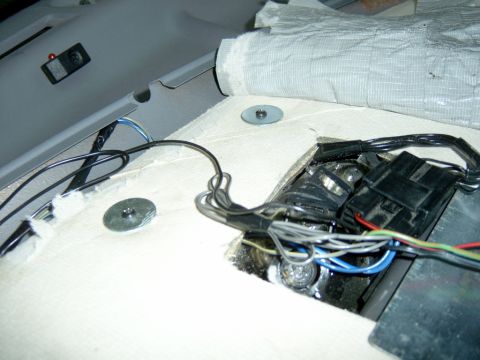

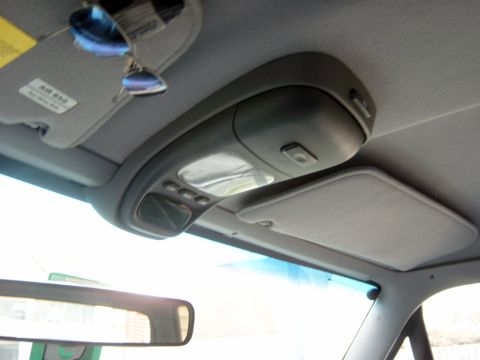

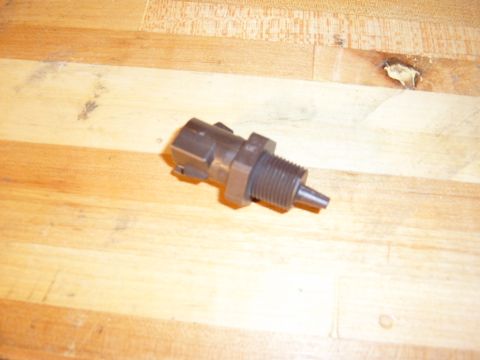

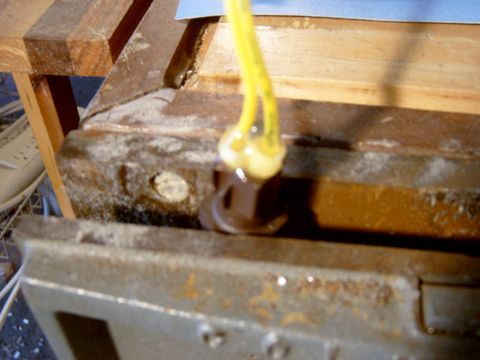

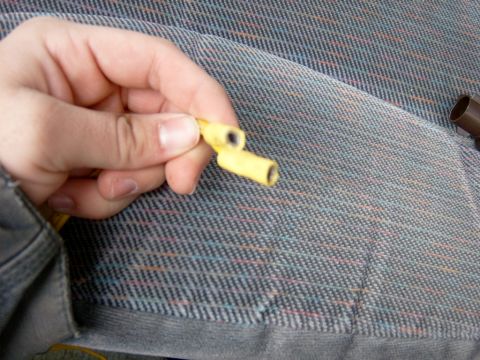

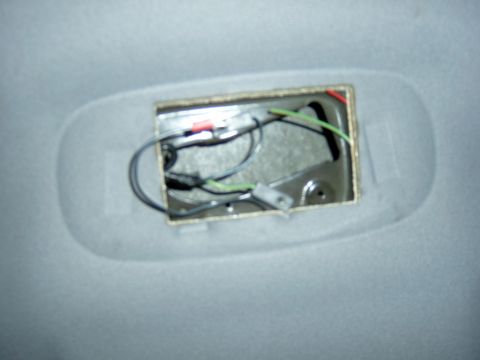

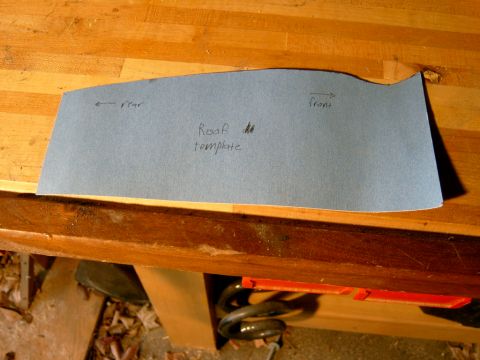

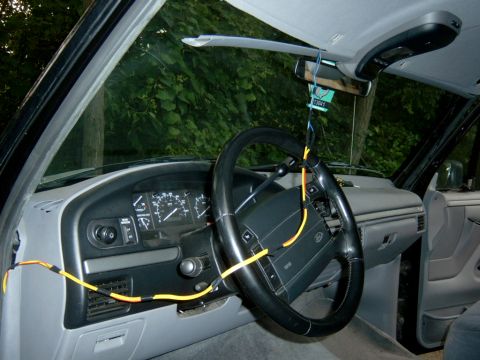

1995 Ford Bronco - The install is of a 99’ Explorer over-head console into a 95 Bronco, I got it of E-bay for $50.00. The only other part you need is the temp… 1995 Ford Bronco - After all the sanding and test fitting this is what it looks like in the Bronco. There are 2 types of console for the Explorer, the one lik… 1995 Ford Bronco - To take the headliner down you simply un-screw all the trim pieces around it. Once they have been un-screwed it will fall down. You DO NOT… 1995 Ford Bronco - Closer on the screws/washer. I cut the plastic snap tabs off and they gave me a good base to screw these screws into. 1995 Ford Bronco - I ran all the wires down the driver side cause i already had some on the passenger side for my alarm system. I grounded the whole thing to… 1995 Ford Bronco - The dome light is where I got power for the map lights, if you pick the black wire they will come on with the doors opening, and if you pic… 1995 Ford Bronco - This is the temp sensor (part number: F87Z-12A647-AA) 1995 Ford Bronco - The sensor is designed to have a connector that plugs into it, which you don’t get so I used to connectors that are designed to hook two pi… 1995 Ford Bronco - After I had shoved the wires in to the sensor I sealed the whole end up the “automotive goop” it did a really good job and dried in about 2… 1995 Ford Bronco - I decided to mount it on the right side near where the bumper is attached to the frame; I just used a zip tie to hole it in place. 1995 Ford Bronco - Got the power working, there was an empty fuse spot n the fuse box that happened to turn on wit the ignition, I was happy about that. 1995 Ford Bronco - There it is up and working, you have to calibrate the compass, but I hadn’t yet so it’s not right. 1995 Ford Bronco - Ya it was frickin freezing that day. 1995 Ford Bronco - This is the zone map for the compass To actually calibrate the compass: Go find an abandoned parking lot and follow the following steps: Pr…
