1986 Ford Bronco/F-series door panel restoration.

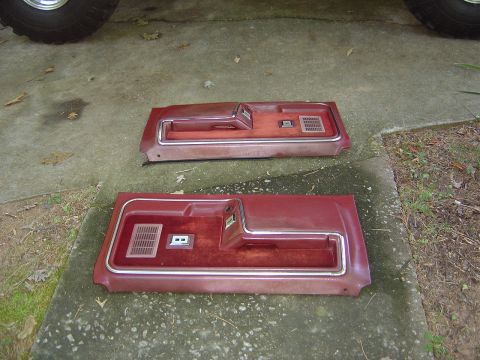

Old faded door panels

434 hits | 70.89 KB | Posted: 10/19/10
Old faded door panels

436 hits | 68.49 KB | Posted: 10/19/10

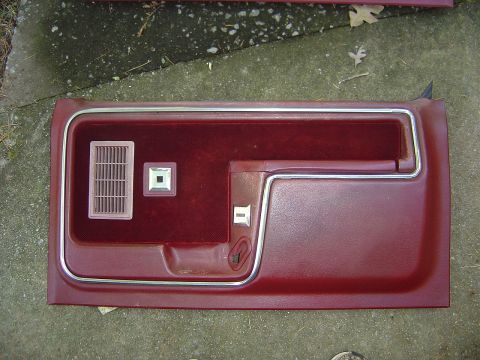

Pass side faded door panels

524 hits | 64.09 KB | Posted: 10/19/10

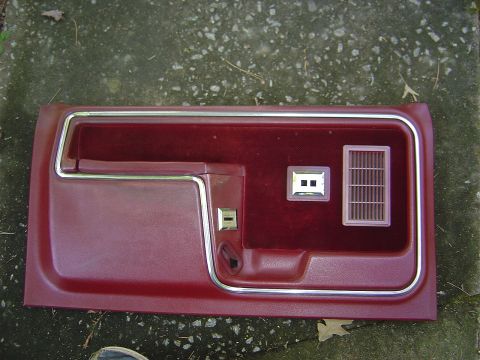

Drivers side faded door panel

432 hits | 74.67 KB | Posted: 10/19/10

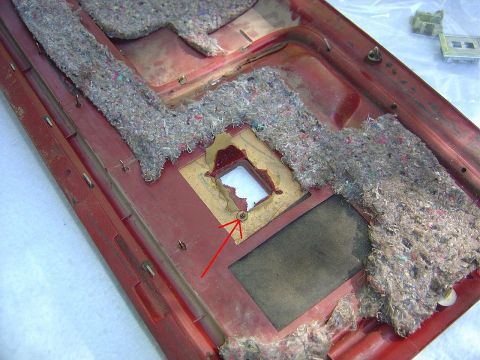

Remove the 4 nuts that hold on the trim around the power window switch (Only one shown)

425 hits | 67.6 KB | Posted: 10/19/10

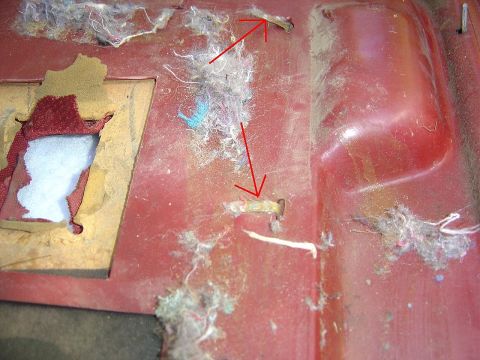

Bend the tabs that hold the cloth covered section strait. There are a lot of them, so make sure you ...

416 hits | 63.13 KB | Posted: 10/19/10

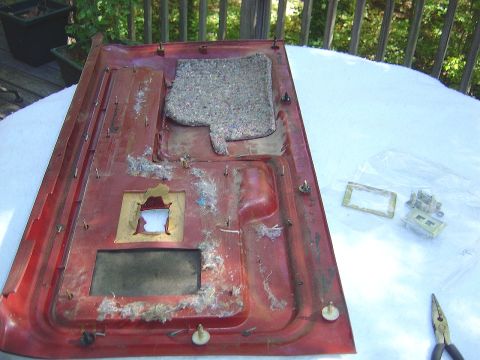

All of the metal tabe for the cloth covered section bent strait.

418 hits | 62.7 KB | Posted: 10/19/10

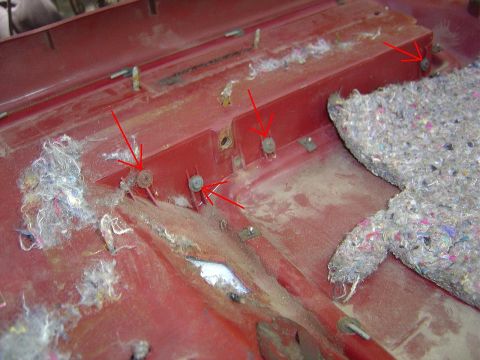

Remove the 4 screwes that hold the armrest pad on.

433 hits | 55.27 KB | Posted: 10/19/10

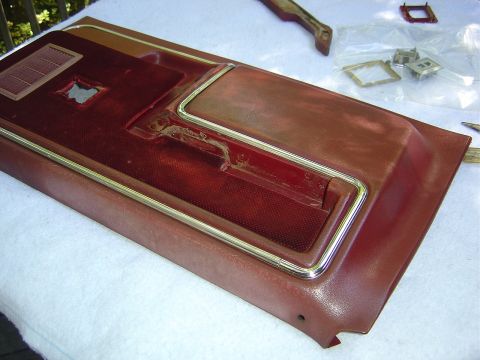

When you flip the door over the armrest pad should fall off, the cloth covered section may as well. ...

473 hits | 63.57 KB | Posted: 10/19/10

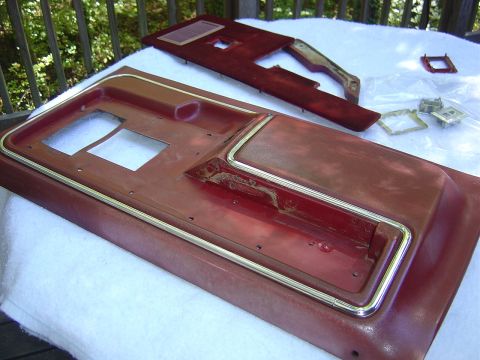

Cloth covered part removed.

420 hits | 54.24 KB | Posted: 10/19/10

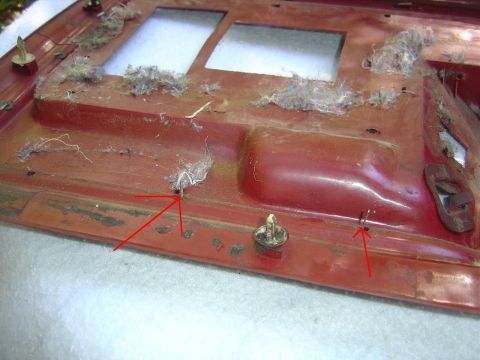

The chrome trim ring is held on by three kinds of tabs, one kind is identical to the others.

402 hits | 51.08 KB | Posted: 10/19/10

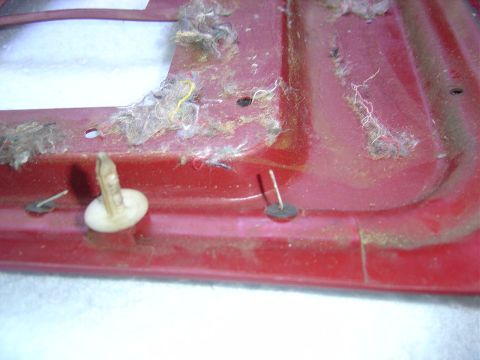

Anther kind is the same metal tabs but it has these locks on them.

386 hits | 52.22 KB | Posted: 10/19/10

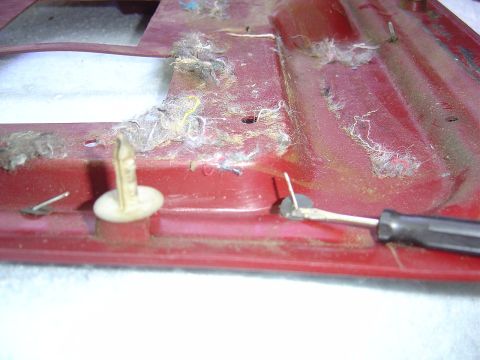

I removed them by prying up on one side of the slit the retaining tab goes through, then slowly wigg...

406 hits | 53.81 KB | Posted: 10/19/10

431 hits | 65.05 KB | Posted: 10/19/10

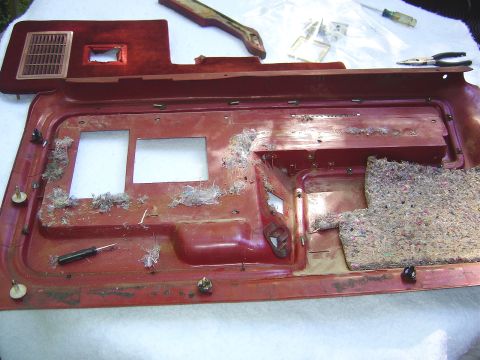

Go ahead and remove the rest of that carpet padding/sound deadener.

386 hits | 58.87 KB | Posted: 10/19/10

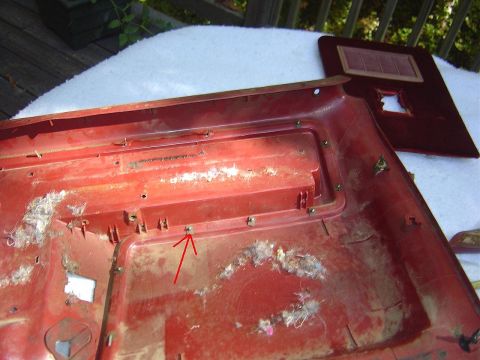

This is the final type of tab holding the chrome trim ring in place. Just remove the lock the same w...

461 hits | 55.18 KB | Posted: 10/19/10

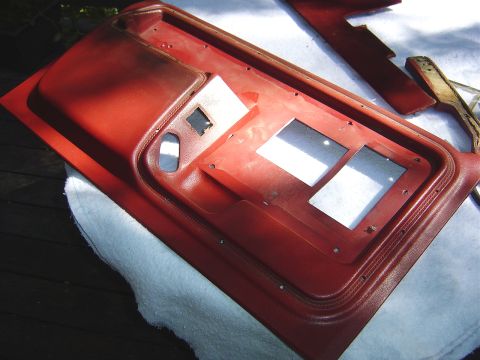

Bare door panel, ready for prep.

445 hits | 41.92 KB | Posted: 10/19/10

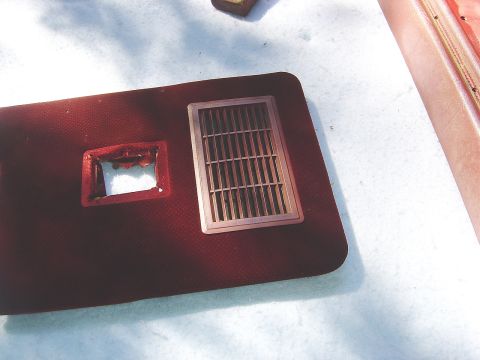

Badly faded pink speaker grill.

401 hits | 56.04 KB | Posted: 10/19/10

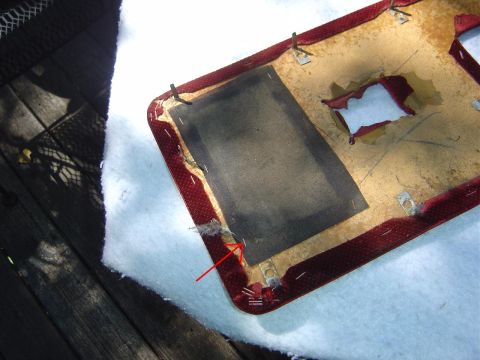

Remove the staples that hold the mesh screen in place.

422 hits | 61.53 KB | Posted: 10/19/10

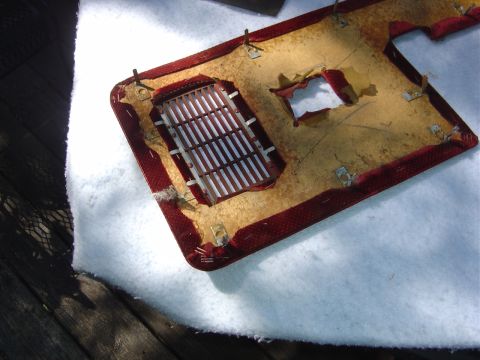

The speaker grill is held on with more metal tabs.

419 hits | 58.68 KB | Posted: 10/19/10

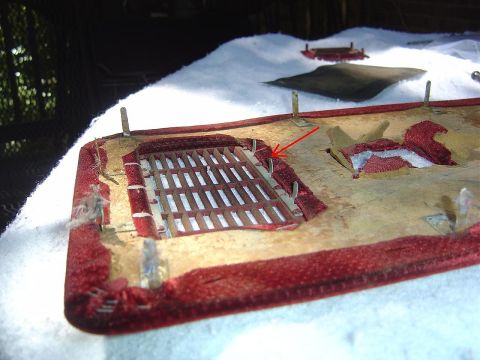

Bend one side strait and the grill will slide out easily.

458 hits | 55.81 KB | Posted: 10/19/10

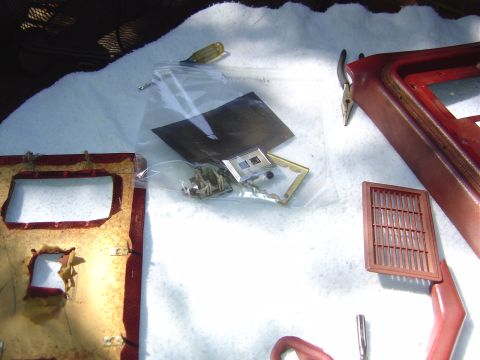

I placed all the small parts that where not going to be painted in a ziplock labeled "Drivers S...

420 hits | 84.6 KB | Posted: 10/19/10

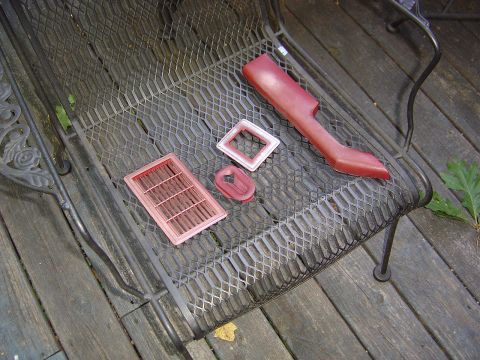

Here are the small parts after being thoroughly cleaned with "Purple Power" and a brush an...

427 hits | 70.02 KB | Posted: 10/19/10

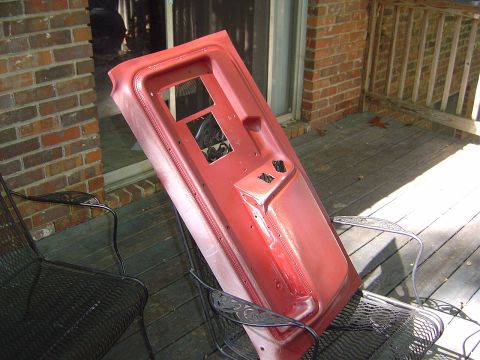

Door panel after being thoroughly cleaned with "Purple Power" and a brush, and wiped down ...

493 hits | 106.43 KB | Posted: 10/19/10

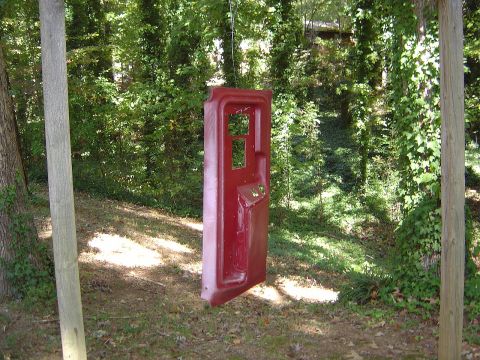

Prepped driver side door panel hanging in our custom paint booth.

488 hits | 100.57 KB | Posted: 10/19/10

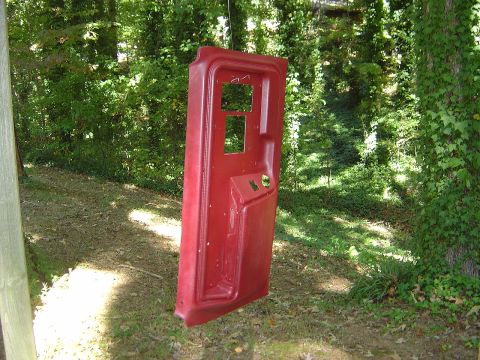

After two light mist coats of "ColorBond" Still a bit blotchy, but looking a little bette...

480 hits | 95.88 KB | Posted: 11/12/10

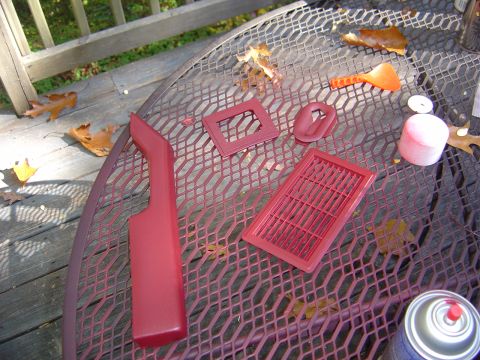

Armrest, Speaker grill, and power window switch trim coated with ColorBond. (I repainted the table B...

471 hits | 101 KB | Posted: 12/7/10

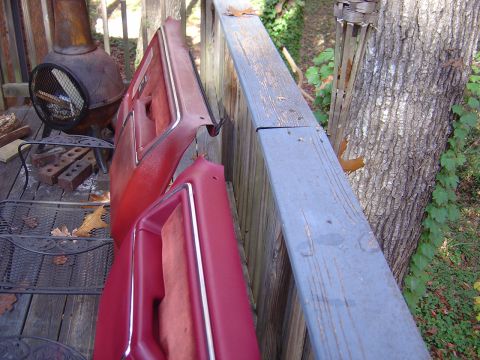

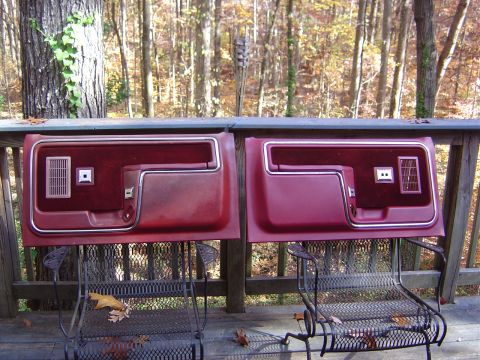

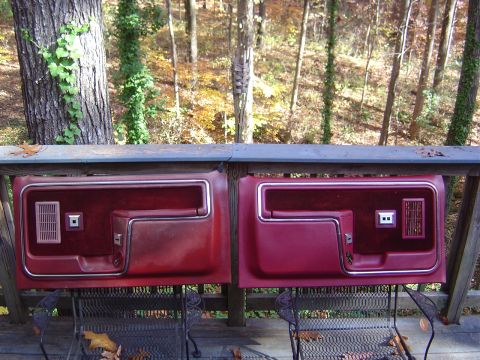

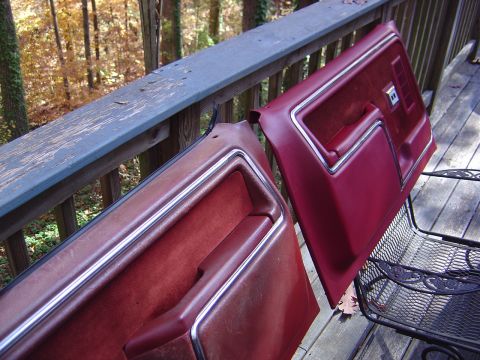

The restored drivers side door panel next to the non restored passenger side panel.

483 hits | 98.31 KB | Posted: 12/7/10
The restored drivers side door panel next to the non restored passenger side panel.

439 hits | 85.79 KB | Posted: 12/7/10
The restored drivers side door panel next to the non restored passenger side panel.

482 hits | 87.94 KB | Posted: 12/7/10
The restored drivers side door panel next to the non restored passenger side panel.

514 hits | 73.59 KB | Posted: 12/7/10

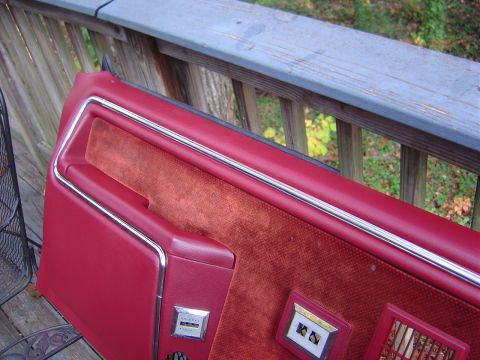

Restored door panel with window felt reinstalled.

691 hits | 78.9 KB | Posted: 2/20/11
Bare door. I lubed all the window regulator mechanism with white lithium grease. lubed the lock cyli...

735 hits | 77.16 KB | Posted: 2/20/11
Peal & Seal applied, two layers towards the middle, one layer at the edges where the door panel clea...

741 hits | 70.06 KB | Posted: 2/20/11
Restored door panel installed with all new fasteners. Color is not dead on but it is way better than...

442 hits | 67.73 KB | Posted: 2/20/11
A little warning for 80-86ers. If you decide to remove the felt screen from the speaker grill as I d...
