Head Leak Repair

From 1988 Ford Bronco “Beast”, documented by Eric Dreher.

9 photos
← Back to this vehicle

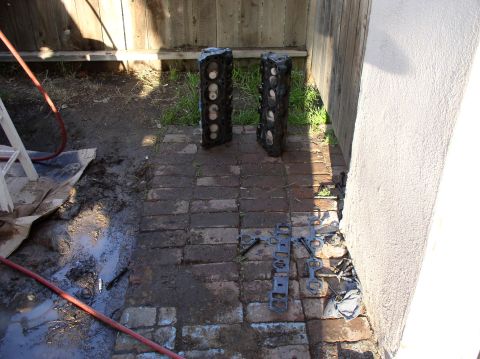

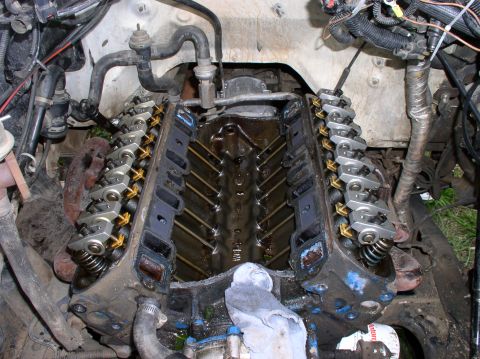

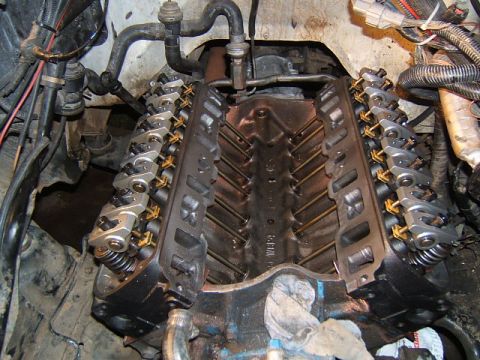

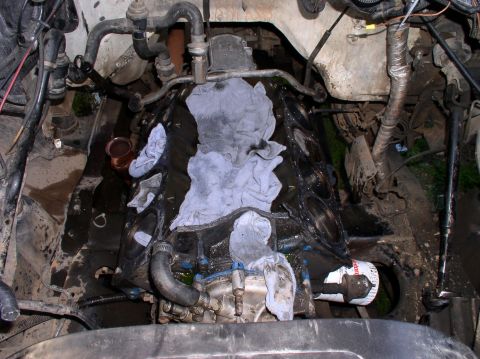

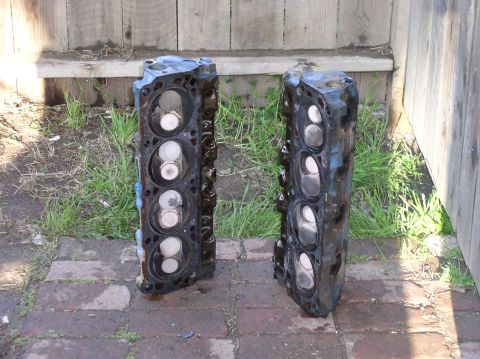

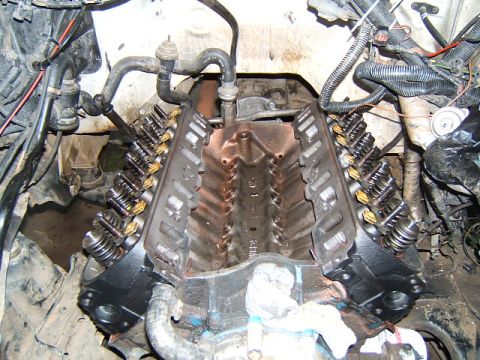

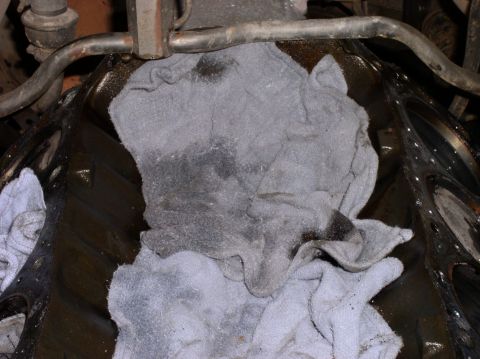

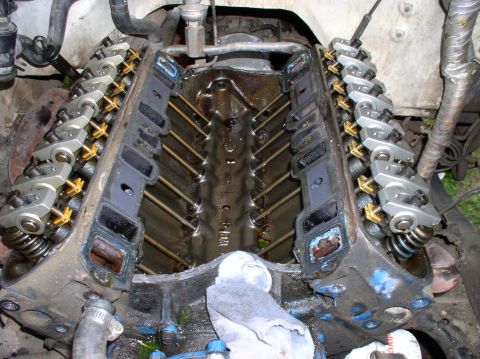

1988 Ford Bronco - Close-up of a V8 engine with valve covers off, revealing internal components and oil residue. 1988 Ford Bronco - Close-up view of a V8 engine's cylinder heads with the intake manifold removed, revealing internal components. 1988 Ford Bronco - Engine block halves and gaskets are laid out on a brick patio, suggesting a repair or disassembly process. 1988 Ford Bronco - Cracked head by valve sitting. Not sure which head because I found out after the pic was taken. 1988 Ford Bronco - Rags cover an engine block, likely during a repair process. 1988 Ford Bronco - Engine block with cylinder head removed, showing internal components and rags. 1988 Ford Bronco - Engine block with valve train components visible, suggesting internal engine work. 1988 Ford Bronco - Just a little friendly gesture to the bad leaky heads 1988 Ford Bronco - New heads installed. Ready to put back together. This was a B*&ch of a job. Not recommended.
