Goodbye Stroker 393W, Hello Stock 351W

From 1988 Ford Bronco “Beast” — documented by Eric Dreher.

42 photos
← Back to this vehicle

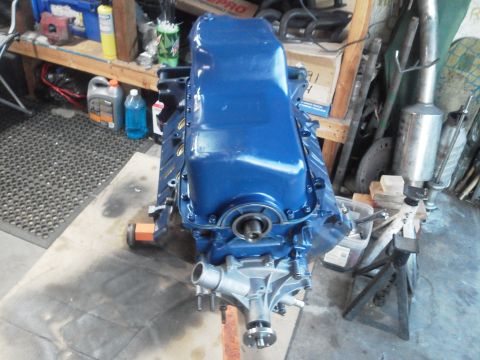

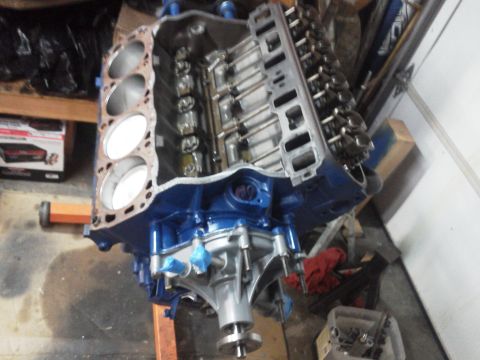

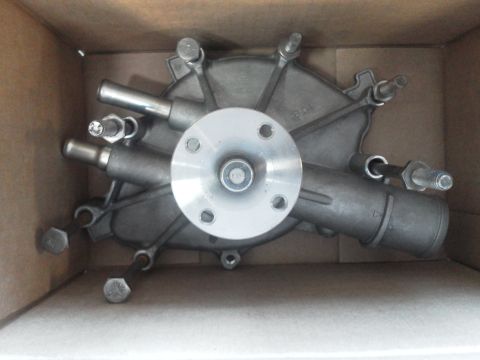

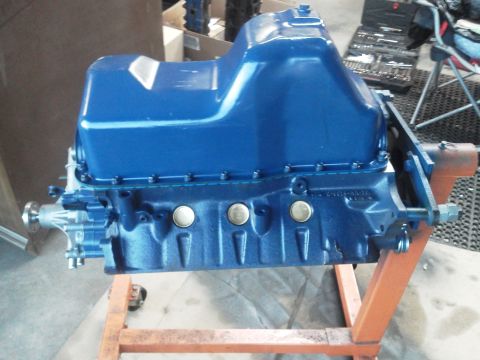

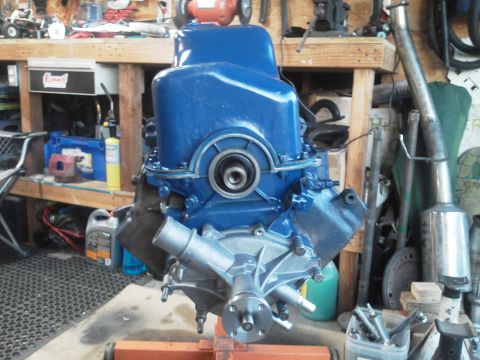

1988 Ford Bronco - 393W Stroker motor. MAF equipped. Got rid of this and I am going back to a stock 351w speed density set up. Going to be a long build as I a… 1988 Ford Bronco - Stock 351W I swapped for my 393W stroker motor. And, so, it begins........ 1988 Ford Bronco - 95 Motor back from the machine shop. .030 over , Crank polished, new cam bearings, crank journal bearings, pistons, rods and rings. 1988 Ford Bronco - Notice something strange in this pic? Oil pickup thread was installed on the wrong side of the Block. Whoops.. No big, just a little fix. 1988 Ford Bronco - A blue engine block assembly, the crankshaft and connecting rods, is mounted on an orange engine stand. 1988 Ford Bronco - Oil Pump and pickup installed. 1988 Ford Bronco - Engine block assembly, likely a Ford V8, with timing chain and oil pump. 1988 Ford Bronco - A blue Ford V8 engine block is mounted on an orange engine stand, with internal components visible. 1988 Ford Bronco - Top Dead Center.... Nice. 1988 Ford Bronco - A blue engine assembly, likely a Ford V8, is displayed on an engine stand in a cluttered garage setting. 1988 Ford Bronco - A blue engine block with its water pump assembly is displayed, likely awaiting installation or rebuild. 1988 Ford Bronco - Engine block on a stand, with tools in the background. 1988 Ford Bronco - A close-up view of a blue engine part, showing a gasket and several bolts securing it in place. 1988 Ford Bronco - Close-up of an engine block showing a teal gasket and hex bolts. 1988 Ford Bronco - Close-up view of a blue engine block, showing hex bolts and internal oil passages. 1988 Ford Bronco - Engine part with blue paint, sealant, and bolts visible. 1988 Ford Bronco - A close-up view of a blue painted engine block component, showing bolts and a metal flange. 1988 Ford Bronco - Engine valve train components, including pushrods and rocker arm assembly, are visible in this close-up shot. 1988 Ford Bronco - A freshly painted V8 engine sits on an engine stand, ready for installation. 1988 Ford Bronco - Engine block on an engine stand, covered for protection. 1988 Ford Bronco - A close-up view of two engine cylinder heads, likely for a V8 engine, are displayed in a workshop setting. 1988 Ford Bronco - A blue engine block with a silver water pump is mounted on an orange engine stand. 1988 Ford Bronco - Close-up view of an engine's cylinder head, revealing internal components like valve springs and bolts. 1988 Ford Bronco - Engine cylinder head detail with valve springs and mounting points visible. 1988 Ford Bronco - Detail of an engine valve spring assembly, showing the spring, retainer, and valve stem. 1988 Ford Bronco - Two washers and a screw are placed on a textured wooden surface. 1988 Ford Bronco - Engine internal components including valve springs and rocker arm assembly are visible in this close-up shot. 1988 Ford Bronco - A metal engine water pump with a silver flange and two pipes is shown in a cardboard box. 1988 Ford Bronco - A detailed view of internal engine components, focusing on the valve train mechanism. 1988 Ford Bronco - Ready to Install 1988 Ford Bronco - Front view of a Ford F-Series truck with its hood open, revealing the engine bay and an aftermarket bumper. 1988 Ford Bronco - A blue engine with silver valve covers is suspended by a shop crane, ready for installation or removal. 1988 Ford Bronco - Engine removal in progress on a 1988 Ford Bronco. 1988 Ford Bronco - The engine bay of a white SUV, with the hood open and engine components visible. 1988 Ford Bronco - MOTOR IS IN!!!! 1988 Ford Bronco - Reward for a few hours of fighting with the Beast to get the motor in. Never easy with this rig. 1988 Ford Bronco - Happy, Happy, Happy.. That's good stuff right there. 1988 Ford Bronco - Oil pressure sending unit with visible part number marking. 1988 Ford Bronco - Close-up view of a red distributor cap and blue spark plug wires within an engine compartment. 1988 Ford Bronco - Engine bay detail with distributor, fuel injectors, and wiring harness visible. 1988 Ford Bronco - A tangled mess of wires and connectors, likely a vehicle's electrical system, is spread out on a concrete surface. 1988 Ford Bronco - A single black rubber seal is shown against a textured gray background.
