Alternator and voltmeter

From 1994 Ford Bronco “BlazenXLT”, documented by BlazenXLT.

17 photos
← Back to this vehicle

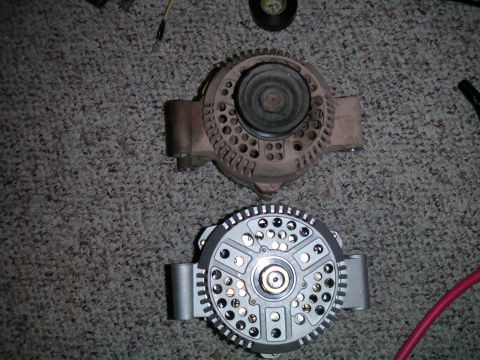

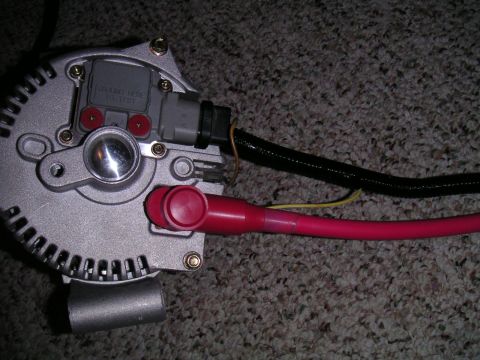

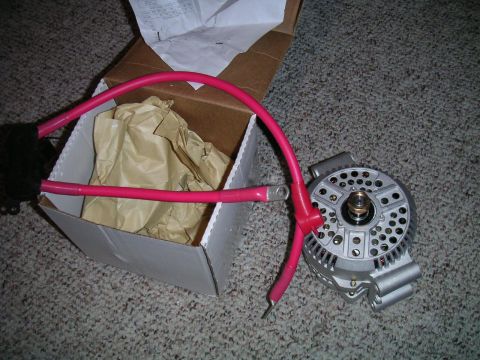

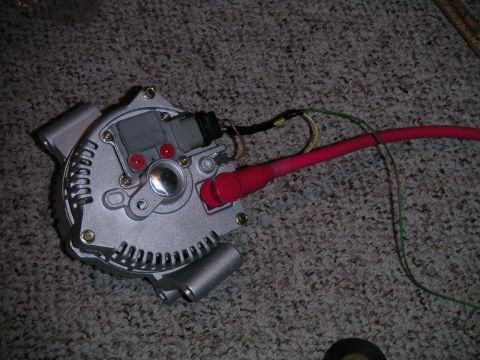

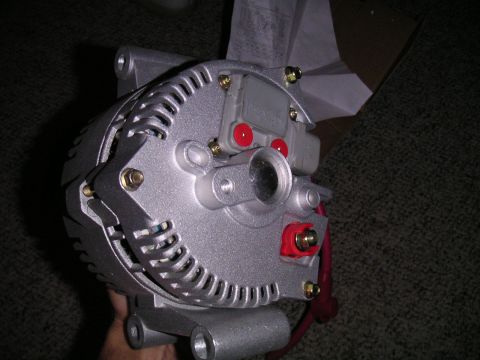

1994 Ford Bronco - New silver alternator laid on carpet next to its opened white shipping box and packing paper, shown face-on with the vented front housing,… 1994 Ford Bronco - A rebuilt or new silver-finished alternator held in a hand over carpet, viewed from the rear housing with cooling slots, gold-plated mounti… 1994 Ford Bronco - An Auto Meter voltmeter gauge and its associated parts are laid out on a patterned surface next to its original packaging. 1994 Ford Bronco - Unboxed Auto Meter Lunar Series voltmeter with a white face, red needle and 8-18 VOLTS scale, sitting on a plaid couch next to its black si… 1994 Ford Bronco - Wiring connected to new alt 1994 Ford Bronco - Wiring cleaned up 1994 Ford Bronco - Old and new together 1994 Ford Bronco - New charge cable next to stock one. Big difference. 1994 Ford Bronco - Overhead view of a newly mounted silver 12V 130A alternator, its parts label still attached, sitting in an engine bay before the serpentine… 1994 Ford Bronco - Freshly installed silver alternator in an engine bay, still wearing a parts label reading '20-228-10-2 / 12V 130A', showing its finned case… 1994 Ford Bronco - Close-up of a newly installed cast-aluminum alternator in a dusty engine bay, with copper windings visible through the vented case and a se… 1994 Ford Bronco - Wider engine-bay view of a new silver alternator bolted in place with the serpentine belt routed over its pulley and a smooth idler pulley… 1994 Ford Bronco - Tight shot of a freshly installed silver alternator in a dusty engine bay, with a heavy red battery cable in a red insulating boot bolted t… 1994 Ford Bronco - Close-up of a dusty engine bay showing the starter solenoid mounted on the inner fender, with a red battery cable in a pink insulating boot… 1994 Ford Bronco - Interior shot under the gray dash showing an aftermarket white-face voltmeter gauge (8-18 volts) mounted on a bracket below the dashboard,… 1994 Ford Bronco - Close-up of an Auto Meter Lunar Series voltmeter with a white face, red needle and 8-18 volt scale, mounted in a black single-gauge pod bra… 1994 Ford Bronco - A Ford alternator pulley tensioner is shown, with visible text indicating part number F50A-6026-GO.
