Kurt Rohmer > 1989 Ford Bronco > open folder replacing alternator

alright...old/original alternator is out. look at all them wires!
1185 hits | 68.82 KB | Posted: 6/9/04
alright...old/original alternator is out. look at all them wires!

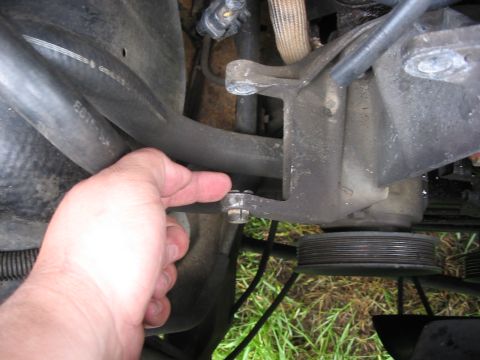

be sure to remember that this little bolt guide needs to be tapped in (towards the radiator) to make...
940 hits | 55.07 KB | Posted: 6/9/04
be sure to remember that this little bolt guide needs to be tapped in (towards the radiator) to make...

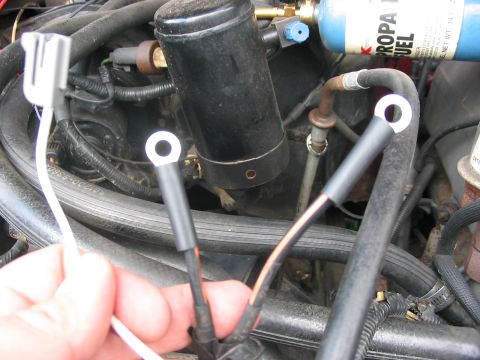

The ends of the wires (bottom set) ready for soldering and shrink wrap
895 hits | 63.53 KB | Posted: 6/9/04
The ends of the wires (bottom set) ready for soldering and shrink wrap

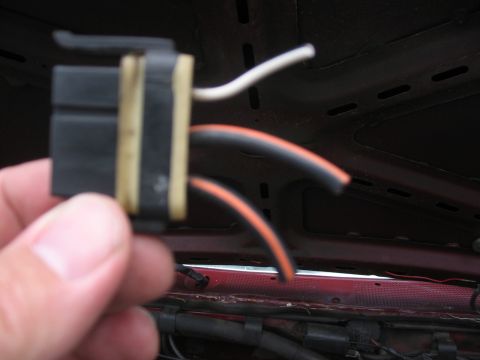

The other side of the wires!! You can throw out this attachment, you won't be using it ever again. ...
905 hits | 32.59 KB | Posted: 6/9/04
The other side of the wires!! You can throw out this attachment, you won't be using it ever again. ...

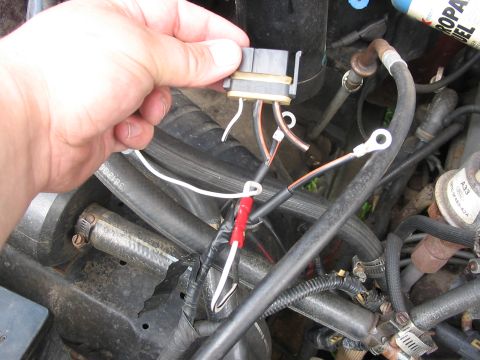

just showing you what it once looked like... sort of
782 hits | 65.83 KB | Posted: 6/9/04
just showing you what it once looked like... sort of

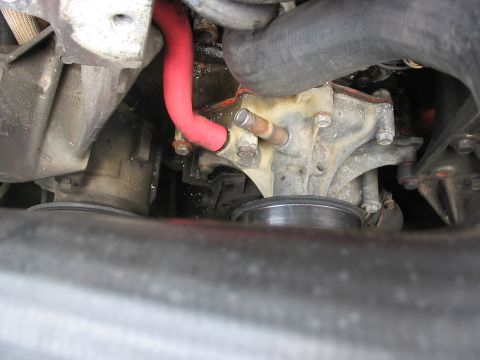

had to replace busted water pump secondary hoses (one goes to the heater core, the other goes into t...
876 hits | 45.53 KB | Posted: 6/9/04
had to replace busted water pump secondary hoses (one goes to the heater core, the other goes into t...

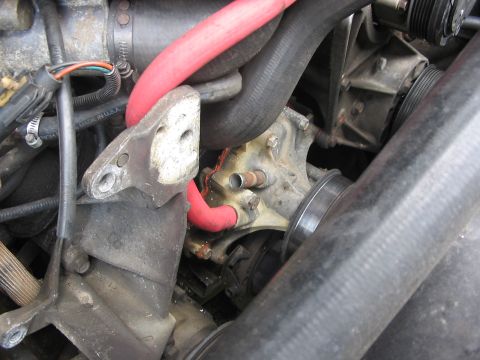

another angle on the water pump
766 hits | 59.5 KB | Posted: 6/9/04
another angle on the water pump

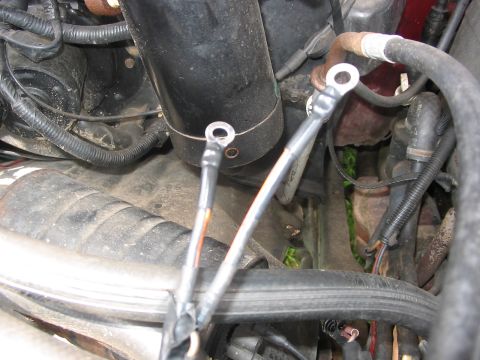

The two power wires...soldered, shrunk and ready to go!
777 hits | 65.15 KB | Posted: 6/9/04
The two power wires...soldered, shrunk and ready to go!

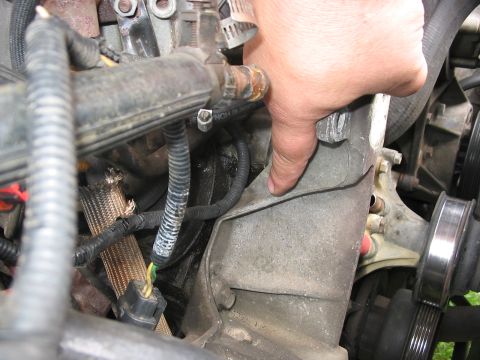

Did a test fit of the New G3 Alternator and found out it wouldn't fit!!! The left side of the case ...
739 hits | 63.94 KB | Posted: 6/9/04
Did a test fit of the New G3 Alternator and found out it wouldn't fit!!! The left side of the case ...

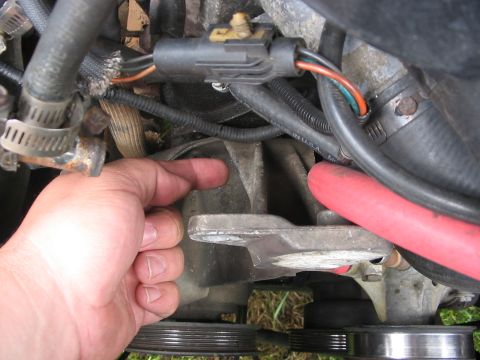

another angle of where I need to shave some metal off to make room for the new alternator
734 hits | 58.32 KB | Posted: 6/9/04
another angle of where I need to shave some metal off to make room for the new alternator

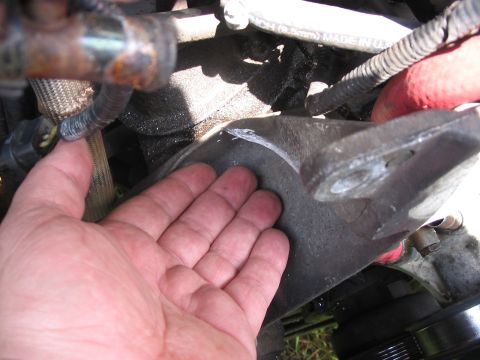

bracket is apparently made of aluminum, so the shaving went quickly
779 hits | 54.02 KB | Posted: 6/9/04
bracket is apparently made of aluminum, so the shaving went quickly

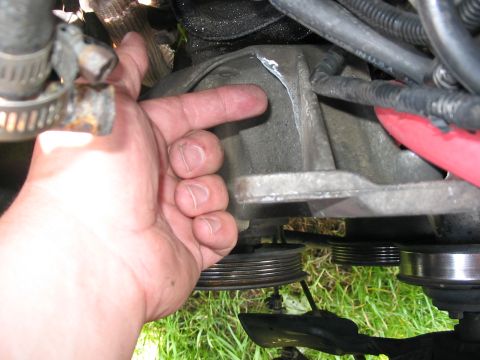

another angle of where I am cutting out the metal. I eventually cut back all of the way to the rib ...
748 hits | 58.12 KB | Posted: 6/9/04
another angle of where I am cutting out the metal. I eventually cut back all of the way to the rib ...

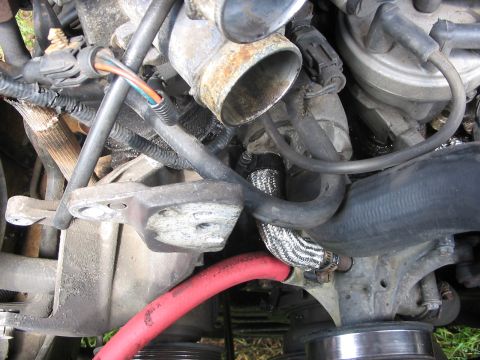

I shaved the ends on the elbow hose where the ends had frayed and bubbled allowing the hose to leak....
678 hits | 73.25 KB | Posted: 6/9/04
I shaved the ends on the elbow hose where the ends had frayed and bubbled allowing the hose to leak....

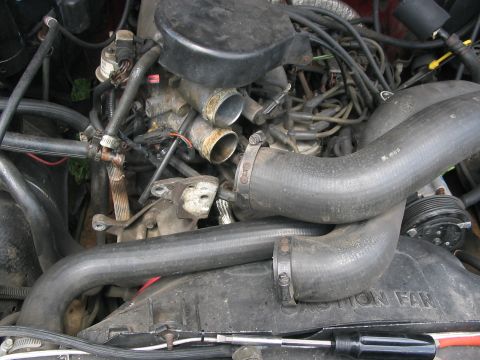

over view shot, just before I yanked off the intake tubes.
820 hits | 67.34 KB | Posted: 6/9/04
over view shot, just before I yanked off the intake tubes.

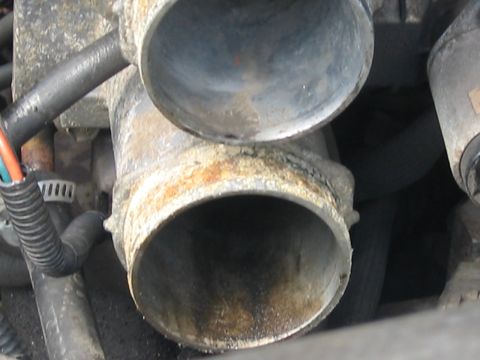

oh jeez, look at all that carbon/oil crap in my intakes!!!!
784 hits | 46.49 KB | Posted: 6/9/04
oh jeez, look at all that carbon/oil crap in my intakes!!!!

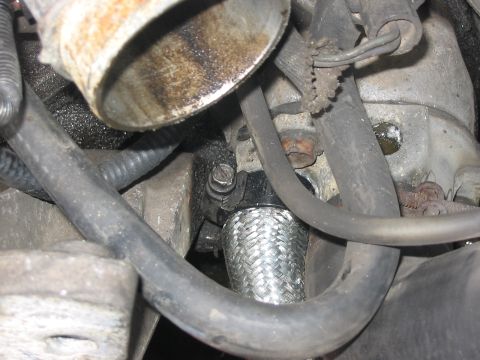

close up of the braided elbow hose that goes from the water pump to the front of the starboard bank ...
685 hits | 61.11 KB | Posted: 6/9/04
close up of the braided elbow hose that goes from the water pump to the front of the starboard bank ...

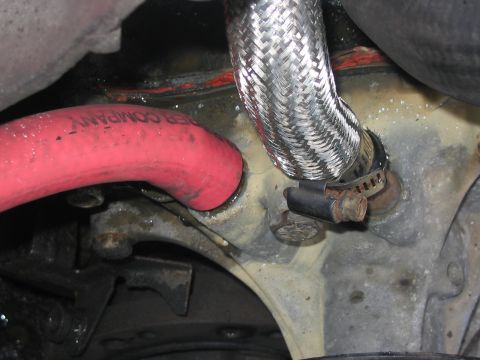

two hoses back on
768 hits | 52.93 KB | Posted: 6/9/04
two hoses back on

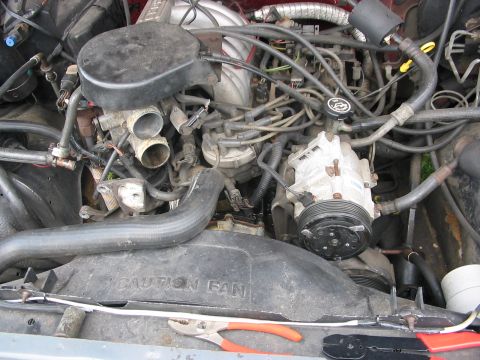

Almost a plumbers nightmare!!
811 hits | 77.69 KB | Posted: 6/9/04
Almost a plumbers nightmare!!

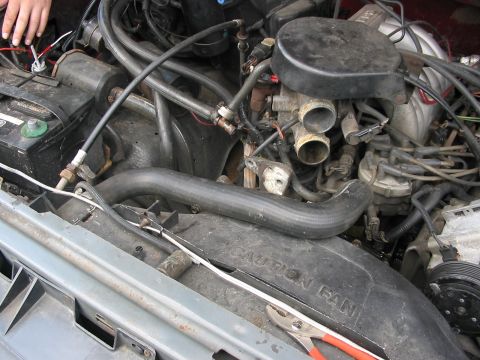

another over view angle
826 hits | 74.04 KB | Posted: 6/9/04
another over view angle
metal braiding on the second hose (going to the heater core), and how I routed it to make room for a...
961 hits | 67.51 KB | Posted: 6/9/04
metal braiding on the second hose (going to the heater core), and how I routed it to make room for a...
all dried up and pretty, not a leak in sight!
963 hits | 56.05 KB | Posted: 6/9/04
all dried up and pretty, not a leak in sight!
Here is the new G3 130 amp alternator in place and working. man putting the serpentine belt back on...
1062 hits | 56.09 KB | Posted: 6/9/04
Here is the new G3 130 amp alternator in place and working. man putting the serpentine belt back on...
old top harness goes into an OEM slot, the white wire with a black stripe with the new block style m...
979 hits | 49.7 KB | Posted: 6/9/04
old top harness goes into an OEM slot, the white wire with a black stripe with the new block style m...
Another picture showing the proper placement of all wires onto the alternator
1213 hits | 64.08 KB | Posted: 6/9/04
Another picture showing the proper placement of all wires onto the alternator
you can see how I rerouted all of the local wires away from the emissions pipe that comes up from th...
1102 hits | 65.07 KB | Posted: 6/9/04
you can see how I rerouted all of the local wires away from the emissions pipe that comes up from th...
another view with all of the wires
981 hits | 50.2 KB | Posted: 6/9/04
another view with all of the wires
The 4 guage wire attaches to this side of the selenoid. (the positive terminal)
1062 hits | 59.39 KB | Posted: 6/9/04
The 4 guage wire attaches to this side of the selenoid. (the positive terminal)
