wires

From 1992 Ford Bronco “Tank” — documented by Tank92.

5 photos
← Back to this vehicle

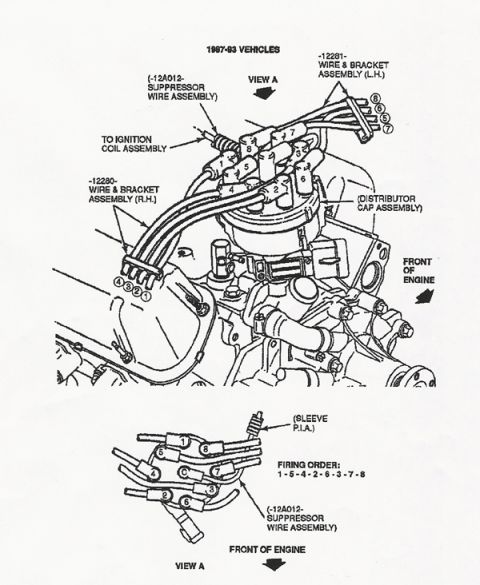

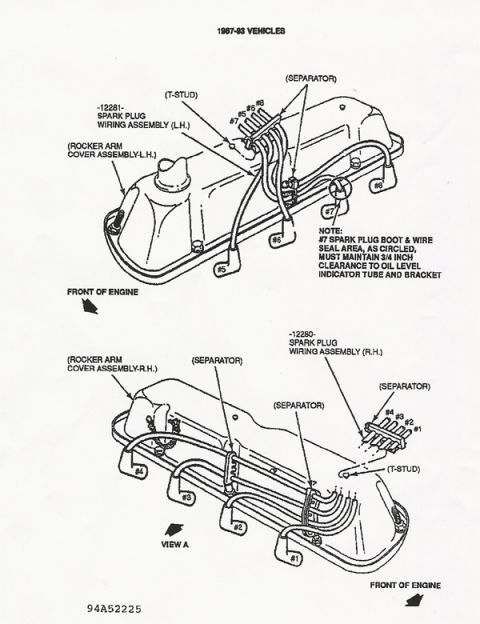

1992 Ford Bronco - A scanned service procedure document titled 'SERVICE PROCEDURE' with a 'FIRING ORDER' section, listing firing orders for 1987-1993 vehicles… 1992 Ford Bronco - Manual figure showing spark plug wire and bracket assembly routing to the distributor cap with firing order 1-6-4-2-6-3-7-8. 1992 Ford Bronco - Manual figure showing left and right spark plug wiring assemblies, separators, and routing over the rocker arm covers. 1992 Ford Bronco - Manual figure of 1994 F-Series/Bronco ignition wire routing to the distributor cap with firing order 1-3-7-2-6-5-4-8. 1992 Ford Bronco - Manual figure showing 1994 Bronco/F-Series spark plug wiring assemblies, separators, T-studs, and vacuum harness retainers.
