TPS Removal / Replacement and TB Cleaning

From 1986 Ford Bronco, documented by xris.

19 photos
← Back to this vehicle

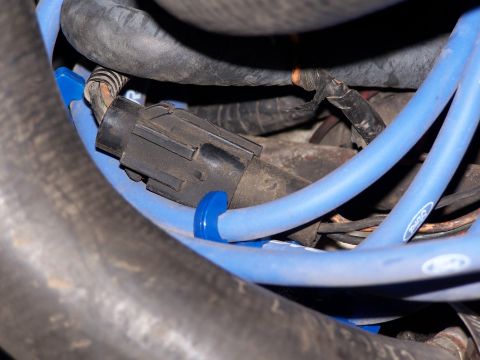

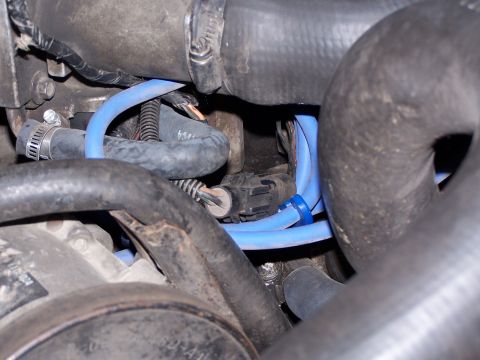

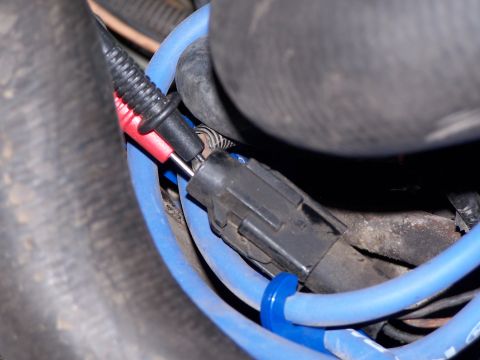

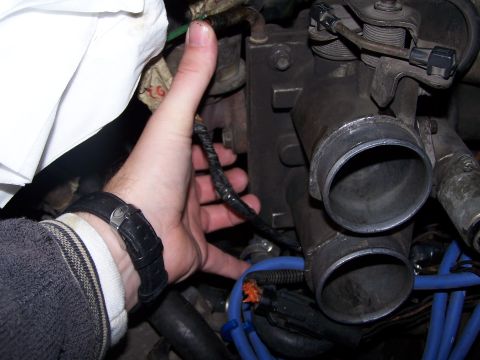

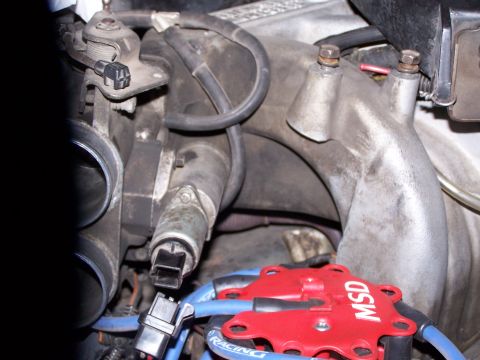

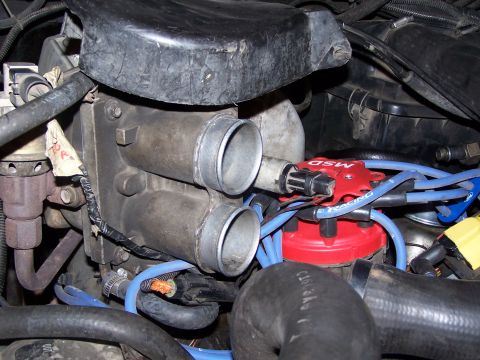

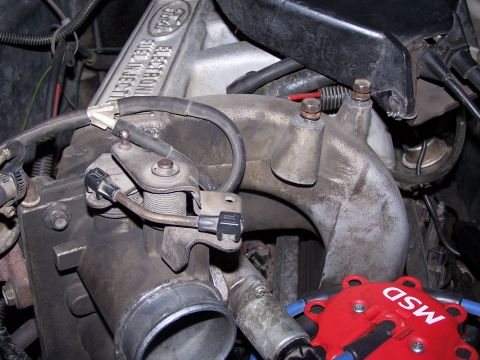

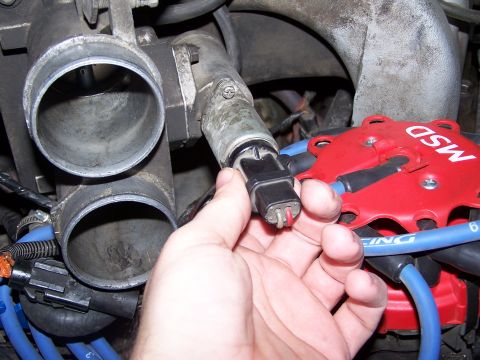

1986 Ford Bronco - Extreme close-up of a black three-pin sensor connector plug and its pigtail in an engine bay, framed by blue Ford-marked spark plug wires w… 1986 Ford Bronco - Tight engine-bay shot of a black electrical connector plug on a sensor pigtail, routed alongside a bright blue vacuum/silicone hose and hea… 1986 Ford Bronco - A red-handled multimeter test probe backprobing the rear of a black three-wire sensor connector still plugged in, deep in an engine bay sur… 1986 Ford Bronco - Engine-bay close-up of a twin-bore throttle body with its intake hose removed, exposing both inlet throats below the black air intake snork… 1986 Ford Bronco - Close-up of a Ford EFI engine's throttle body and upper intake manifold, showing the throttle linkage, return spring, and a black throttle… 1986 Ford Bronco - A hand holds a disconnected black two-wire electrical connector (IAC plug) near the throttle body of an engine bay, with a red MSD ignition… 1986 Ford Bronco - A hand with a black wristwatch reaches into an engine bay beside two open coolant hose nipples on a grimy cast intake/throttle body casting… 1986 Ford Bronco - Engine bay close-up of a cylindrical idle air control valve and its black connector mounted on a grimy cast-aluminum intake plenum, with a… 1986 Ford Bronco - A removed cast-aluminum throttle body with its throttle position sensor and loomed connector pigtail resting on the radiator support of an… 1986 Ford Bronco - Close-up of a twin-bore intake/throttle body flange on the engine caked with heavy black carbon and oily varnish inside the bores and acros… 1986 Ford Bronco - A greasy hand holds a 12.5 oz blue and red Super Tech carburetor cleaner aerosol can over the engine bay, with a dirty blue shop rag and to… 1986 Ford Bronco - A new black throttle position sensor with its pigtail connector and bagged hardware laid out on an OSB workbench next to its red Standard M… 1986 Ford Bronco - Close-up of a red and white Standard Motor Products parts box on an OSB workbench, its end label reading TH44 SENSOR / CAPTEUR with the cod… 1986 Ford Bronco - A hand uses a paint marker to scribe an alignment mark on the black throttle position sensor bolted to the side of a removed throttle body… 1986 Ford Bronco - Close-up of a grimy removed throttle body with the throttle position sensor taken off, exposing the slotted D-shaped throttle shaft end and… 1986 Ford Bronco - A greasy hand holds a small white felt polishing bob above an open case containing a black and red Craftsman variable-speed rotary tool, sa… 1986 Ford Bronco - A removed twin-bore throttle body sitting on shop towels, viewed straight into the bores after cleaning, with brass butterfly plates and th… 1986 Ford Bronco - Close-up of the twin-bore aluminum throttle body mounting flange still on the engine, cleaned to bare metal around the two dark bores and t… 1986 Ford Bronco - Close-up of a removed cast-aluminum throttle body sitting on a black plastic toolbox lid, with a gray throttle position sensor bolted to it…
