Lars915 > 1981 Ford Bronco > open folder Front D60 Install

Front Dana 60 fresh off the truck
1681 hits | 97.26 KB | Posted: 12/24/04
Front Dana 60 fresh off the truck
D70U waiting for its turn under the wrench
1443 hits | 91.24 KB | Posted: 12/24/04
D70U waiting for its turn under the wrench
First test fit of D70 under the Bronco
1316 hits | 64.55 KB | Posted: 12/24/04
First test fit of D70 under the Bronco
Hummer rim waiting for its turn to be refinished. That's a 35 inch tire.
1336 hits | 58.75 KB | Posted: 12/24/04
Hummer rim waiting for its turn to be refinished. That's a 35 inch tire.
New 42" shoes!
1384 hits | 58.94 KB | Posted: 12/24/04
New 42" shoes!
Clearance difference between 42"s and 35"s
1402 hits | 61.14 KB | Posted: 12/24/04
Clearance difference between 42"s and 35"s
That little bitty tire was on the Bronco when I bought it.
1572 hits | 61.51 KB | Posted: 12/24/04
That little bitty tire was on the Bronco when I bought it.
First fitup of front axle to see where things will line up. The axle is forward about two inches fr...
2460 hits | 74.86 KB | Posted: 1/16/05
First fitup of front axle to see where things will line up. The axle is forward about two inches fr...
Front view of initial fitup. Those are stock Bronco rear springs.
1784 hits | 69.07 KB | Posted: 1/16/05
Front view of initial fitup. Those are stock Bronco rear springs.
This is about the final position for the tire. It'll take quite a bit of trimming to make this fit w...
2300 hits | 54.59 KB | Posted: 1/16/05
This is about the final position for the tire. It'll take quite a bit of trimming to make this fit w...
Hummer beadlock with the runflat section cut off. A little grinding on the sharp parts and it'll be ...
1658 hits | 59.75 KB | Posted: 1/30/05
Hummer beadlock with the runflat section cut off. A little grinding on the sharp parts and it'll be ...

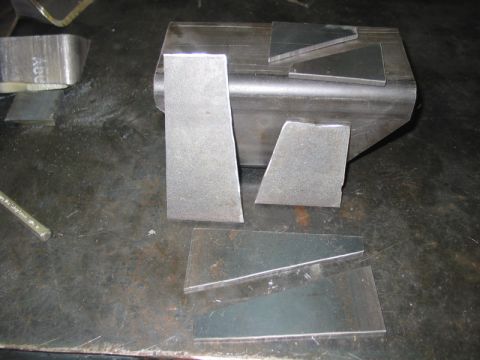

The parts I cut out to build a heavy duty spring hanger.
1523 hits | 52.59 KB | Posted: 1/30/05
The parts I cut out to build a heavy duty spring hanger.

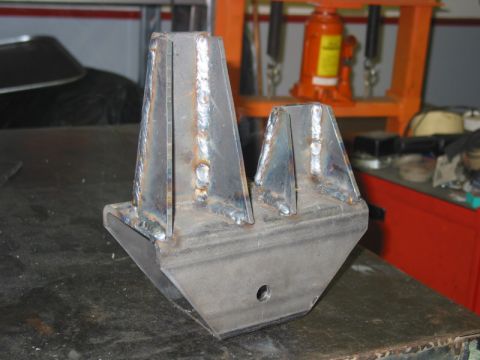

All the parts welded up. And yes, my welding sucks.
1652 hits | 52.08 KB | Posted: 1/30/05
All the parts welded up. And yes, my welding sucks.

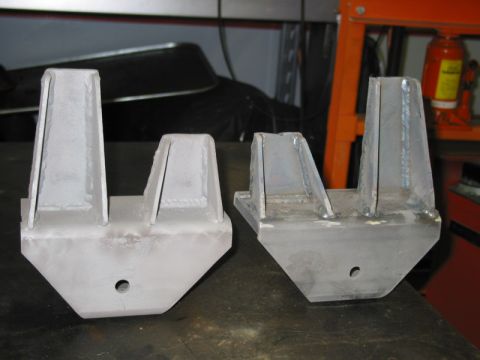

Both hangers with the welding finished. The one on the left has been abrasive blasted for paint, but...
1649 hits | 41.24 KB | Posted: 1/30/05
Both hangers with the welding finished. The one on the left has been abrasive blasted for paint, but...

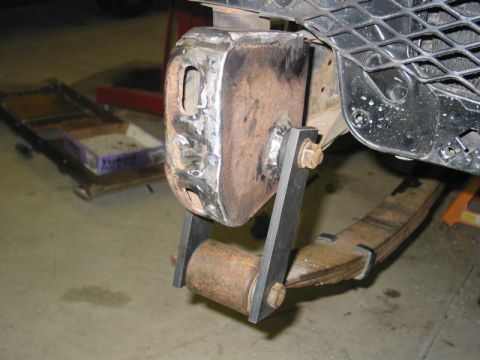

Boxed in front frame horn with installed shackle bushing.
2025 hits | 57.16 KB | Posted: 2/9/05
Boxed in front frame horn with installed shackle bushing.

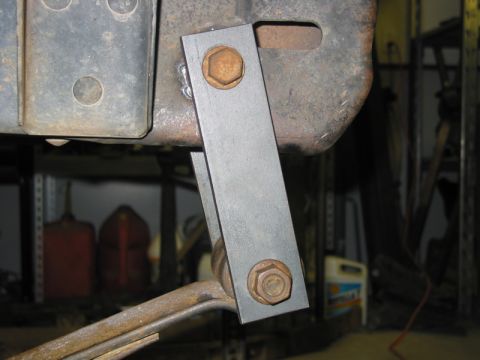

These will get nice rounded ends and paint when everything is finished. Length is 6" center-to-cente...
1560 hits | 46.36 KB | Posted: 2/9/05
These will get nice rounded ends and paint when everything is finished. Length is 6" center-to-cente...

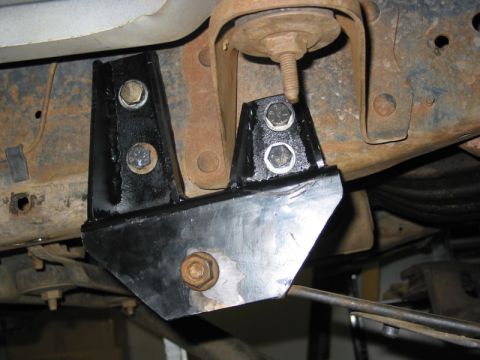

Final mockup of rear hanger. Definitely could have been done better, but OK for a first attempt.
1518 hits | 60.3 KB | Posted: 2/9/05
Final mockup of rear hanger. Definitely could have been done better, but OK for a first attempt.

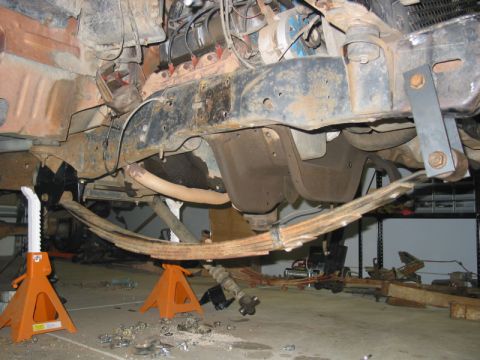

The whole spring assembly in place. The front shackle angle is about 45 degrees at ride height.
1474 hits | 75.49 KB | Posted: 2/9/05
The whole spring assembly in place. The front shackle angle is about 45 degrees at ride height.

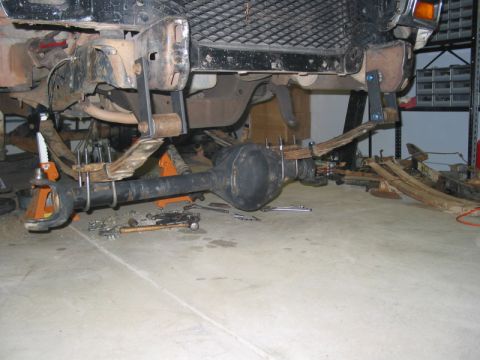

First installation with entire suspension. Now I have to pull it all again for final touch up and pa...
1490 hits | 60.97 KB | Posted: 2/12/05
First installation with entire suspension. Now I have to pull it all again for final touch up and pa...

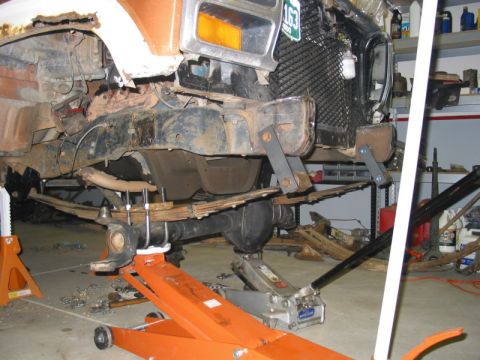

Here the axle is supporting the truck. The shackle angles look good and the pinion angle looks good....
1468 hits | 78.24 KB | Posted: 2/12/05
Here the axle is supporting the truck. The shackle angles look good and the pinion angle looks good....

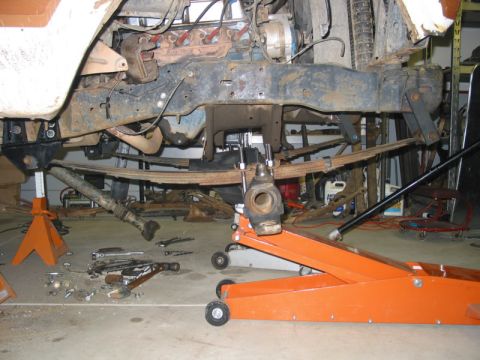

The axle postion at ride height is about 1 inch ahead of where my SAS axle lined up. I should have a...
1504 hits | 74.55 KB | Posted: 2/12/05
The axle postion at ride height is about 1 inch ahead of where my SAS axle lined up. I should have a...

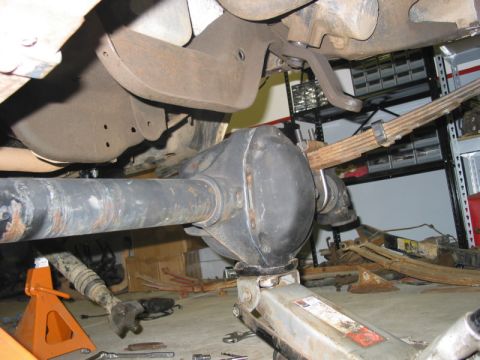

Close up from the right side.
1421 hits | 68.7 KB | Posted: 2/12/05
Close up from the right side.

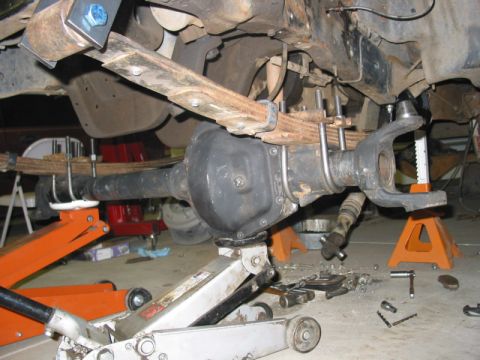

Closeup from the left side.
1552 hits | 72.17 KB | Posted: 2/12/05
Closeup from the left side.

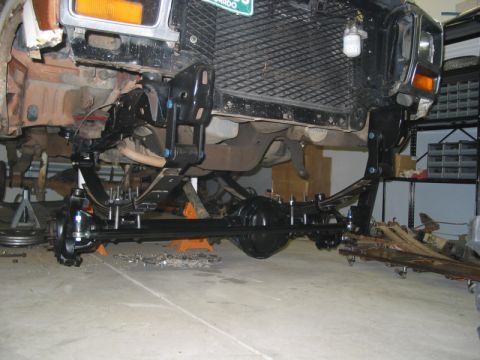

Rebuilt and in the truck. Tie rod won't fit above knuckles, have to work on that.
1468 hits | 65.07 KB | Posted: 2/19/05
Rebuilt and in the truck. Tie rod won't fit above knuckles, have to work on that.

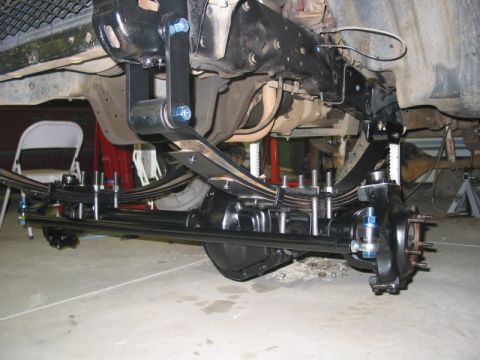

Too bad they don't look like this very long.
2355 hits | 64.86 KB | Posted: 2/19/05
Too bad they don't look like this very long.

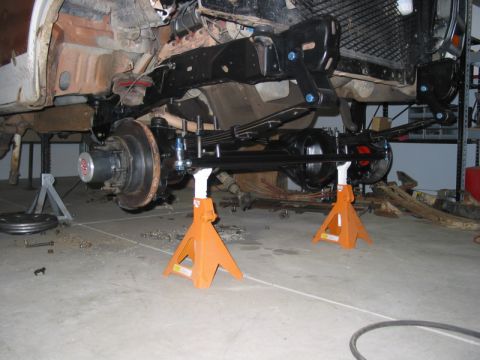

The finished axle and springs. It still needs shocks, brakes, and steering to finish the front end.
1647 hits | 61.98 KB | Posted: 2/23/05
The finished axle and springs. It still needs shocks, brakes, and steering to finish the front end.

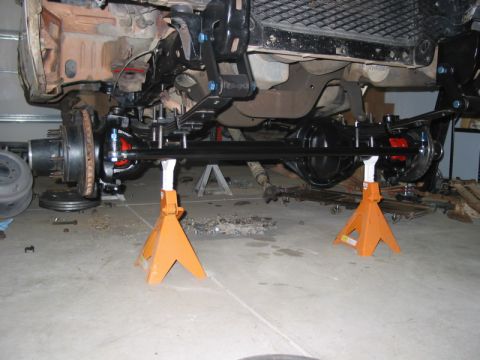

Another angle
1494 hits | 60.24 KB | Posted: 2/23/05
Another angle

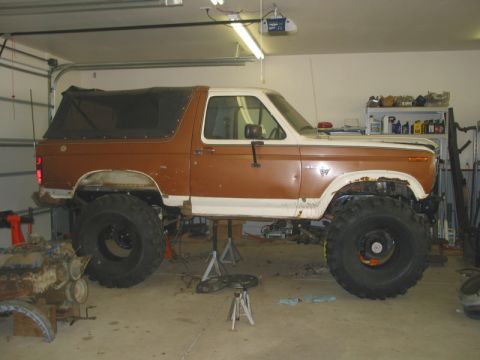

First time on the new axles. This should be real close to the final ride height. The axle centers ar...
2324 hits | 46.96 KB | Posted: 3/12/05
First time on the new axles. This should be real close to the final ride height. The axle centers ar...

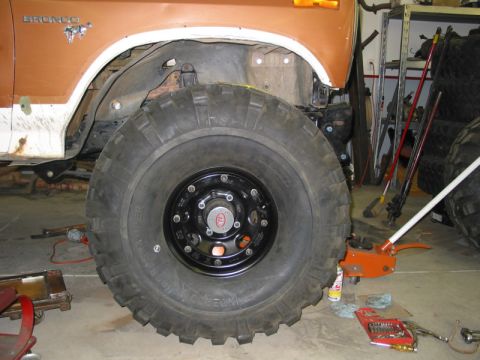

42" tire on Hummer rim. The inner fender is installed in this picture. The inner and outer fenders h...
1713 hits | 64.51 KB | Posted: 4/23/05
42" tire on Hummer rim. The inner fender is installed in this picture. The inner and outer fenders h...

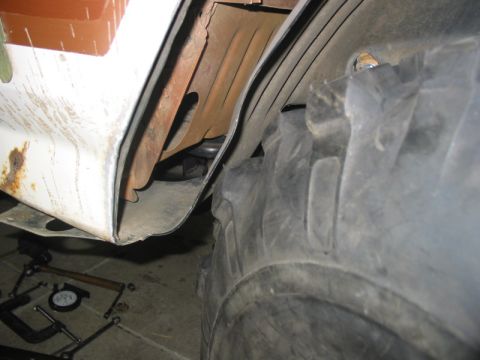

This is the clearance between the tire and rear of the inner fender witht tire turned to full lock. ...
1543 hits | 48.2 KB | Posted: 4/23/05
This is the clearance between the tire and rear of the inner fender witht tire turned to full lock. ...

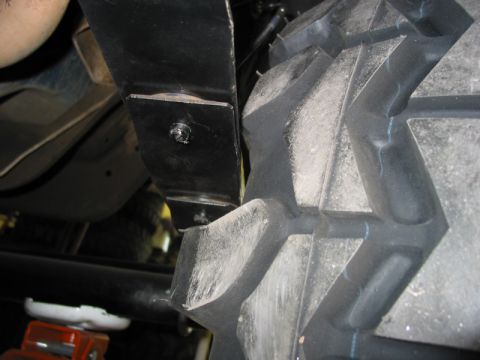

At full lock the rear of the tire hits the spring. Have to adjust the steering stops.
1364 hits | 47.11 KB | Posted: 4/23/05
At full lock the rear of the tire hits the spring. Have to adjust the steering stops.

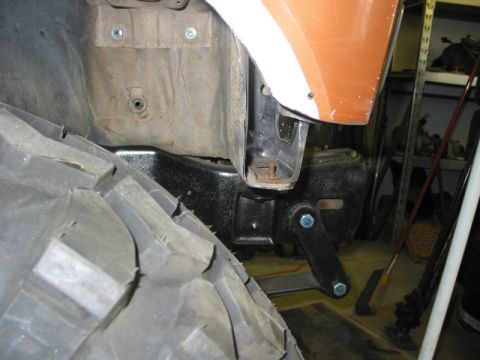

This is the clearance between the front of the tire and the inner fender with the tire straight ahea...
1288 hits | 50.94 KB | Posted: 4/23/05
This is the clearance between the front of the tire and the inner fender with the tire straight ahea...

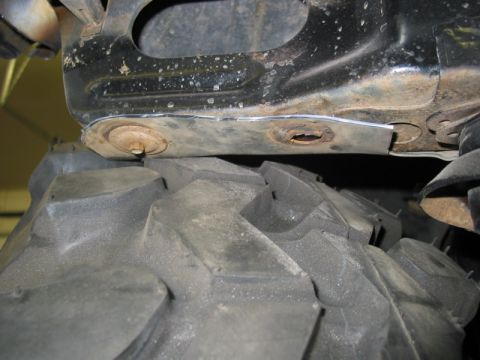

At full lock, the tire hitts the front inner fender and radiator support hard.
1338 hits | 55.53 KB | Posted: 4/23/05
At full lock, the tire hitts the front inner fender and radiator support hard.

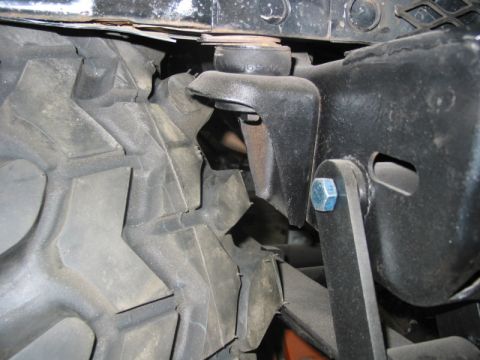

At full lock, the front of the tire is also hard into the spring. Have to adjust the steering stops.
1440 hits | 58.6 KB | Posted: 4/23/05
At full lock, the front of the tire is also hard into the spring. Have to adjust the steering stops.

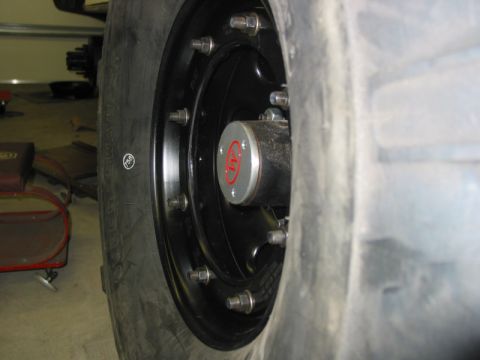

This is part of why I chose drive flanges instead of hubs. Hubs would stick out another two inches.
1338 hits | 36.72 KB | Posted: 4/23/05
This is part of why I chose drive flanges instead of hubs. Hubs would stick out another two inches.

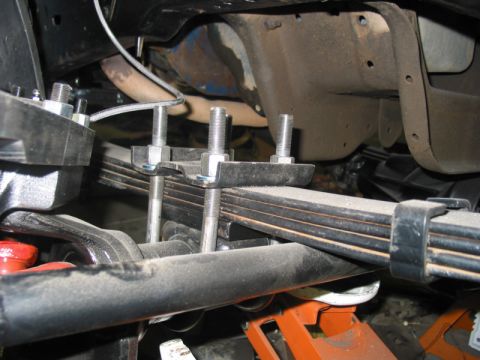

My homemade Zero Rate lift for the front spring. The steering rod will hit the spring when the sprin...
1856 hits | 62.6 KB | Posted: 4/23/05
My homemade Zero Rate lift for the front spring. The steering rod will hit the spring when the sprin...

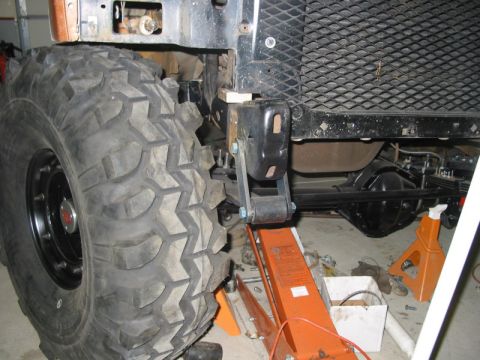

Loads more clearance after a bunch more cutting and relocating the rad support mount.
1332 hits | 73.09 KB | Posted: 5/8/05
Loads more clearance after a bunch more cutting and relocating the rad support mount.

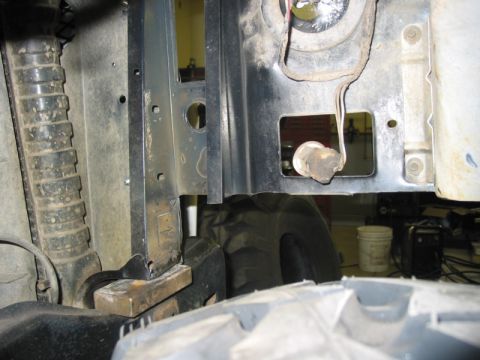

Removed a bunch of the radiator support. Hopefully the relocated mount will survive.
1293 hits | 59.45 KB | Posted: 5/8/05
Removed a bunch of the radiator support. Hopefully the relocated mount will survive.

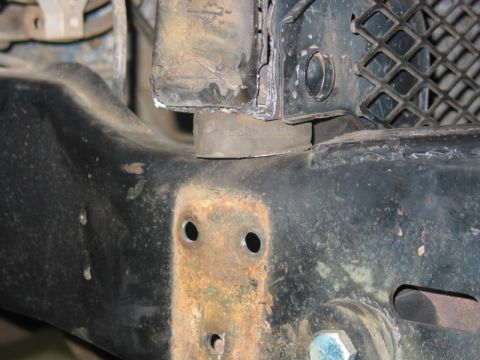

The new body mount sits on top of the frame. There is less beef in the radiator support now, time wi...
1774 hits | 66.62 KB | Posted: 5/8/05
The new body mount sits on top of the frame. There is less beef in the radiator support now, time wi...

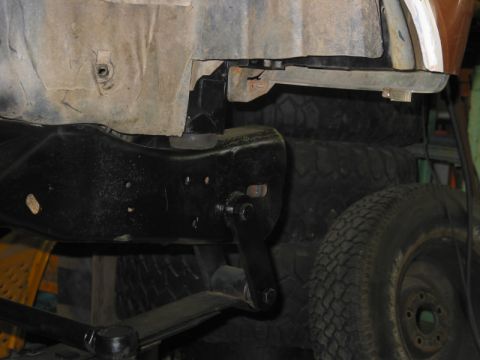

With the inner fender reinstalled.
1407 hits | 42.3 KB | Posted: 5/8/05
With the inner fender reinstalled.

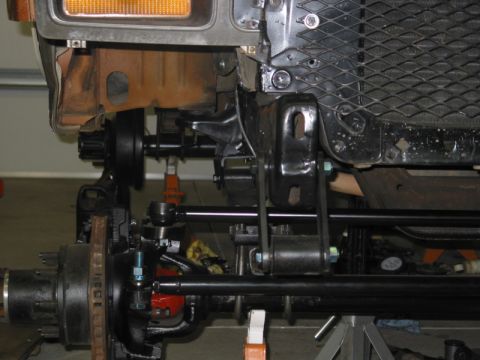

From the front, the fender is opened way up. I can keep the turn signal, but just barely.
1354 hits | 55.27 KB | Posted: 5/8/05
From the front, the fender is opened way up. I can keep the turn signal, but just barely.

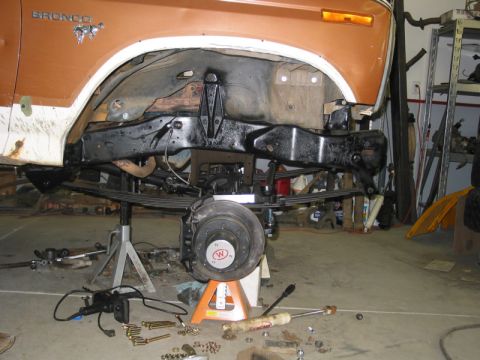

If you compare this to previous pictures, you can see how much inner fender is actually removed.
1527 hits | 67.74 KB | Posted: 5/8/05
If you compare this to previous pictures, you can see how much inner fender is actually removed.

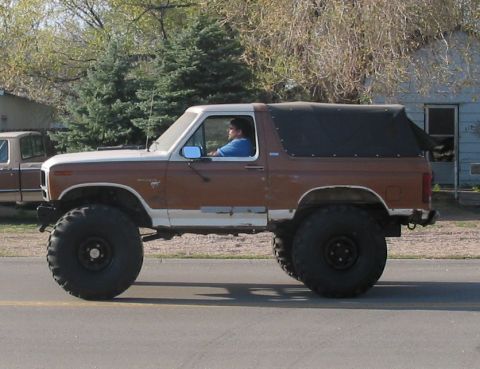

First test drive with new driveline!
2553 hits | 65.56 KB | Posted: 5/9/05
First test drive with new driveline!

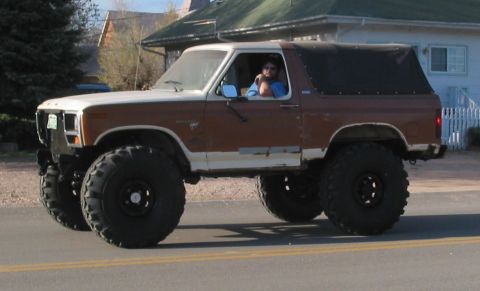

I kinda like this one better
1650 hits | 38.1 KB | Posted: 5/9/05
I kinda like this one better

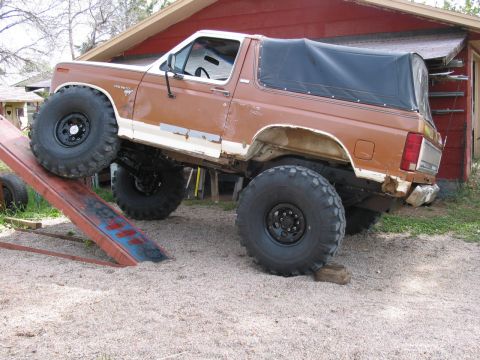

651 on a 30 degree ramp. Equates to 952 on a 20 degree ramp. The coil / radius arm suspension would ...
1587 hits | 84.05 KB | Posted: 5/15/05
651 on a 30 degree ramp. Equates to 952 on a 20 degree ramp. The coil / radius arm suspension would ...

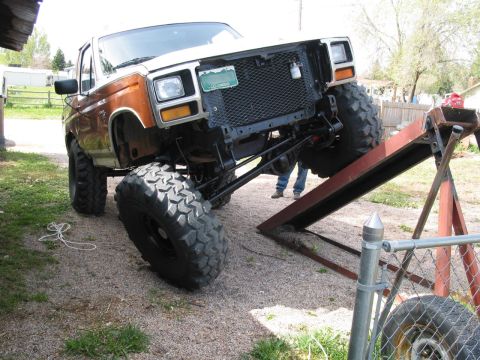

Keep in mind that's a 42" tire falling out of that fender.
1573 hits | 91.37 KB | Posted: 5/15/05
Keep in mind that's a 42" tire falling out of that fender.

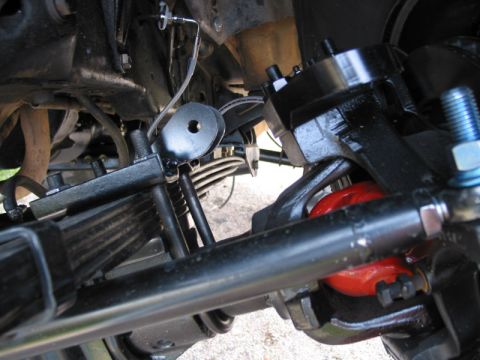

The spring goes into slightly negative arch at full stuff. Bump stops will be added to limit travel ...
1441 hits | 61.34 KB | Posted: 5/15/05
The spring goes into slightly negative arch at full stuff. Bump stops will be added to limit travel ...

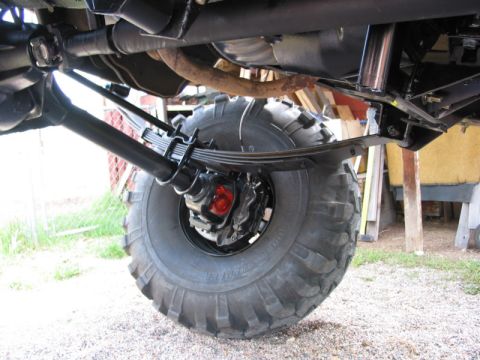

There just isn't any more droop in this spring. The tire is barely touching the ground here.
1504 hits | 71.22 KB | Posted: 5/15/05
There just isn't any more droop in this spring. The tire is barely touching the ground here.

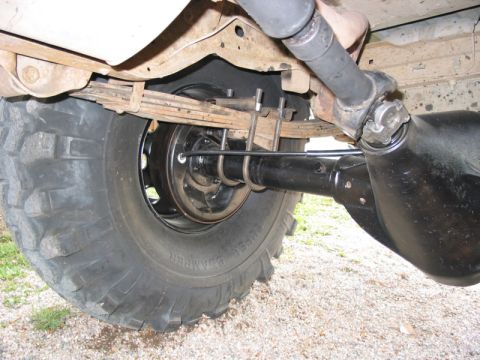

It's amazing these springs have lasted. This is a 6" lift spring. The tire is fully stuffed though, ...
1416 hits | 76.4 KB | Posted: 5/15/05
It's amazing these springs have lasted. This is a 6" lift spring. The tire is fully stuffed though, ...

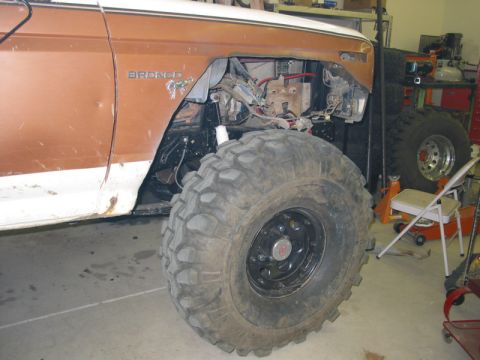

Keep trimming 'til it fits
1261 hits | 57.8 KB | Posted: 7/2/05
Keep trimming 'til it fits

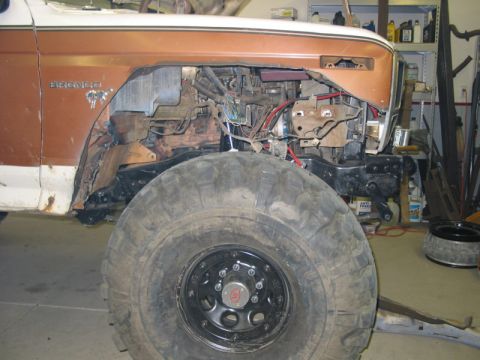

Not much left
1324 hits | 65.92 KB | Posted: 7/2/05
Not much left
