1200 hits | 37.44 KB | Posted: 12/26/04
Fresh off the truck :-)

1238 hits | 38.46 KB | Posted: 12/26/04

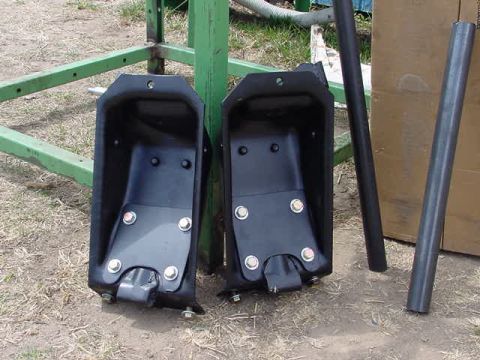

Spring towers from 1979 F-150

1327 hits | 39.73 KB | Posted: 12/26/04

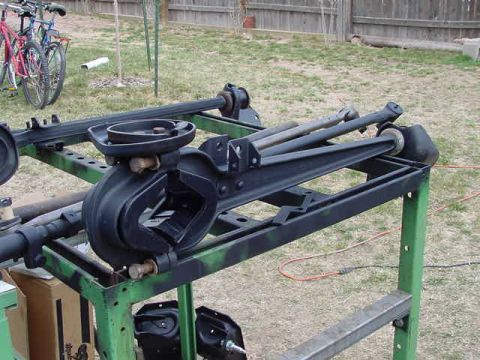

Rebuilt radius arm

1375 hits | 37.5 KB | Posted: 12/26/04

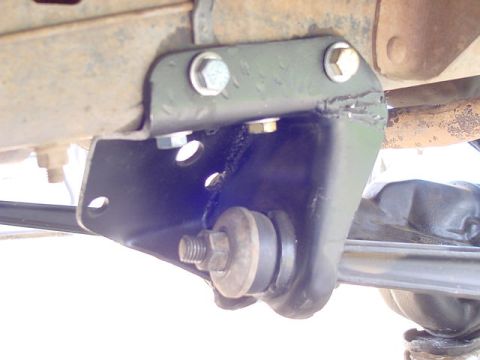

Radius arm bracket modified to eliminate bind when axle articulates

1382 hits | 38.89 KB | Posted: 12/26/04

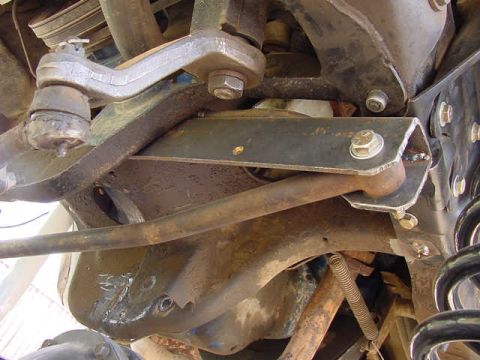

Track bar bracket front

1408 hits | 36.5 KB | Posted: 12/26/04

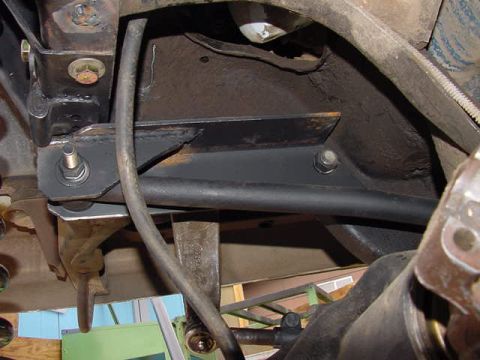

Track bar bracket rear

1356 hits | 37.45 KB | Posted: 12/26/04

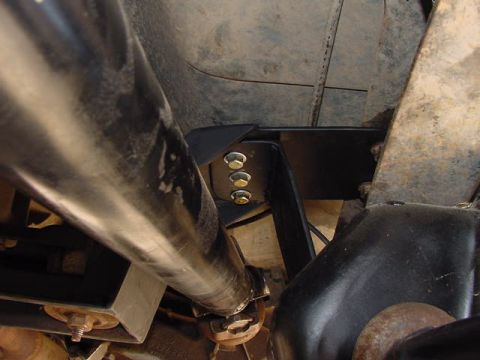

Tunneled tranny crossmember

1895 hits | 77.37 KB | Posted: 12/26/04

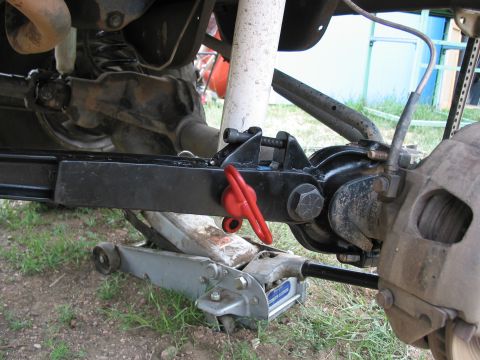

Wristed radius arm

1295 hits | 48.08 KB | Posted: 12/26/04

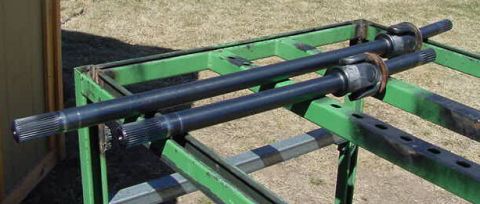

Rebuilt ChroMo axles. The u-joints were replaced with CTM's after breaking a stub axle.

1389 hits | 75.62 KB | Posted: 12/26/04

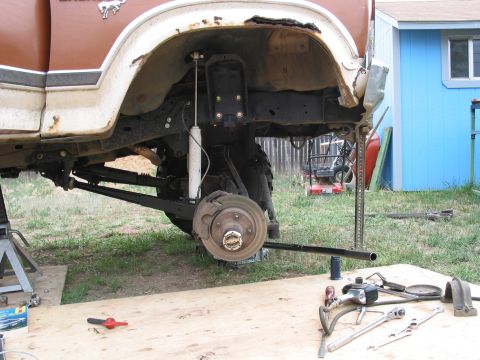

Unloaded axle droop with the wristed arm unpinned

1376 hits | 82.57 KB | Posted: 12/26/04

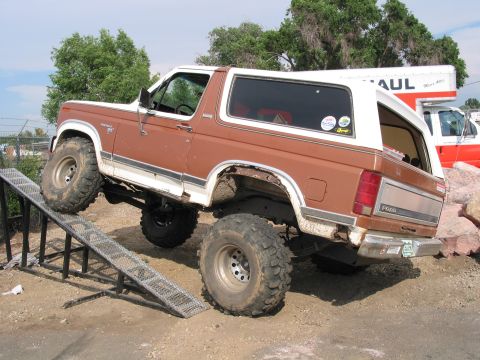

Flex with wristed arm unpinned
