Album section

FI swap

From 1985 Ford Bronco “RED WAGON”, documented by TIM OLIVA.

48 photos
← Back to this vehicle

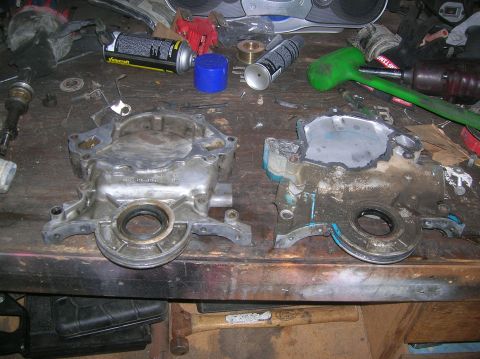

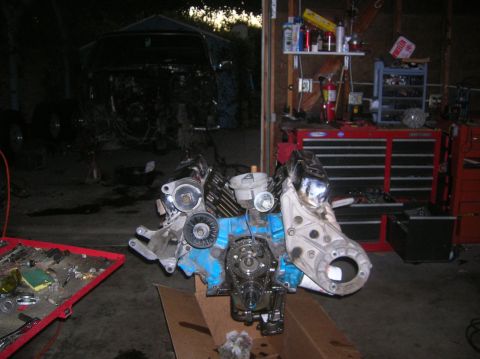

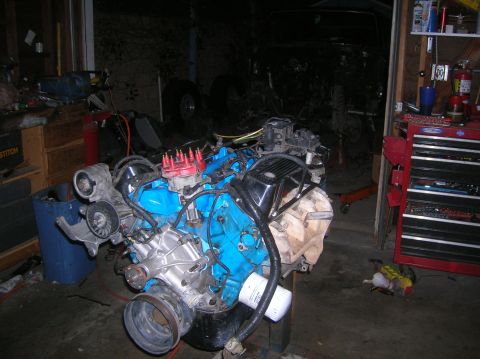

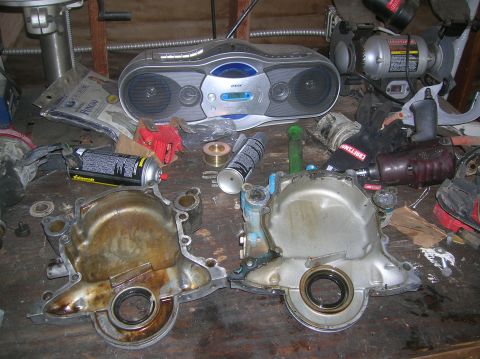

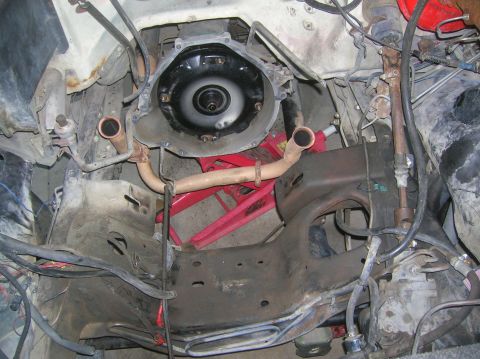

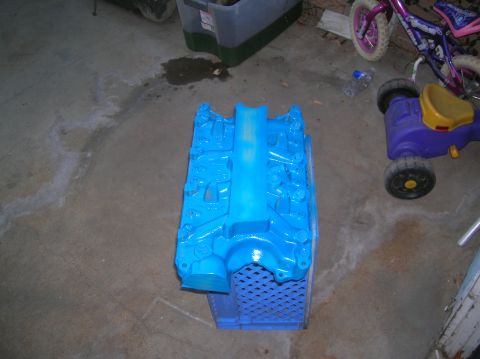

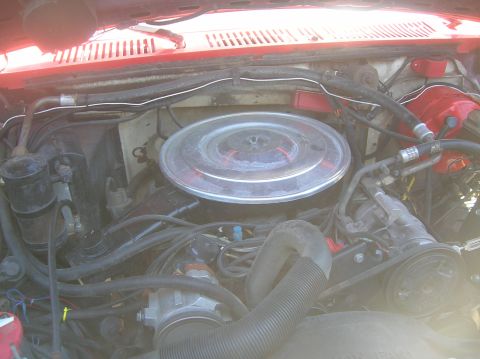

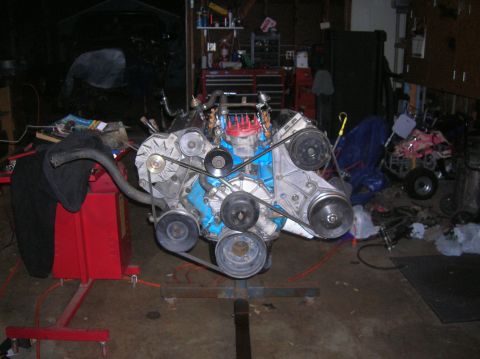

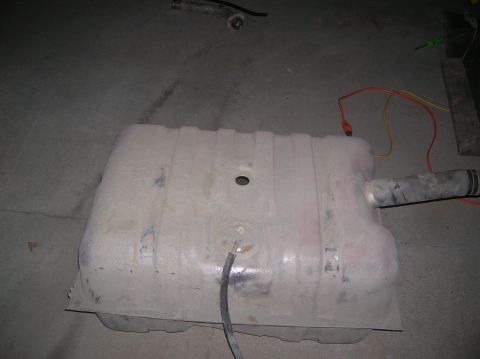

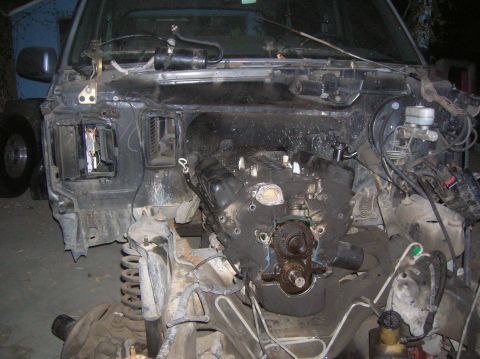

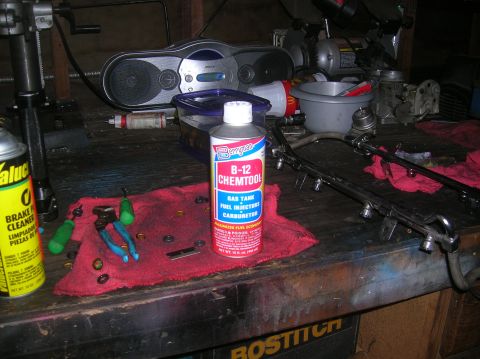

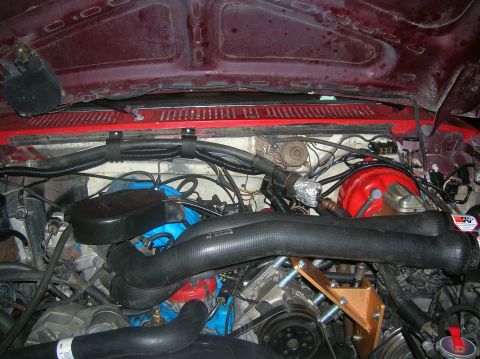

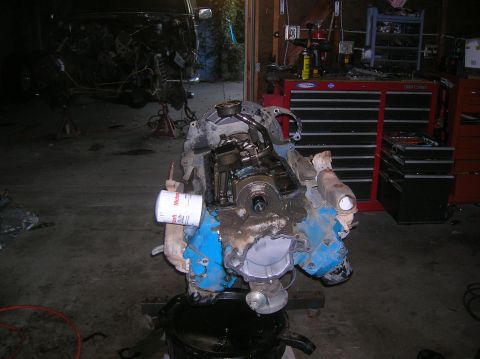

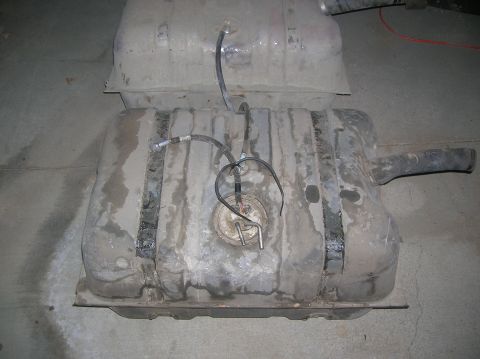

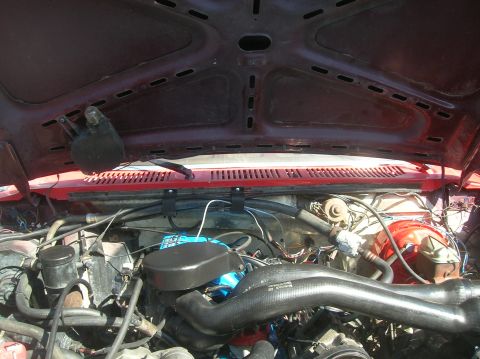

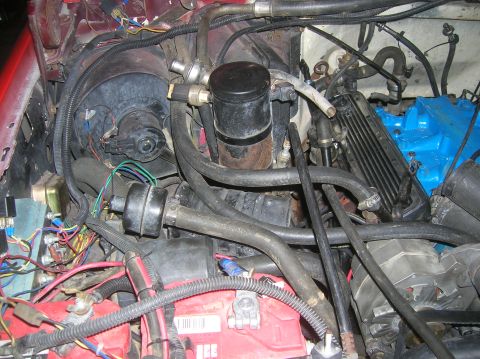

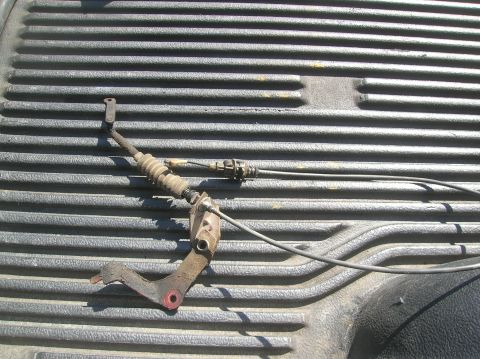

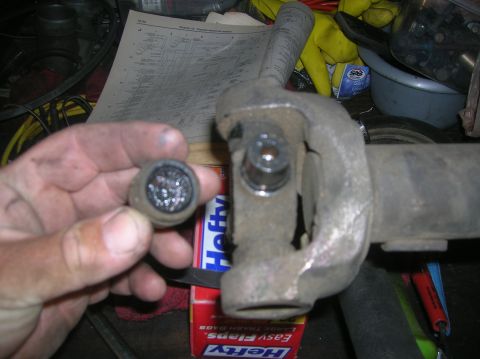

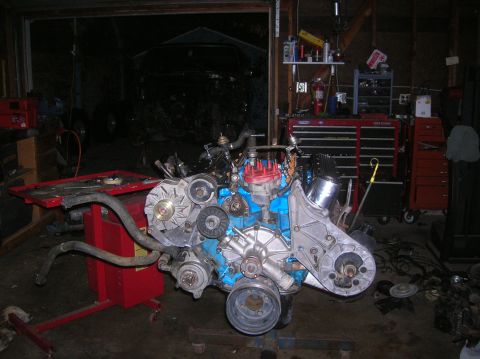

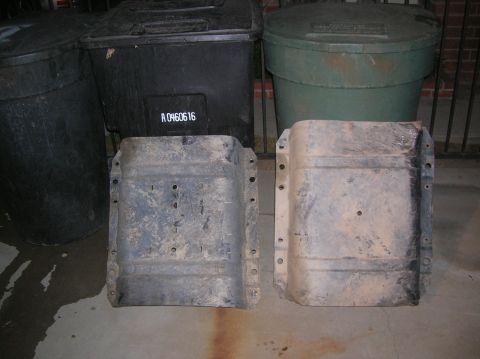

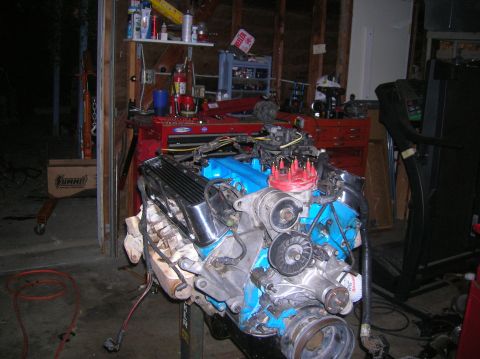

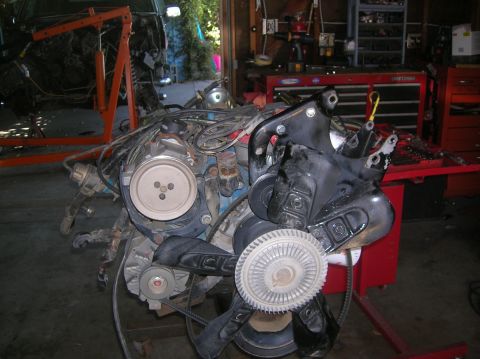

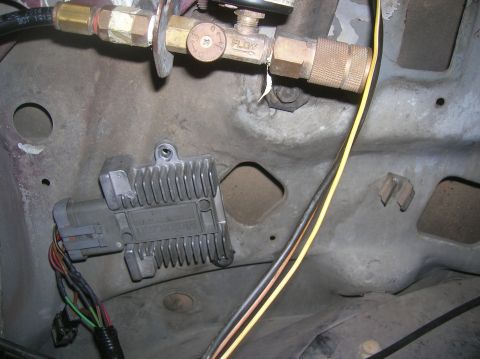

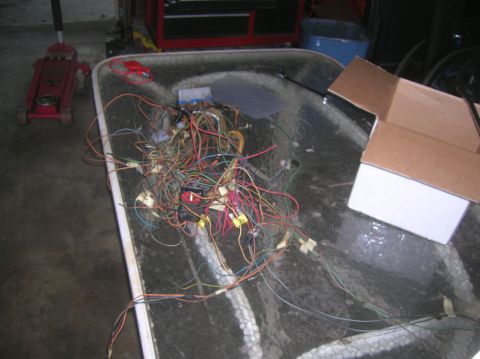

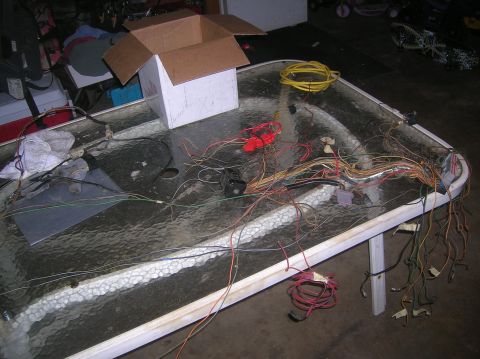

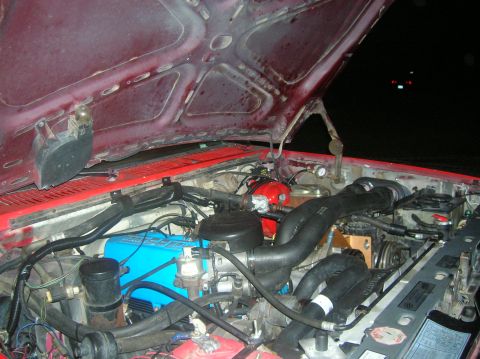

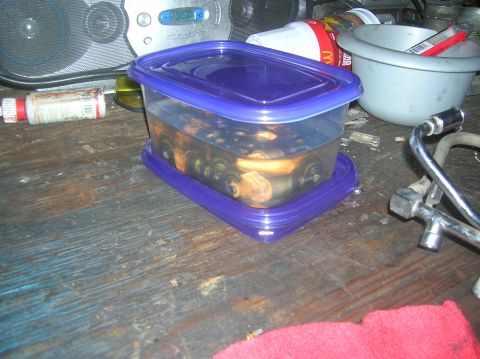

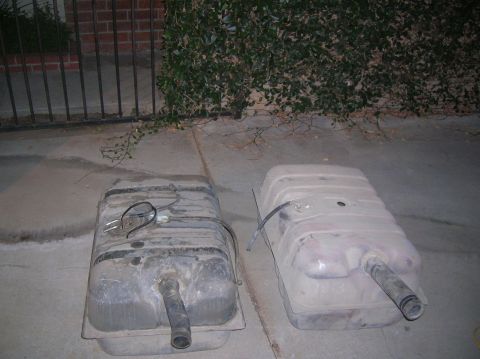

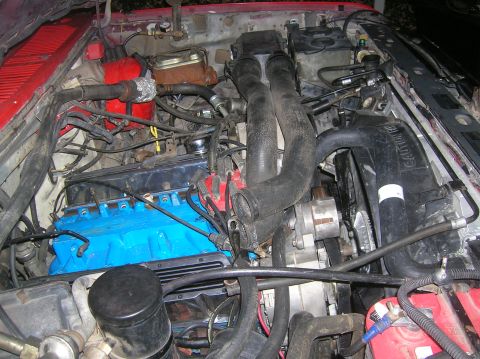

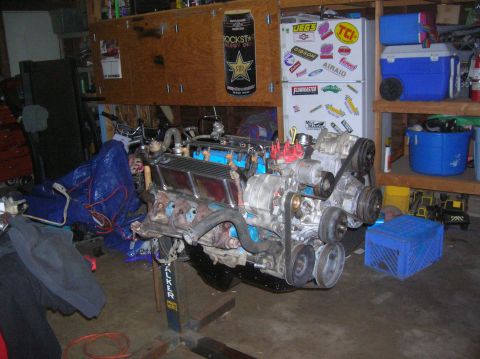

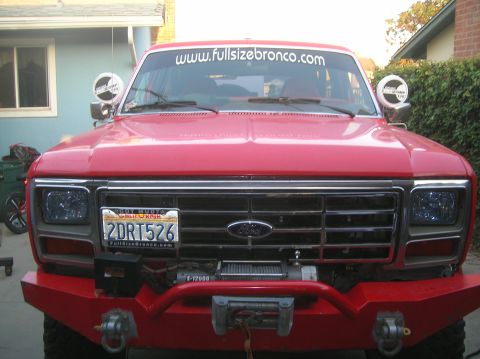

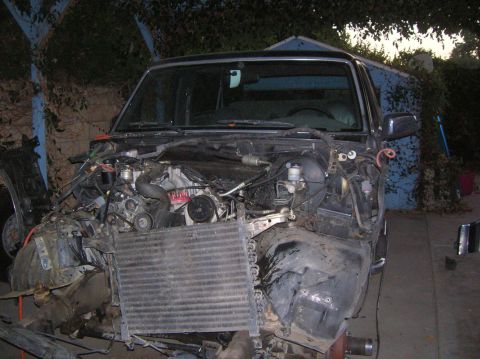

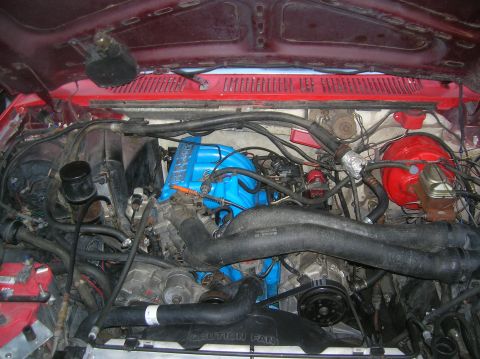

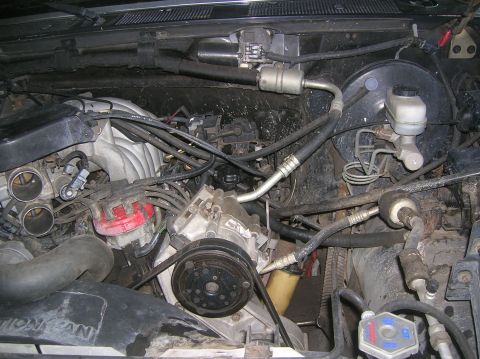

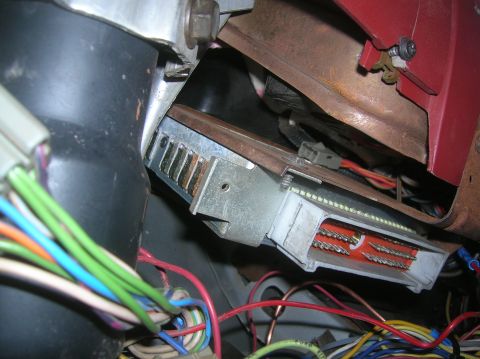

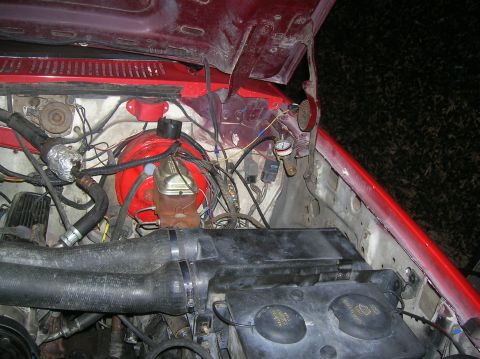

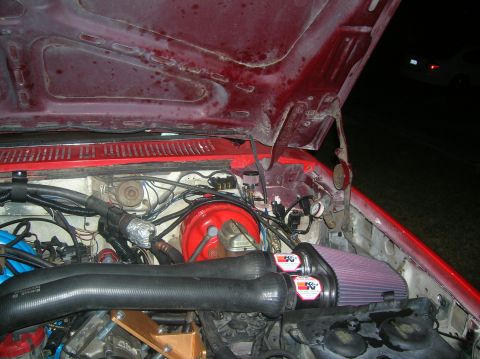

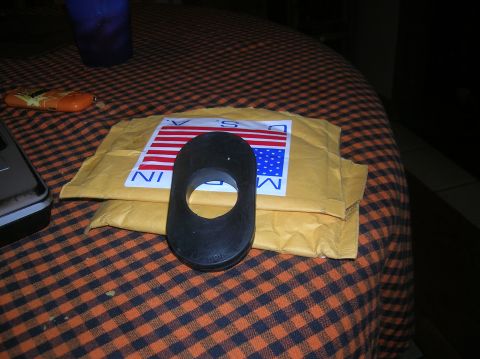

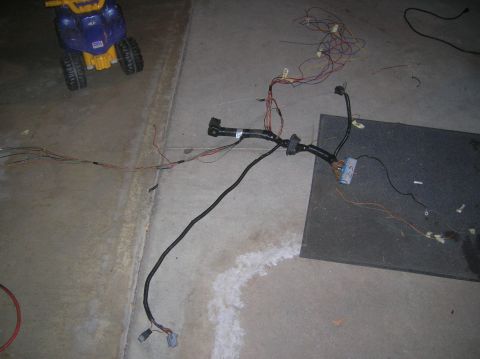

1985 Ford Bronco - donor engine...92 bronco 1985 Ford Bronco - front sheet metal removed to gain easy access 1985 Ford Bronco - shot of engine bay of 85 (were FI is going in) 1985 Ford Bronco - 85 motor removed to install FI parts 1985 Ford Bronco - stripping down the 85 motor to transfer FI parts on...also going to replace oil pan gasket with a one piece. 1985 Ford Bronco - empty engine bay once again. 1985 Ford Bronco - lower intake cleaned and painted ford blue. 1985 Ford Bronco - FI timing cover on the left and Carburated on the right...notice the fuel pump cut off plate. 1985 Ford Bronco - back side of timing covers. 1985 Ford Bronco - test fitting serpentine belt brackets. 1985 Ford Bronco - oil pan, intake and valve covers installed...plus misc brackets and water pump. 1985 Ford Bronco - getting closer... 1985 Ford Bronco - 92 engine stripped down. 1985 Ford Bronco - almost ready to go back in.... 1985 Ford Bronco - side by shot of skid plates...on the left is the 85 and on the right is the 92. 1985 Ford Bronco - both tanks FI on left and non FI on right 1985 Ford Bronco - FI tank 1985 Ford Bronco - non FI tank. 1985 Ford Bronco - motor ready to go in...front shot showing drive belt rout 1985 Ford Bronco - left side 1985 Ford Bronco - right side. 1985 Ford Bronco - Its in!!!! 1985 Ford Bronco - radiator and shroud in. 1985 Ford Bronco - airbox/over flow bottle/washer bottle installed...had to fashion brackets to hold the bracket 1inch away from fender 1985 Ford Bronco - more crap back on. 1985 Ford Bronco - passenger side fender equipment mounted 1985 Ford Bronco - fuel injectors soaking in cleaner 1985 Ford Bronco - this is the cleaner I am using. 1985 Ford Bronco - injectors soaking in cleaner 1985 Ford Bronco - about done...just misc items plus the wiring 1985 Ford Bronco - looky looky even the hood clears. 1985 Ford Bronco - C6 fuel injected kick down cable. 1985 Ford Bronco - almost done...need to wire in computer 1985 Ford Bronco - computer location under dash. 1985 Ford Bronco - engine wiring stripped of unecessary wires 1985 Ford Bronco - wiring more organized 1985 Ford Bronco - front drive shaft 1985 Ford Bronco - u joint on front drive shaft. 1985 Ford Bronco - ttb crap. 1985 Ford Bronco - starting to look like a wiring harness. 1985 Ford Bronco - TFI location 1985 Ford Bronco - second shot TFI location...ya ya I know I am missing a bolt. 1985 Ford Bronco - new fuel gauge 1985 Ford Bronco - random shot of engine 1985 Ford Bronco - intake and k&n filter 1985 Ford Bronco - another random engine shot. 1985 Ford Bronco - pride is product...rjm injection tech 1985 Ford Bronco - fire wall gromet.
