DIY beadlocks

From 1985 Ford Bronco “RED WAGON” — documented by TIM OLIVA.

27 photos
← Back to this vehicle

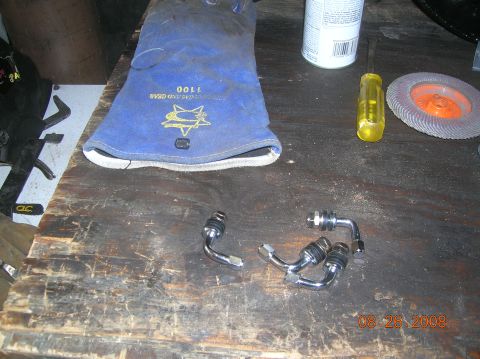

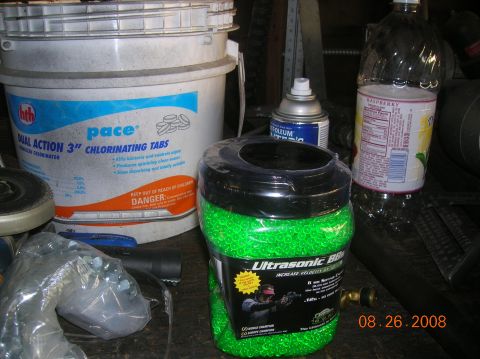

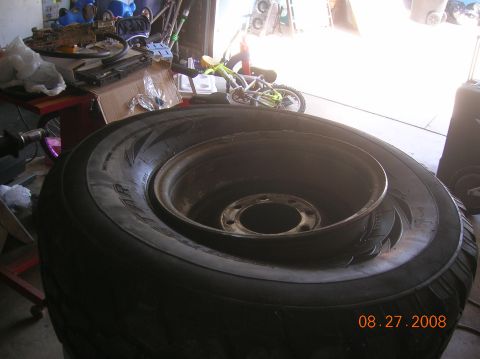

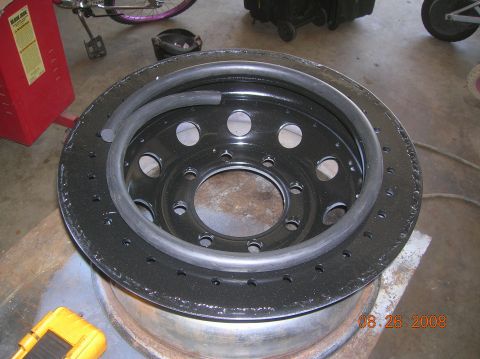

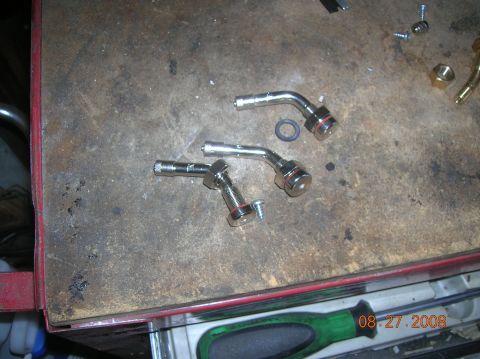

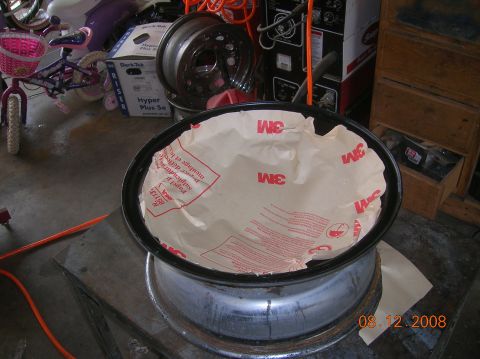

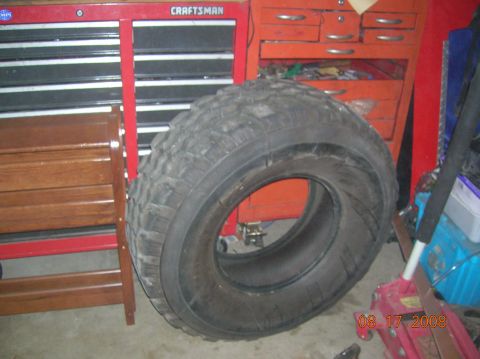

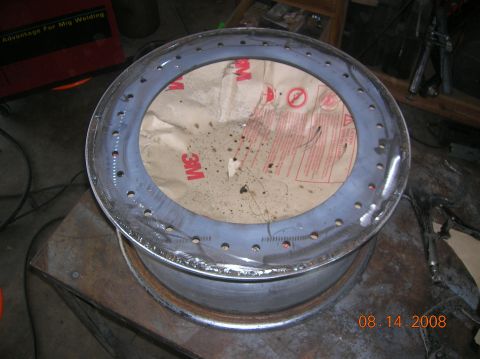

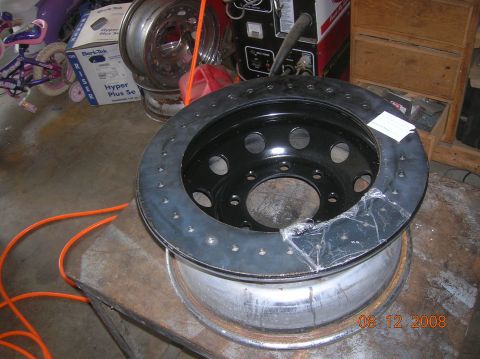

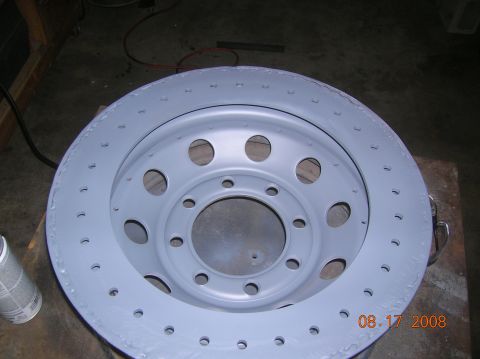

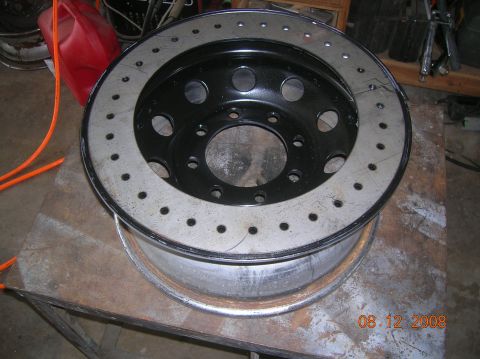

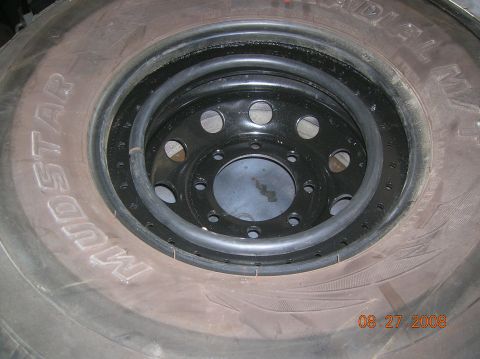

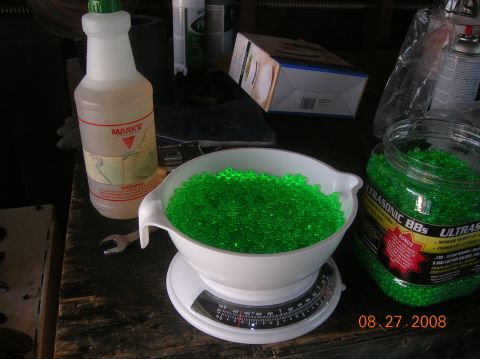

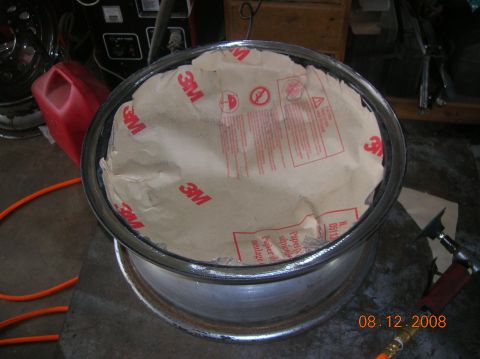

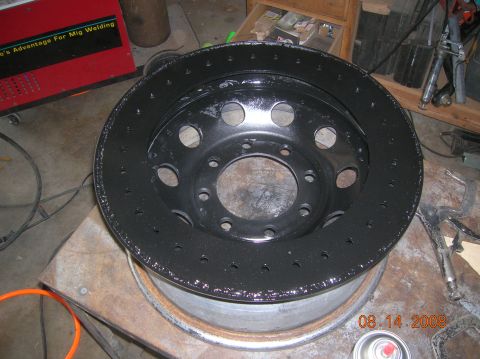

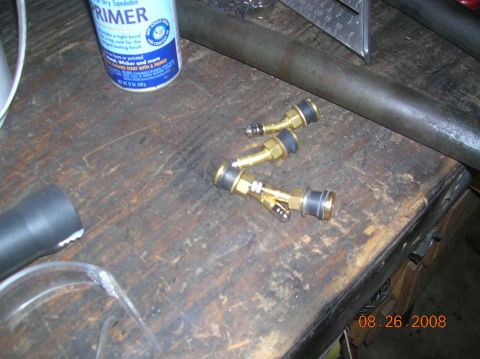

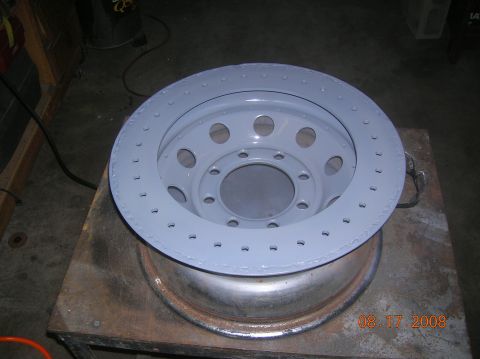

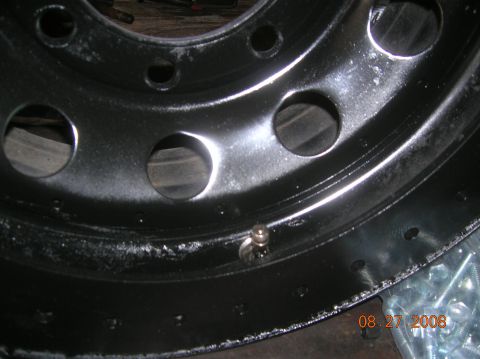

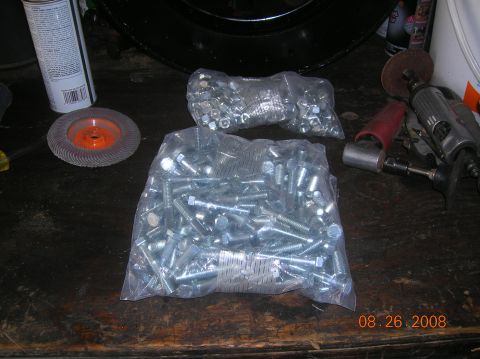

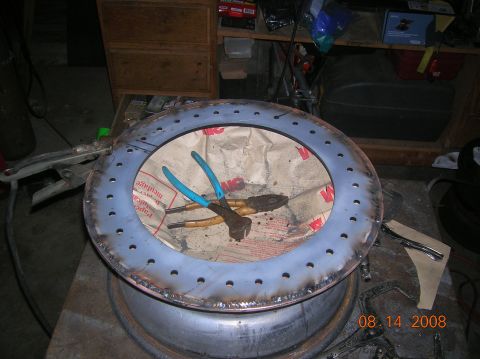

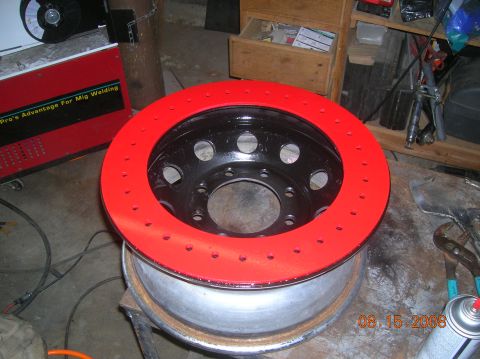

1985 Ford Bronco - inner ring 1985 Ford Bronco - outer ring 1985 Ford Bronco - protecting the wheel 1985 Ford Bronco - grinded down the chrome on the rim 1985 Ford Bronco - first pass with welder, will wirewheel off and run a second pass. 1985 Ford Bronco - second pass with the welder. 1985 Ford Bronco - painted the ring to match the rim. 1985 Ford Bronco - also had my painter shoot the outer rings red. 1985 Ford Bronco - second wheel all welded and ground down 1985 Ford Bronco - second coat of primer 1985 Ford Bronco - and these are the tires going on them 35 inch dunlop mud rovers... 1985 Ford Bronco - got the hardware. 1985 Ford Bronco - anti coning ring,,,appears to be made of rubber and cut to fit.... 1985 Ford Bronco - first attempt at valve stems...90 degree but to small for the hole in the rim. 1985 Ford Bronco - second attempt...right size diameter but not enough of a bend. 1985 Ford Bronco - and of course the balancing material. plastic pellets. going to go with about 10 ounces. 1985 Ford Bronco - third try is the charm....valve stems that work 1985 Ford Bronco - valve stem clearance 1985 Ford Bronco - inserted rim threw back of tire. 1985 Ford Bronco - 10 oz's plastic pellets 1985 Ford Bronco - anti-coning ring. 1985 Ford Bronco - outer ring installed with bolts.... 1985 Ford Bronco - second shot of rim with bolts. 1985 Ford Bronco - A red SUV with off-road tires is parked next to a large RV, with a basketball hoop in the background. 1985 Ford Bronco - A modified red Ford Bronco is parked on a driveway, with a large RV behind it. 1985 Ford Bronco - A close-up view of a tire and wheel assembly, with visible tire brand and model information. 1985 Ford Bronco - This 1985 Ford Bronco features custom wheels and an FSB decal on the fender.
