steering column tear down

From 1989 Ford Bronco “" FRIENDS IN LOW PLACES "”, documented by BRONKO806.

25 photos
← Back to this vehicle

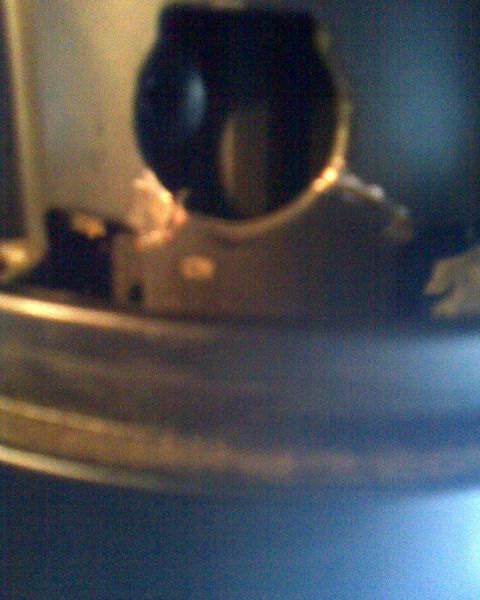

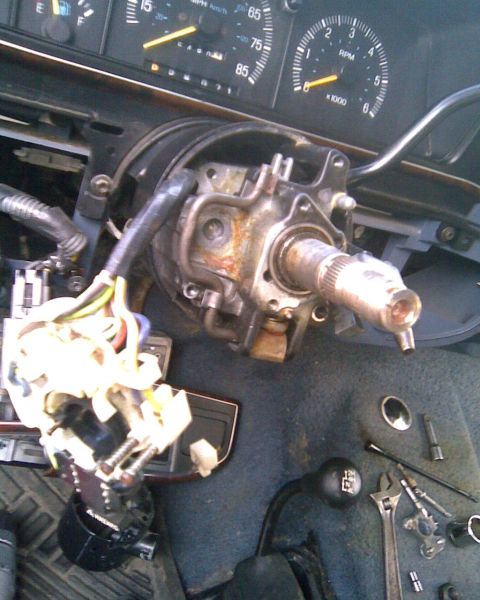

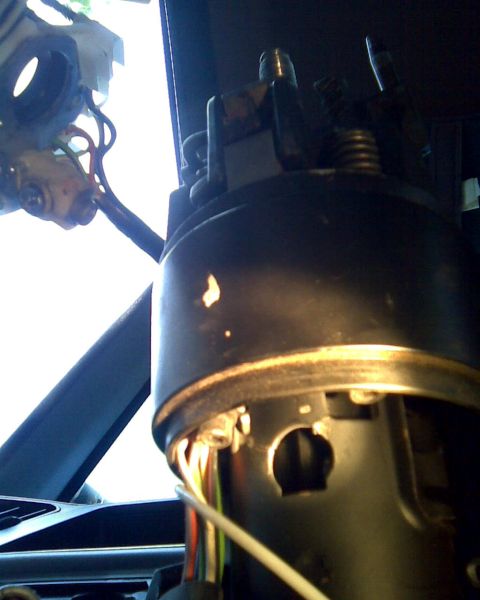

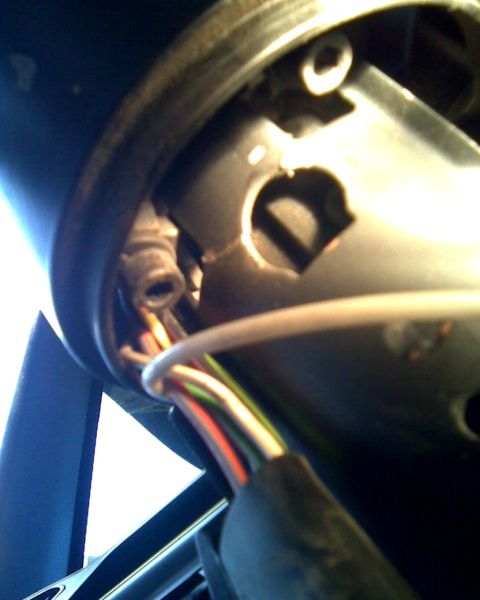

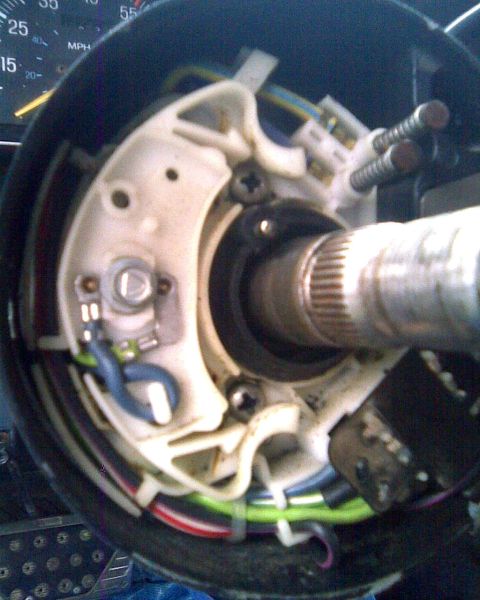

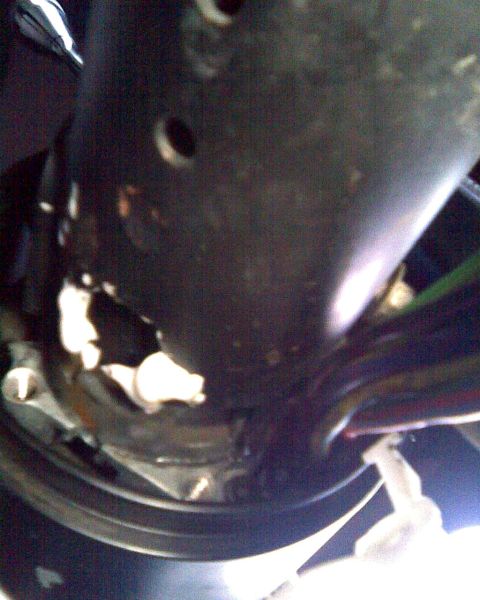

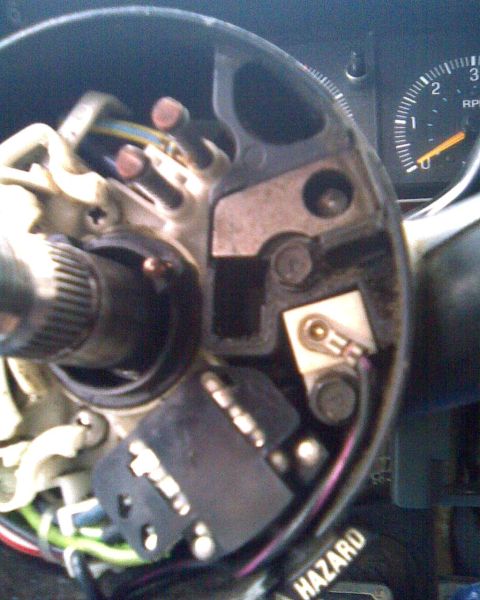

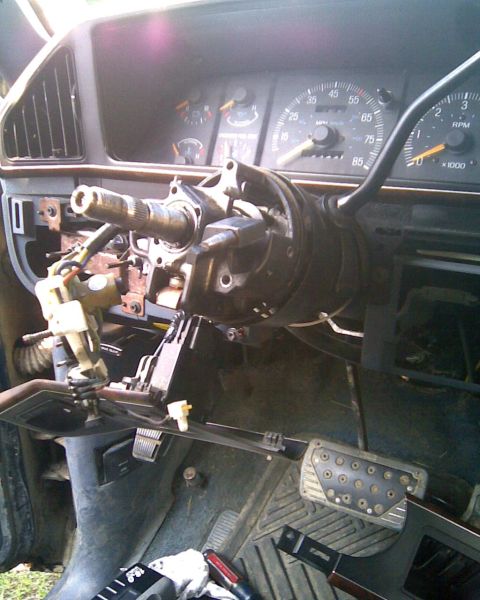

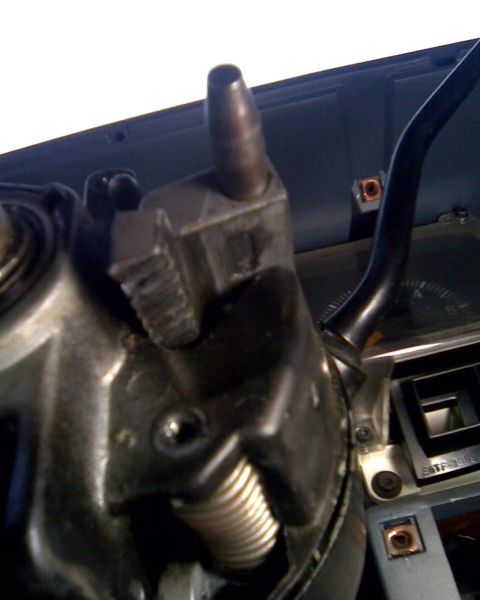

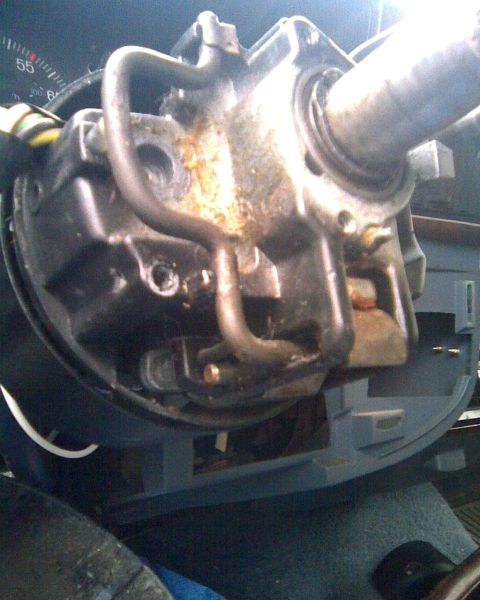

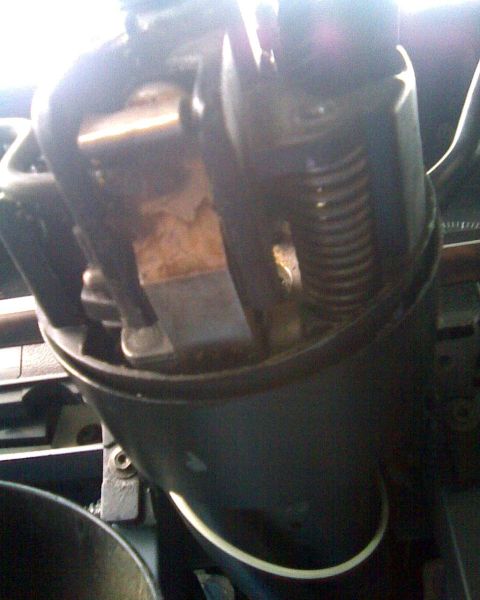

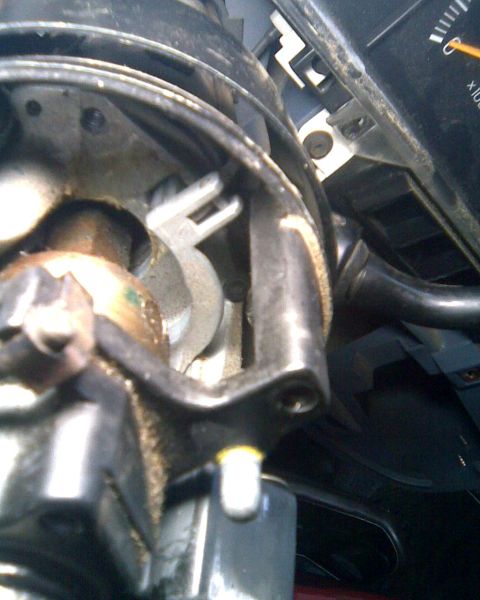

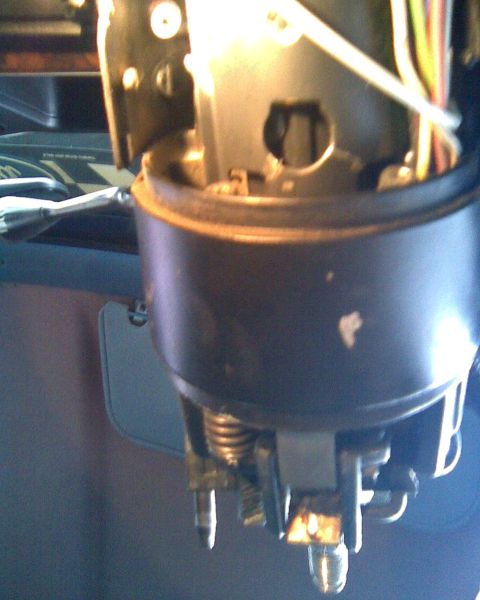

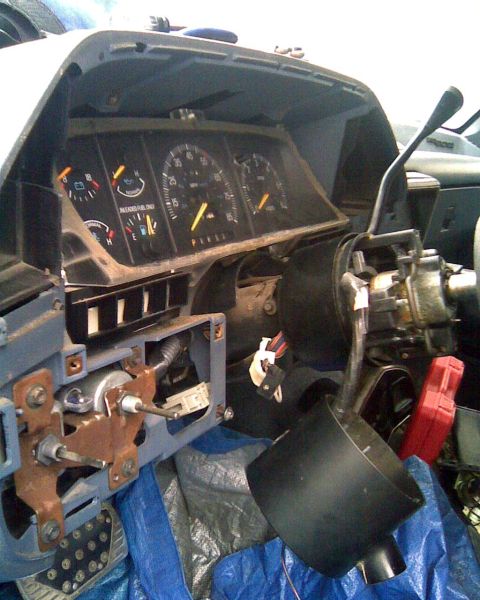

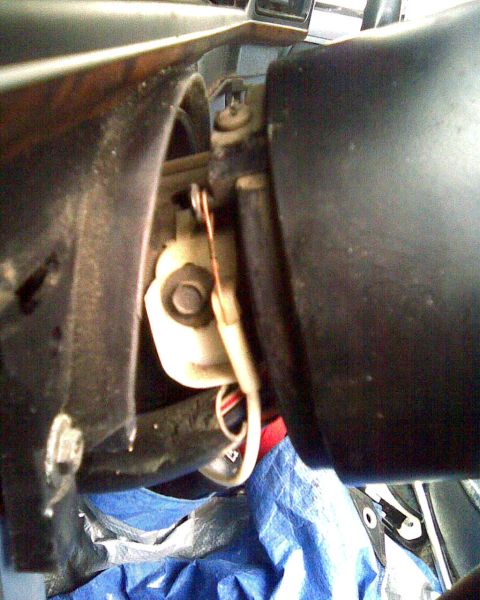

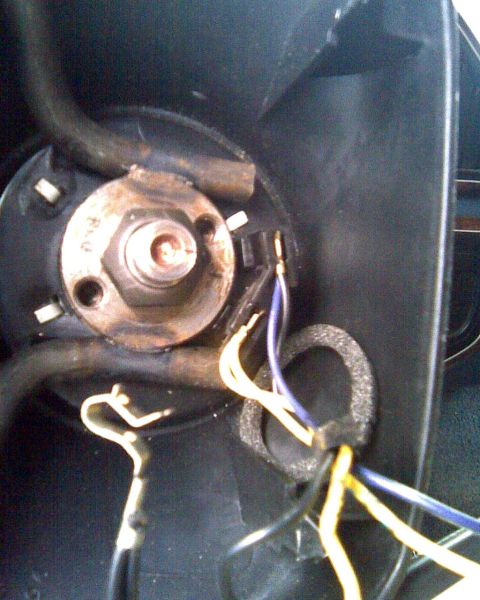

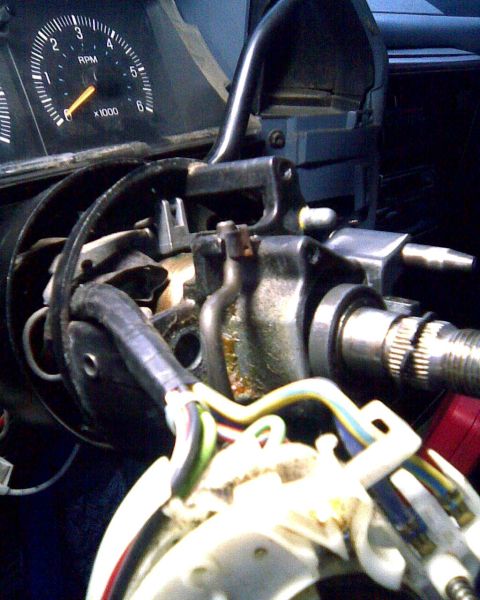

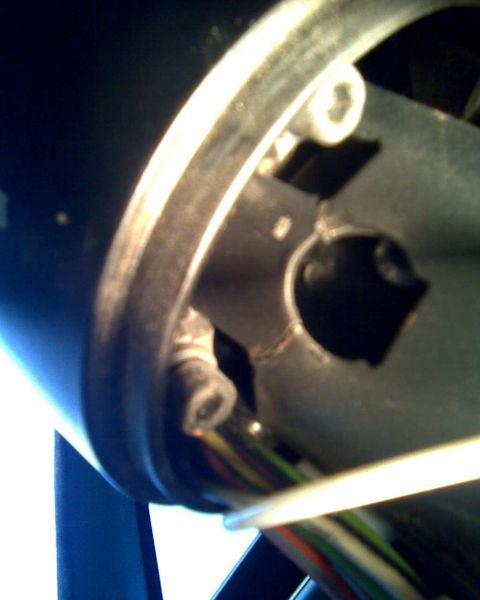

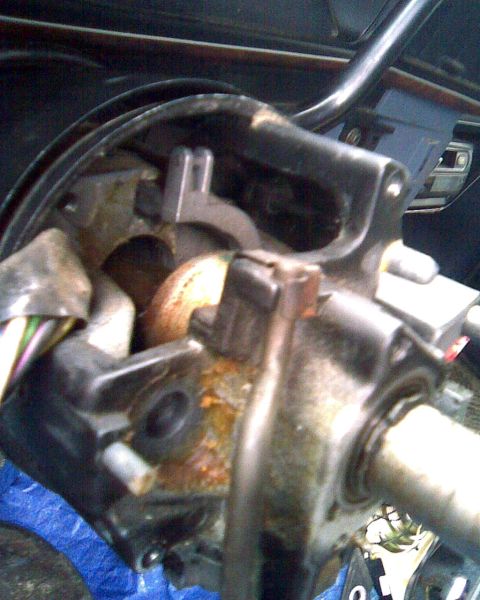

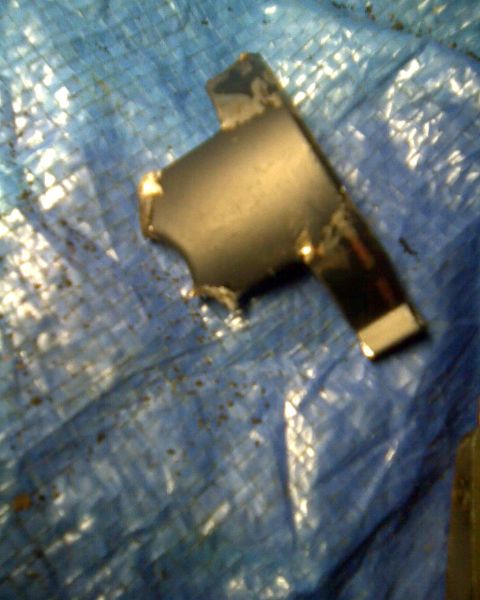

1989 Ford Bronco - Steering column torn down inside a truck cab: the wheel and upper shrouds are off, exposing the greasy cast housing, splined shaft end and… 1989 Ford Bronco - Interior view of a truck dash with the steering wheel removed and the steering column dropped and partially disassembled, exposing the spli… 1989 Ford Bronco - Extreme close-up looking up under a steering column with the lower shroud removed, showing the bare metal column tube, a rubber grommet, an… 1989 Ford Bronco - three allen head screws that hold in the metal piece! 1989 Ford Bronco - Backlit interior close-up of a steering column with the shroud partly removed, showing the black column housing, exposed lock cylinder cuto… 1989 Ford Bronco - Close-up of a partly disassembled steering column inside a vehicle, with the outer tube pulled down to expose the internal shift linkage, c… 1989 Ford Bronco - A blurry close-up shows a part of a steering column, with visible metallic and plastic textures. 1989 Ford Bronco - Close-up view of the wiring harness and electrical connections within a vehicle's steering column. 1989 Ford Bronco - Steering wheel removed to expose the top of the column: the white plastic turn-signal/multifunction switch housing, the splined steering sh… 1989 Ford Bronco - The interior of a vehicle's steering column shows electrical components and wiring, with a tachometer in the background. 1989 Ford Bronco - Tight close-up of a steering column torn down inside a vehicle, showing the cast tilt housing, brass shift tube, turn-signal switch bracket… 1989 Ford Bronco - Close-up of a disassembled steering column with the plastic shrouds removed, exposing the cast-aluminum housing, the tilt mechanism and the… 1989 Ford Bronco - Disassembled steering column components with visible wiring and housing. 1989 Ford Bronco - Out-of-focus close-up under the dash or in an engine bay showing a stamped steel bracket with a slotted tab, surrounded by rubber hoses, ru… 1989 Ford Bronco - Looking down into the top of a disassembled steering column with the upper shroud removed, exposing the internal shift-tube linkage, a coil… 1989 Ford Bronco - A gutted Ford truck dash assembly resting on a blue tarp during removal, with the instrument cluster still in place showing fuel, temperatu… 1989 Ford Bronco - Blurry close-up shot from beneath the dash looking up along a bare metal steering column tube, showing the welded seam, a threaded shroud-s… 1989 Ford Bronco - This photo shows the internal workings of a vehicle's steering column, not a specific model year. 1989 Ford Bronco - Extreme close-up inside a truck cab of an exposed steering column with its shrouds off, showing the cast tilt housing, coil spring, brass s… 1989 Ford Bronco - Dark, blurry close-up looking up a steering column shaft inside a vehicle, showing the bare metal tube with mounting holes and the wiring h… 1989 Ford Bronco - Close-up of a damaged metal bracket resting on a blue tarp, with a screwdriver tip in view. 1989 Ford Bronco - this metal piece broke off and this was held by one of the allen head screws behind the column 1989 Ford Bronco - i tore down the colum removed tha snap ring and bearing, but was not able to separate the upper assembly from the bottom so i can use some… 1989 Ford Bronco - Dirty engine-bay close-up dominated by large black intake or snorkel tubing wrapped with duct tape at the joints and routed across the fron… 1989 Ford Bronco - my new " non tilt " steering column out of a 1989 f150
