Corporate 10.5 14 Bolt Full Float

From 1985 Ford Bronco “Big Blue Beast” — documented by Josh Benfield.

5 photos
← Back to this vehicle

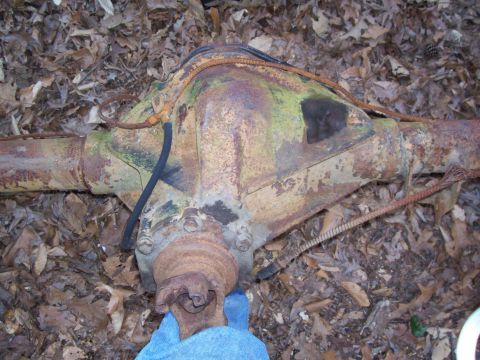

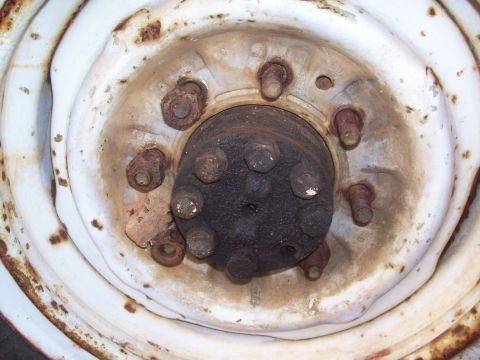

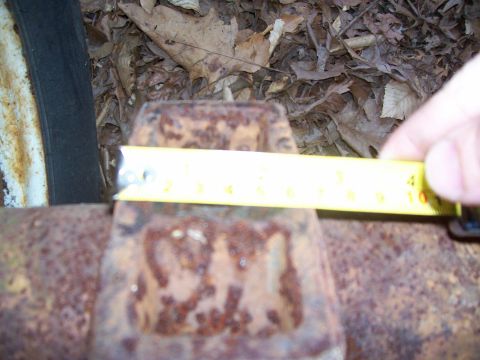

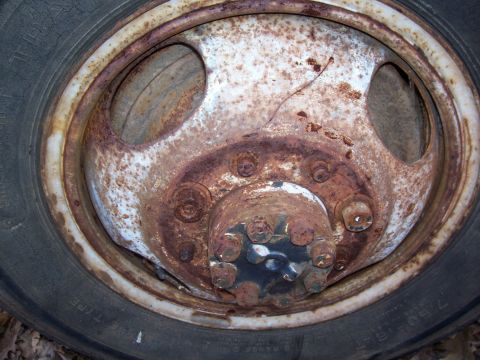

1985 Ford Bronco - This is what the Full float 14 bolt diff cover will look like. Careful, GM also made a semi-float axle with a 14bolt diff cover that was sh… 1985 Ford Bronco - Here you can see the removable axleshaft. The axleshaft on a full floating axle doesn't support the weight of the vehicle. Take off the bol… 1985 Ford Bronco - Even thou there is a DRW(dually) wheel on it, this is a SRW(single rear wheel) hub assembly. You can tell by the length of the hub sticking… 1985 Ford Bronco - I know its hard to tell, but the spring perches are 2.5inches wide. Chevy used this on the vast majority of their vehicles. If you are runn… 1985 Ford Bronco - Here you can see the removable pinion on the diff. Much easier when setting up gears
