8.8 Truss & Weld

From 1995 Ford Bronco “Shadofax” — documented by Mark Zoelch.

9 photos
← Back to this vehicle

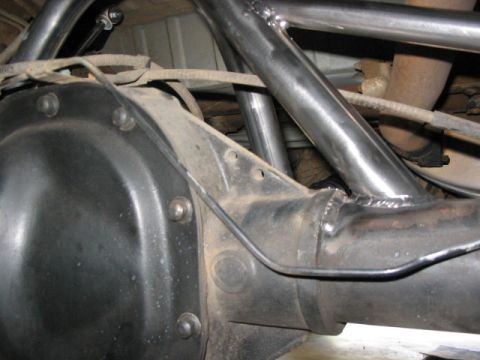

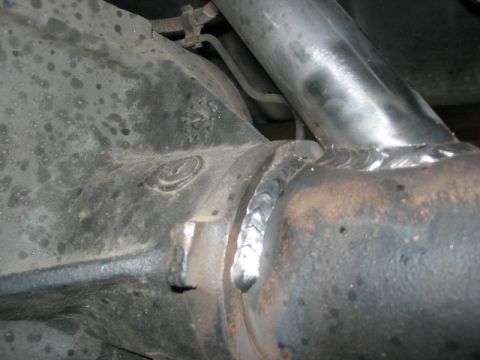

1995 Ford Bronco - A look at the whole truss 1995 Ford Bronco - Clearance is 7-8" up to body from the highest point, should even allow jumping if I ever desired to do so. Trail articulation this will not… 1995 Ford Bronco - I like 8.8's, but they seem prone to tube to diff loosensing and then bending or spinning at this joining. The 8.8 tubes are 3.25" Dia. but… 1995 Ford Bronco - Some may wonder why the truss loop over the diff is so high up...this allows the tube coming forward to tie into the large piece of reinfor… 1995 Ford Bronco - Should be ok with exhaust, a little trail testing will tell. 1995 Ford Bronco - nudder shot of the 1.5" brace coming forward to tie in near pinion. 1995 Ford Bronco - The underside of a vehicle shows the rear differential, suspension, and a custom roll cage structure. 1995 Ford Bronco - General idea with this truss is support right at the tube press fit to diff, with strong tie in support to diff at the pinion. So, the cent… 1995 Ford Bronco - closeup of the 1/2 weld around the axle tube press fit in the diff.
