Rear disc prop valve (DONE summer '11)

From 1995 Ford Bronco “Shadofax”, documented by Mark Zoelch.

9 photos
← Back to this vehicle

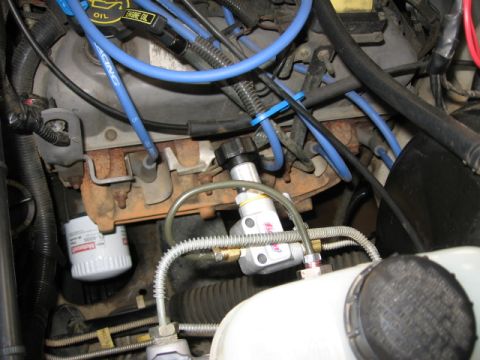

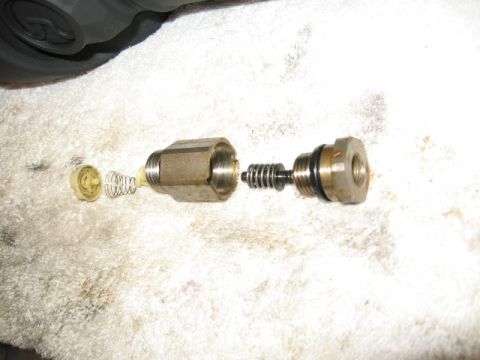

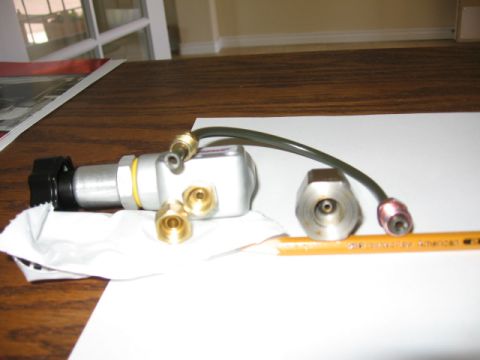

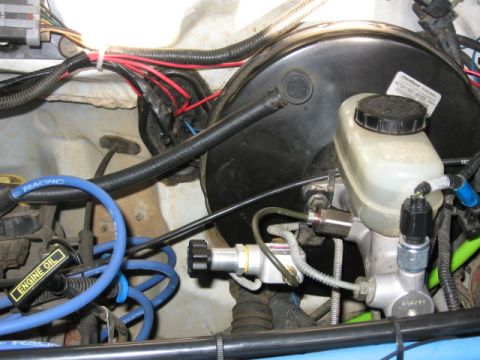

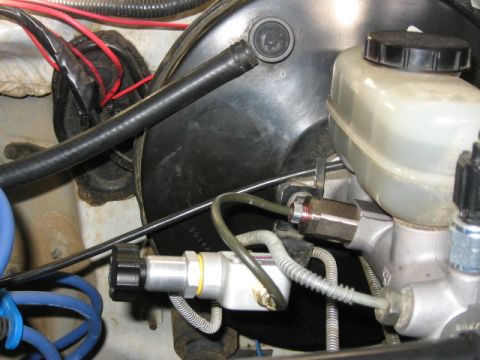

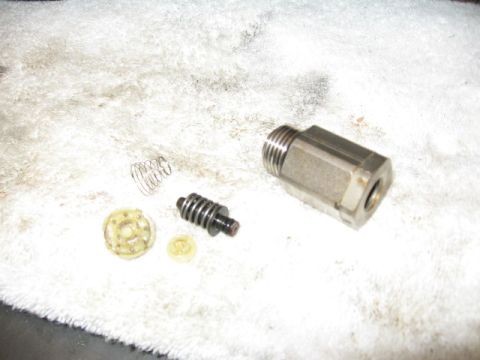

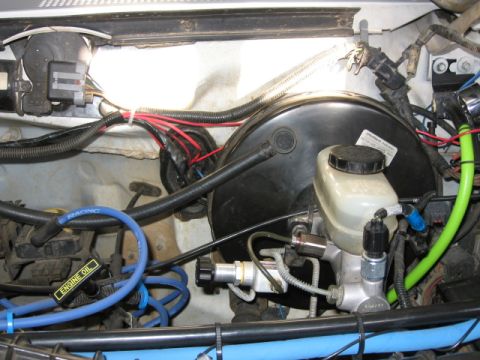

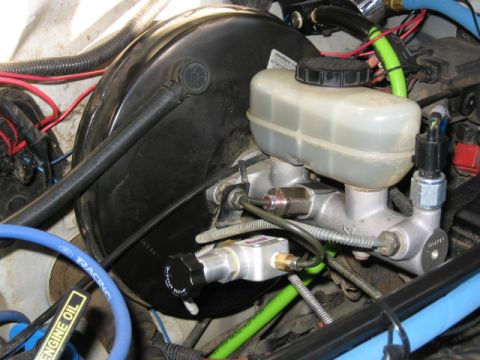

1995 Ford Bronco - residual pressure valve at master cylinder (for rear drum), internal components. 1995 Ford Bronco - 1 mistake I made, when people said you just need to gut the internals of the OEM residual valve that's on the master cylinder rear brake li… 1995 Ford Bronco - This would be plumbed into the rear line right at the master cylinder after I replace the residual valve with the gutted one. Just would li… 1995 Ford Bronco - A brake proportioning/combination valve assembly laid out on a dark wood table over white paper, with a black electrical connector on one e… 1995 Ford Bronco - pics of prop valve. Another thing to keep in mind here is that you need the special, short little adapter line (mine is from Advance auto),… 1995 Ford Bronco - Engine-bay view of a black brake booster with an aluminum master cylinder and translucent plastic reservoir, plus an adjustable proportioni… 1995 Ford Bronco - Close-up of a black brake booster and cast-aluminum master cylinder with a translucent plastic fluid reservoir, fed by braided stainless li… 1995 Ford Bronco - Engine-bay close-up of a brake master cylinder with translucent fluid reservoir mounted on a black vacuum booster, with an aluminum brake p… 1995 Ford Bronco - Engine-bay close-up of an aluminum adjustable brake proportioning valve with a black knob, plumbed with steel-braided lines beside the mast…
