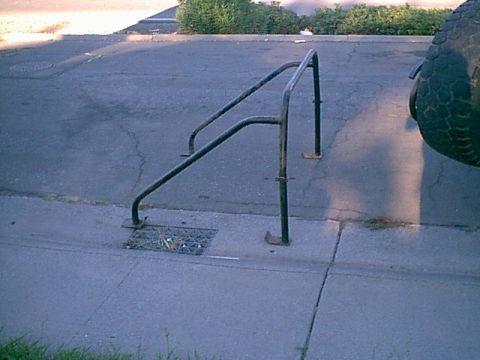

roll7.jpg 851 hits | 69.44 KB | Posted: 10/26/06 I want to install a full cage but i needed a starting point and i saw this roll bar in the local pap...

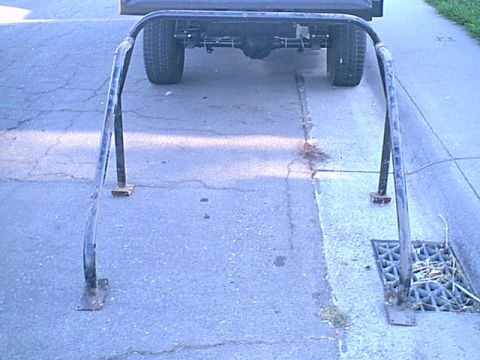

roll6.jpg 628 hits | 86.97 KB | Posted: 10/26/06 Here is a shot from the rear. it looks good to install.
roll5.jpg 646 hits | 82.98 KB | Posted: 10/26/06 it is 42" high. it looks like it will drop right in.

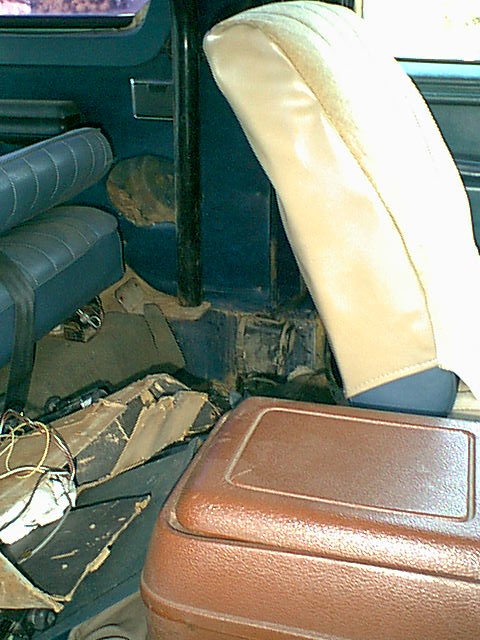

roll1.jpg 655 hits | 91.6 KB | Posted: 10/26/06 Well it looked like it go right in. so now it is time to see where i want this to sit. i want this t...

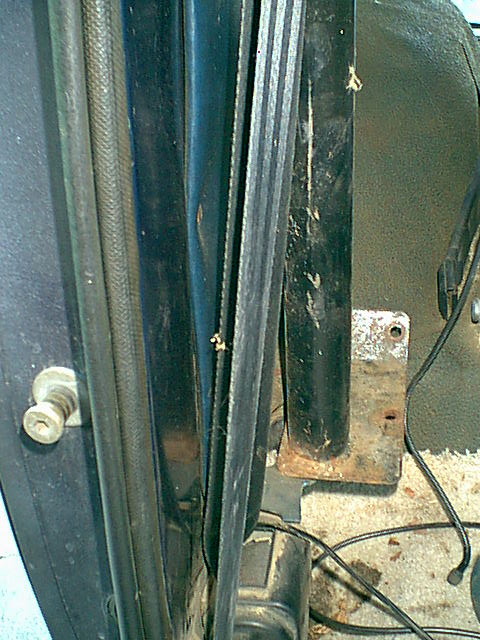

roll2.jpg 956 hits | 100.69 KB | Posted: 10/26/06 This is where the stock GT bar would go but i cut the foot and slide it back. this is the pass side.

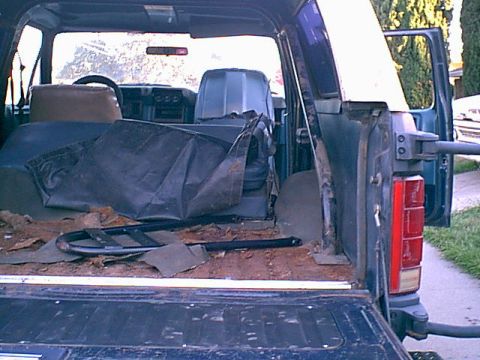

roll3.jpg 633 hits | 96.99 KB | Posted: 10/26/06 Here is the rear leg pass side. (lots of rust on the floor surface. this is how she came to me i goi...

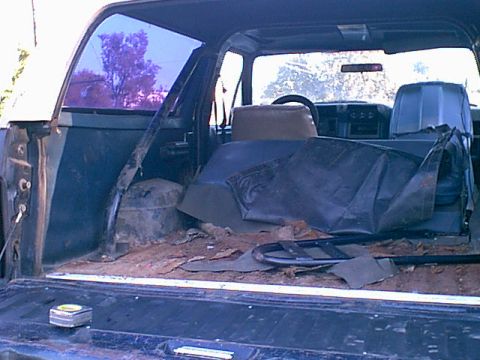

roll4.jpg 623 hits | 89.01 KB | Posted: 10/26/06 here is the driver side rear leg.

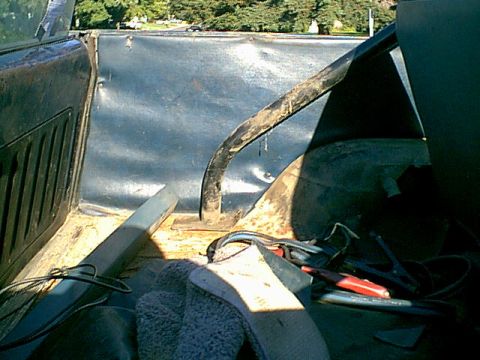

roll fit rear leg.jpg 618 hits | 94.27 KB | Posted: 10/26/06 here is a side shot to show if i mounted in the GT Bar position where the rear leg would go. i decid...

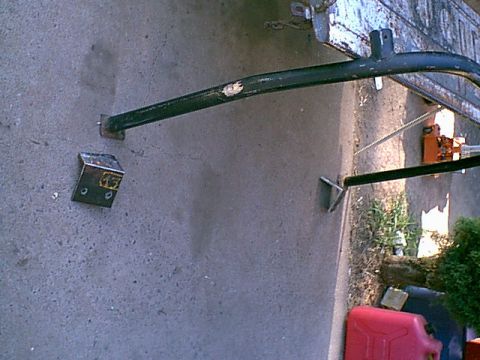

roll bar and new feet.jpg 604 hits | 87.3 KB | Posted: 10/26/06 1st job cut the front mount so i can move the roll bar back to the correct install spot.

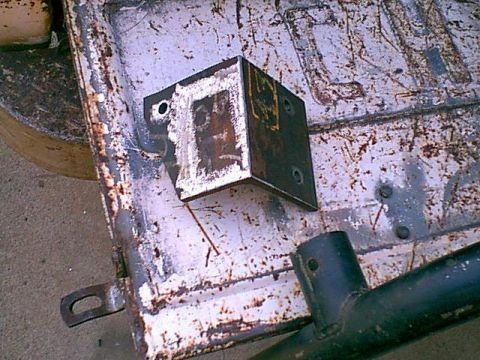

roll bar front mount.jpg 670 hits | 121.56 KB | Posted: 10/26/06 i had some 6" angle sitting in the shop. so i drilled a few mounting holes and cleaned the welding a...

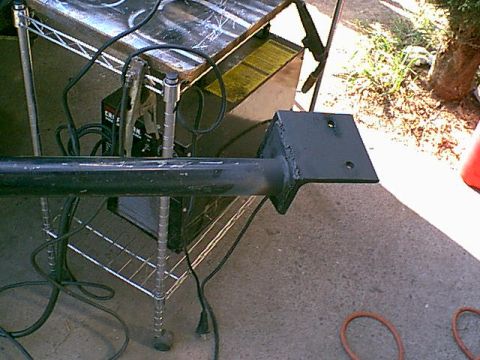

rollbar new foot.jpg 617 hits | 104.53 KB | Posted: 10/26/06 here the new foot is welded to the roll bar. I am not a great welder but it is looking alot better.

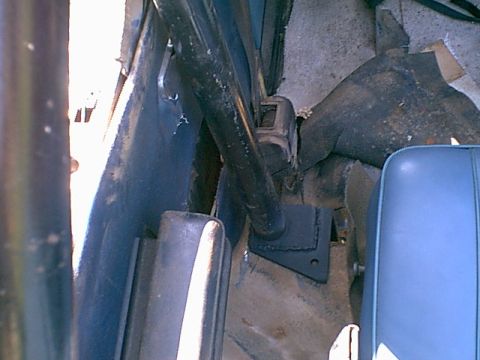

driverside front6576.jpg 629 hits | 70.9 KB | Posted: 10/26/06 here is the front foot on the new mount. this is a strong point inthe bronco.

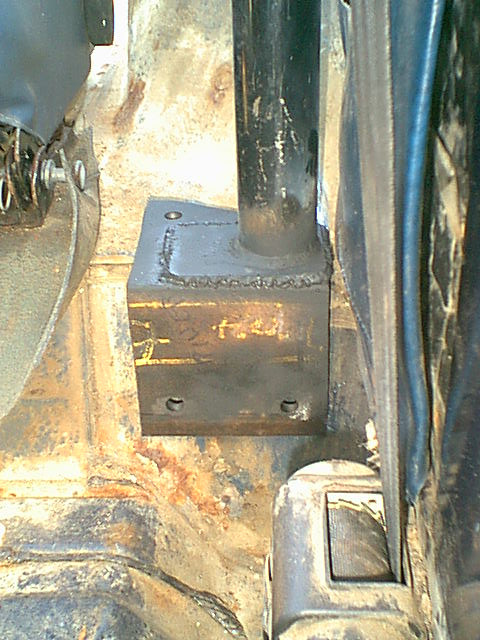

rollbar drivers front.jpg 605 hits | 99.85 KB | Posted: 10/26/06 here is a front shot of the mount and roll bar.

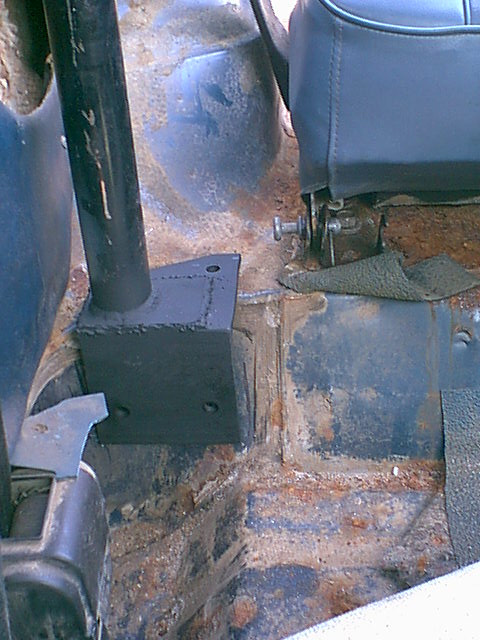

roll bar pass front.jpg 613 hits | 86.19 KB | Posted: 10/26/06 here is how it goes together on the pass side.

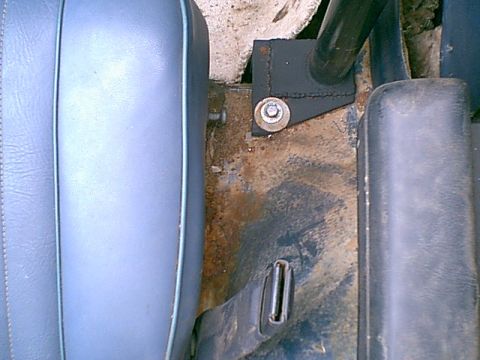

roll pass front.jpg 780 hits | 77.52 KB | Posted: 10/26/06 Here it is bolted to the floor. i going to add a plate and bar thru the floor to the frame soon but ...

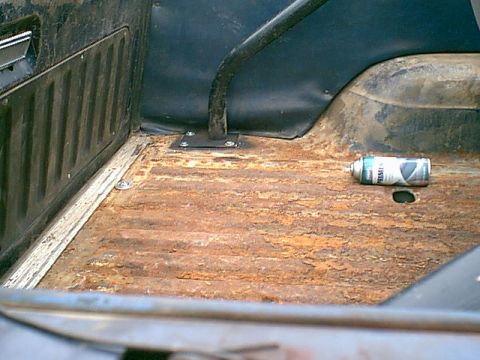

rollbar driversiderear.jpg 650 hits | 91.61 KB | Posted: 10/26/06 Here is how the rear legs bolt down to a plate under the floor. it too will get extensions down to t...

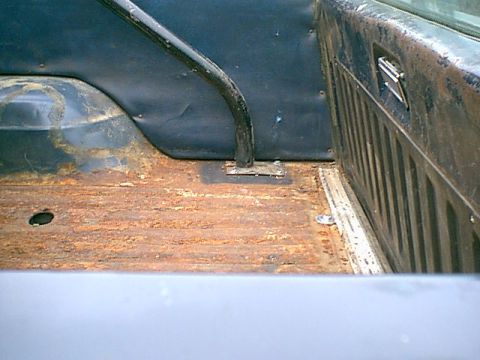

rollbarrear.jpg 651 hits | 79.01 KB | Posted: 10/26/06 here is the pass side installed.

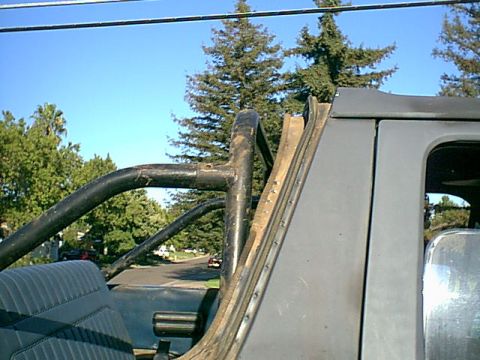

roll bar fit.jpg 1274 hits | 96.87 KB | Posted: 10/26/06 i made sure there was room to install the top and install and remove the top bolts. this will be a ...

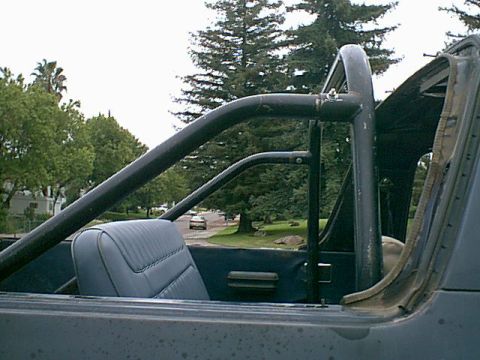

rollbarinstalled.jpg 700 hits | 90.42 KB | Posted: 10/26/06 Here it is a few feet back. i am happy with this install. The kids like to hang on the bar as we go ...
