michael collins > 1983 Ford Bronco > open folder Lightbar

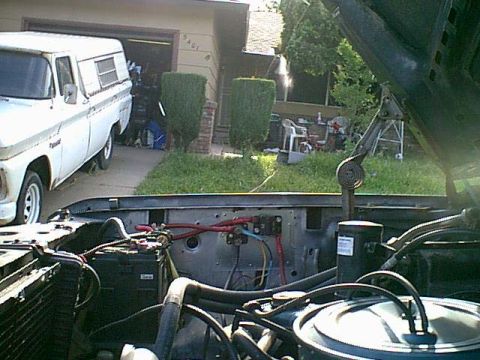

I started with the power tap. This is the add in electrical panel i made. I going to add a power tap...
608 hits | 83.14 KB | Posted: 10/17/06
I started with the power tap. This is the add in electrical panel i made. I going to add a power tap...

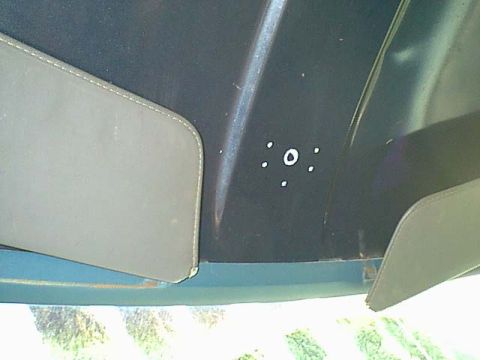

I decided to add the light controller to the front roof. this is an easy to reach place and out of t...
577 hits | 37.74 KB | Posted: 10/17/06
I decided to add the light controller to the front roof. this is an easy to reach place and out of t...

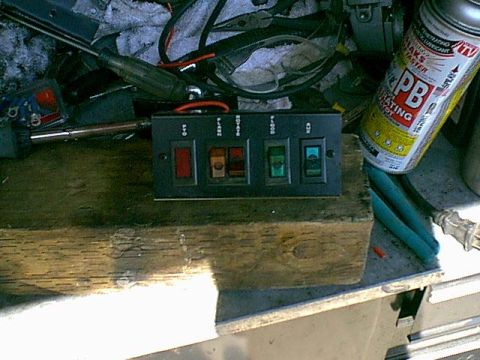

Here is the control box for the light bar. this was in a 1977 chevy tow truck.
elights control.jpg
584 hits | 74.63 KB | Posted: 12/28/06
Here is the control box for the light bar. this was in a 1977 chevy tow truck.

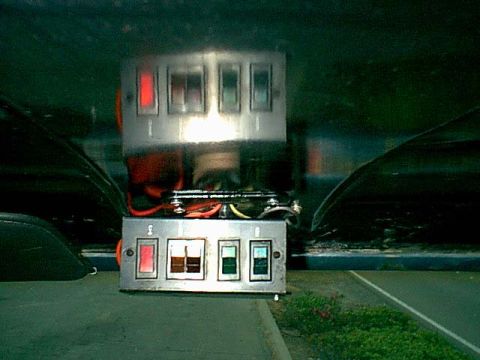

here is the controlbox all mounted and ready to roll.
605 hits | 56.62 KB | Posted: 10/17/06
here is the controlbox all mounted and ready to roll.

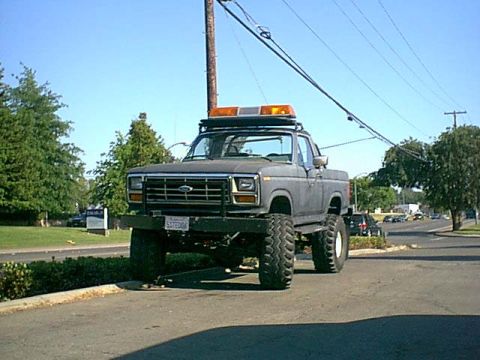

here is a shot of the lights installed from the front.
642 hits | 71.45 KB | Posted: 10/17/06
here is a shot of the lights installed from the front.

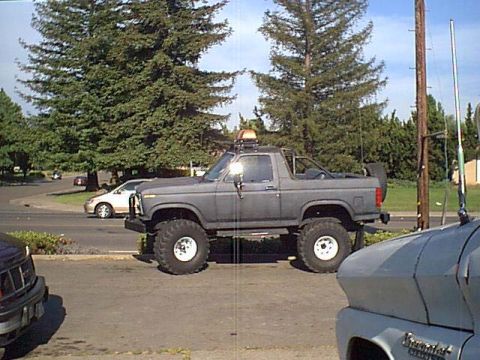

Here is the side view.
681 hits | 87.56 KB | Posted: 10/17/06
Here is the side view.

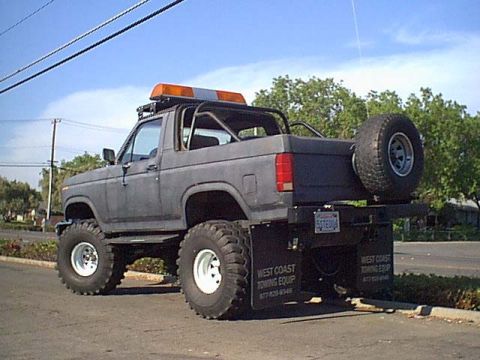

Here is the view from behind
1309 hits | 70.9 KB | Posted: 10/17/06
Here is the view from behind

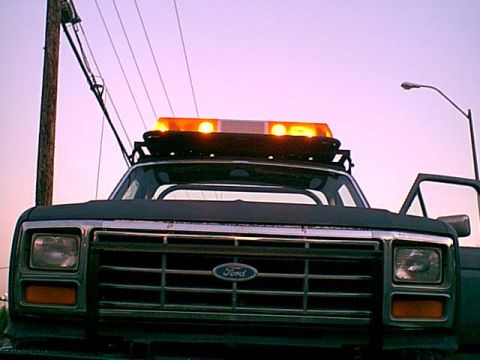

I setup ujr front to have the rotors on the outside and flood lights on the front. these are real br...
640 hits | 55.61 KB | Posted: 10/17/06
I setup ujr front to have the rotors on the outside and flood lights on the front. these are real br...

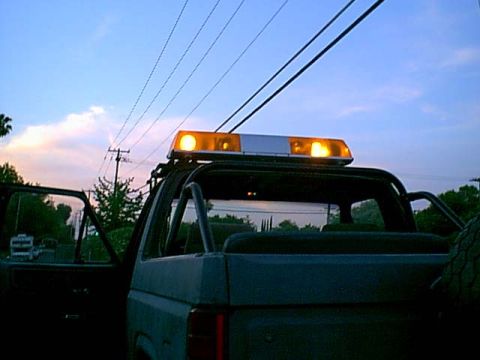

the rear has the rotors on the outside and flashers in the middle.
597 hits | 44.41 KB | Posted: 10/17/06
the rear has the rotors on the outside and flashers in the middle.

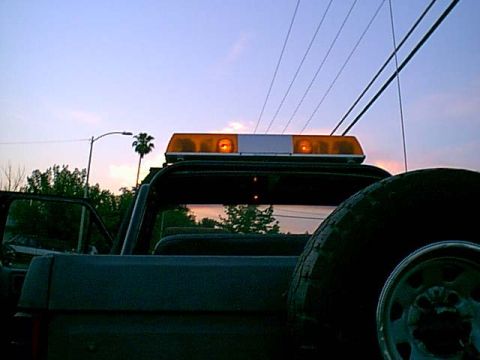

here are the flashers on the way on.
574 hits | 43.07 KB | Posted: 10/17/06
here are the flashers on the way on.

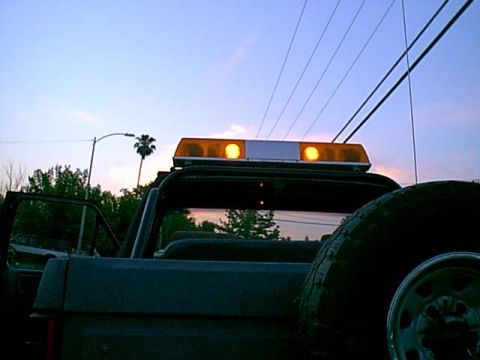

and them at full flash.
582 hits | 42.47 KB | Posted: 10/17/06
and them at full flash.
