michael collins > 1983 Ford Bronco > open folder Factory Tac Install

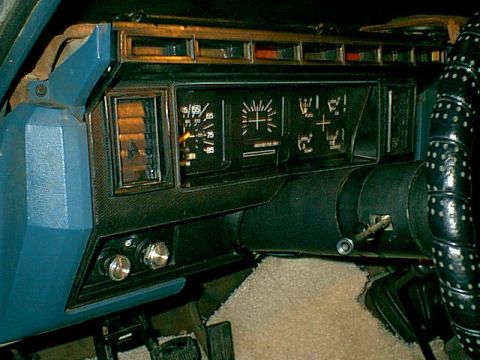

I wanted to get a tac in this beast and there was a stock option for one. I got one out of the local...
895 hits | 97.16 KB | Posted: 10/18/06
I wanted to get a tac in this beast and there was a stock option for one. I got one out of the local...

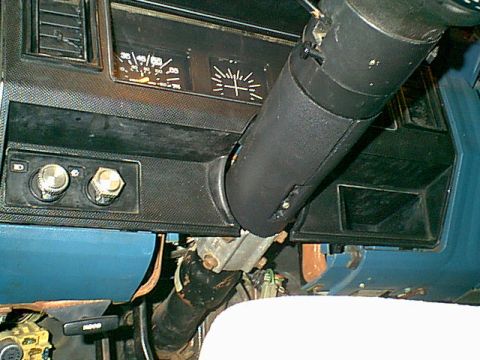

Here is a view looking up at the stock no Tac guage.
switches installed.jpg
808 hits | 99.51 KB | Posted: 11/3/06
Here is a view looking up at the stock no Tac guage.

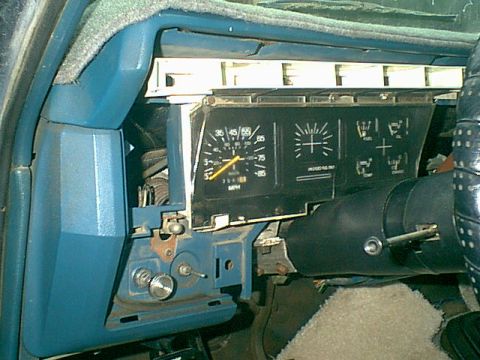

You have to remove the bezel. to do so the head light switch knob and windshiel wiper knob must come...
bronco dash.jpg
941 hits | 97.06 KB | Posted: 10/18/06
You have to remove the bezel. to do so the head light switch knob and windshiel wiper knob must come...

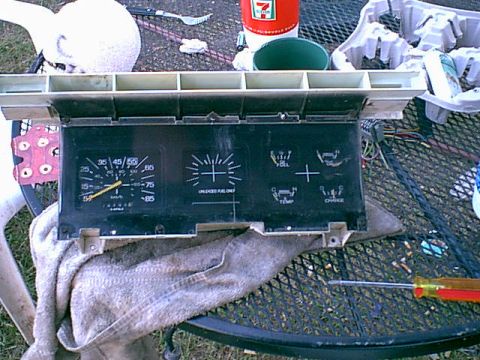

it was easier for me to complete this swap at the table. here is the stock cluster.(Mine has a crack...
tac install3.jpg
812 hits | 116.97 KB | Posted: 10/18/06
it was easier for me to complete this swap at the table. here is the stock cluster.(Mine has a crack...

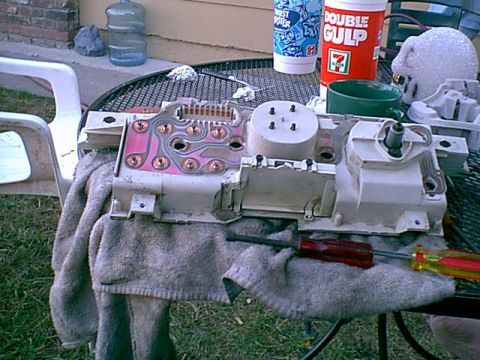

here is the back side of the stock cluster. (you can see where the TAc goes in the center. there is ...
tac install.jpg
921 hits | 109.81 KB | Posted: 10/18/06
here is the back side of the stock cluster. (you can see where the TAc goes in the center. there is ...

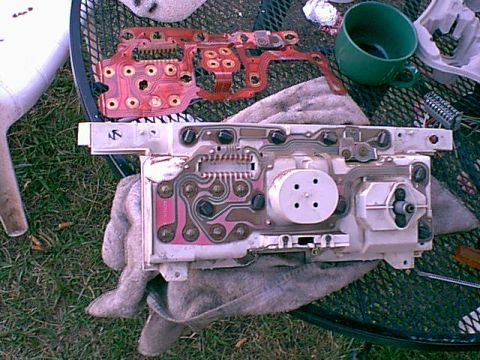

Here is a better picture. i removed all the light bulbs and the circuit board screws. the 4 holes us...
tac install2.jpg
917 hits | 123.76 KB | Posted: 10/18/06
Here is a better picture. i removed all the light bulbs and the circuit board screws. the 4 holes us...

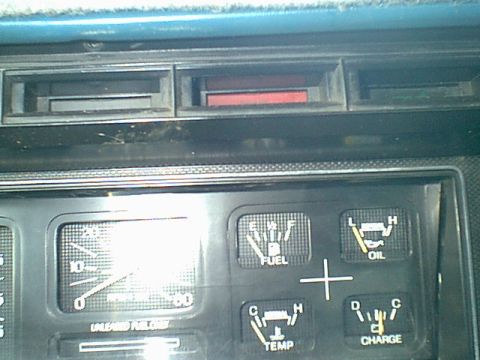

Here it is all done and looks factory.
866 hits | 80.2 KB | Posted: 10/18/06
Here it is all done and looks factory.

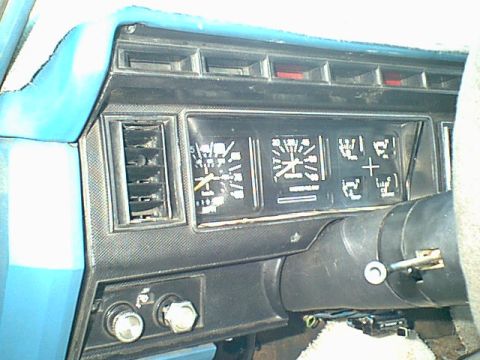

here is a different view. the tac works fine ford used a universal harness so all i did was swap the...
838 hits | 89.29 KB | Posted: 10/18/06
here is a different view. the tac works fine ford used a universal harness so all i did was swap the...
