Center Carrier

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

14 photos
← Back to this vehicle

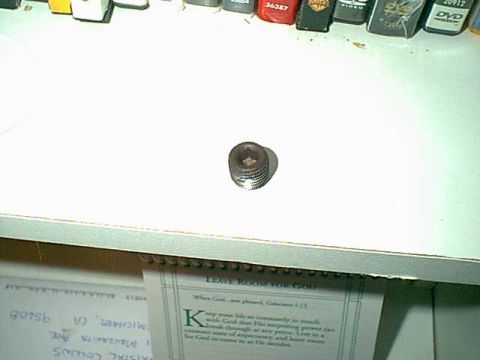

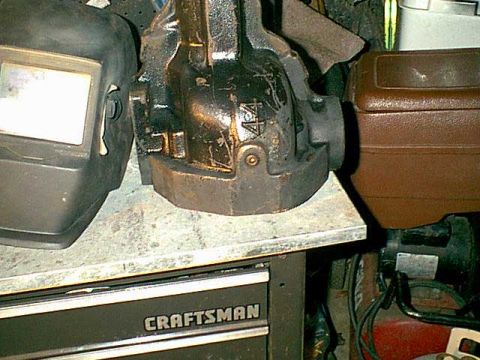

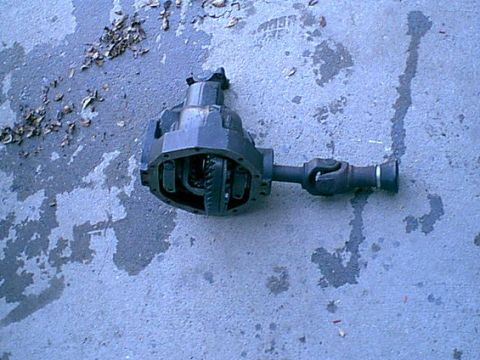

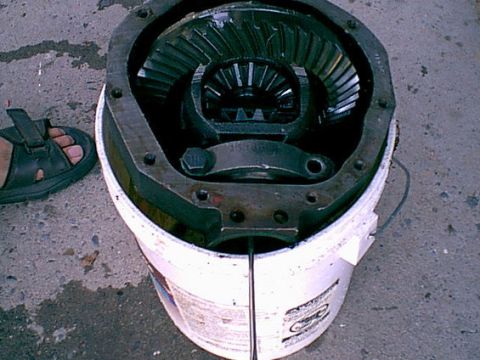

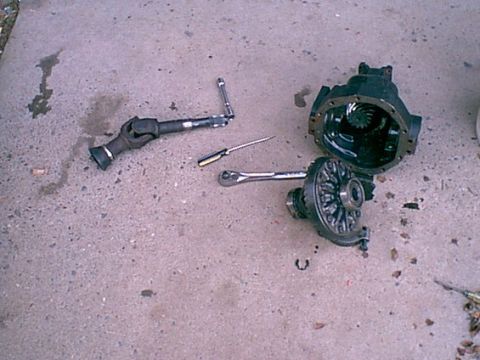

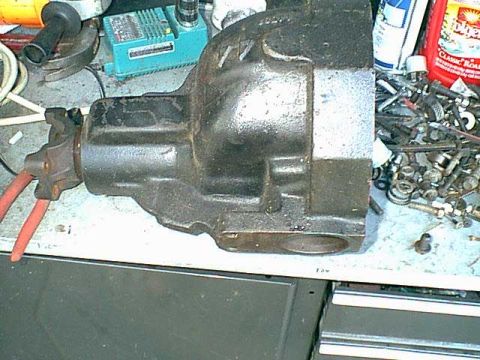

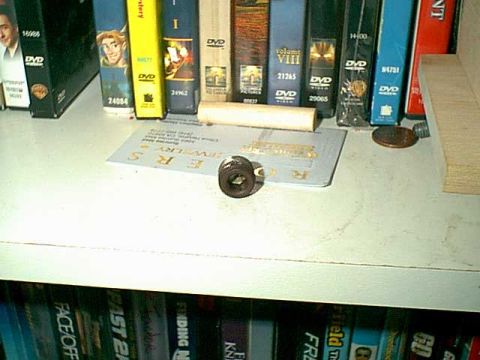

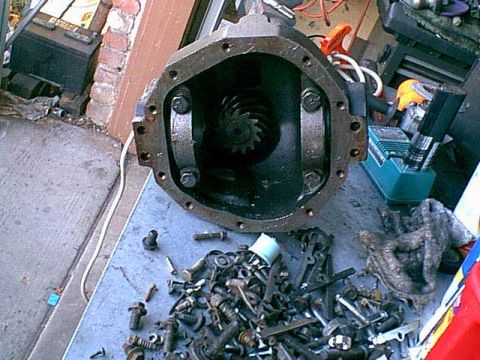

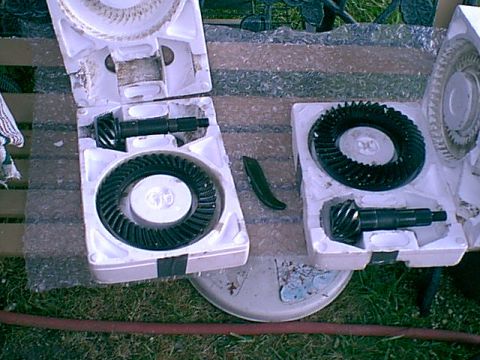

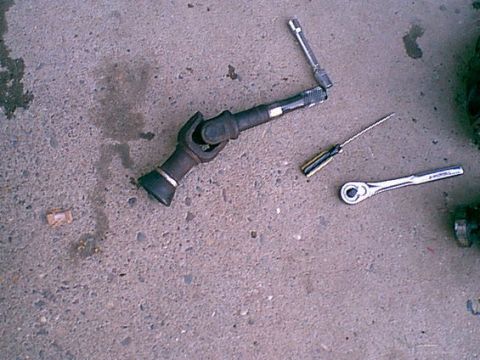

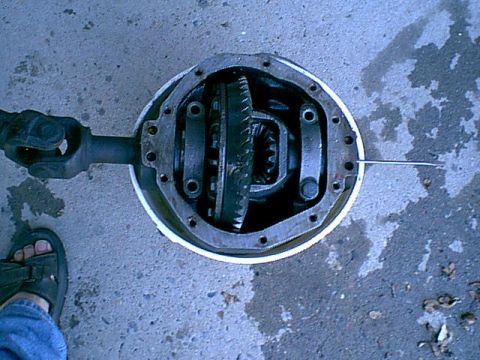

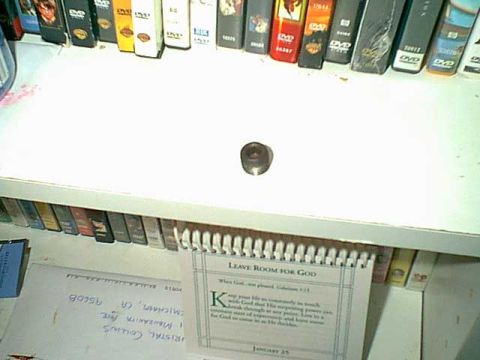

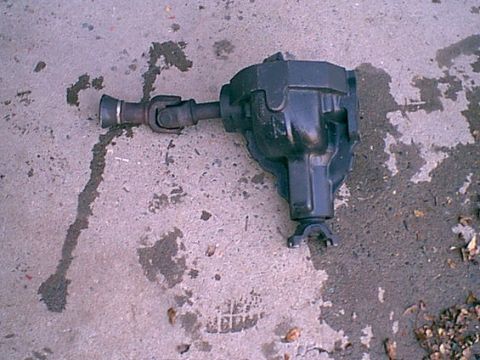

1983 Ford Bronco - I got new gears for the front and rear. I was told the were good condition and ready to go.the left side is the front Dana 44 reverse cut g… 1983 Ford Bronco - The TTB is a Ford only beast. IT was Fords version of independant suspension. The center section is part of the front axle. to remove it th… 1983 Ford Bronco - Here is the back side of the "PIG" 1983 Ford Bronco - I removed the c-clip and carrier. these are 3.55-1 gears on an open carrier. not what i need so going to the pile of extra parts. 1983 Ford Bronco - This is an extra slip shaft and going in the extra pile. I got a feeling i am going to break a few of these. 1983 Ford Bronco - I put the pig into a bucket to remove the main caps the shaft on the left is held in with a C-clip. 1983 Ford Bronco - Here is the "PIG" in the bucket for the night. 1983 Ford Bronco - I got a 2nd drop out so i can get it setup and ready to install and not have a long down time for regearing. One issue is to drain and chan… 1983 Ford Bronco - I had this drain plug in the shop si i drilled and tapped for it. i wanted a allen head so nothing would hang down. 1983 Ford Bronco - here is another view of the drain plug. 1983 Ford Bronco - One last picture of the drain plug. 1983 Ford Bronco - Here is the new drain hole drilled and threaded. 1983 Ford Bronco - this drain goes right into the bottom of the gear space. 1983 Ford Bronco - Here the drop out is with the new drain plug. I found out the bearing caps were changed and i need to recenter drill this one or get anothe…
