michael collins > 1983 Ford Bronco > open folder Tailgate Electrical

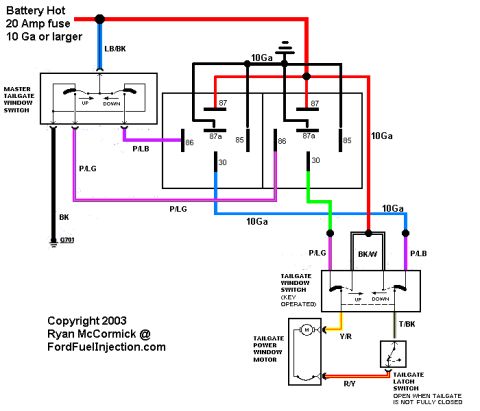

This is a way to rebuild the switching system for the rear window motor. Thank you Ryan
tailgate re-wired.gif
618 hits | 13.44 KB | Posted: 11/3/06
This is a way to rebuild the switching system for the rear window motor. Thank you Ryan

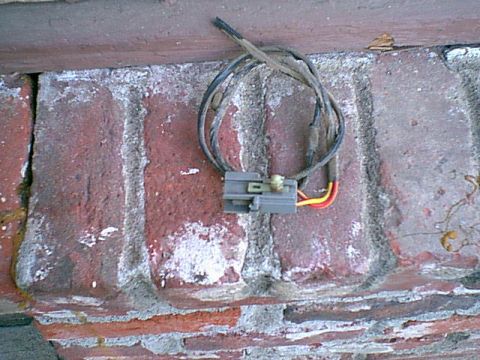

I found this on the ground behing a bronco at the junk yard and i thought since i fixing these motor...
bronco window jumper.jpg
537 hits | 96.6 KB | Posted: 11/3/06
I found this on the ground behing a bronco at the junk yard and i thought since i fixing these motor...

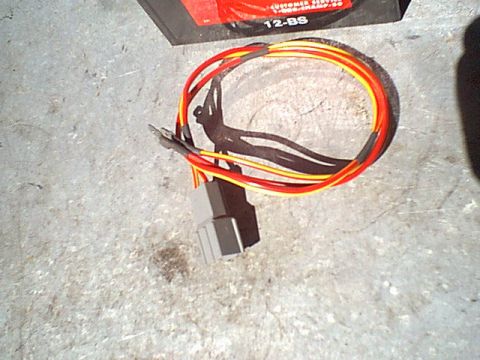

I took it out of the harness and soldered a male spade on the ends of each wire.
476 hits | 83.68 KB | Posted: 11/3/06
I took it out of the harness and soldered a male spade on the ends of each wire.

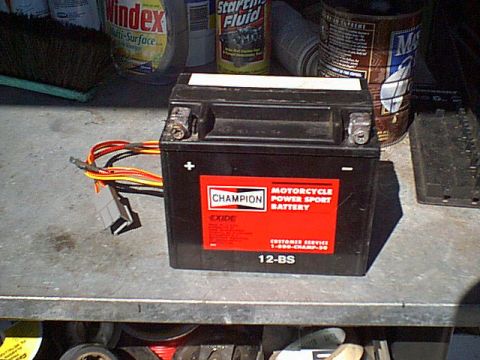

I had this motorcycle battery sitting on the work bench. it is nice and light to crawl in the back o...
509 hits | 89 KB | Posted: 11/3/06
I had this motorcycle battery sitting on the work bench. it is nice and light to crawl in the back o...

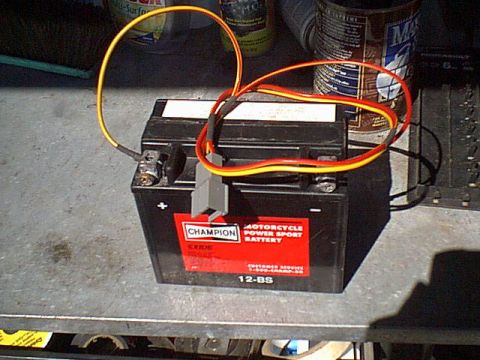

to testi connect to the battery (one side so in case the motor wanys to run my hand is not in the wa...
521 hits | 90.62 KB | Posted: 11/3/06
to testi connect to the battery (one side so in case the motor wanys to run my hand is not in the wa...

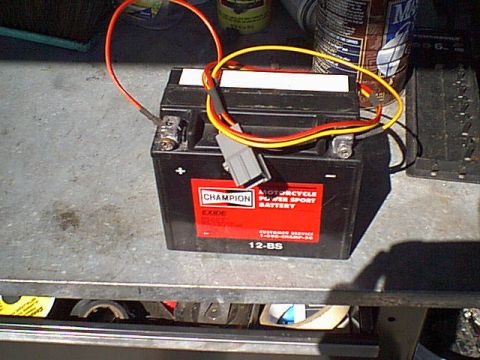

just reverse the wires to test the other direction.
488 hits | 91.47 KB | Posted: 11/3/06
just reverse the wires to test the other direction.
