gas tank.JPG 887 hits | 47.42 KB | Posted: 2/16/07 here is the new skid plate. i got it withthe efi tank.

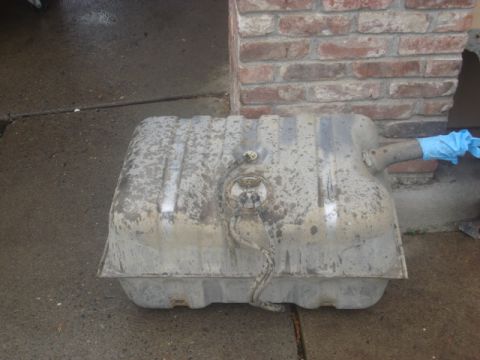

gas tank2.JPG 658 hits | 53.9 KB | Posted: 2/16/07 this is a 33 gallon 3 1/2" top tank. this has the single high pressure pump and sending unit inside.

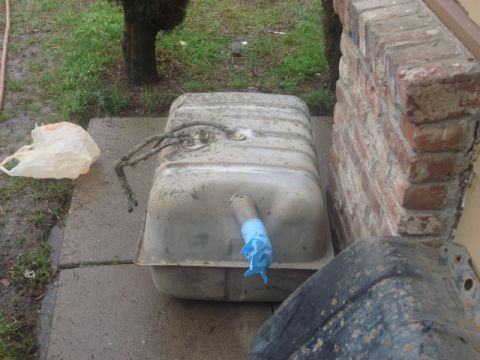

gas tank3.JPG 556 hits | 65.21 KB | Posted: 2/16/07 here is the other side. time to clean and install it.

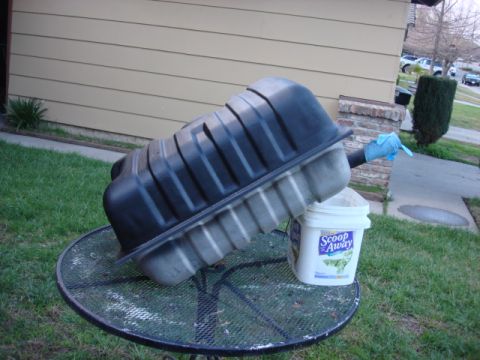

gastankpaint.JPG 724 hits | 66.76 KB | Posted: 3/1/07 here is the tank after it was cleaned and undercoated on the bottom. there is a coat of flat black o...

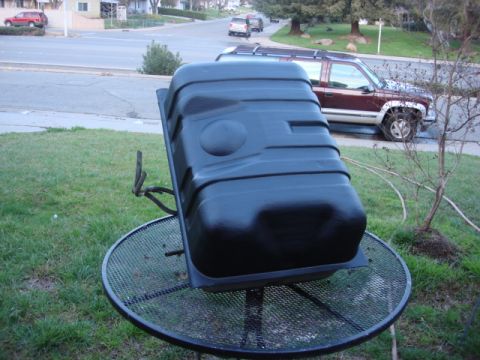

gastankpaint2.JPG 662 hits | 76.08 KB | Posted: 3/1/07 hereis another view of the bottom of the tank almost ready to go in.

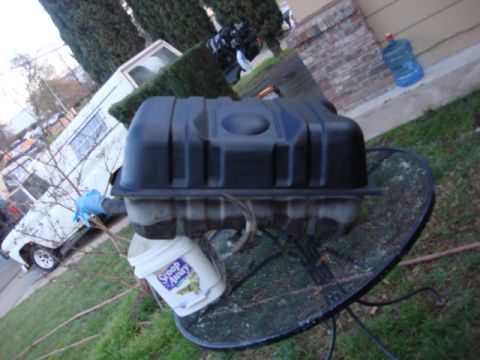

gastankpaint3.JPG 690 hits | 64.85 KB | Posted: 3/1/07 here is the last shot of the bottom untill it gets installed.

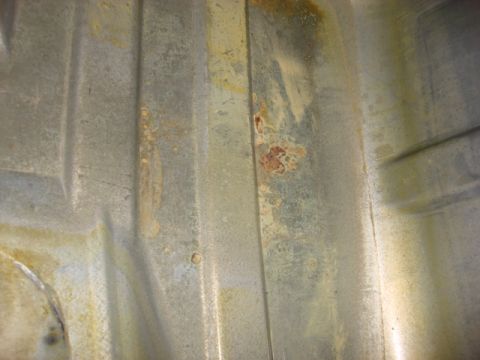

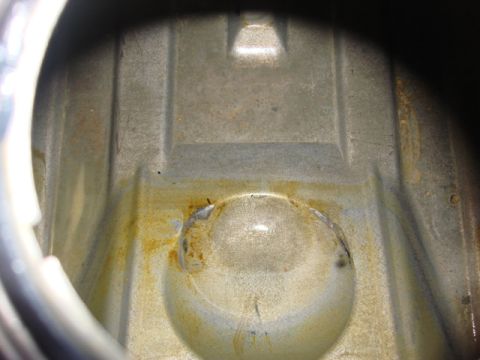

intank.JPG 605 hits | 49.47 KB | Posted: 3/5/07 i decided to make sure the inside was good and clean. here is the inside before i cleaned it out. no...

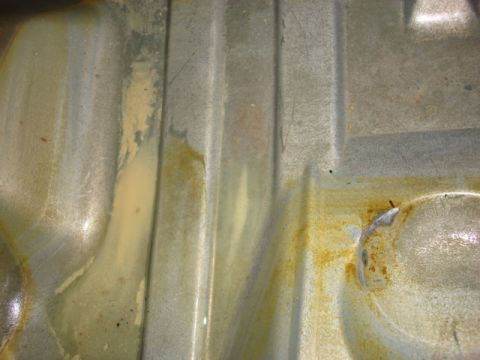

intank2.JPG 515 hits | 52.97 KB | Posted: 3/5/07 here is the pass side inside the tank.

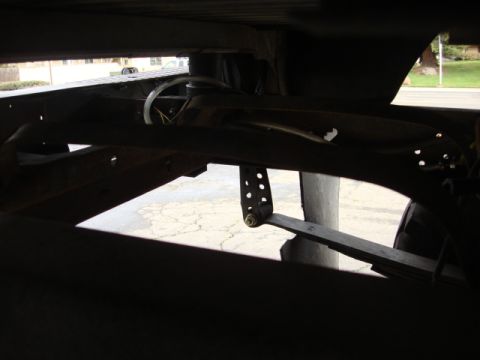

no tank.JPG 482 hits | 31.2 KB | Posted: 3/6/07 after disconnecting the fuel line, filler neck, vent line and the sending unit wires i emptied the g...

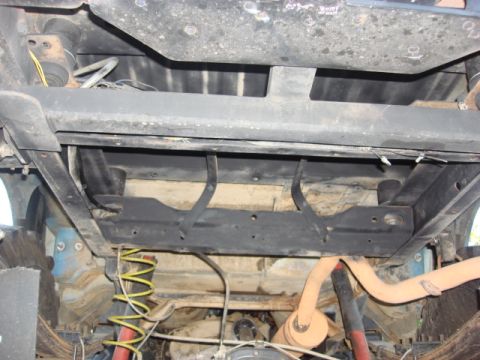

no tank.JPG 635 hits | 69.44 KB | Posted: 3/5/07 i washed the area where the tank was. i then hit it with flat black.

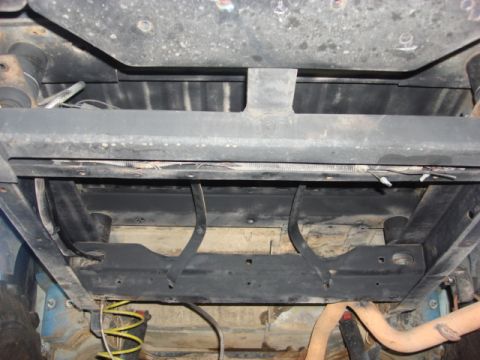

no tank2.JPG 515 hits | 63.33 KB | Posted: 3/5/07 here is another shot of no tank.

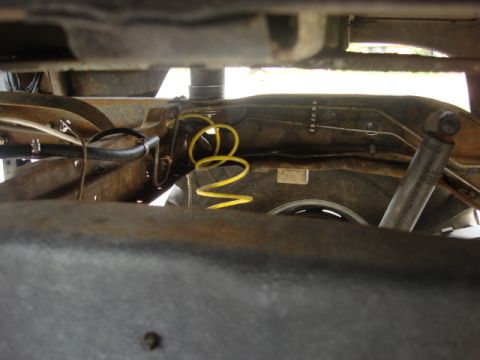

fuel lines.JPG 629 hits | 44.82 KB | Posted: 3/6/07 these are the old fuel lines. i going to pull them out and swap in the new EFI lines soon.

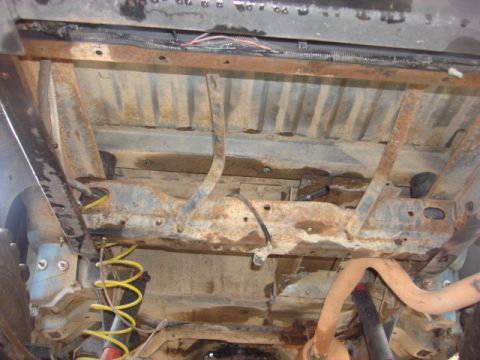

no tank2.JPG 523 hits | 67.47 KB | Posted: 3/6/07 this is the hole where the fuel tank was. i need to clean it up and hit it with some paint.

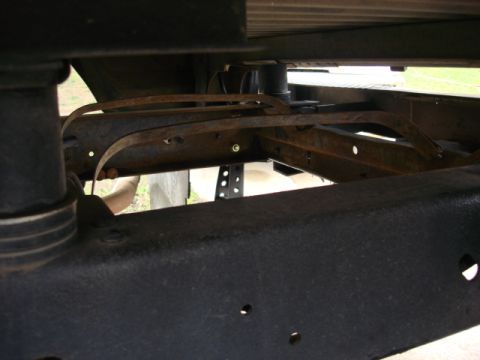

notank3.JPG 529 hits | 39.61 KB | Posted: 3/6/07 here is the top straps that sandwhich the tank into its place.

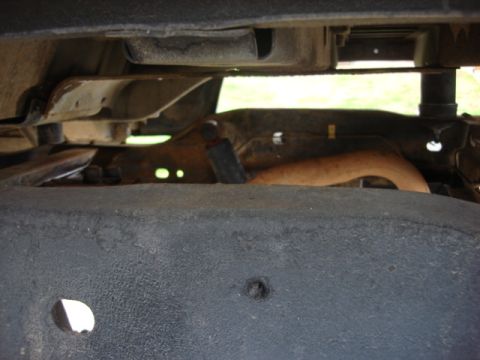

notank4.JPG 532 hits | 49.75 KB | Posted: 3/6/07 this is the pass side vent line to the charcole can under the hood. i going to swap it out for the n...

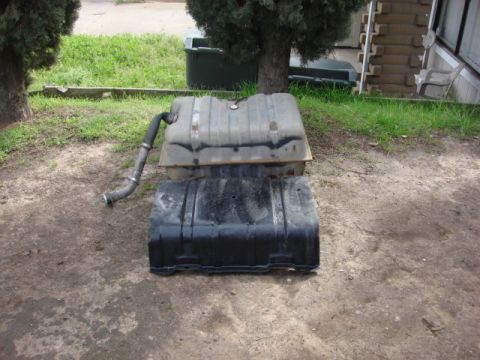

old gastank.JPG 663 hits | 72.99 KB | Posted: 3/6/07 here is the old tank and skid.

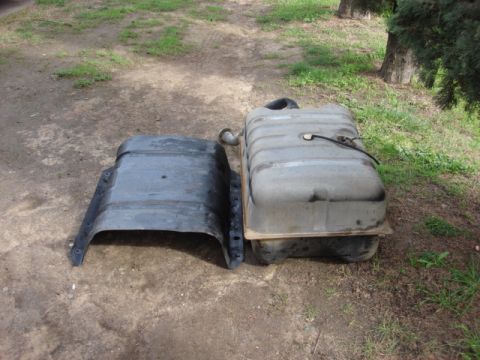

oldgastank2.JPG 631 hits | 74.01 KB | Posted: 3/6/07 here is another view of the tank and skid plate.

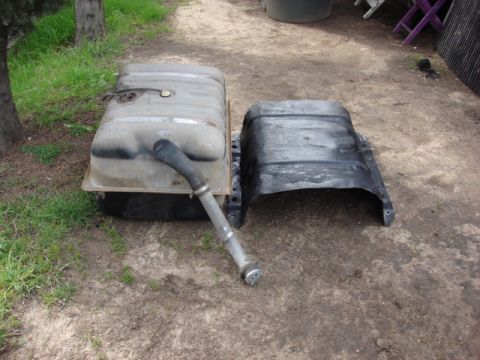

oldgastank3.JPG 564 hits | 73.34 KB | Posted: 3/6/07 here is the last shot of the old tank and skid plate.

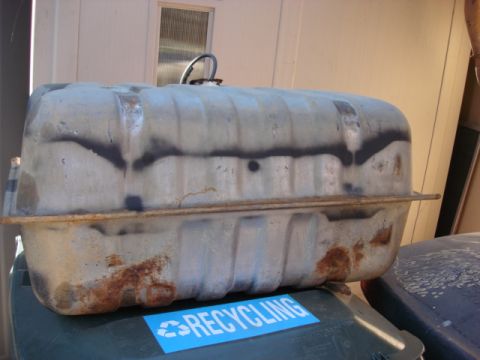

83 gas tank.JPG 533 hits | 48.52 KB | Posted: 7/3/07 here is the stock 83 carb fuel tank.

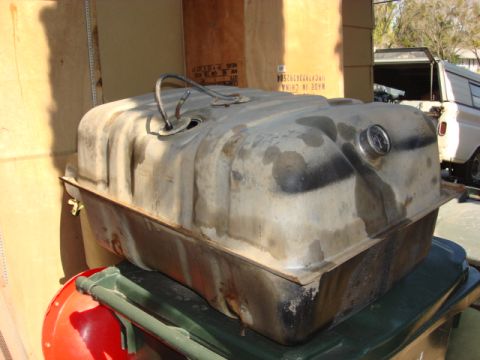

83 gas tank2.JPG 600 hits | 57.58 KB | Posted: 7/3/07 this view shows the small neck and sending unit holes of the non-EFI fuel tank.

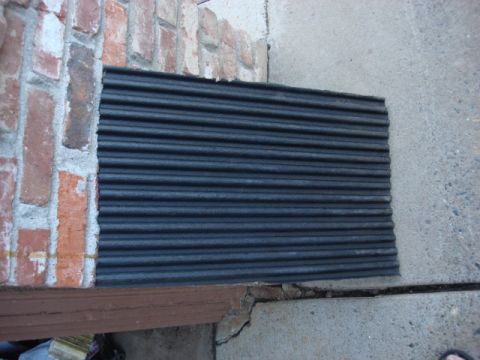

tank mat.JPG 612 hits | 62.41 KB | Posted: 3/5/07 i wanted to have a way to get the dirt out from under the tank. i had this chunk of bed liner on the...

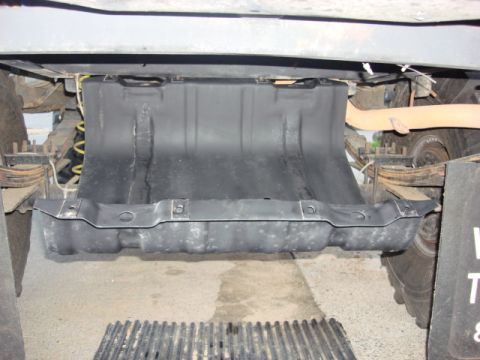

notank3.JPG 620 hits | 58.2 KB | Posted: 3/5/07 now it is all going back together, i put 2 bolts on the back side of the gas tank to hold the skid p...

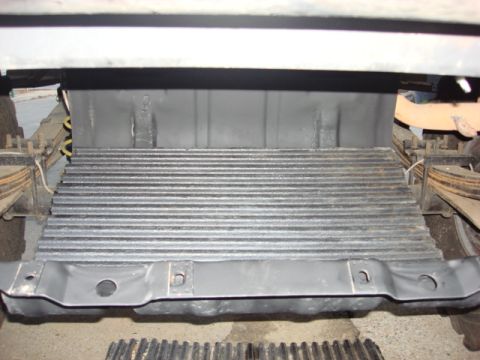

notank4.JPG 712 hits | 58.1 KB | Posted: 3/5/07 i put the bed liner on the bottom of the skid plate..
notank5.JPG 792 hits | 57.78 KB | Posted: 3/5/07 i then put the gas tank in the skid plate on the bed liner.

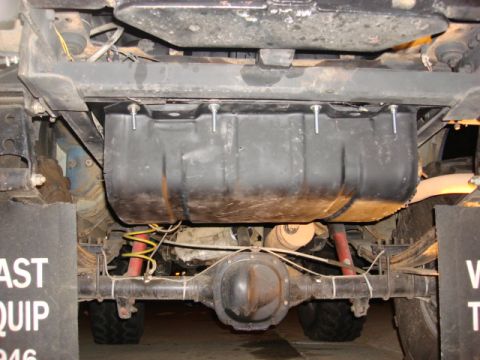

notank6.JPG 617 hits | 69.82 KB | Posted: 3/5/07 i forgot the top straps were adjustable so i got longer bolts first. i will trim them down some soon...

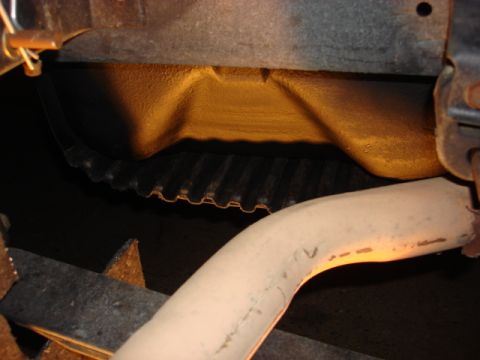

notank9.JPG 545 hits | 44.65 KB | Posted: 3/5/07 here is the pass side bottom of the tank and skid.

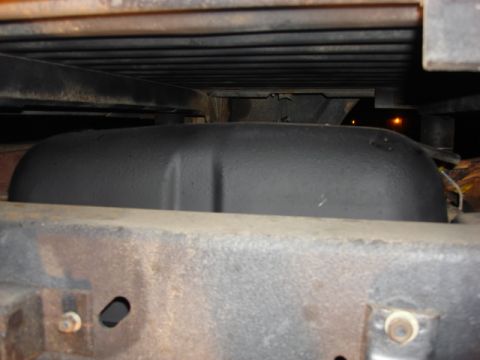

notank10.JPG 677 hits | 40.47 KB | Posted: 3/5/07 here is the pass side tank top.

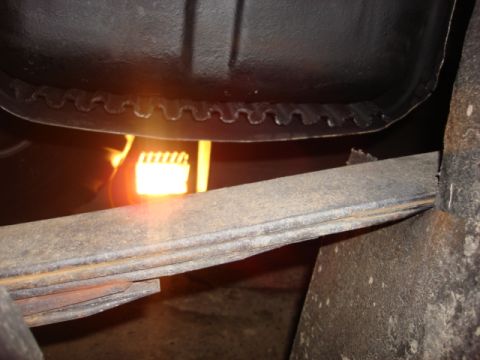

notank8.JPG 630 hits | 52.09 KB | Posted: 3/5/07 here s the drivers side tank bottom.

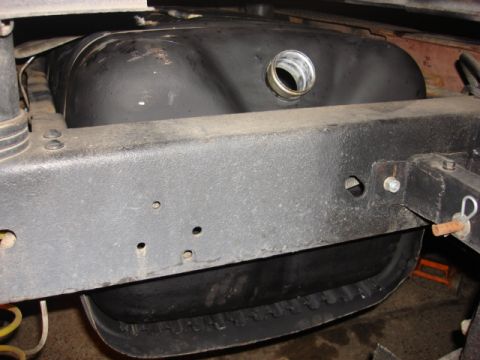

notank7.JPG 624 hits | 56.7 KB | Posted: 3/5/07 here is where the filler neck goes..

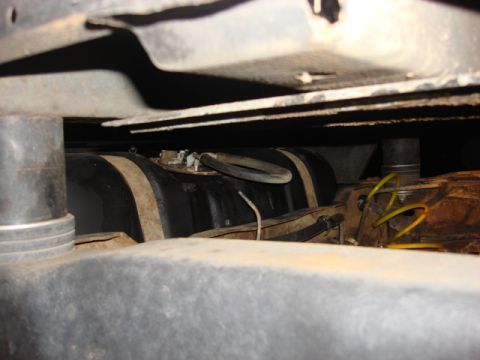

notank11.JPG 483 hits | 46.25 KB | Posted: 3/5/07 you can see the fuel line connection point. i got to run the lines and power next. i stll got to rem...

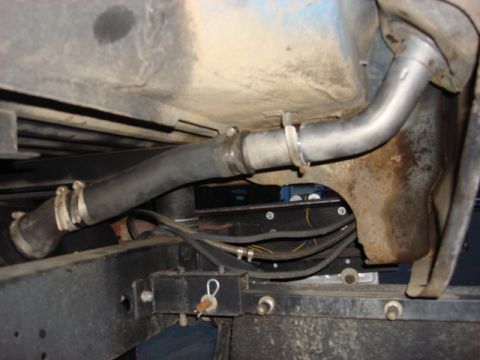

DSC00890.JPG 587 hits | 52.05 KB | Posted: 3/9/07 the filler neck was next since the newer version has a screw in cap not twist on. and there is a fil...

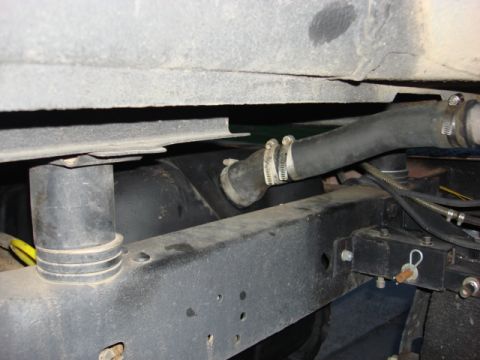

DSC00891.JPG 554 hits | 54.2 KB | Posted: 3/9/07 here is another shot of the filler hose.

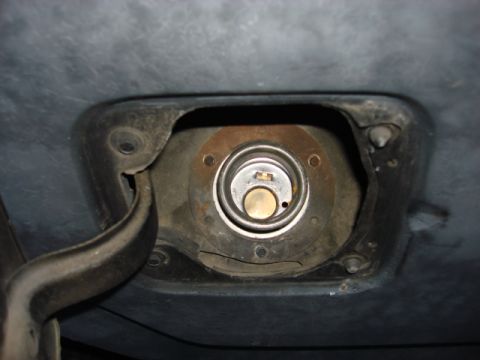

DSC00892.JPG 634 hits | 39.79 KB | Posted: 3/9/07 here is the new filler neck. some how i broke the screw in cap , so i get a new one soon.

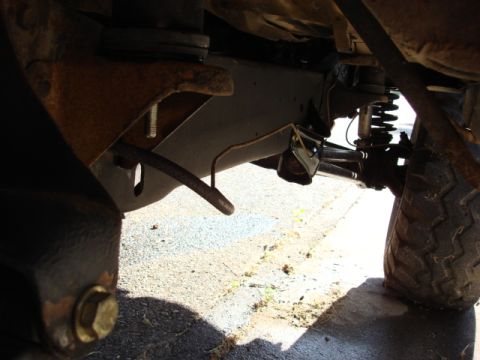

bronco smog.JPG 480 hits | 53.31 KB | Posted: 7/3/07 the EFI uses a larger 3/8 Evap line. here is the 1/8" line in the stock location. it runs in 2 piece...

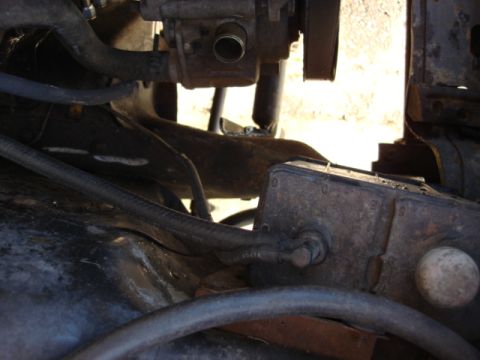

bronco smog2.JPG 480 hits | 48.42 KB | Posted: 7/3/07 Here is the charcole can side of the system after it was replaced. i get a better picture after i in...

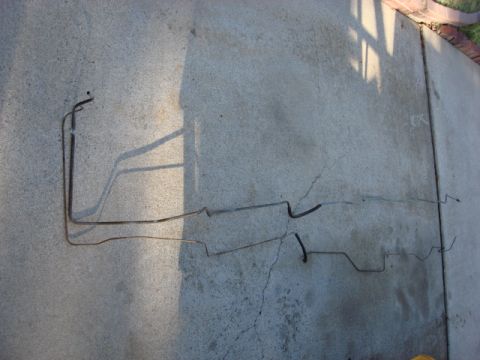

bronco smog3.JPG 483 hits | 55.33 KB | Posted: 7/3/07 here is the stock 1983 carb line next to the the EFI line off a 1994 Bronco.

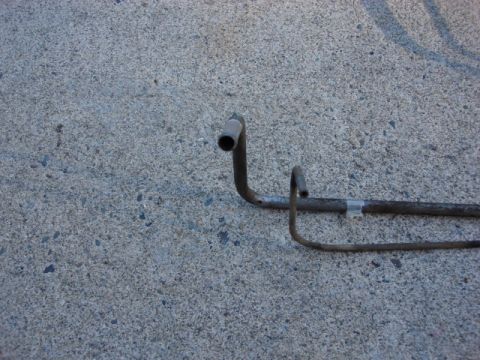

bronco smog4.JPG 474 hits | 92.75 KB | Posted: 7/3/07 here is a better shot of the size difference of the 2 lines.

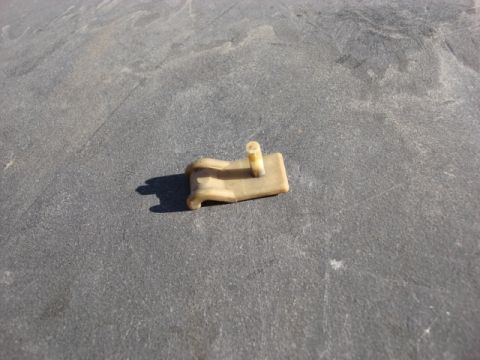

evap clip.JPG 477 hits | 62.54 KB | Posted: 7/3/07 this is the stock clip that holds the line to the frame. I needed the newer larger size line clips b...

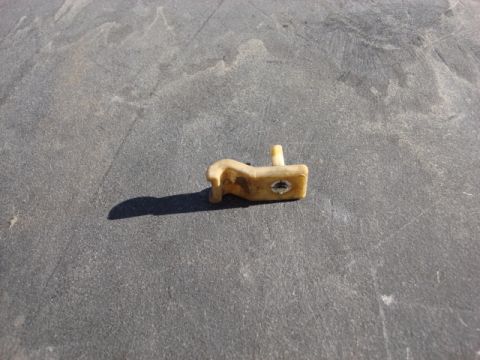

evap clip2.JPG 485 hits | 66.52 KB | Posted: 7/3/07 Here is a side view of the stock clip it fits in a hole in the frame and then the pin spreads the cl...

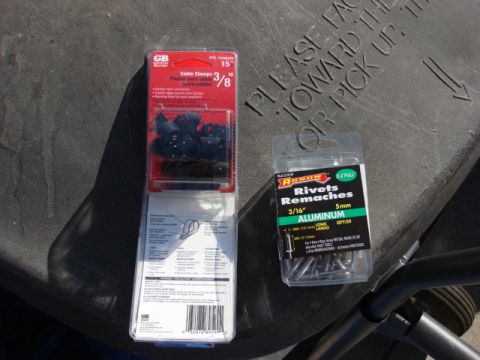

new clip.JPG 517 hits | 59.86 KB | Posted: 7/3/07 after looking around at options i decieded some 3/8 hose clips and 1/4 rivets would do the job just ...

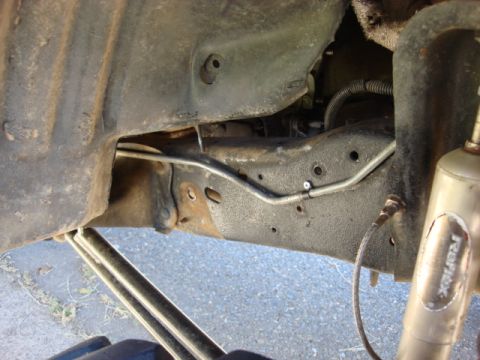

new line.JPG 484 hits | 65.83 KB | Posted: 7/3/07 Here is the new line in the front wheel well to the Charcole can can.

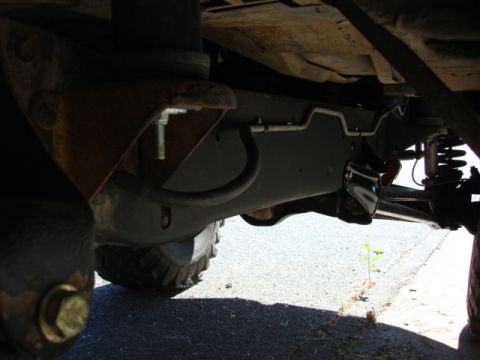

new lines2.JPG 533 hits | 45.49 KB | Posted: 7/3/07 Here is the new line running down the frame sorr it was dark but the rubber loop it the tie in to th...

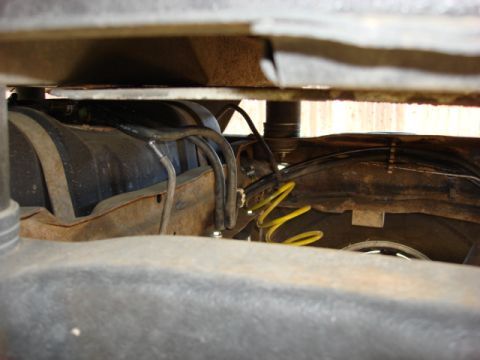

new lines.JPG 487 hits | 48.06 KB | Posted: 7/3/07 here is the rear hard line to the rubber line that connects to the fuel tank.

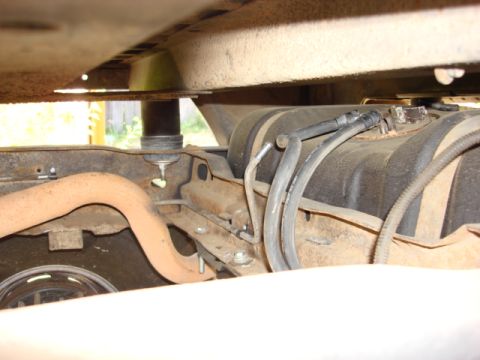

new lines3.JPG 570 hits | 52.61 KB | Posted: 7/3/07 here is another view of the hard line and the new EFI fuel lines. I put a clip at each place a stock...

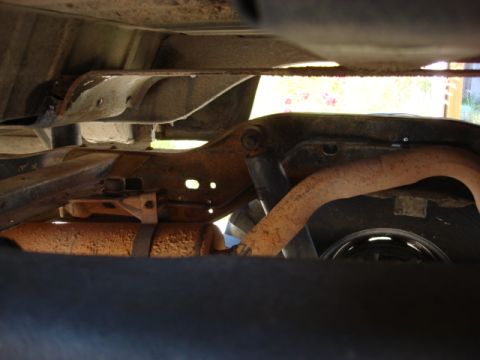

new lines4.JPG 500 hits | 43.68 KB | Posted: 7/3/07 it is hard to see the main line but it runs inside the frame rail behind the shock and pokes out a h...
Gas tank swap
