actual motor swap

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

26 photos
← Back to this vehicle

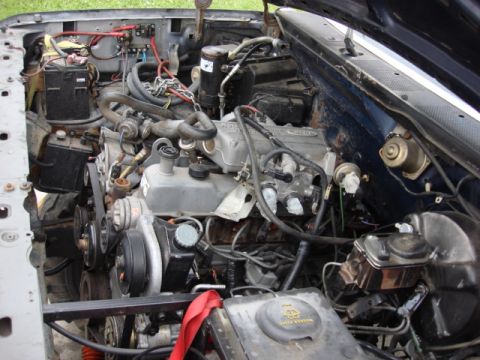

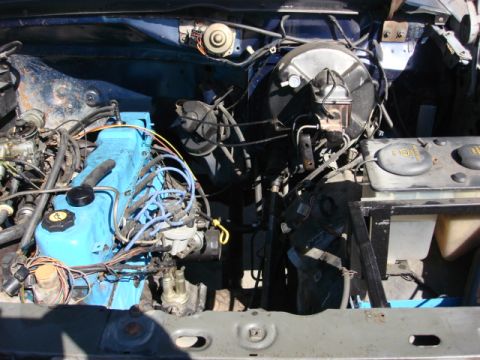

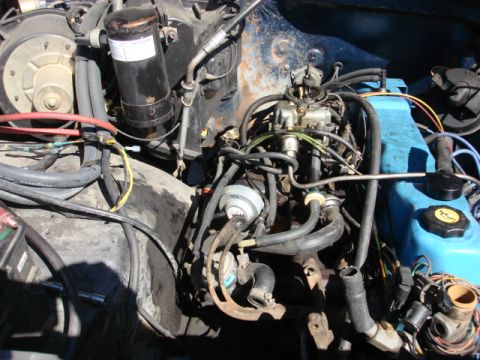

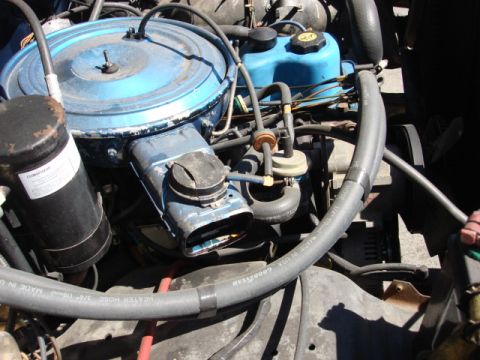

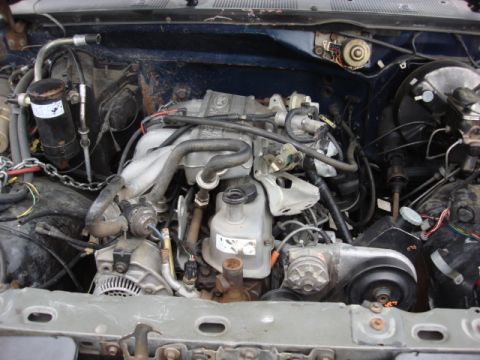

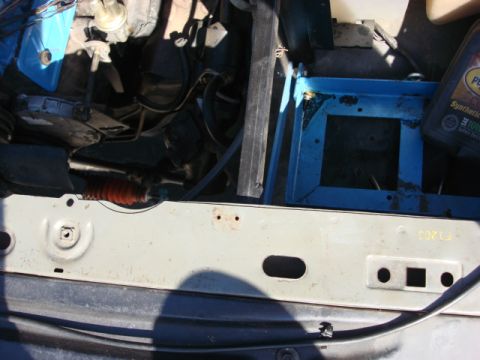

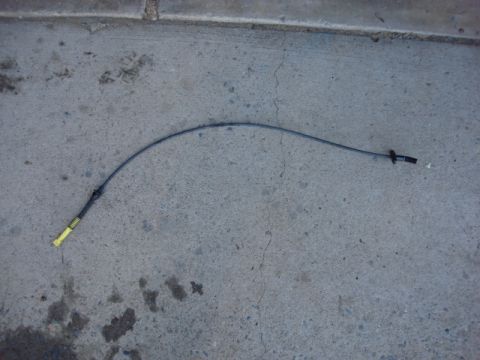

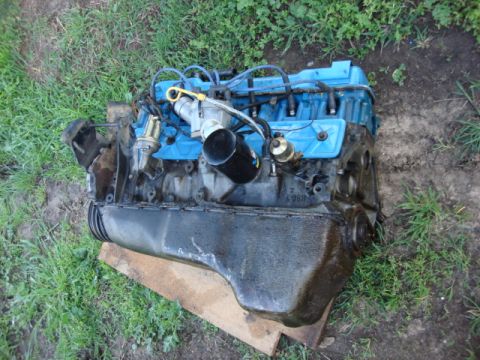

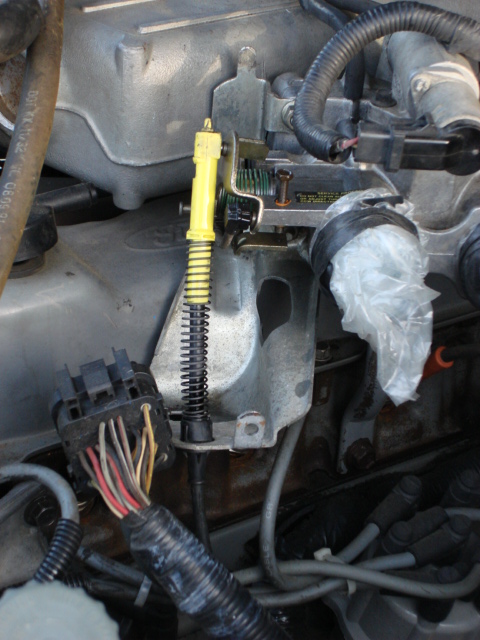

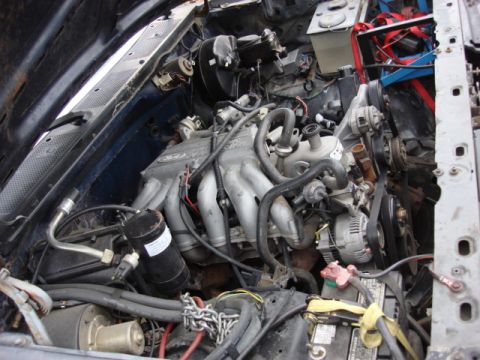

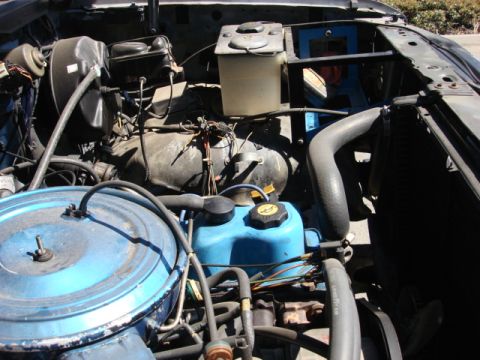

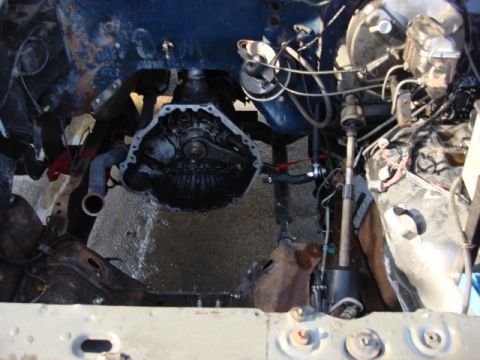

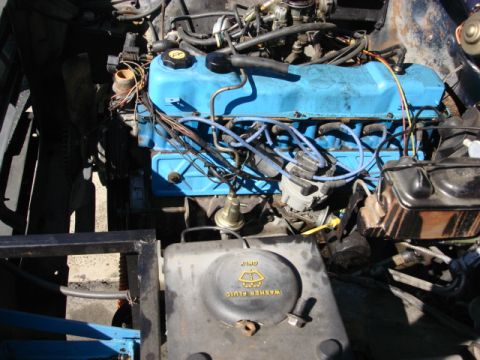

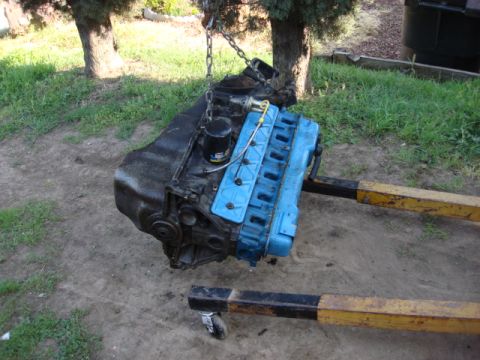

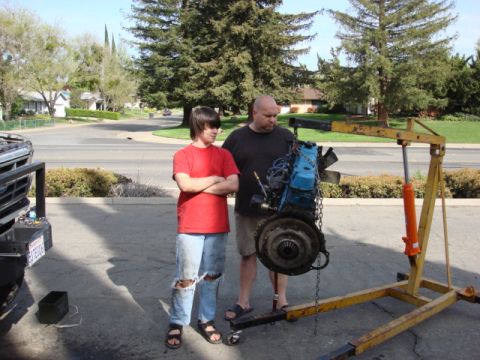

1983 Ford Bronco - now is the time to pull out the old 4.9. here is the way she looked as i started. 1983 Ford Bronco - here is another view 1983 Ford Bronco - another view of before. 1983 Ford Bronco - this is the last of how it was. 1983 Ford Bronco - next in motor removal 1983 Ford Bronco - next in line 1983 Ford Bronco - well the motor came out without too much fight. it is is with my son and I. 1983 Ford Bronco - here is a second view of the motor on the picker. waiting for it next home. 1983 Ford Bronco - here is the motor waiting for a new home. 1983 Ford Bronco - here is one of the last times we will see this 83 4.9 as the new owner is on the way to get it. 1983 Ford Bronco - here is the emptie motor compartment. I going togive it a fast bath. 1983 Ford Bronco - well after replacing the jack on my cherry picker i was able to get the new motor in. i had to deflate the tires to get the motor in and so… 1983 Ford Bronco - here is a view from the front. all bolted in place. 1983 Ford Bronco - here is a look from the pass side. just in time for the rain. this is all that gets done today. next is connected everything and start her… 1983 Ford Bronco - i cleaned the EFI throddle cable. it is ready for the install. 1983 Ford Bronco - The EFI cable is longer than the carb cable. the EFI cable is on the bottom. 1983 Ford Bronco - the cable is an easy swap. the end snaps off the pedal assemblt and the carb and there is 2 10M bolts that holds the cable to the firewall. 1983 Ford Bronco - here is the EFI cable connection at the throddle body. 1983 Ford Bronco - it is hard to see but the dual exhaust bolted right into place. 1983 Ford Bronco - Here is the front fuel lines all clean and ready to e installed. 1983 Ford Bronco - as i was connecting the the fuel line i found out there are a couple different line connection types. there is a steel clip and a plastic c… 1983 Ford Bronco - here you can see the issue. 1983 Ford Bronco - after alot of thought and a few searches and calls i came up with this converter adapter. 1983 Ford Bronco - here it is all connected. i was able to connect the twollines together without issue. 1983 Ford Bronco - since i was now able to connect the lines i drilled the front frame to hold the mounting bracket for the fuel lines. 1983 Ford Bronco - here is the last view of the bracket in place.
