Front Bunk Fix

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

14 photos
← Back to this vehicle

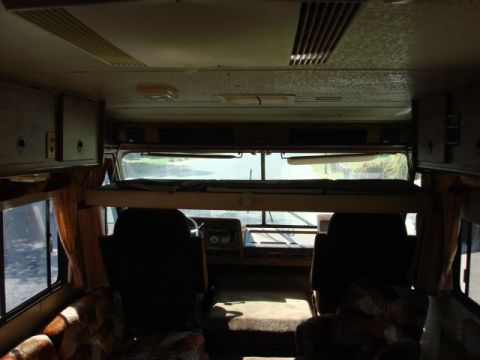

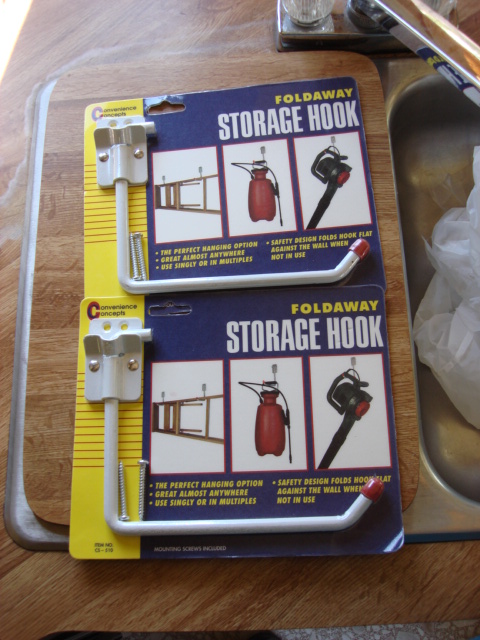

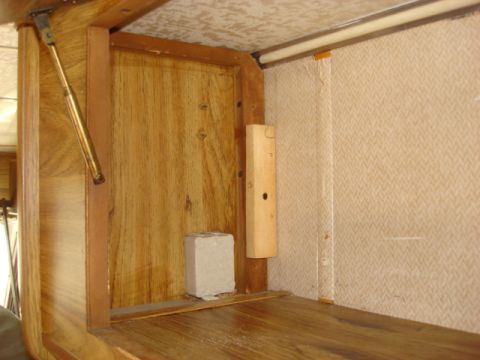

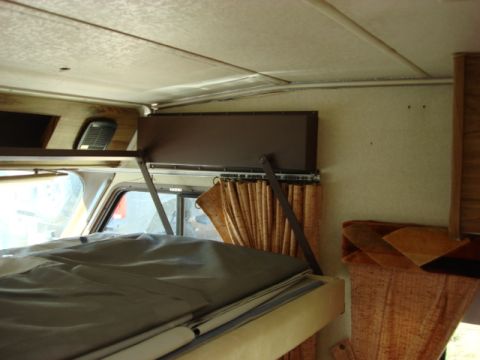

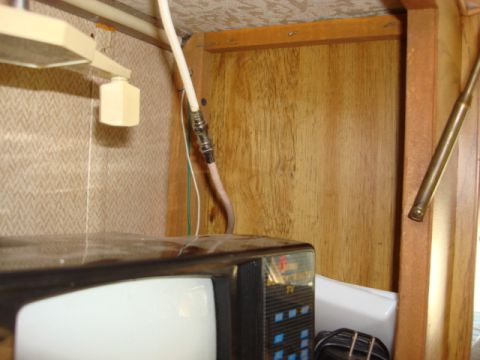

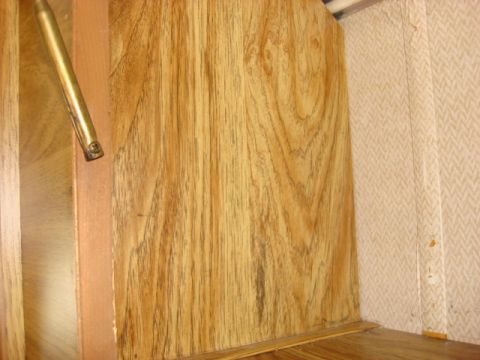

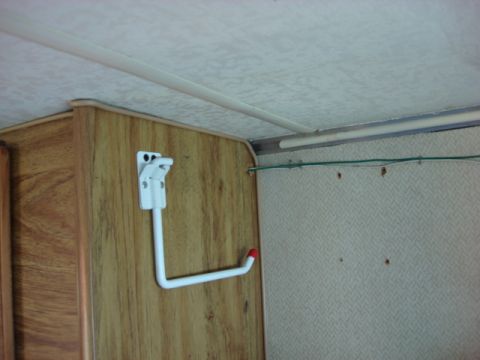

1983 Ford Bronco - This motorhome has a twin front drop bunk. i moved the extra room storage to the bunk and this dropped it down an inch-just enough for the… 1983 Ford Bronco - Here is the bunk dropped down. you can see the spare room on the bunk. 1983 Ford Bronco - here is the pass side and the room avalable. i thought about many different supports. 1983 Ford Bronco - Here is the drivers side bunk space 1983 Ford Bronco - As i was in the store looking for ideas these stood out like a sore thumb. They were in the right price range too. 1983 Ford Bronco - ok here is the driver side cabinet i need to make a support brace to hold the bed lock. The driver side is not to bad. 1983 Ford Bronco - The pass side had a false wal inside it so i had to pull it out and do this upgrade. 1983 Ford Bronco - here is the same space without the false wall in place. there is an outlet on the front of the cabinet so there was a spacer in place as we… 1983 Ford Bronco - Here is the bunk lock in place and set so the bed can go up and down. 1983 Ford Bronco - here is the driver side in the same position. 1983 Ford Bronco - here is the drivers side in the bunk lock position. 1983 Ford Bronco - hhere is the pass side bunk lock 1983 Ford Bronco - i was worried about the point digging into the bunk so i cut a chunk of swimming pool noodle. it can be easiled removed or there is enough… 1983 Ford Bronco - Here is the drivers side pad. after driving a few dozen miles this works great. this was a great fix.
