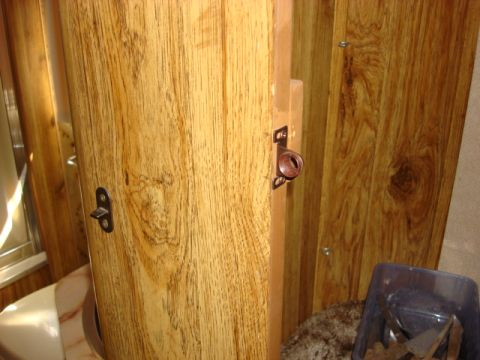

this is the old Pantry latch. it broke and just would not hold the door shut. it would slam open and...
489 hits | 63.14 KB | Posted: 11/13/07
this is the old Pantry latch. it broke and just would not hold the door shut. it would slam open and...

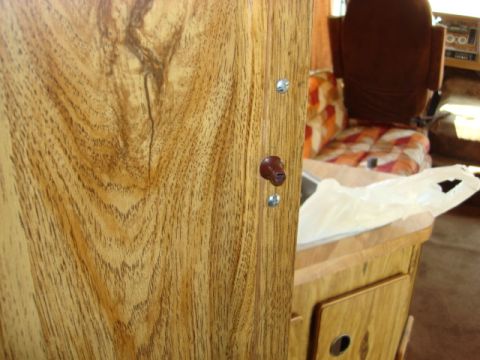

here is the door part of the catch.
486 hits | 64.16 KB | Posted: 11/13/07
here is the door part of the catch.

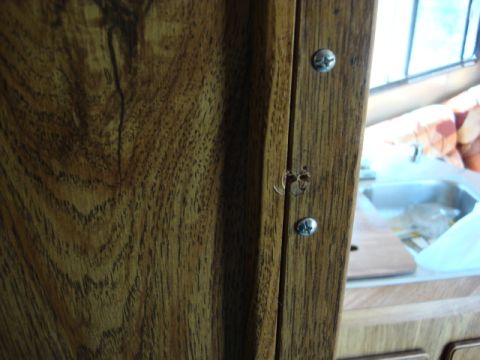

the catch was stripped out and would not hold so i went to a newer style catch.
450 hits | 56.12 KB | Posted: 11/13/07
the catch was stripped out and would not hold so i went to a newer style catch.

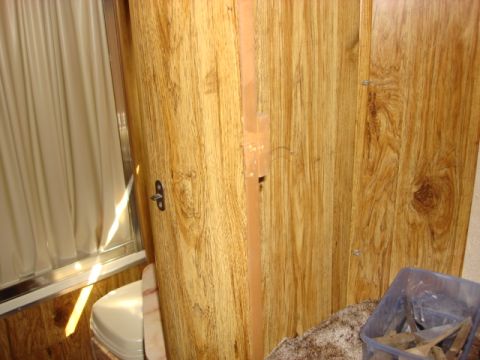

here is the cabinet side with the old latch removed
463 hits | 60.71 KB | Posted: 11/13/07
here is the cabinet side with the old latch removed

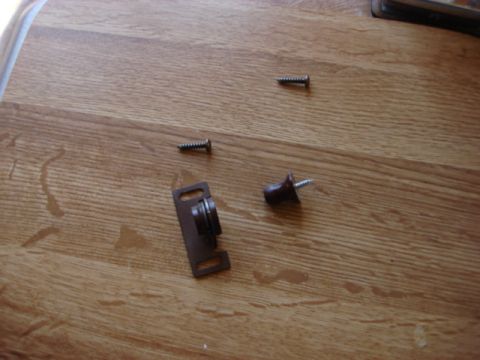

this is how the old catch worked. but the pin was in the door seam and would not hold.
454 hits | 51.94 KB | Posted: 11/13/07
this is how the old catch worked. but the pin was in the door seam and would not hold.

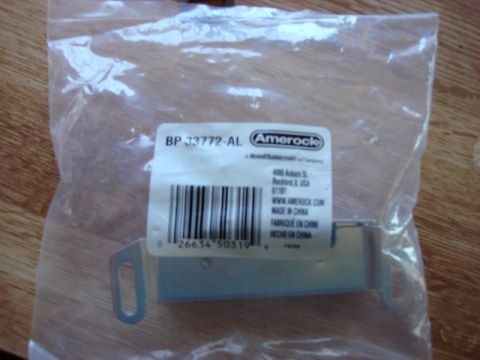

off to Home Depot and got a magnet latch.
520 hits | 47.47 KB | Posted: 11/13/07
off to Home Depot and got a magnet latch.

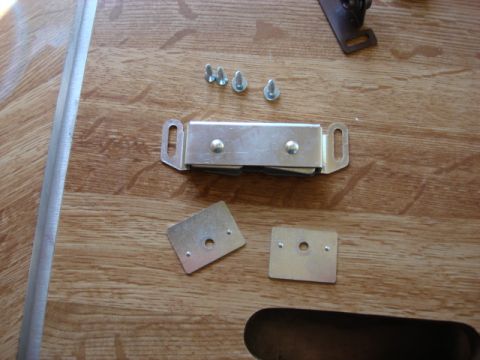

here is the new latch out of the bag.
478 hits | 59.08 KB | Posted: 11/13/07
here is the new latch out of the bag.

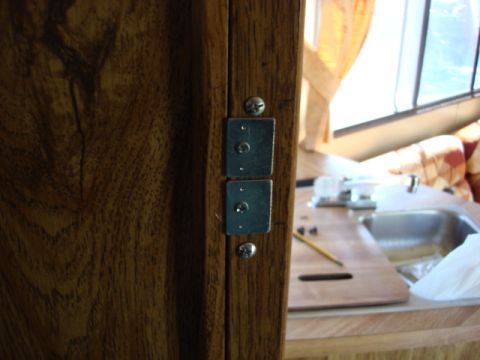

here are the catches on the door they are just metal plates
497 hits | 47.62 KB | Posted: 11/13/07
here are the catches on the door they are just metal plates

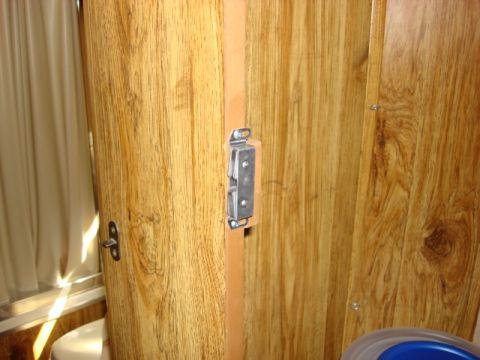

here is the latch on the cabinet side. now the door stays in place.
482 hits | 57.95 KB | Posted: 11/13/07
here is the latch on the cabinet side. now the door stays in place.

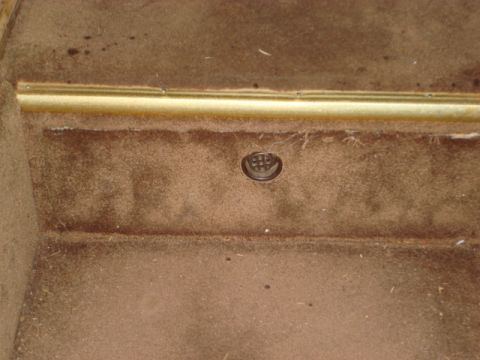

this is the step toolbox it has a broken latch system. here it is at the start.
482 hits | 54.11 KB | Posted: 11/14/07
this is the step toolbox it has a broken latch system. here it is at the start.

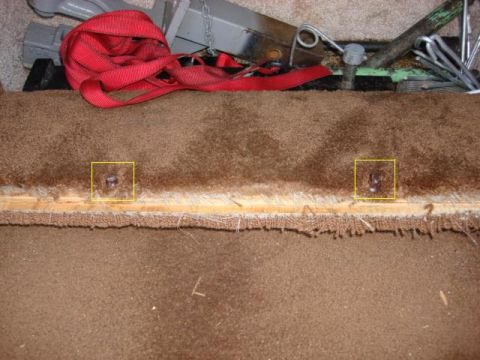

you can see the bulit connectors are worn out. they are in the yellow boxes
516 hits | 63.14 KB | Posted: 11/14/07
you can see the bulit connectors are worn out. they are in the yellow boxes

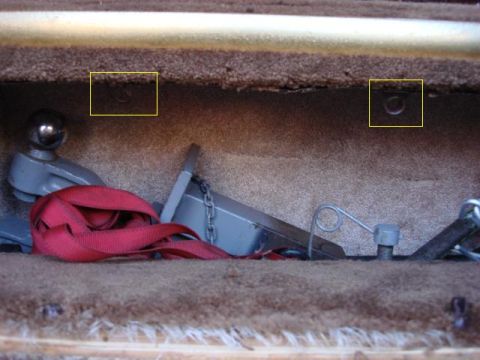

you can see the other end of the latches are worn out as well. again in yellow boxes
517 hits | 51.67 KB | Posted: 11/14/07
you can see the other end of the latches are worn out as well. again in yellow boxes

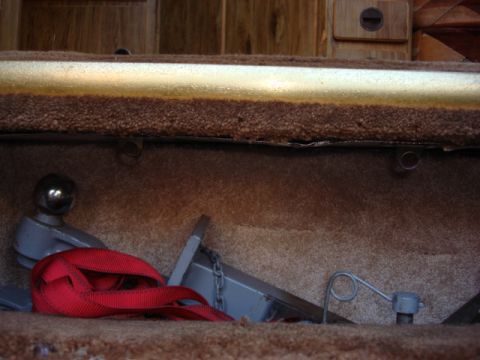

a shot of the worn out without the boxes
474 hits | 55.15 KB | Posted: 11/14/07
a shot of the worn out without the boxes

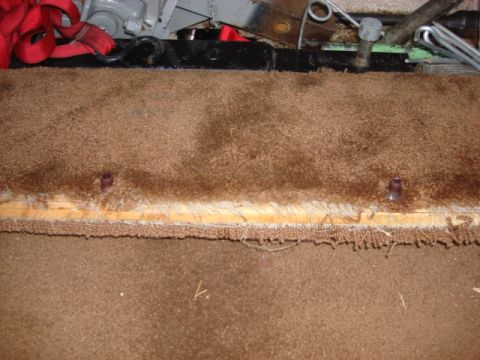

here are the new bulits installed on the door.
505 hits | 72.41 KB | Posted: 11/14/07
here are the new bulits installed on the door.

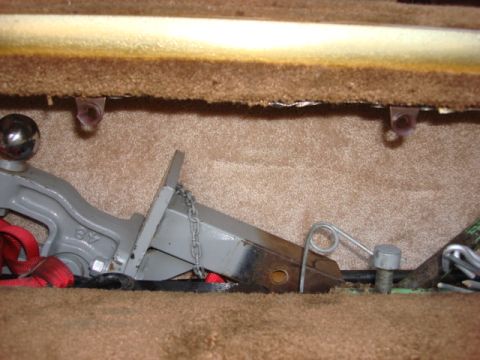

here are the new top latches. this door now stays closed. nice to not have to kick the door shut the...
488 hits | 64 KB | Posted: 11/14/07
here are the new top latches. this door now stays closed. nice to not have to kick the door shut the...
