Horn Install

From 1983 Ford Bronco “Jezebel”, documented by michael collins.

8 photos
← Back to this vehicle

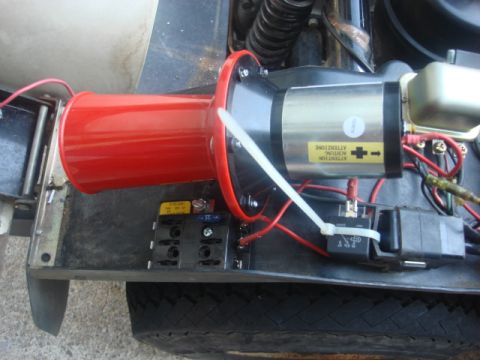

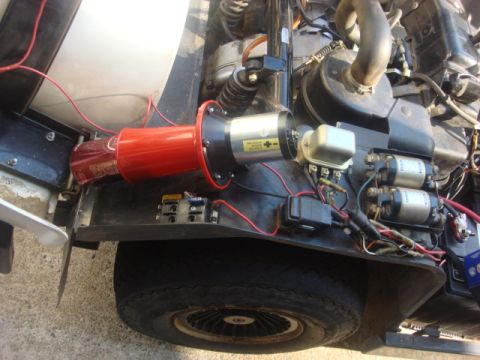

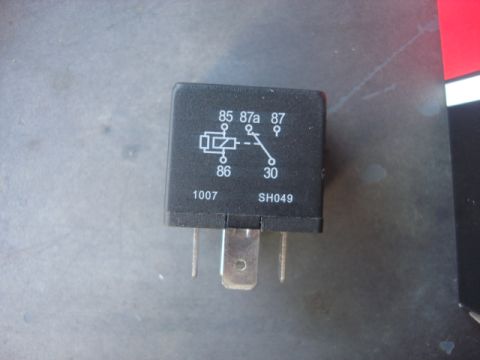

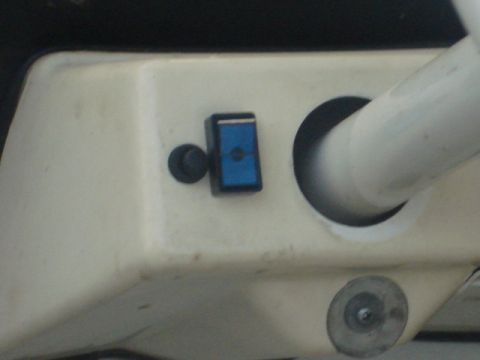

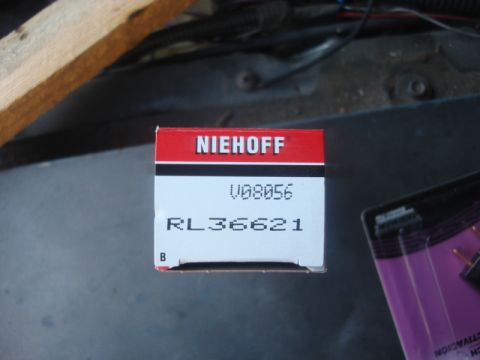

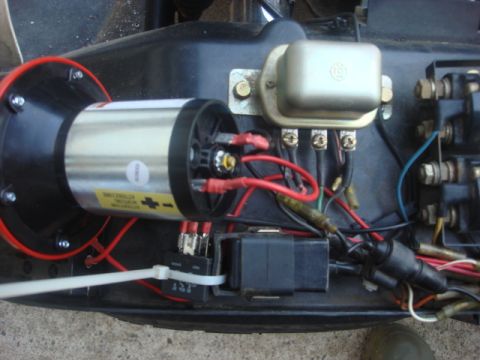

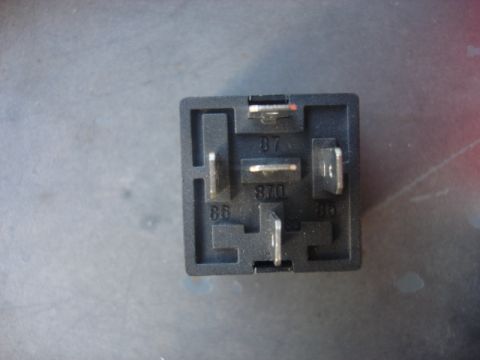

1983 Ford Bronco - I got a standard push button switch for the horn. i drilled a 1/2" hole for the switch and installed the switch. 1983 Ford Bronco - I ran a power from the fuse block to the push button switch (10 amp fuse) 1983 Ford Bronco - I drilled a hole in the rear fender and mounted the Harbor Frieght horn. you can see all the wiring in place here. 1983 Ford Bronco - Here is the relay i used for the horn. it is a common relay. 1983 Ford Bronco - here is the side and wiring diagram for the relay 1983 Ford Bronco - here is the bottom of the relay. 1983 Ford Bronco - i ran a power from a new fuse to the relay and then to the horn and a ground. 1983 Ford Bronco - i zip tied the relay to the coil pack so it will not bounce around. this worked great.
